ET2 Continuum LED Gimbal Optic Track Light
ET2 Continuum LED Gimbal Optic Track Light
$64.00
/

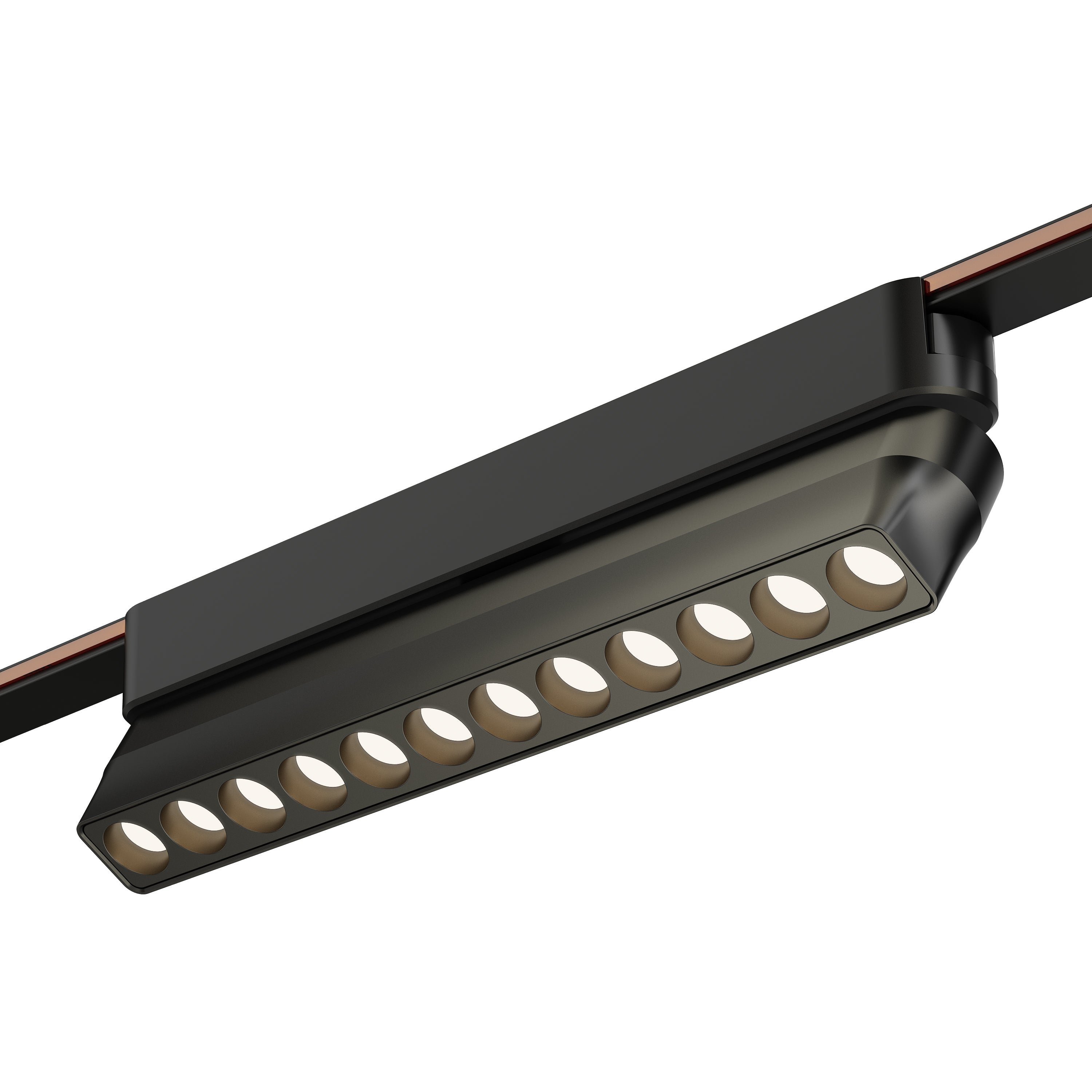

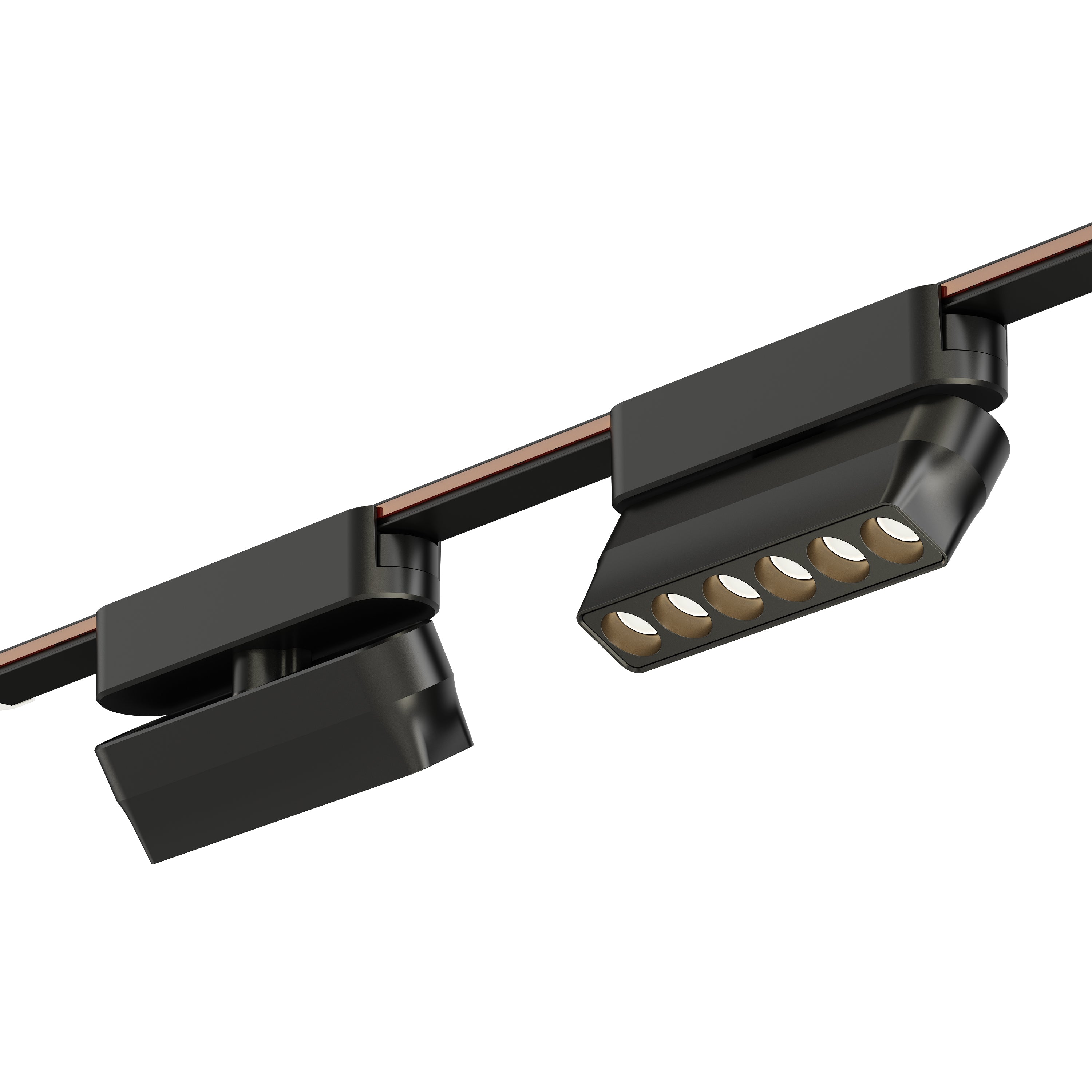

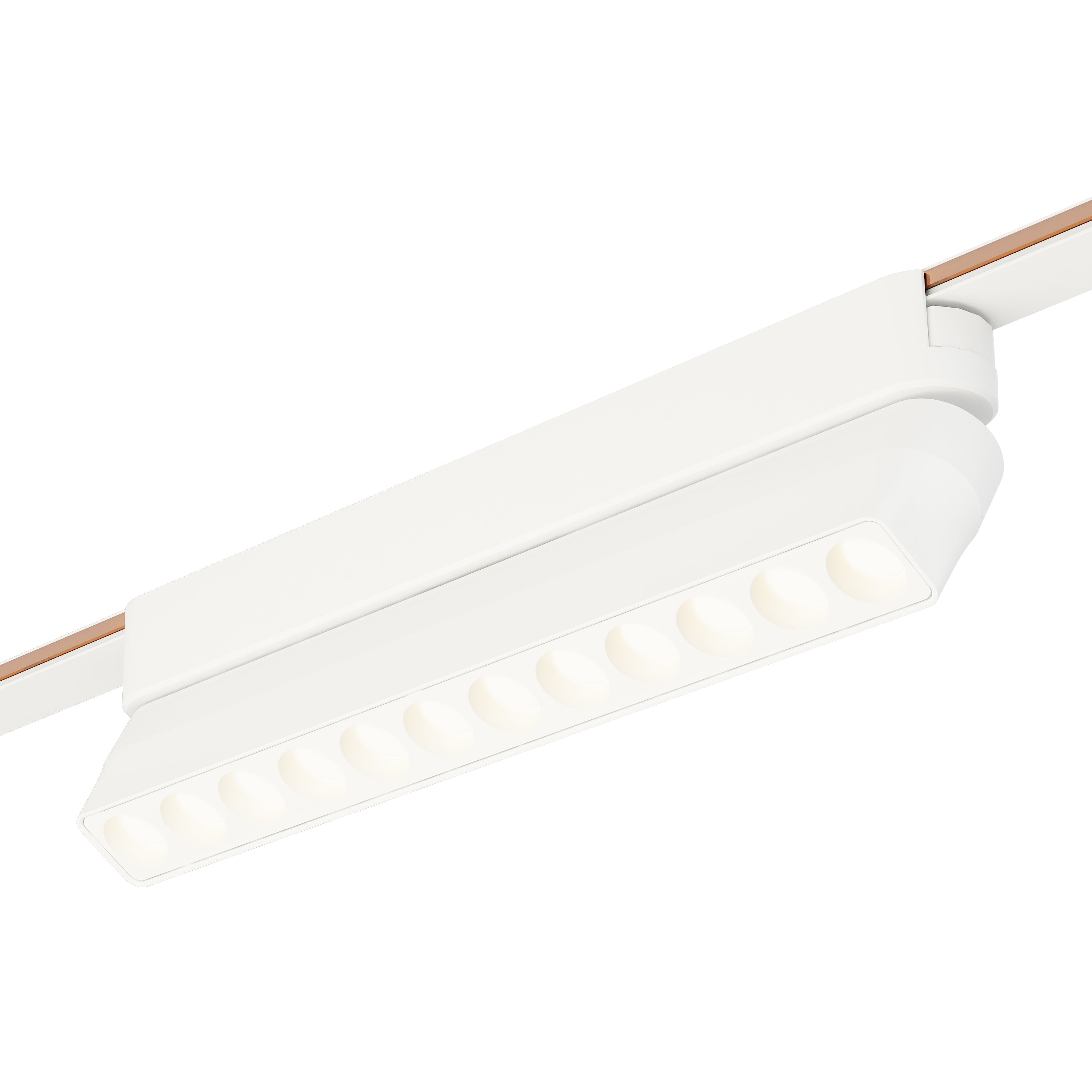

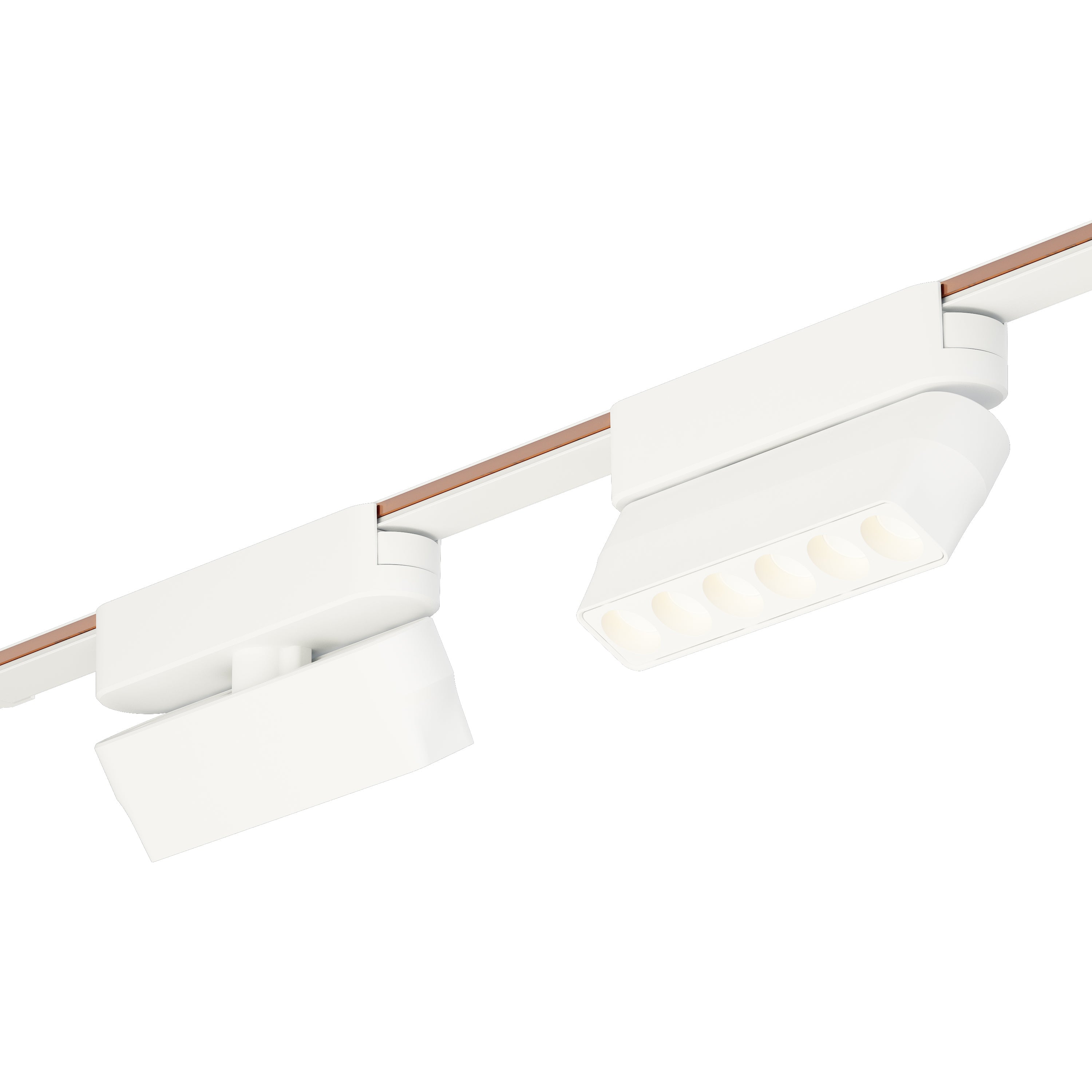

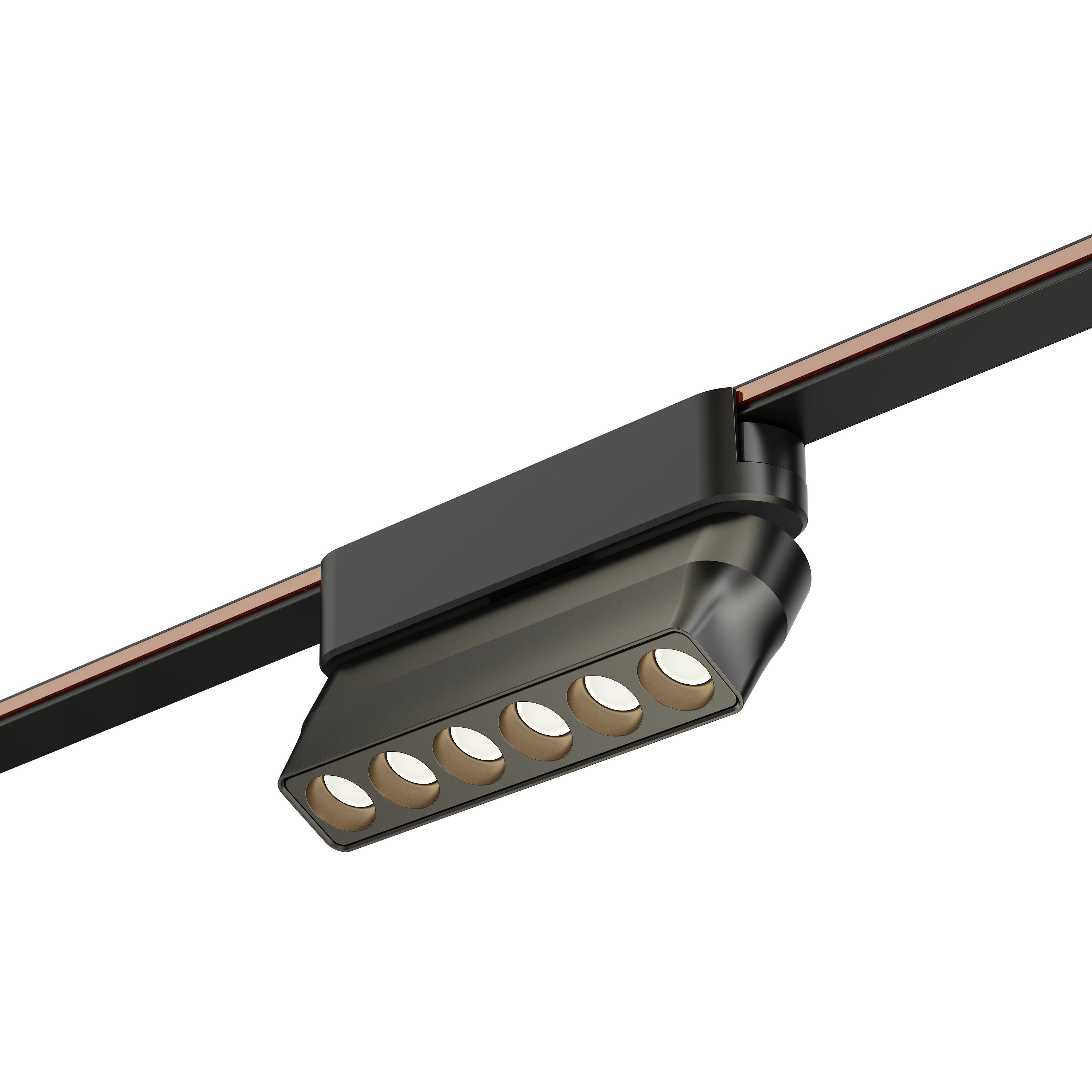

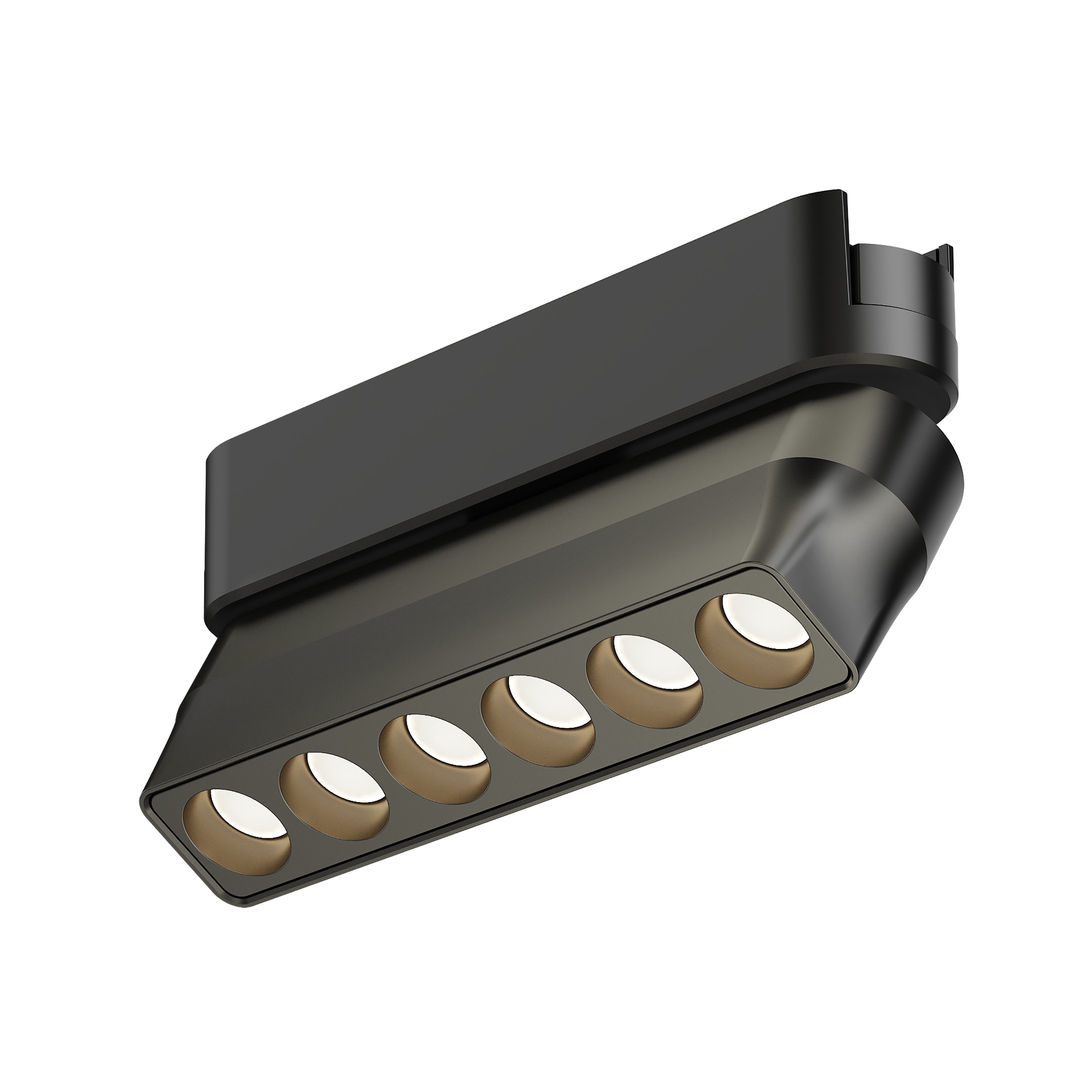

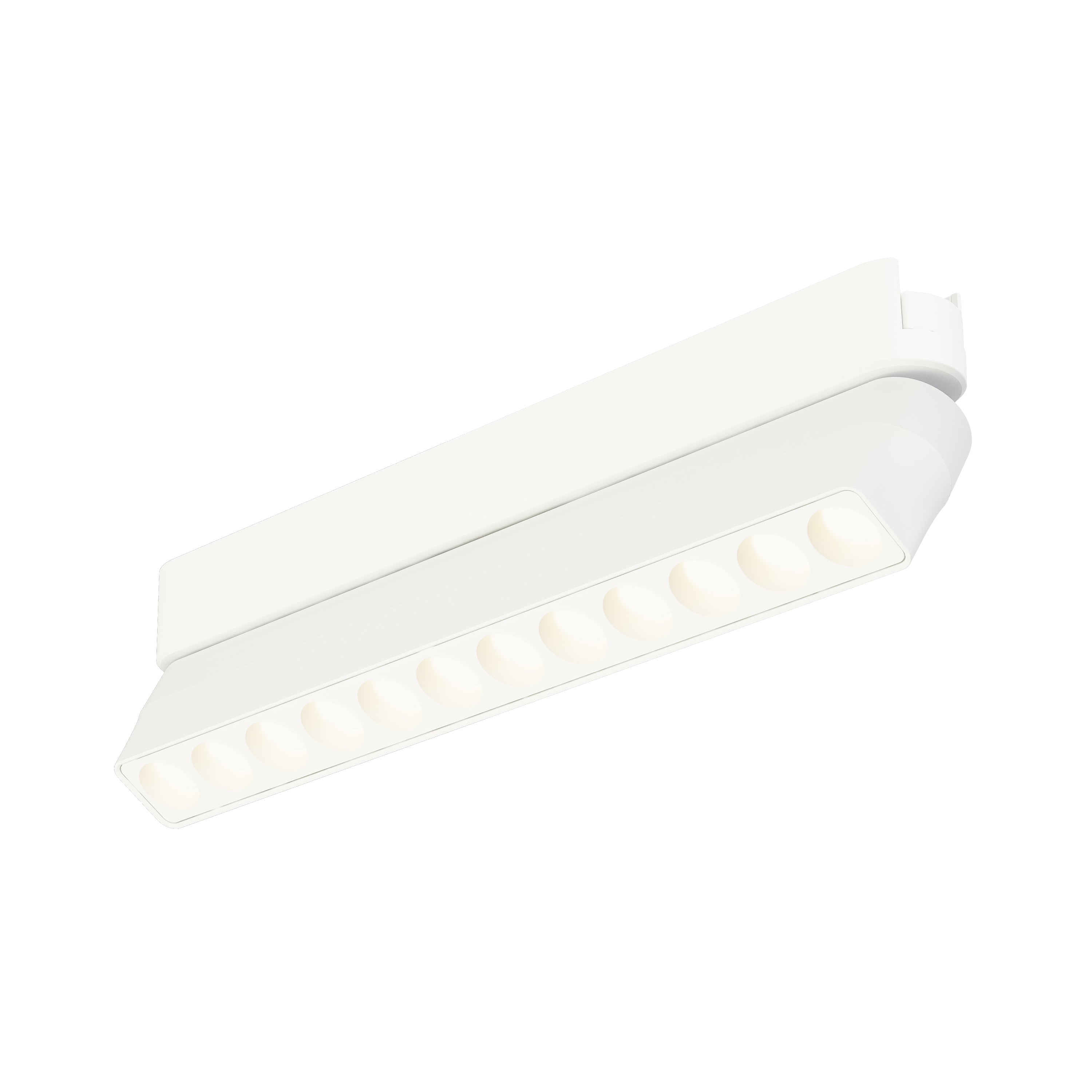

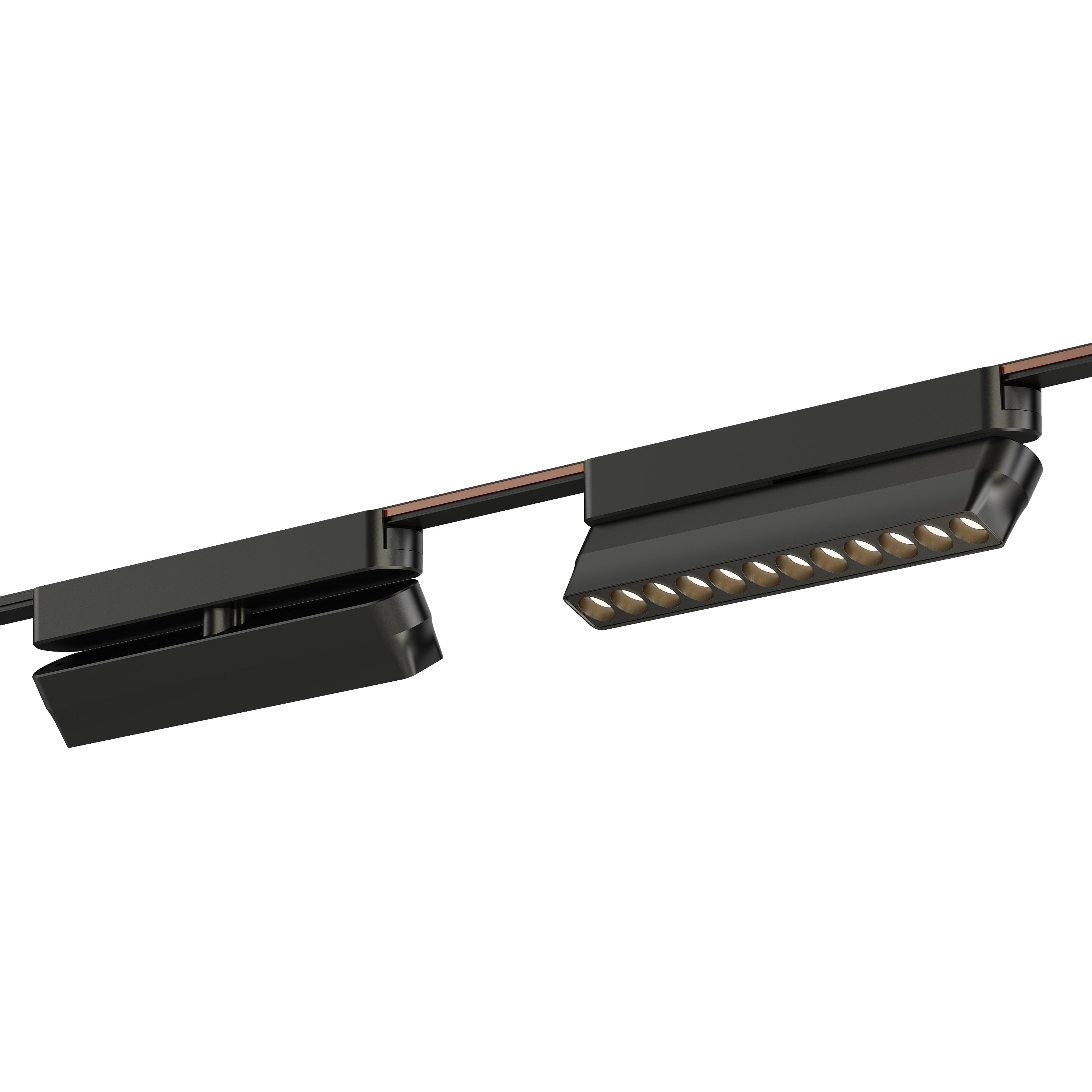

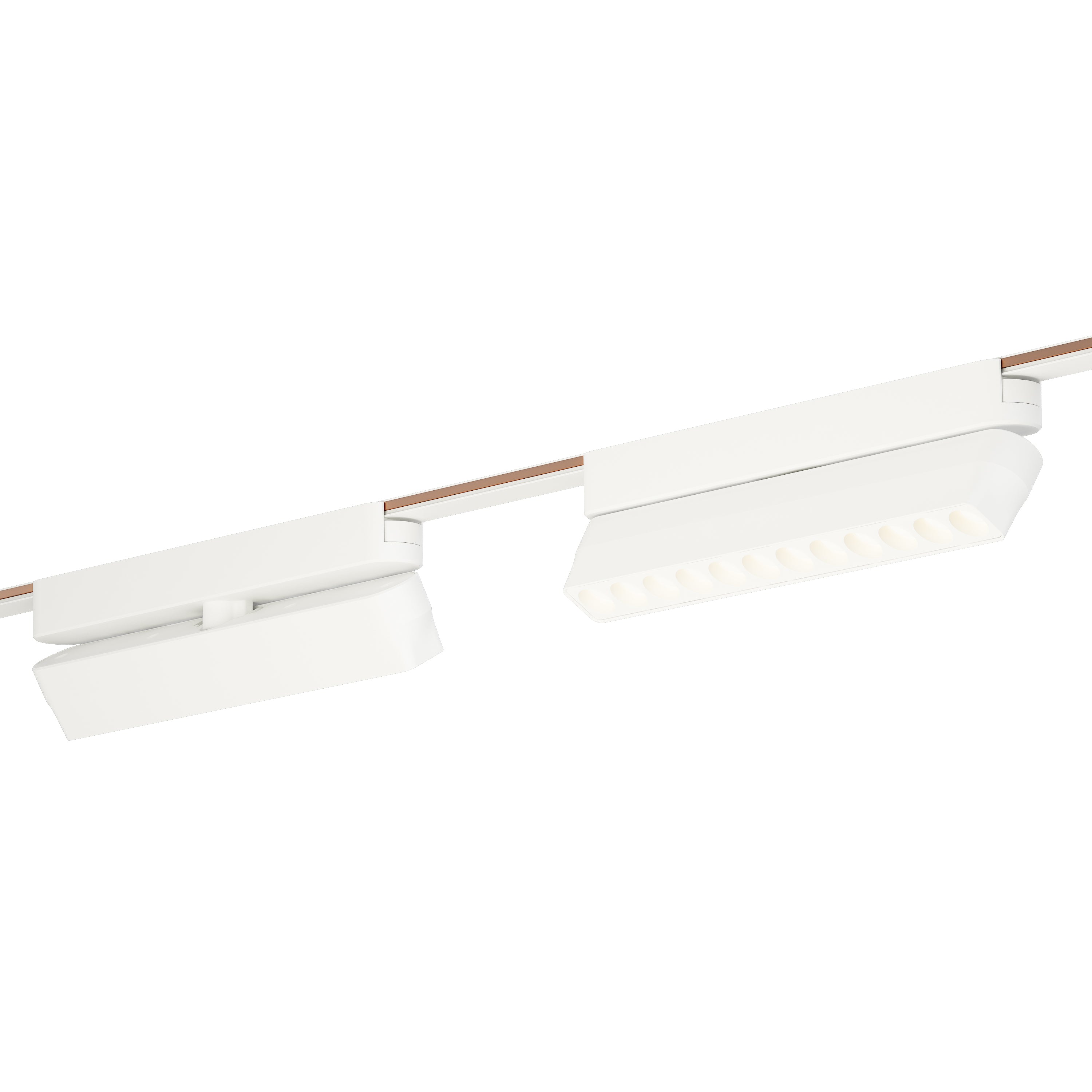

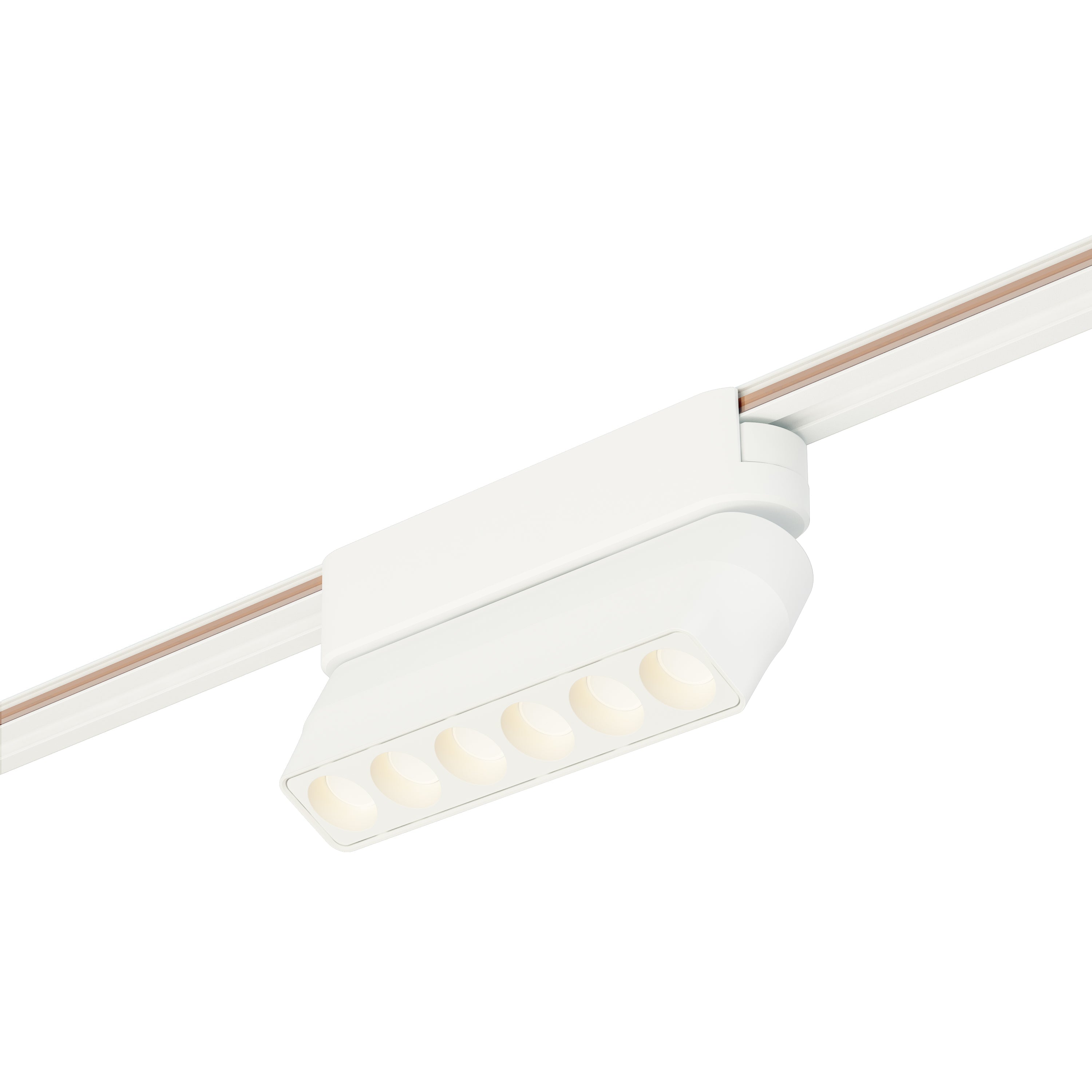

Continuum Gimbal Optic is a linear LED gimbal head that snaps onto the Continuum 24V track. It comes in 5 and 9 inch lengths, in Black or White.
It comes in 2 versions: 5 in and 9 in. Finishes: Black and White.
Choose Your Version
| Version | Dimensions | Wattage | Lumens | Finishes | Item numbers |
|---|---|---|---|---|---|

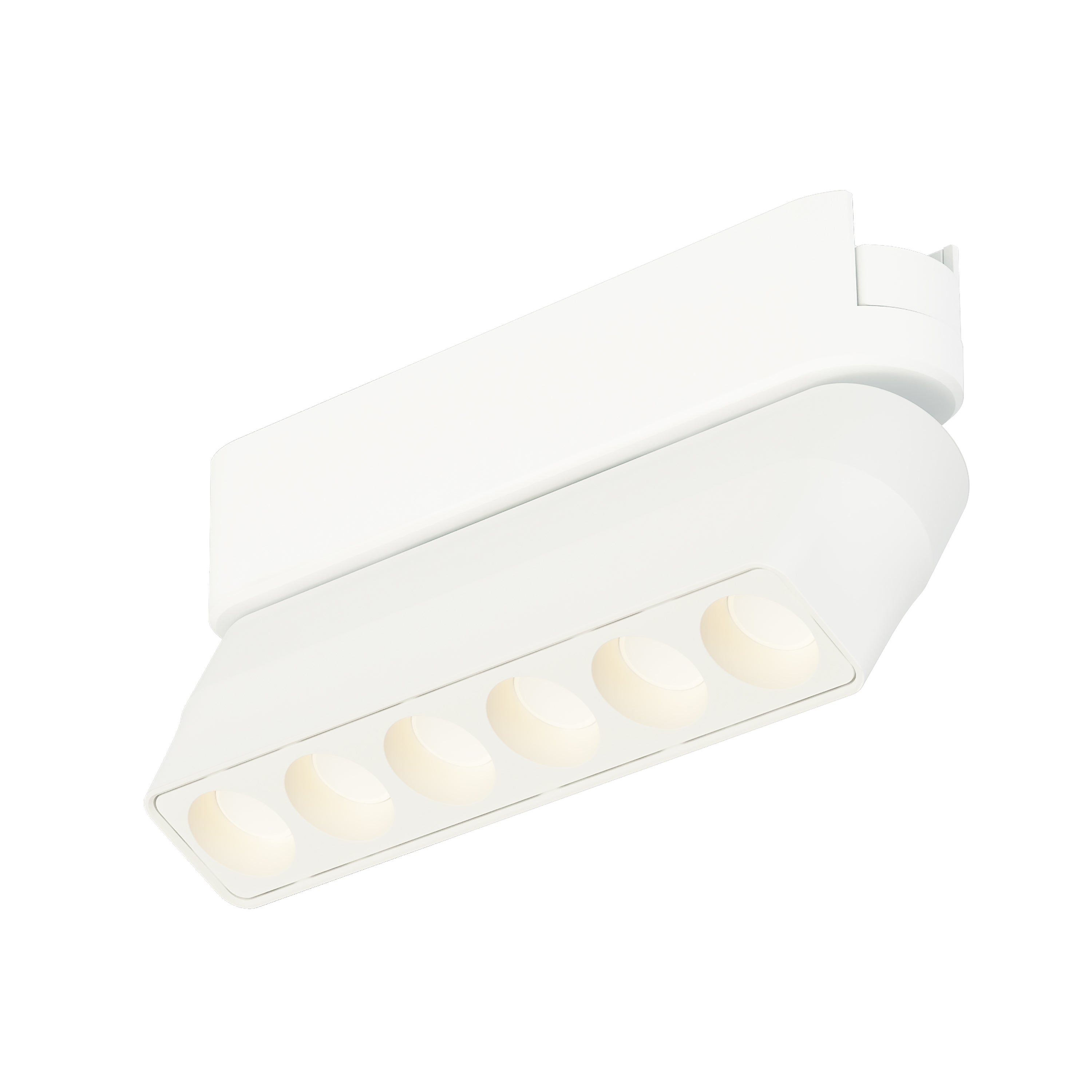

| 5 in | 5 x 1 x 2.25 (L x W x H, in) | 6W | 450 | Black; White | ETL23212-BK, ETL23212-WT |

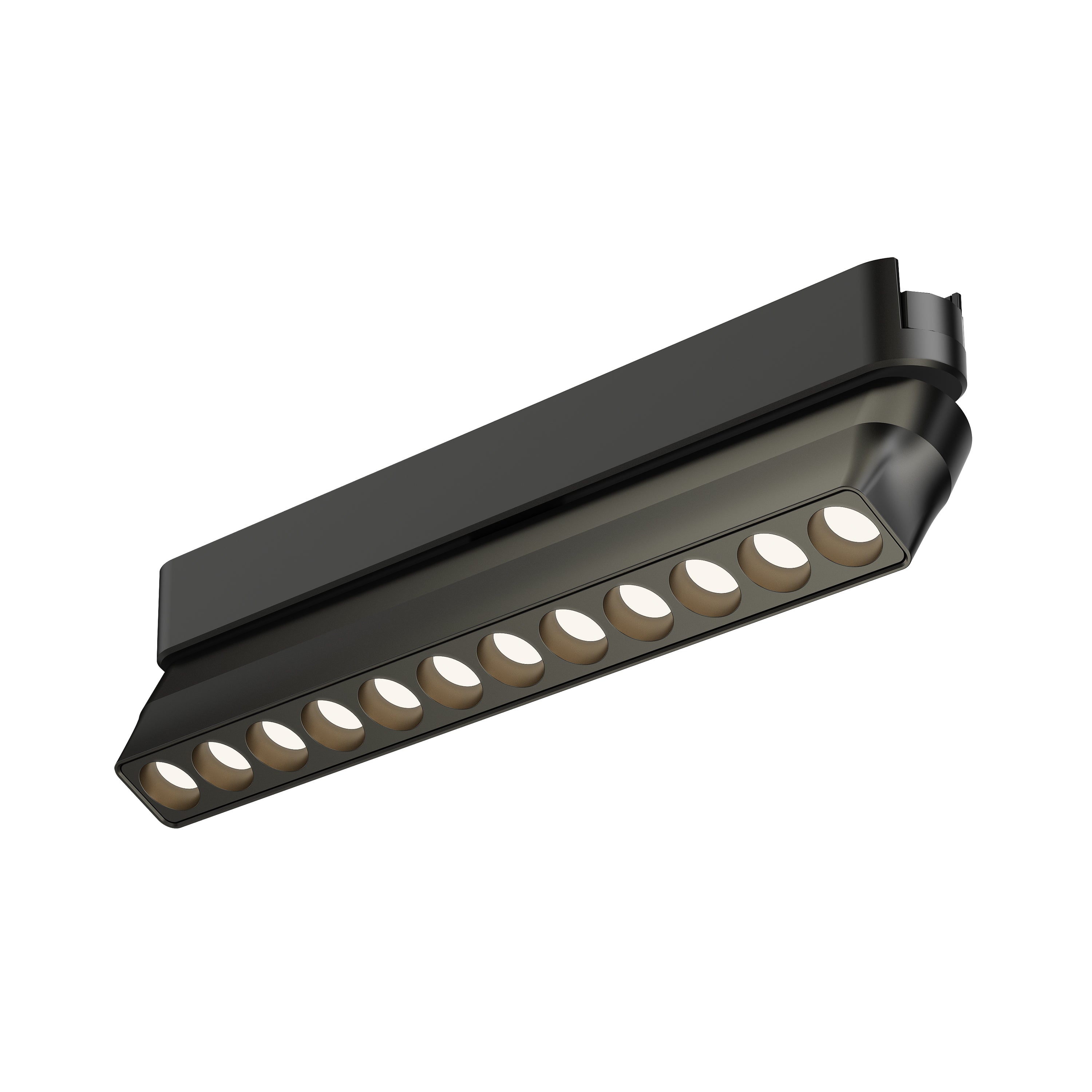

| 9 in | 9 x 1 x 2.25 (L x W x H, in) | 9W | 675 | Black; White | ETL23216-BK, ETL23216-WT |
The Design Story

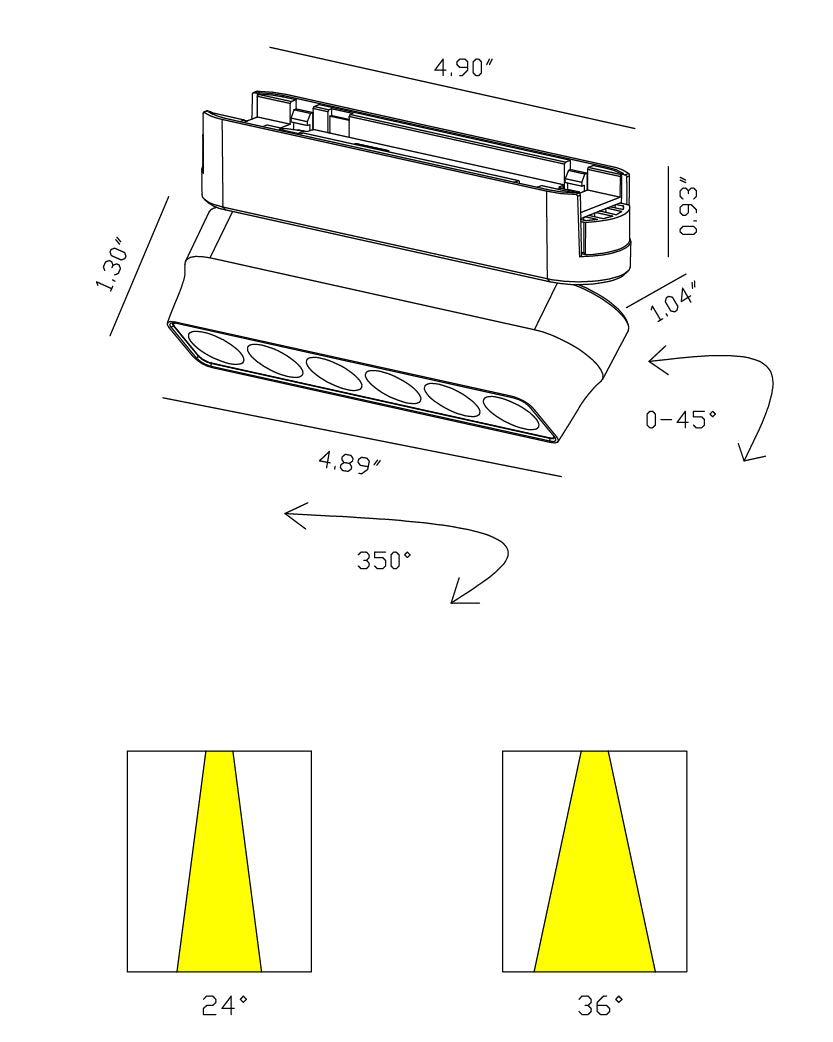

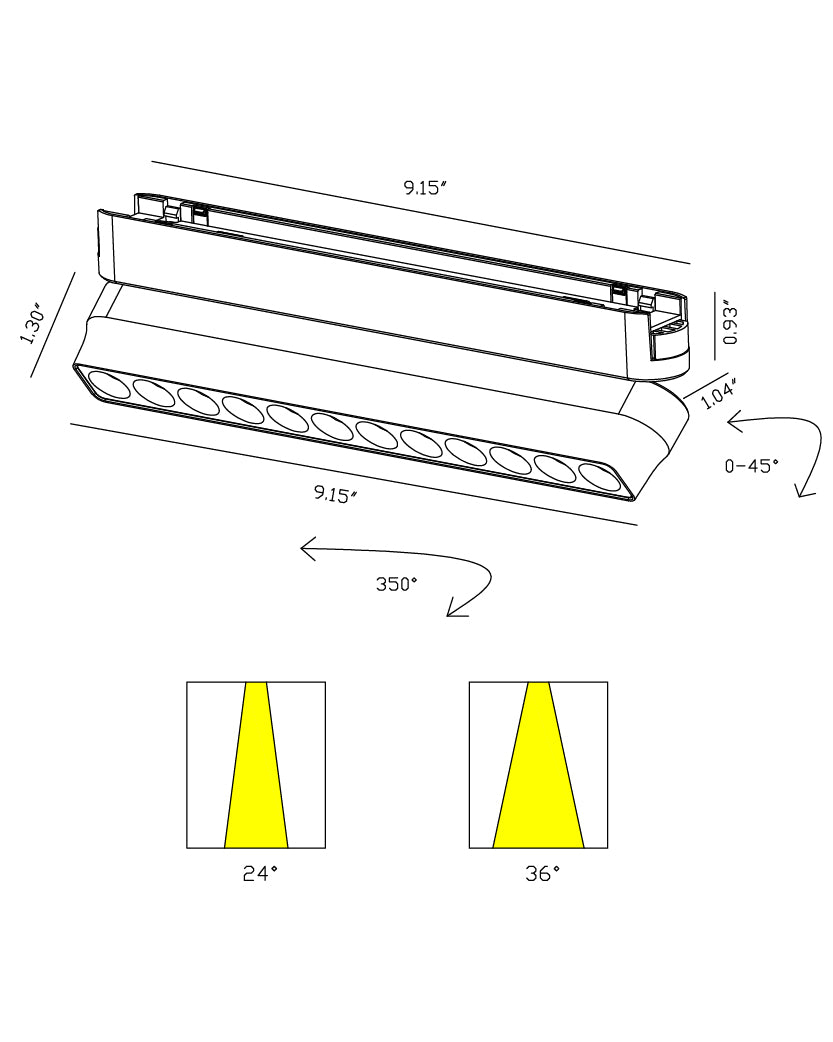

The Gimbal Optic is the Gimbal version of the Optic head. It is 1 inch wide and 2.25 inches high and is made of aluminum and polycarbonate. ET2's line drawing shows a 0 to 45 degree tilt and beam diagrams of 24 and 36 degrees.
Why You’ll Love It
The 5 inch head delivers 450 lumens at 6 watts and the 9 inch head delivers 675 lumens at 9 watts. That is more than the Gimbal Flat at each length. Color temperature is 3000K, CRI is 90 and the integrated LED is rated for 50,000 hours.
Made for Real Life
The LED is built in, so there is no bulb to find or match. Wipe the finish with a soft damp cloth and skip abrasive or solvent cleaners.
Not sure which finish to pick? Finishes explained walks through the options.
Works With This Item
This item mounts on a Continuum track, and the track, a driver and any connectors are separate items. Everything below is sold separately.
- Track rail: Continuum Track Rail
- Power (driver): Continuum 96W On-Track Driver, Continuum 96W Remote Hard-Wired Driver
- Track connectors: Continuum End to End Track Connector, Continuum 90 Degree Corner Track Connector, Continuum Wall to Ceiling Track Connector, Continuum 3-Way T Track Connector, Continuum 4-Way X Track Connector, Continuum End Track Connector
- Plug, cover plates and splice box: Continuum Track Plug and Cover Plate, Continuum Track Cover Plate, Continuum Track Splice Box
- Track pendants: Continuum Handler Track Pendant, Continuum Tube Track Pendant, Continuum Rope Track Pendant, Continuum Sphere Track Pendant, Continuum Snowball Track Pendant
Putting It Together
ET2 posts an assembly sheet for each version: 5 in (PDF) and 9 in (PDF). ET2 recommends a qualified electrician for the install.
Product Details
| Maker | ET2 |
|---|---|
| Product | Continuum LED Gimbal Optic Track Light |
| Type | Linear LED gimbal track head for the Continuum 24V track system |
| Length | 5 in or 9 in |
| Width | 1 in |
| Height | 2.25 in |
| Finishes | Black; White |
| Material | Aluminum, Polycarbonate |
| Light source | Integrated LED, 50,000 hour rated life |
| Wattage | 6W (5 in), 9W (9 in) |
| Lumens | 450 (5 in), 675 (9 in) |
| Color temperature | 3000K |
| CRI | 90 |
| Input voltage | 24V |
| Dimming | Triac |
| Location rating | Dry |
| California Title 24 | Yes |
| Certification | cETLus |
| Net weight | 0.4 lb (5 in), 0.81 lb (9 in) |
| Packed weight | 0.65 lb (5 in), 1.06 lb (9 in) |
| Item numbers | 5 in Black: ETL23212-BK; 5 in White: ETL23212-WT; 9 in Black: ETL23216-BK; 9 in White: ETL23216-WT |
Where It Shines
It is rated for dry locations and belongs indoors. Use it on a Continuum track where you want a gimbal head with more output than the Gimbal Flat.
Questions We Hear Most
How does the Gimbal Optic compare with the Gimbal Flat?
Both are 2.25 inches high and 1 inch wide, with the same 6 and 9 watt draws. The Gimbal Optic lists 450 and 675 lumens, and the Gimbal Flat lists 300 and 450. ET2's drawings show a 110 degree beam for the Gimbal Flat and 24 and 36 degree beam diagrams for the Gimbal Optic.
How big is the Continuum Gimbal Optic head?
Across the versions, lengths run 5 to 9 in. Every version is 1 in wide and 2.25 in high. The Choose Your Version table above lists each size.
How much light does the Continuum Gimbal Optic head give?
Delivered output in lumens is 450 (5 in), 675 (9 in), with a color temperature of 3000K and CRI 90.
Will my dimmer work with it?
ET2 lists the dimming as Triac. Send us your dimmer or driver model and we will help you confirm the match before you order.
Can the LED in the Continuum Gimbal Optic head be replaced?
The LED is integrated and ET2 does not list the board as replaceable, so plan on it as a permanent light source with a rated life of 50,000 hours.
Where can I install the Continuum Gimbal Optic head?
It is rated for dry locations only, so keep it indoors and out of any space exposed to rain or direct water. ET2 recommends a qualified electrician for the install.
Why We Love It
It gives you a gimbal head with up to 675 listed lumens on the same slim track.
