Lodes Puzzle Mega Architectural LED Wall & Ceiling Light
Lodes Puzzle Mega Architectural LED Wall & Ceiling Light
$1,820.00
$1,456.00
/

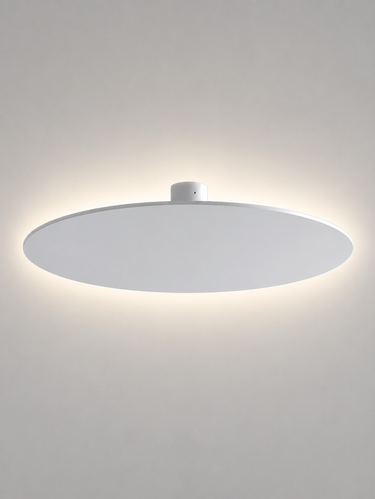

Lodes Puzzle Mega Ceiling and Wall Light by Studio Italia Design
The Lodes Puzzle Mega by Studio Italia Design is a large modern LED ceiling and wall light that pairs a slim round or square MDF panel with soft indirect illumination, creating a broad pattern of light and shadow without visible glare. Designed for living rooms, bedrooms, dining rooms, offices, reception areas, hallways, restaurants and hotels, it features a matte-white metal mounting structure, matte white, matte black, taupe or red panel finishes, high-output 3000K integrated LEDs, 92 CRI color quality, TRIAC dimming and four U.S. configurations suitable for individual installation or coordinated geometric arrangements.
Product Details
| Brand | Lodes |
|---|---|
| Designer | Studio Italia Design |
| Product Type | LED ceiling light / wall light; flush-mount architectural fixture |
| Collection | Puzzle Mega |
| Structure | Matte-white metal mounting structure with an adjustable spacer that supports the decorative panel at two installation depths |
| Shade / Diffuser | Large round or square MDF panel positioned in front of the light source to produce reflected, indirect illumination |
| Finish Options | Matte White RAL 9016, Matte Black RAL 9005, Taupe or Red |
| Shade Colors | Matte White, Matte Black, Taupe or Red; mounting structure remains Matte White |
| Light Distribution | Indirect, diffused wall-and-ceiling wash with decorative light-and-shadow effects |
| Light Source | Integrated LED included; Small: 3 × 18W LED modules, 51W system rating; Large: 4 × 18W LED modules, 68W system rating |
| Color Temperature | 3000K warm white |
| Light Output | Round Small and Square Small: 5,400 lumens; Round Large and Square Large: 7,200 lumens |
| CRI | CRI 92 with 3-step MacAdam LED consistency |
| Dimming | Dimmable with a compatible 120V TRIAC phase-cut dimmer; dimmer sold separately |
| Control | Hardwired wall switch or compatible TRIAC dimming control |
| Dimensions | Round Small: 25.98" diameter × 4.68"–5.47" extension; Round Large: 31.49" diameter × 4.68"–5.47" extension; Square Small: 25.98" W × 25.98" H × 4.68"–5.47" extension; Square Large: 31.49" W × 31.49" H × 4.68"–5.47" extension |
| Canopy | No separate decorative canopy; concealed mounting plate and adapter connect directly to a standard 4" U.S. junction box |
| Cable | Not applicable; hardwired flush-mount installation with concealed wiring |
| Model Numbers | Round Small: 16741 1030U, 16741 2030U, 16741 3930U, 16741 6030U; Round Large: 16744 1030U, 16744 2030U, 16744 3930U, 16744 6030U; Square Small: 16742 1030U, 16742 2030U, 16742 3930U, 16742 6030U; Square Large: 16745 1030U, 16745 2030U, 16745 3930U, 16745 6030U |
| Approximate Net Weight | Round Small: 8.38 lb; Round Large: 15.87 lb; Square Small: 9.04 lb; Square Large: 19.40 lb |
| Voltage | 120V AC, 60Hz; North American / U.S. configuration |
| Rating | ETL listed, IP20, indoor dry-location use only; not intended for outdoor, wet, damp or salty environments |
| Installation | Hardwired ceiling or wall mounting by a qualified electrician; connects directly to a standard 4" junction box using the included plate adapter and must be independently secured to a suitable mounting surface |
| Country of Origin | Italy |
Shipping Info
| Shipping | Ships within 2–3 business days, subject to stock availability and order verification. |
|---|---|
| Best For | Living rooms, bedrooms, dining rooms, home offices, conference rooms, executive offices, reception areas, hallways, entryways, restaurants, lounges, boutique hotels and hospitality interiors |
