ET2 Reveal Outdoor LED Banded Tube Wall Sconce
ET2 Reveal Outdoor LED Banded Tube Wall Sconce
$208.00
/
Reveal Outdoor is a tubular outdoor wall sconce with integrated LED light. It comes in Small, Medium and Large in Black / Gold, and in 14, 20 and 28 inch versions in Black.
It comes in 6 versions: Small, Medium, 14 in, Large, 20 in and 28 in. Finishes: Black / Gold and Black.
Choose Your Version
| Version | Lights | Fixture size | Location | Finishes | Item numbers |
|---|---|---|---|---|---|

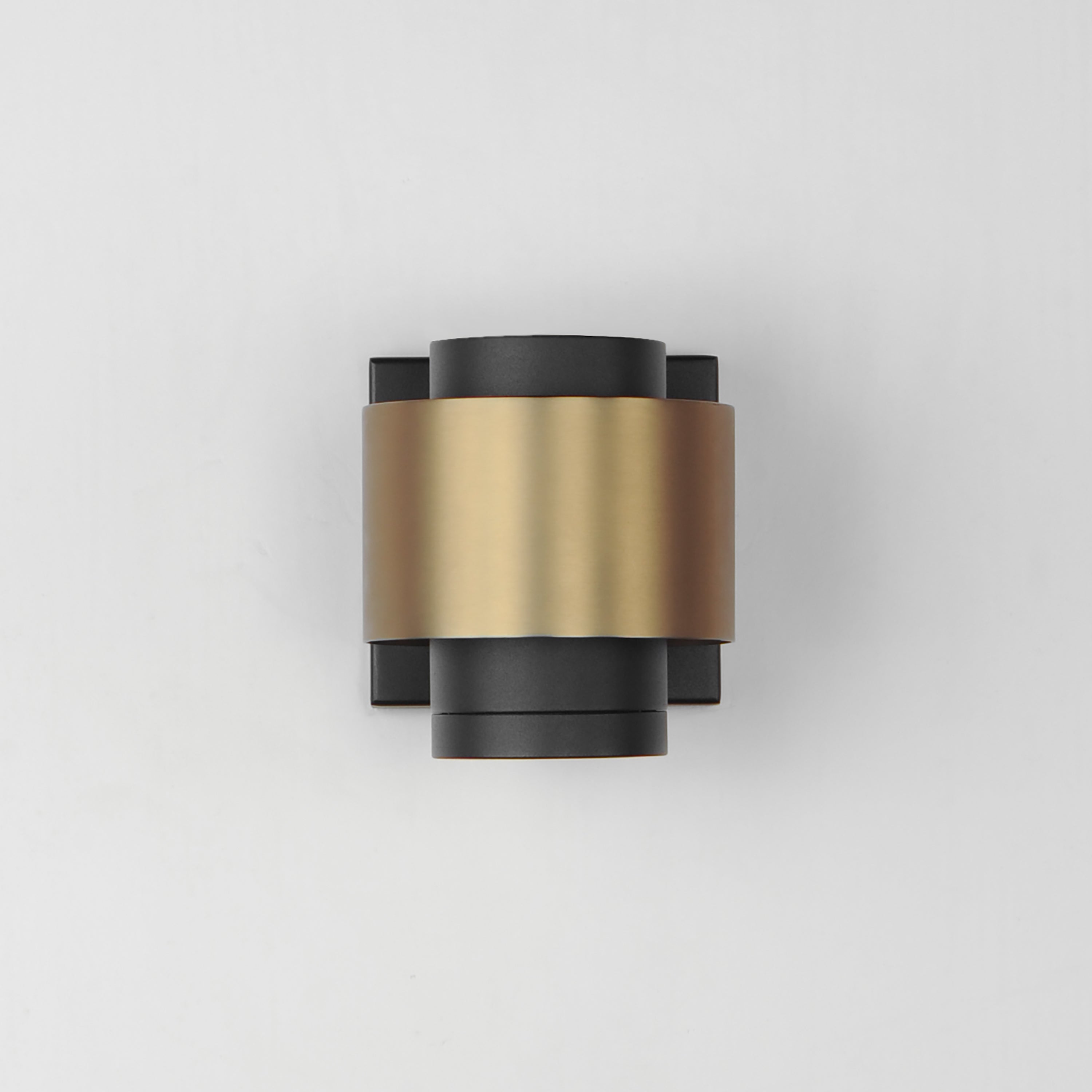

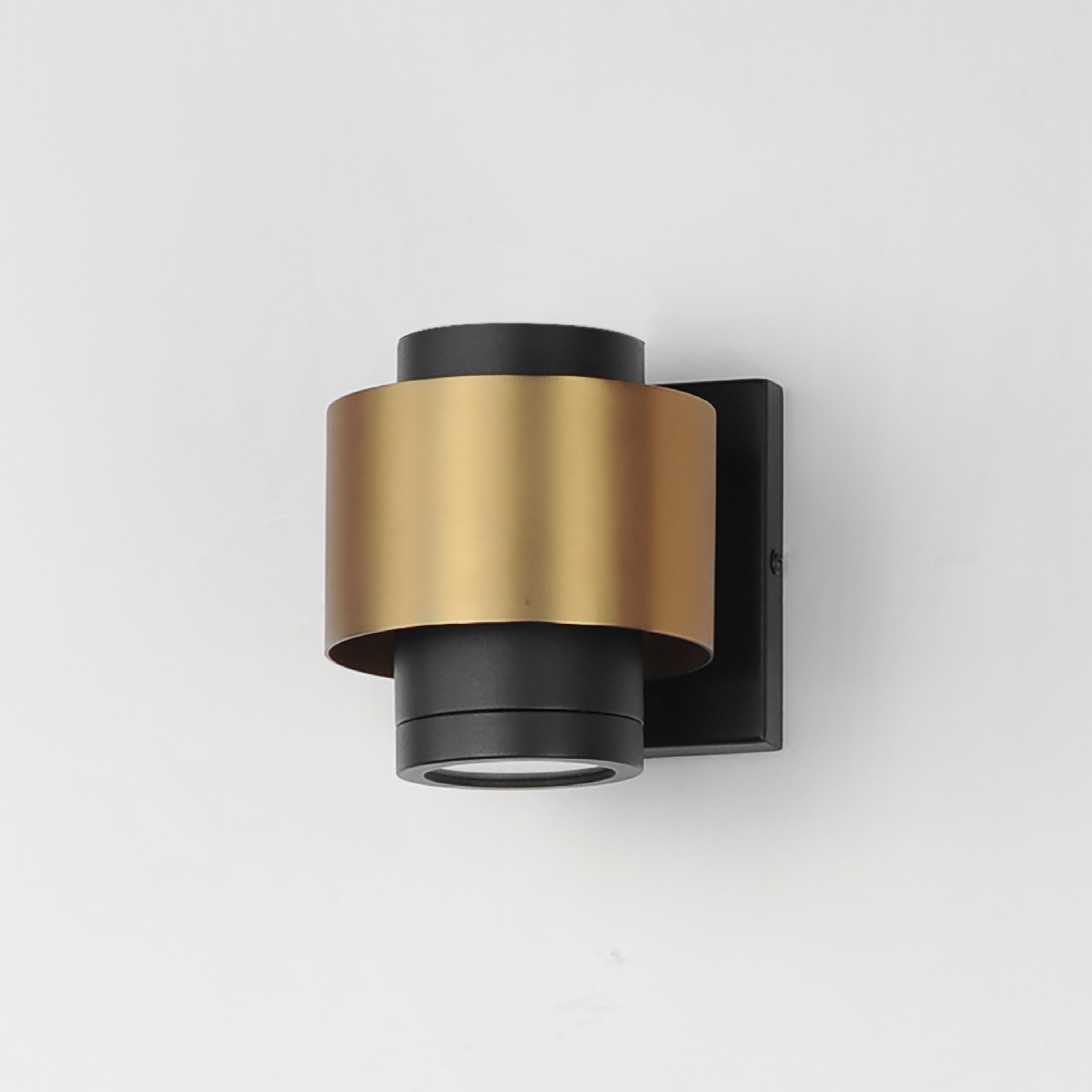

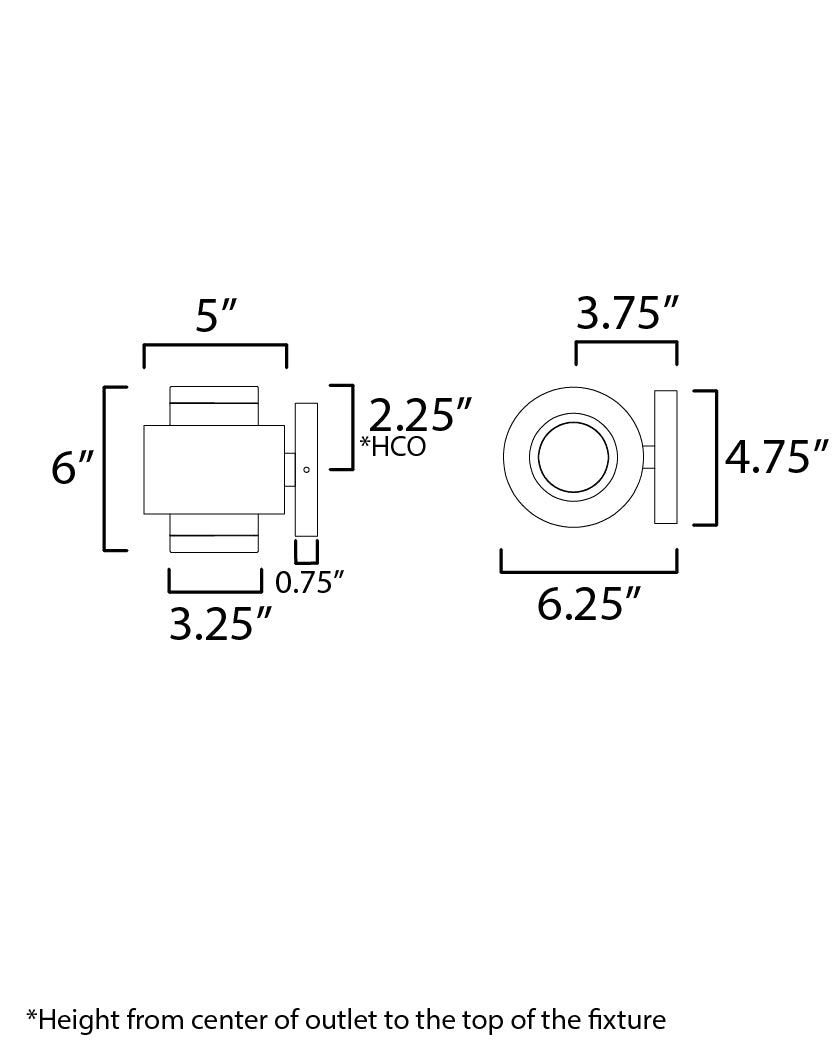

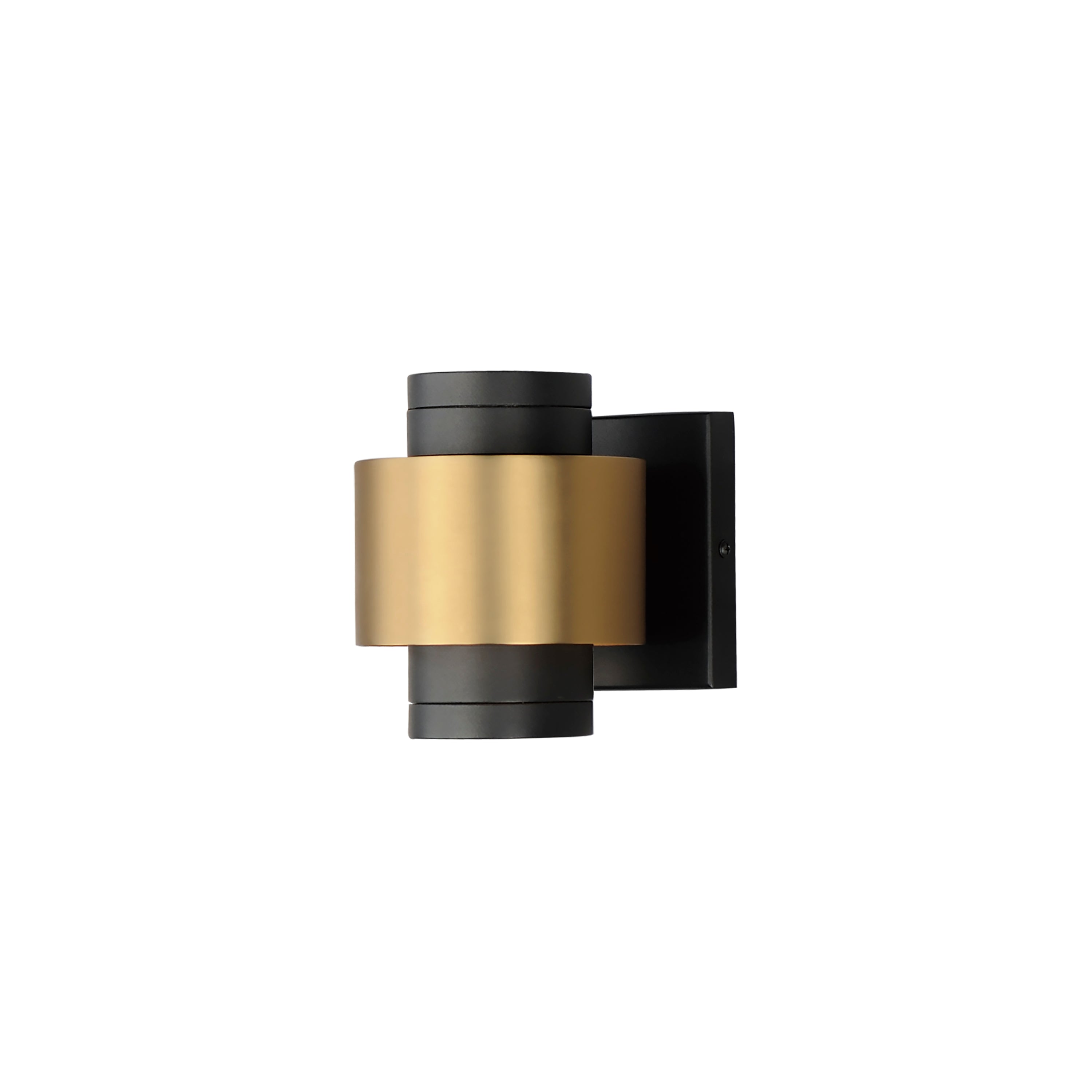

| Small | 2 | 5 wide x 5.25 high, 6 projection (in) | Wet | Black / Gold | E34752-BKGLD |

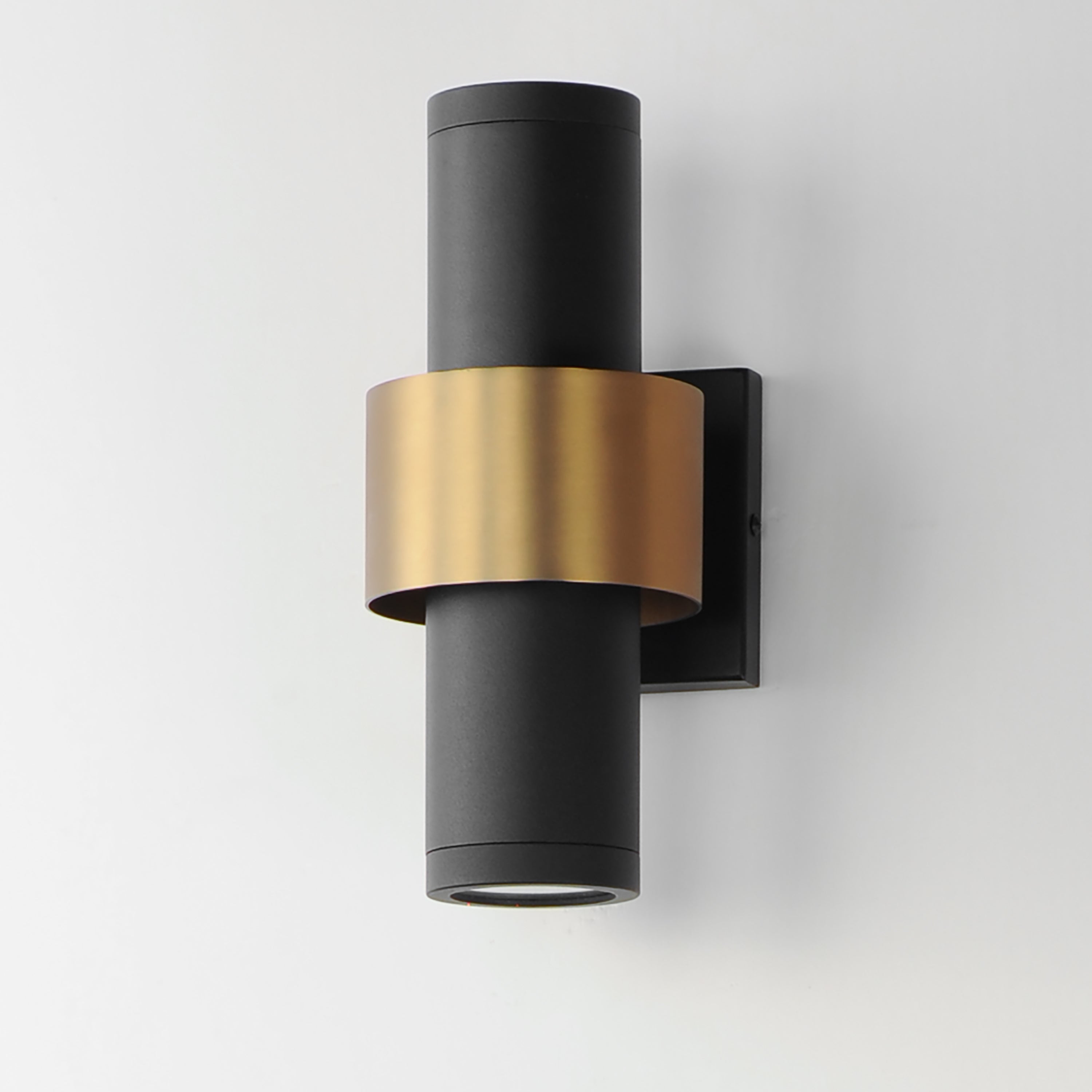

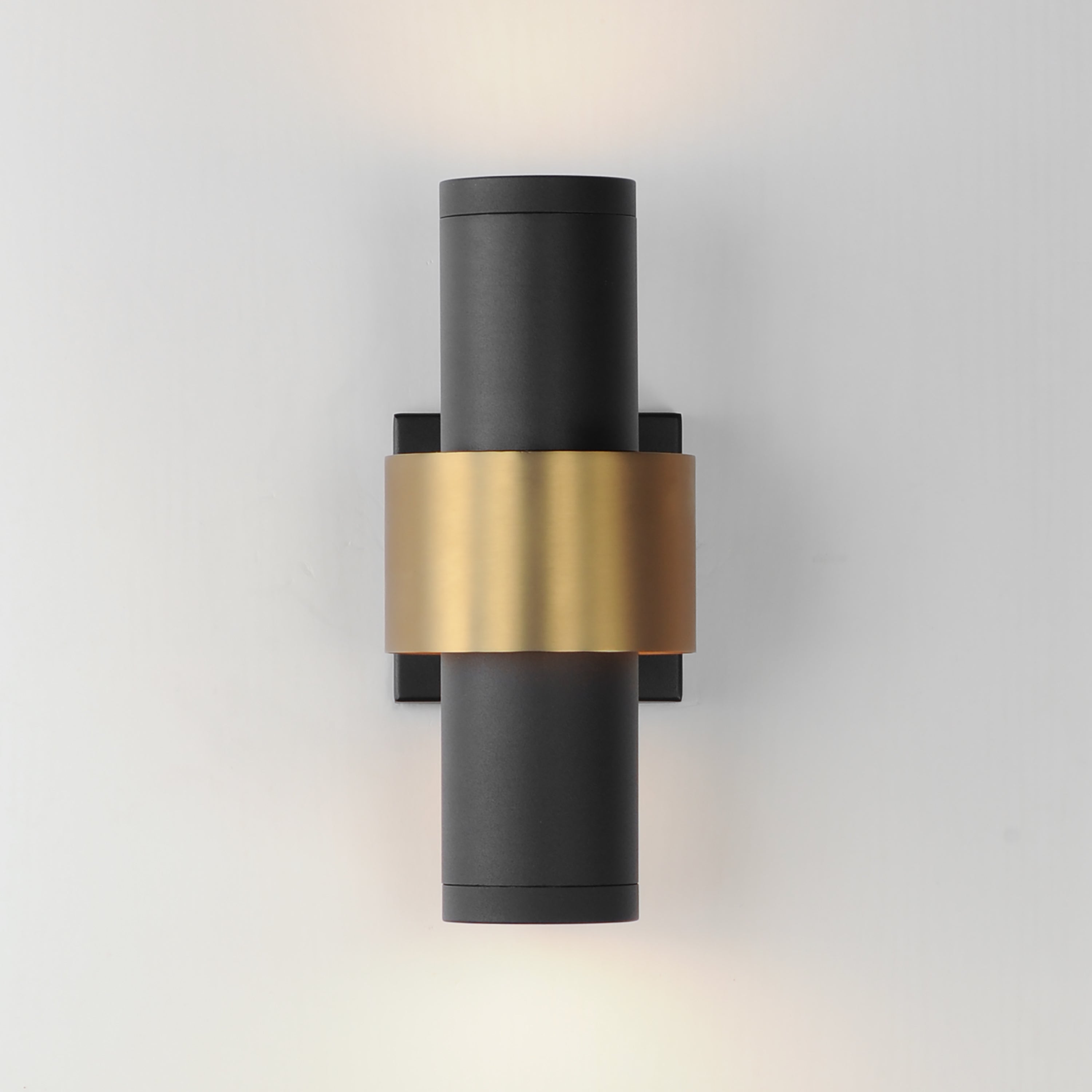

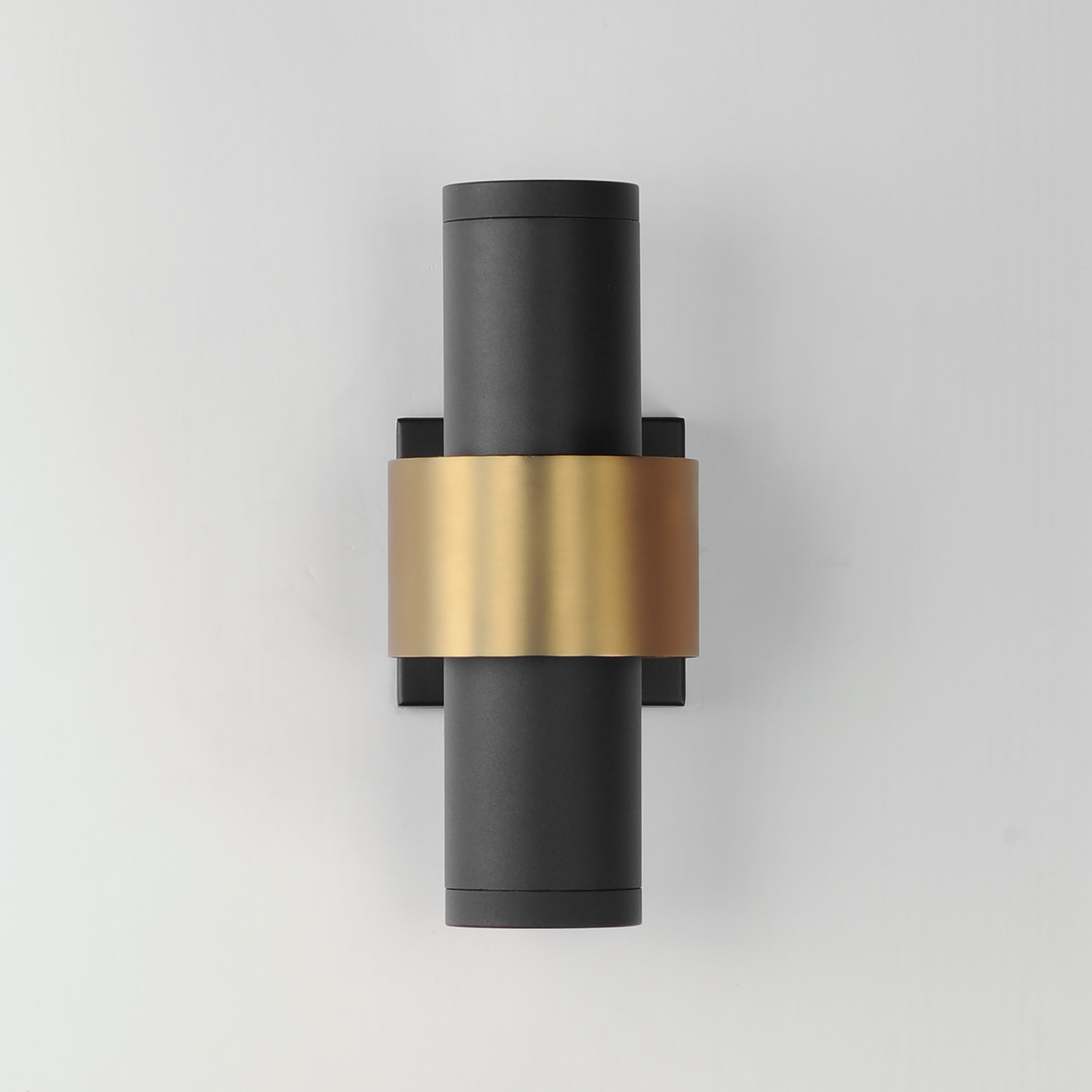

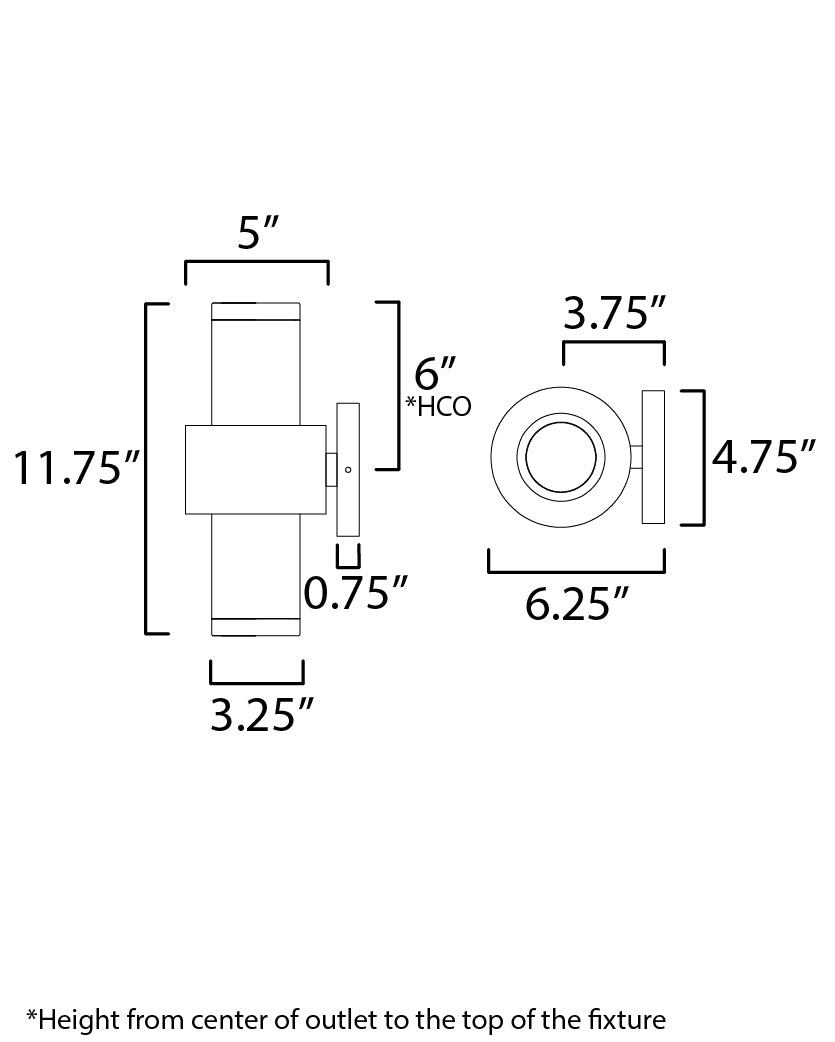

| Medium | 3 | 5 wide x 12 high, 6.25 projection (in) | Wet | Black / Gold | E34754-BKGLD |

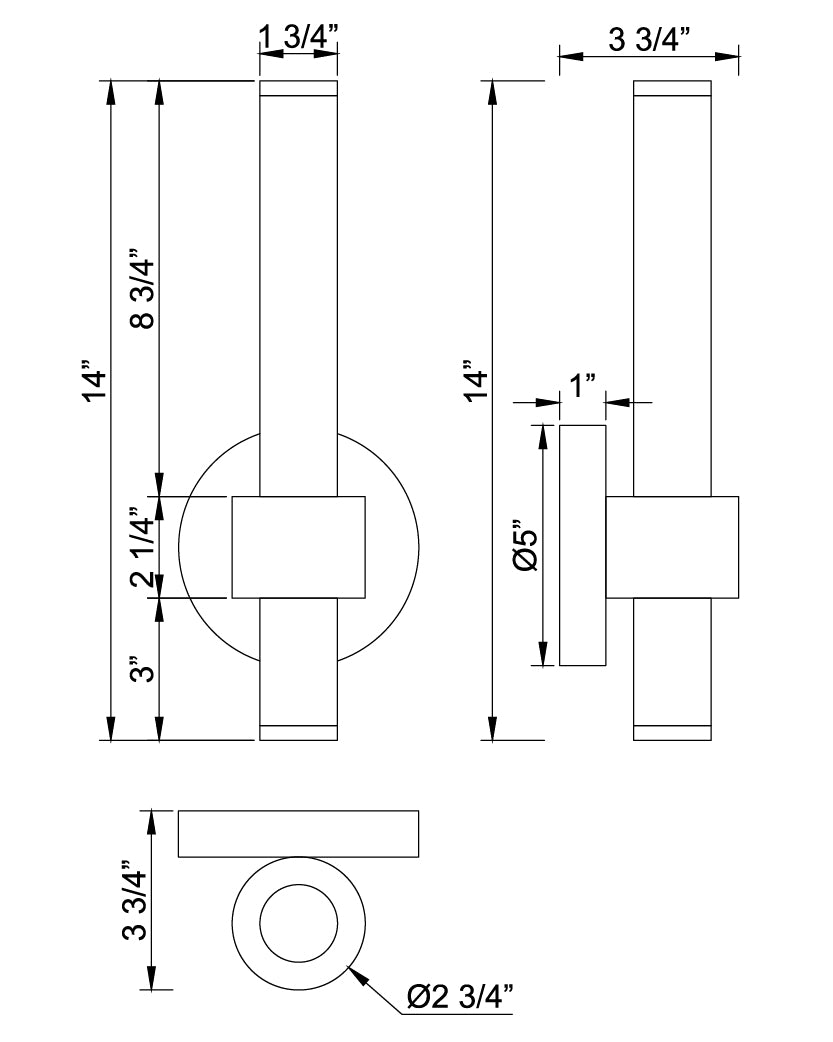

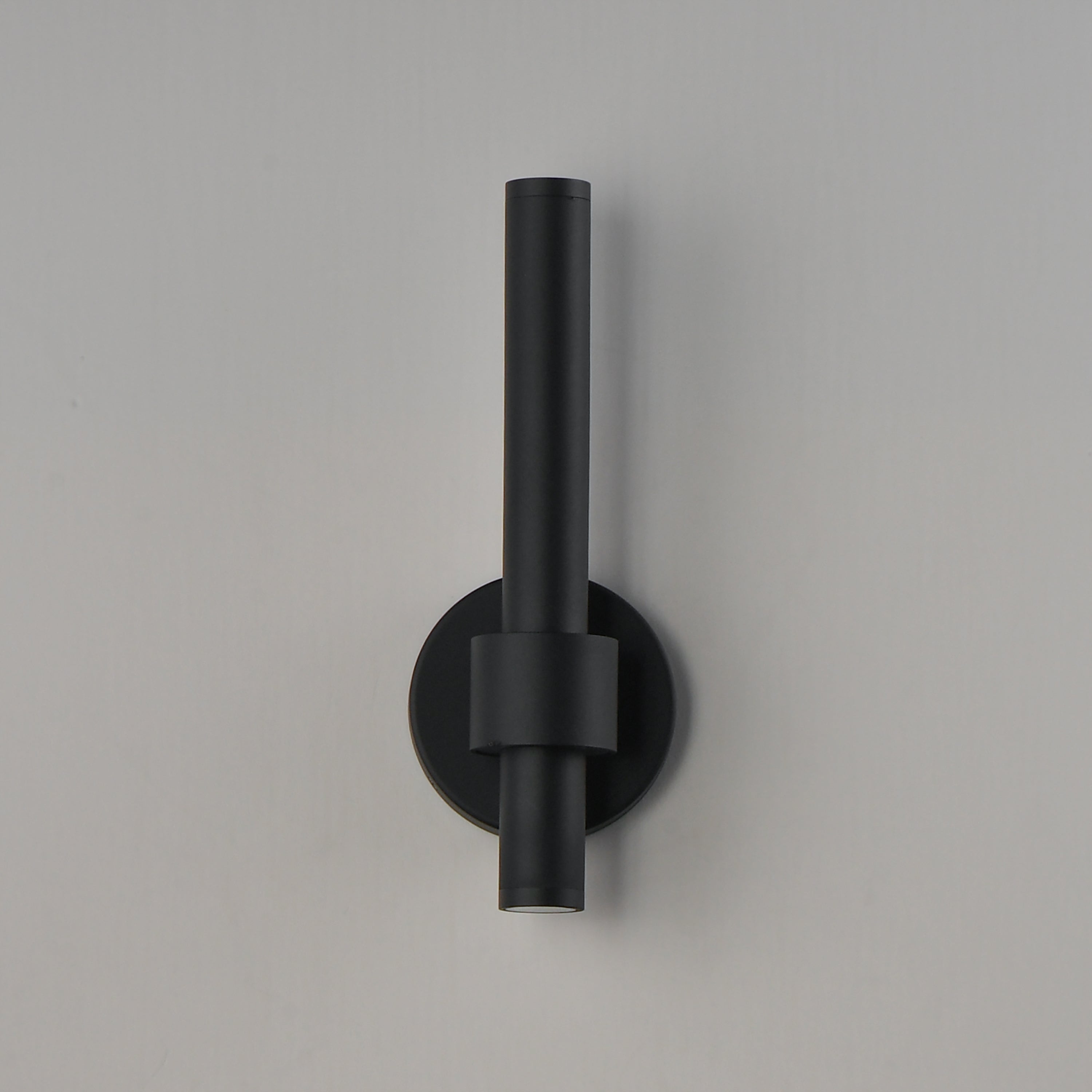

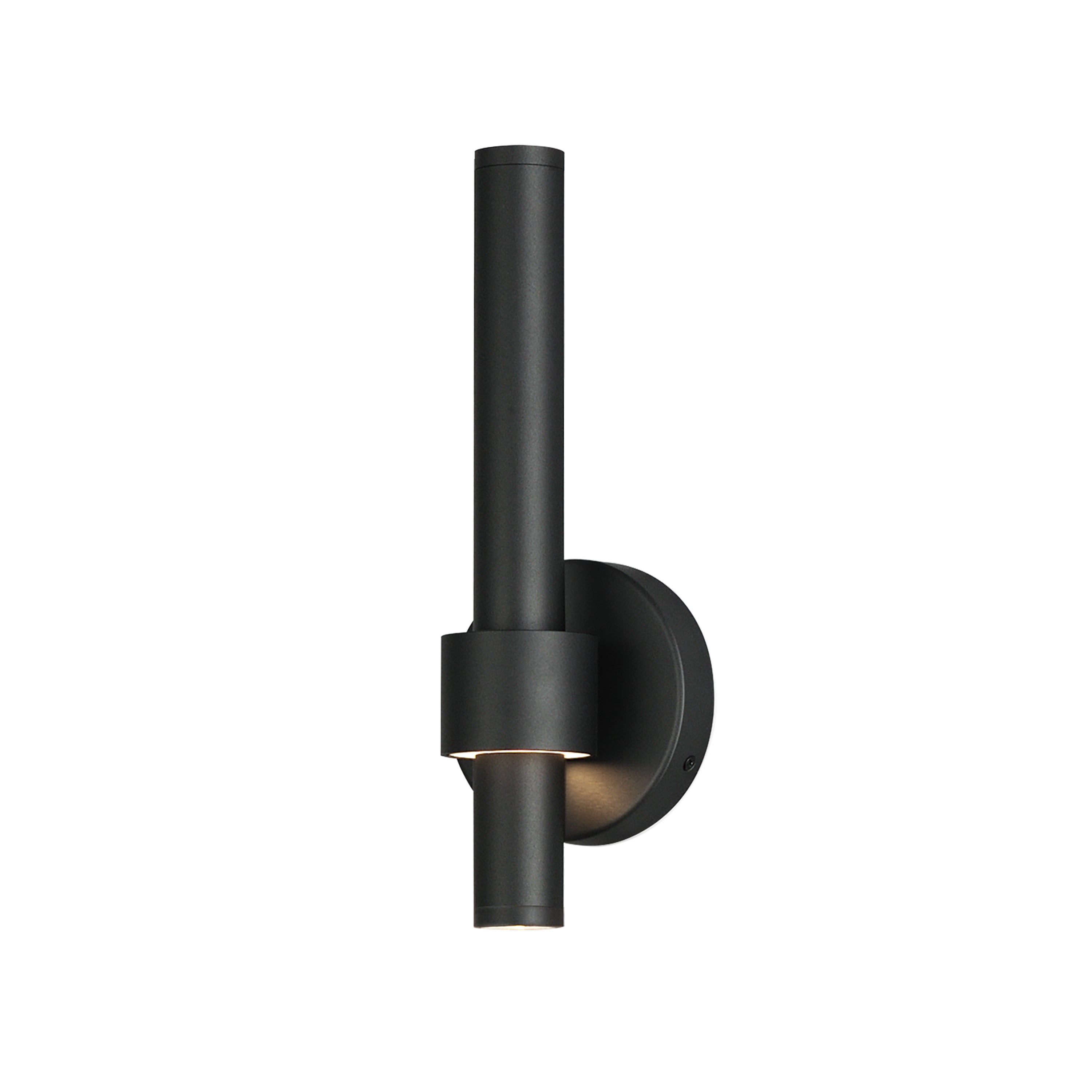

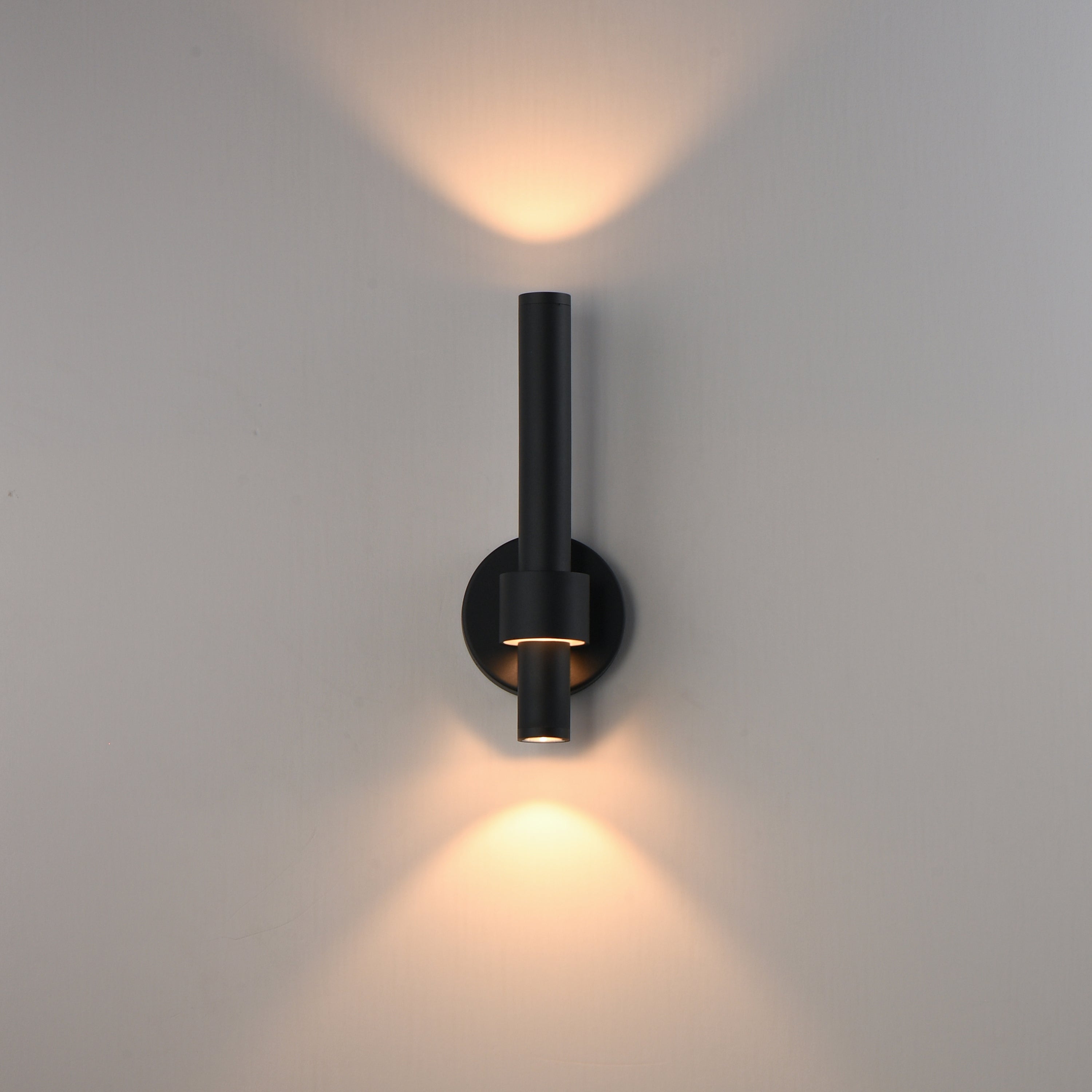

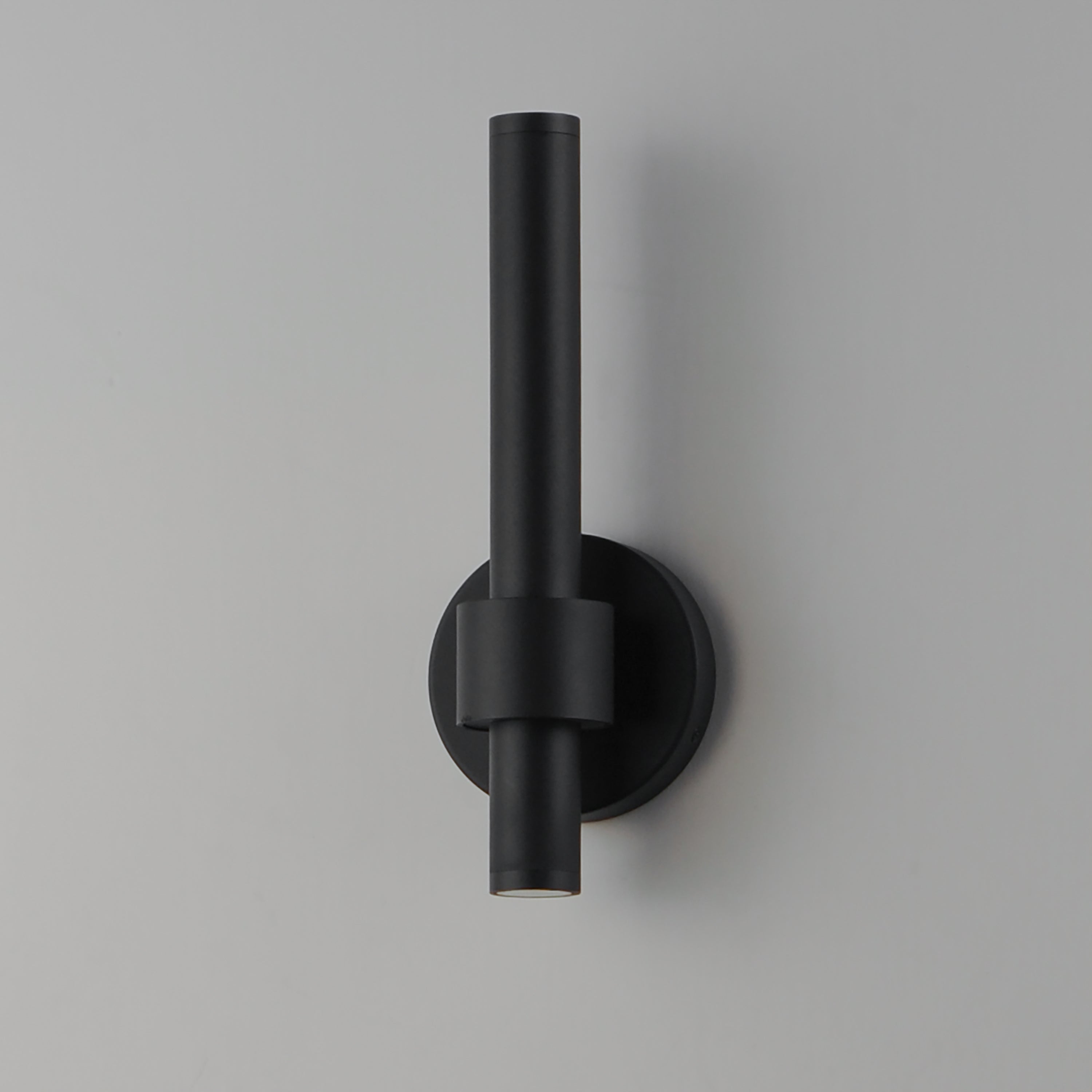

| 14 in | 3 | 2.75 wide x 14 high, 3.75 projection (in) | Wet | Black | E34764-BK |

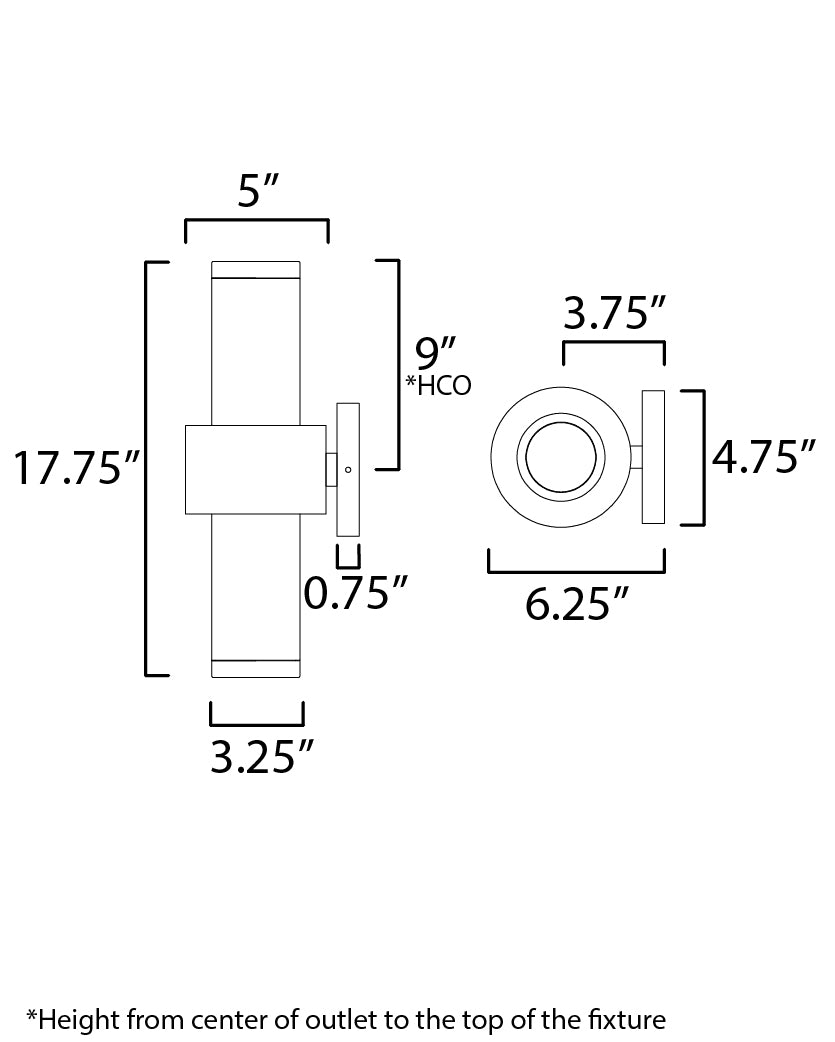

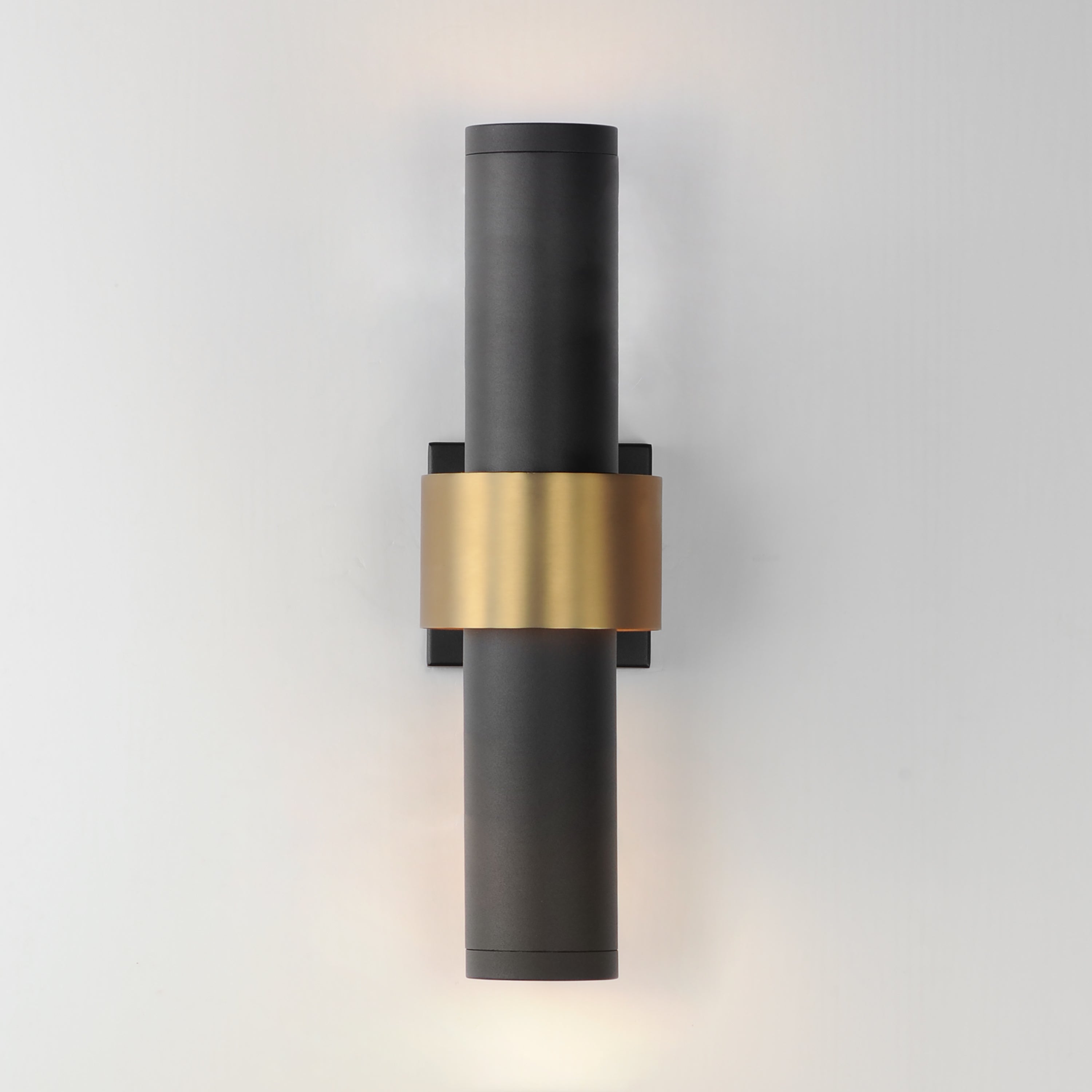

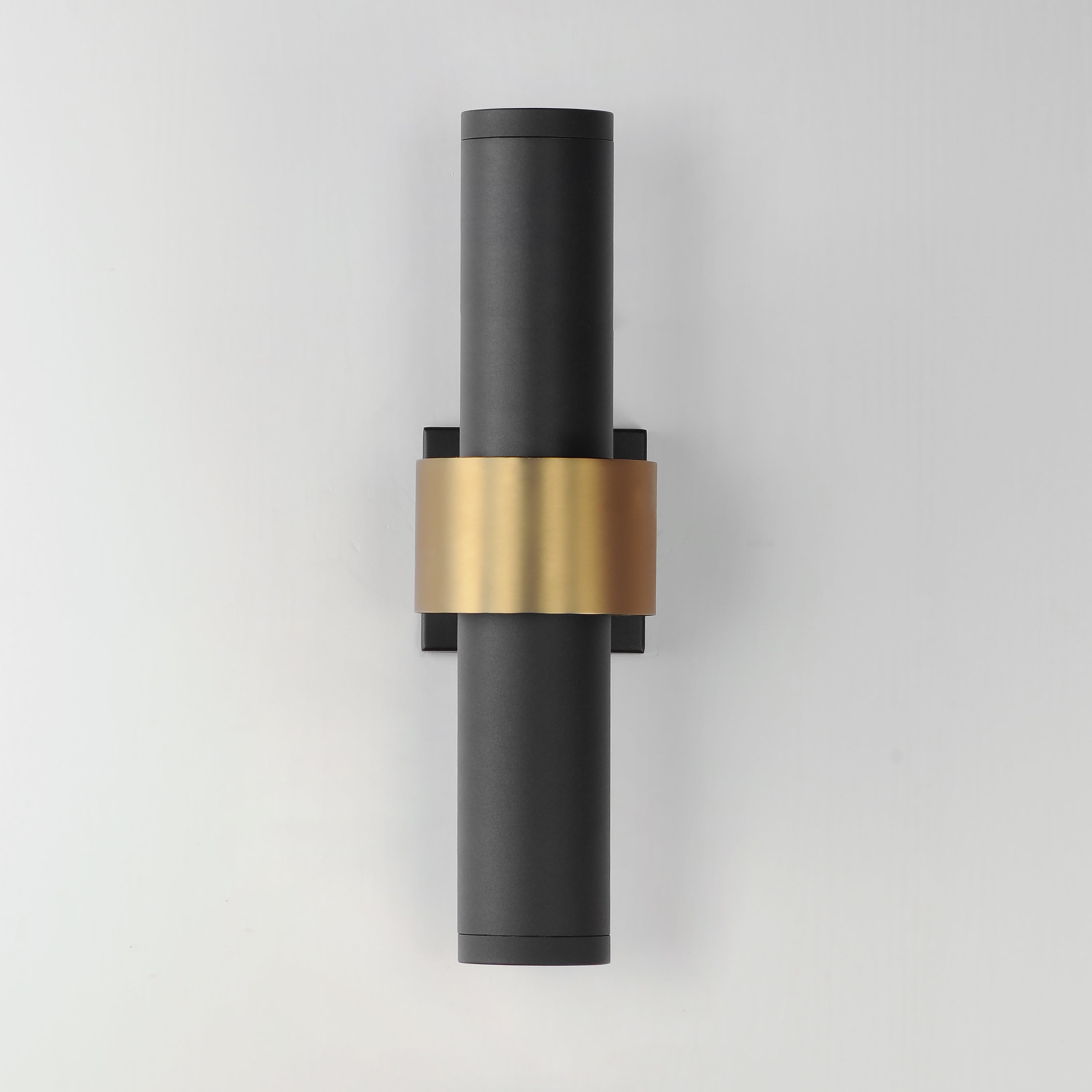

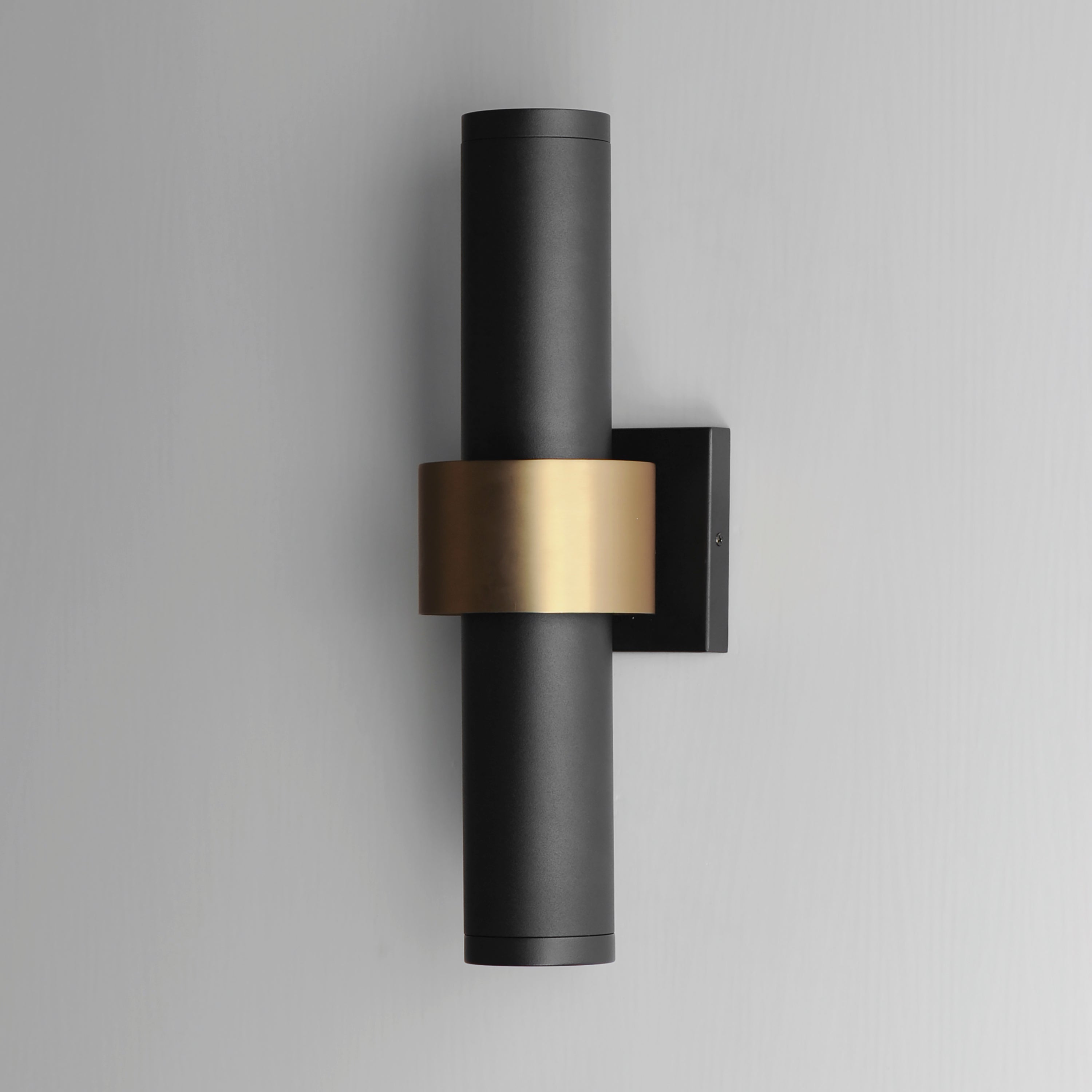

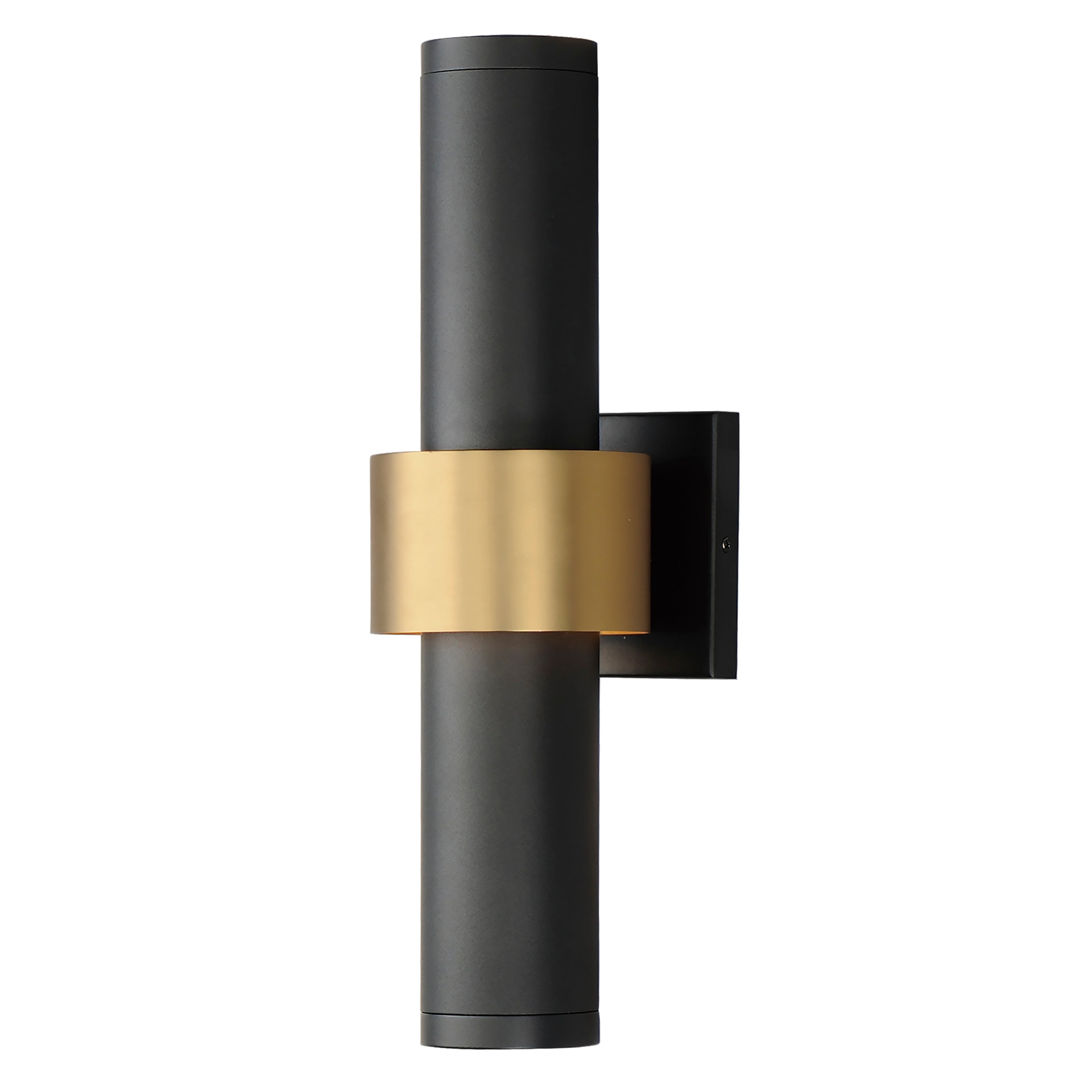

| Large | 3 | 5 wide x 18 high, 6.25 projection (in) | Wet | Black / Gold | E34756-BKGLD |

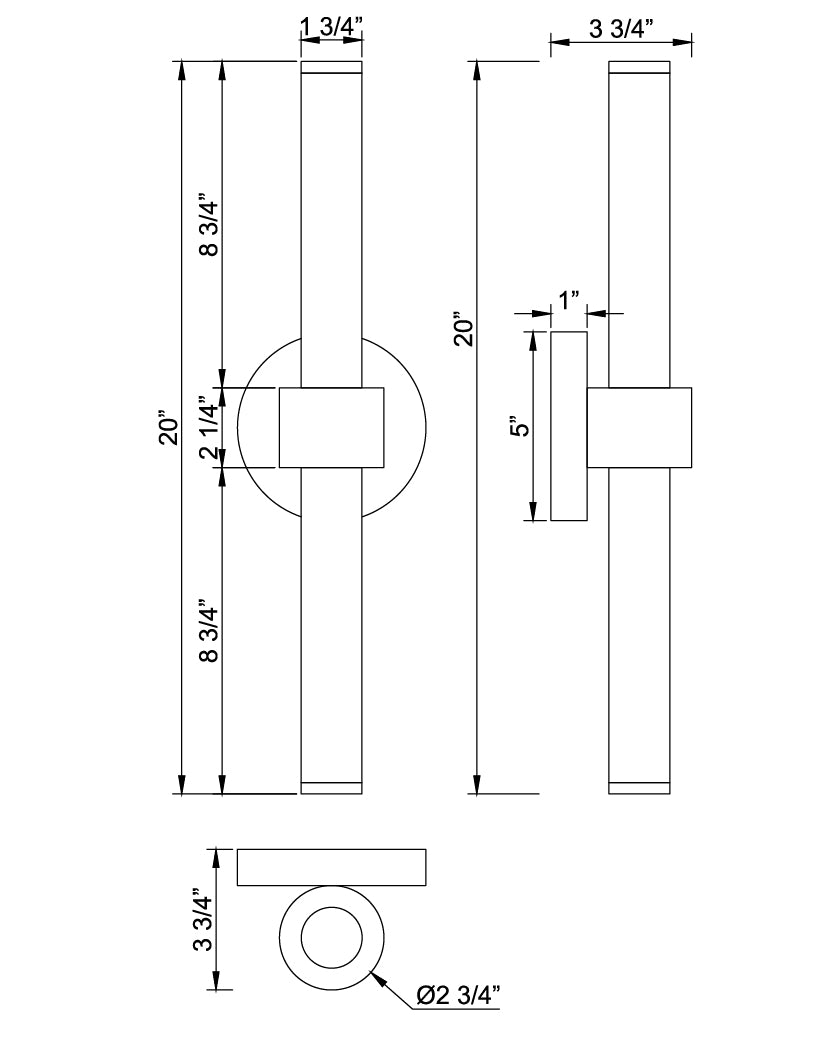

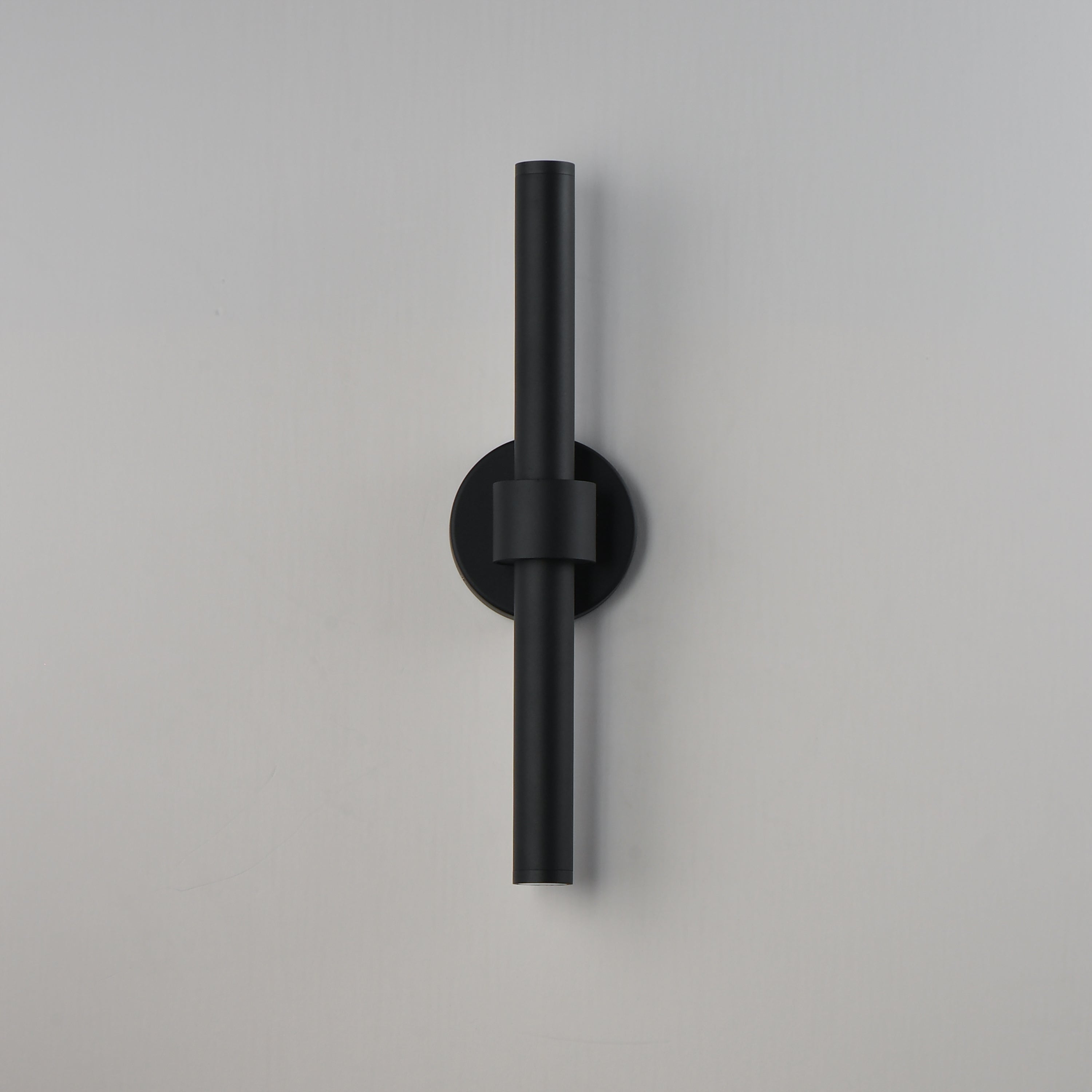

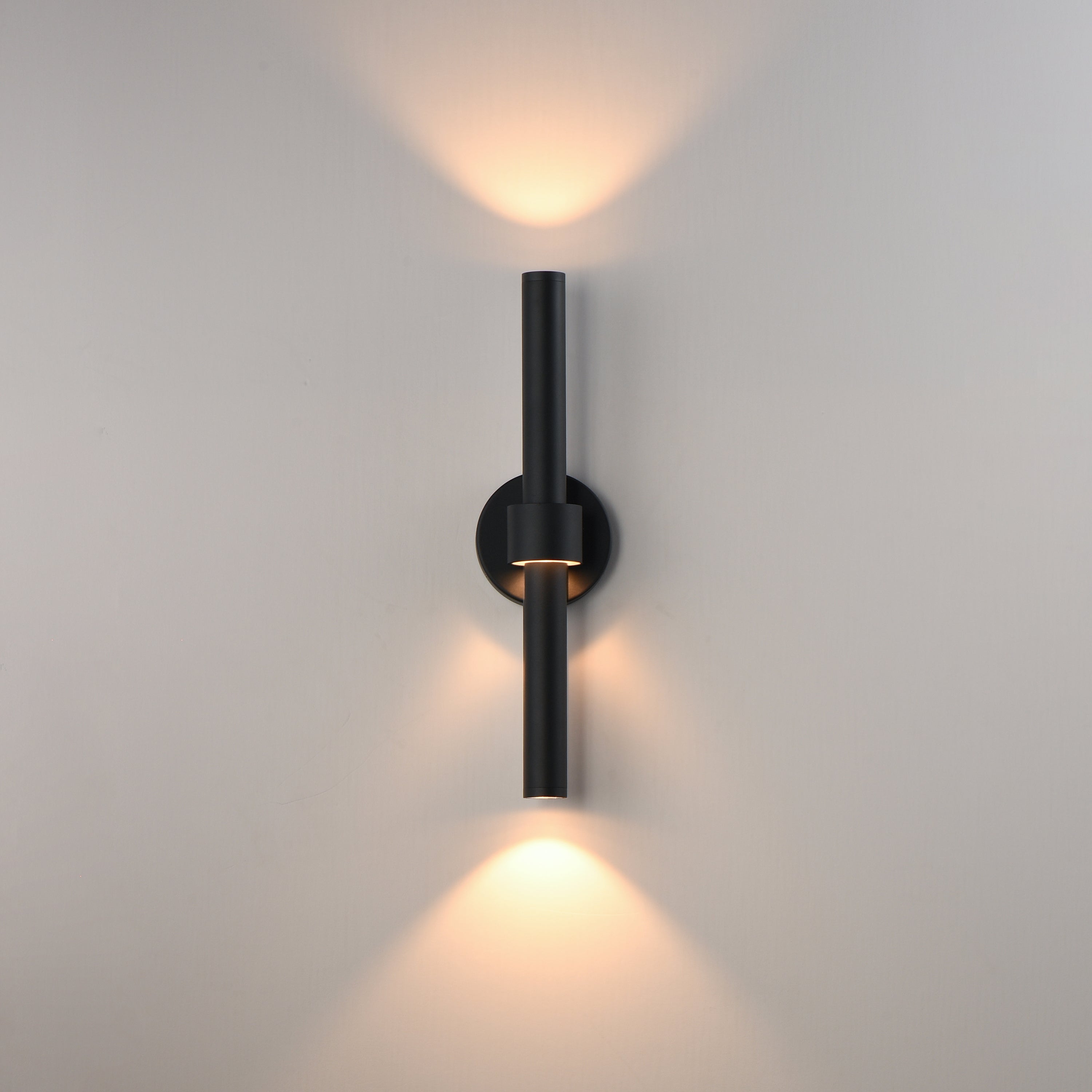

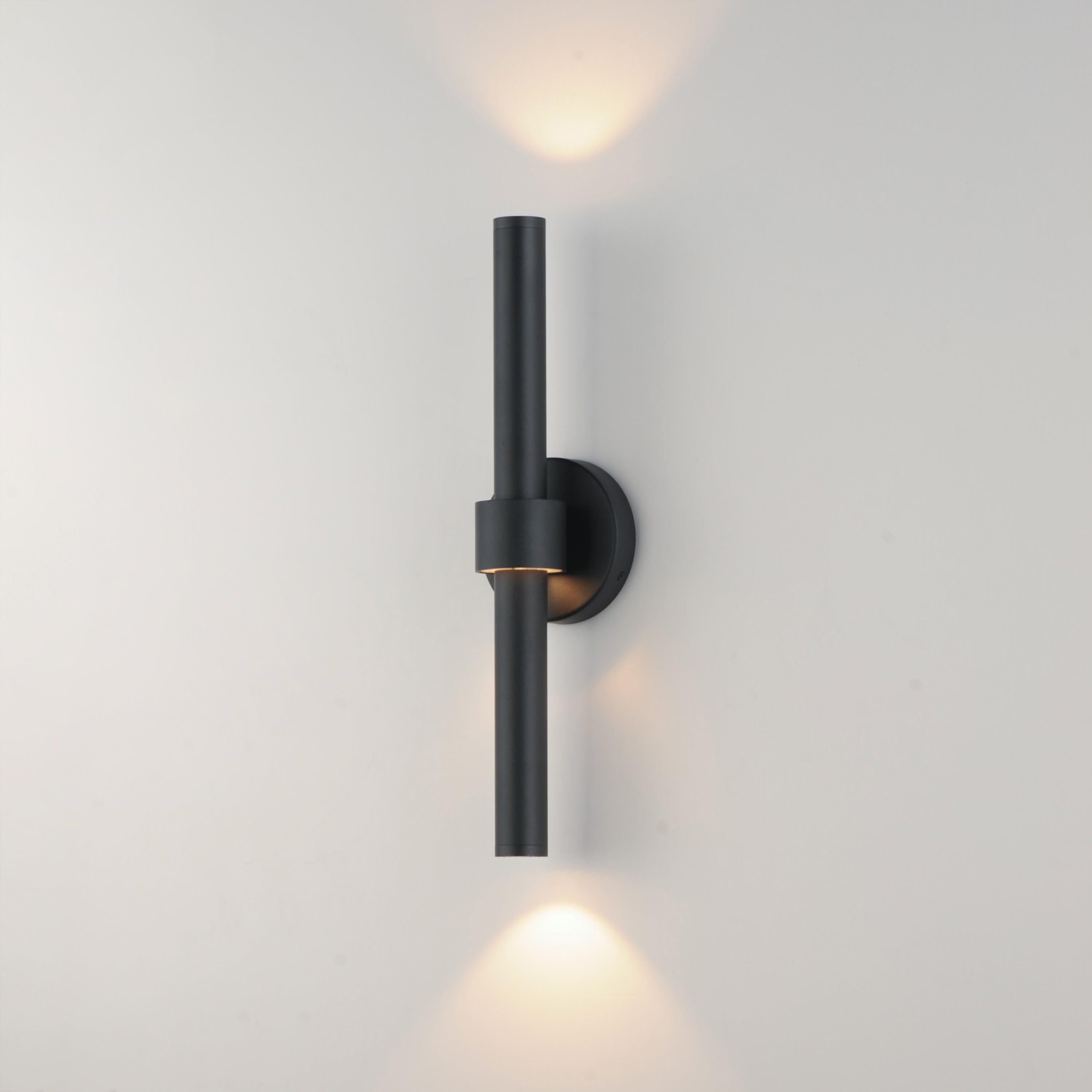

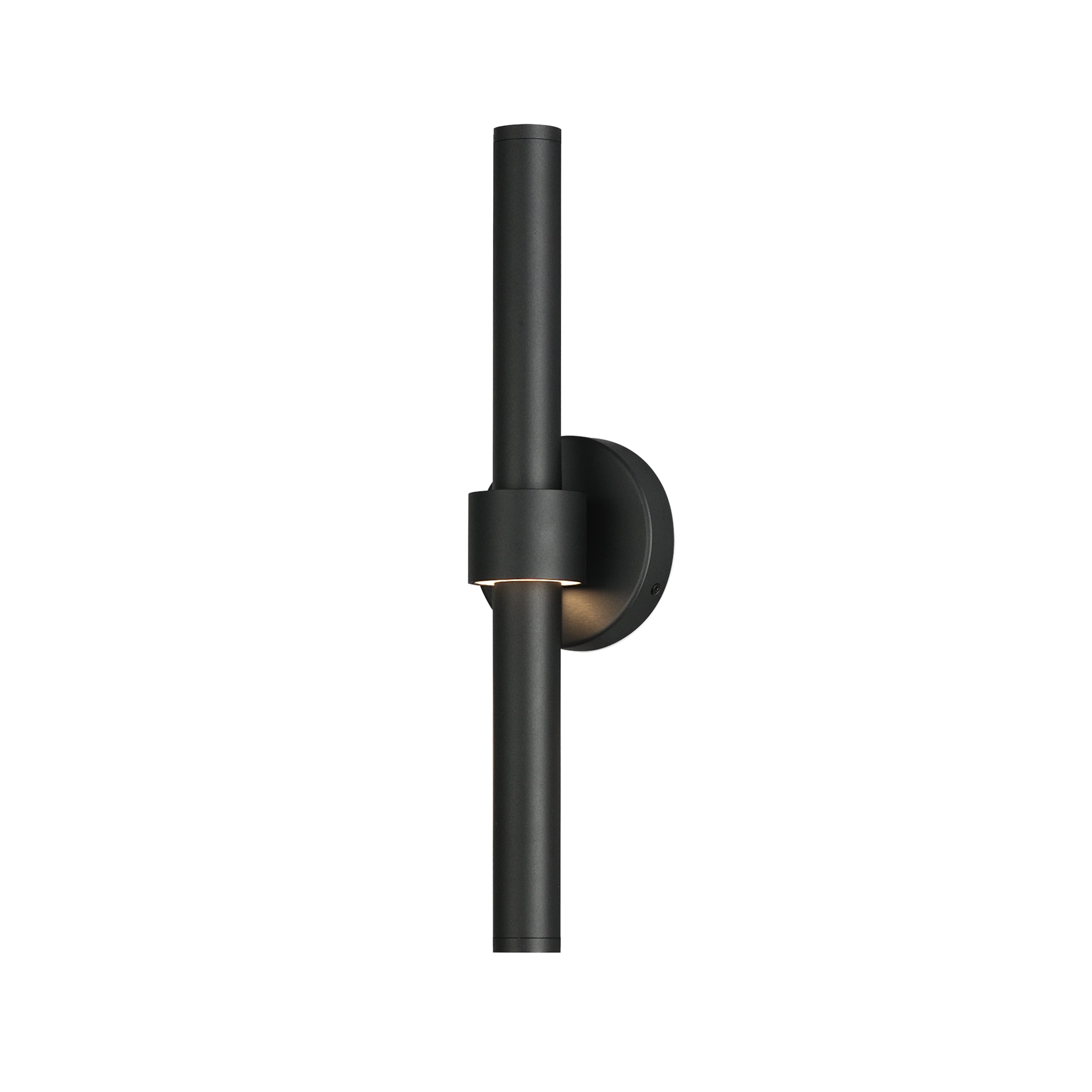

| 20 in | 3 | 2.75 wide x 20 high, 3.75 projection (in) | Wet | Black | E34766-BK |

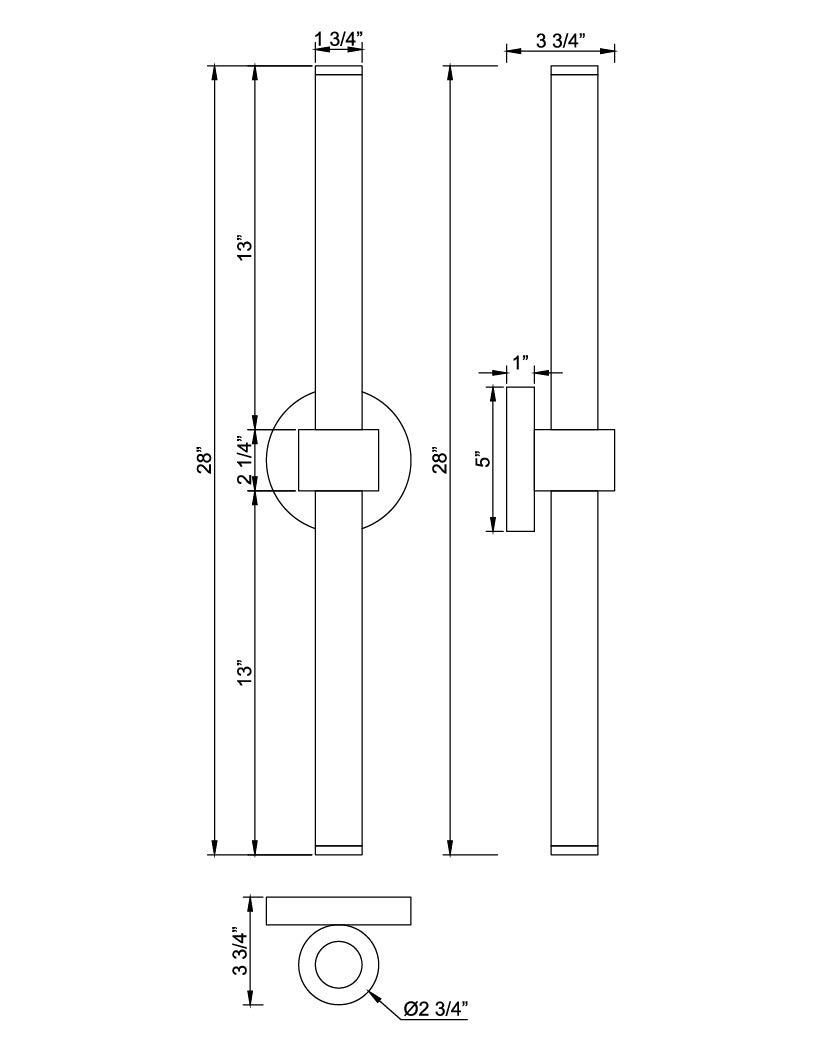

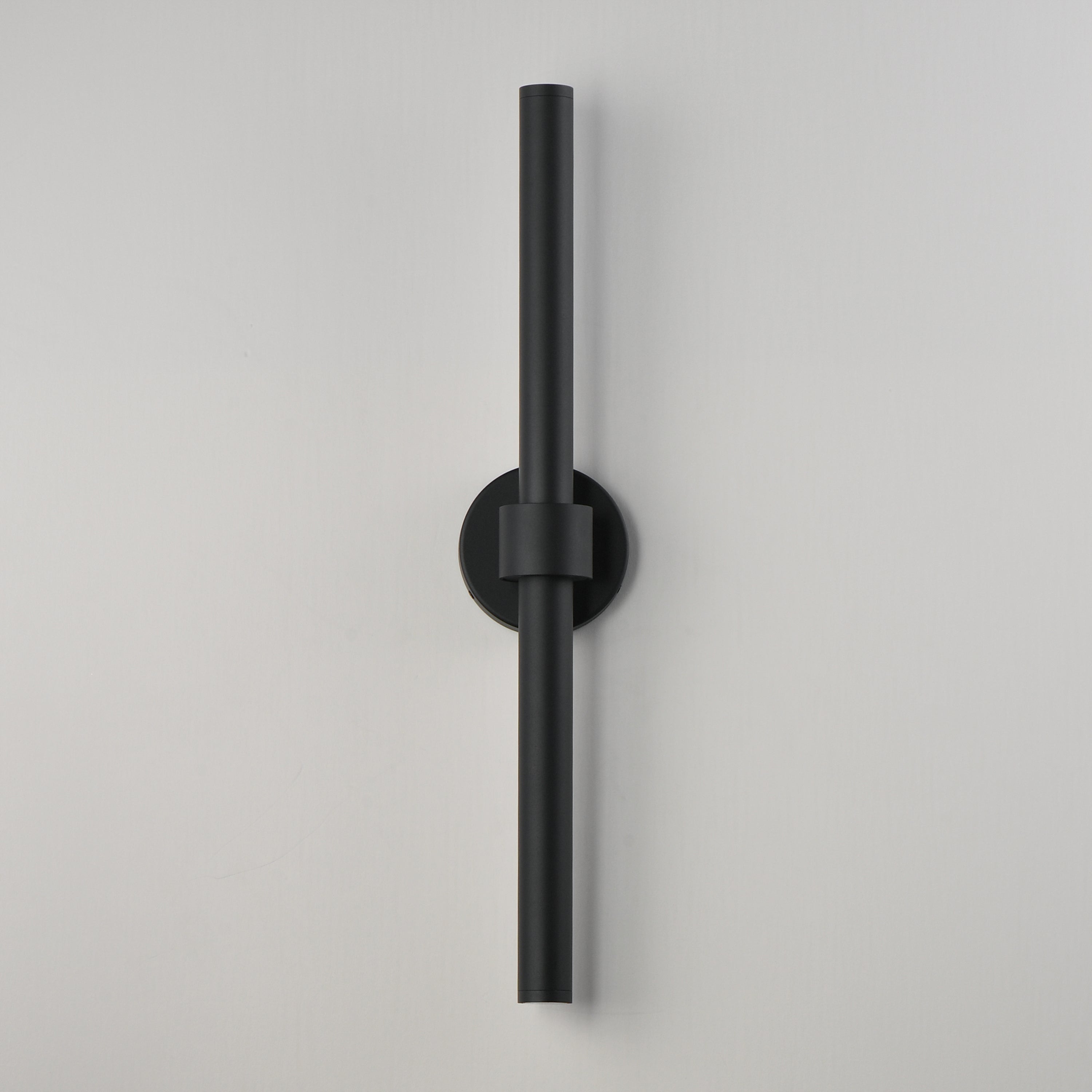

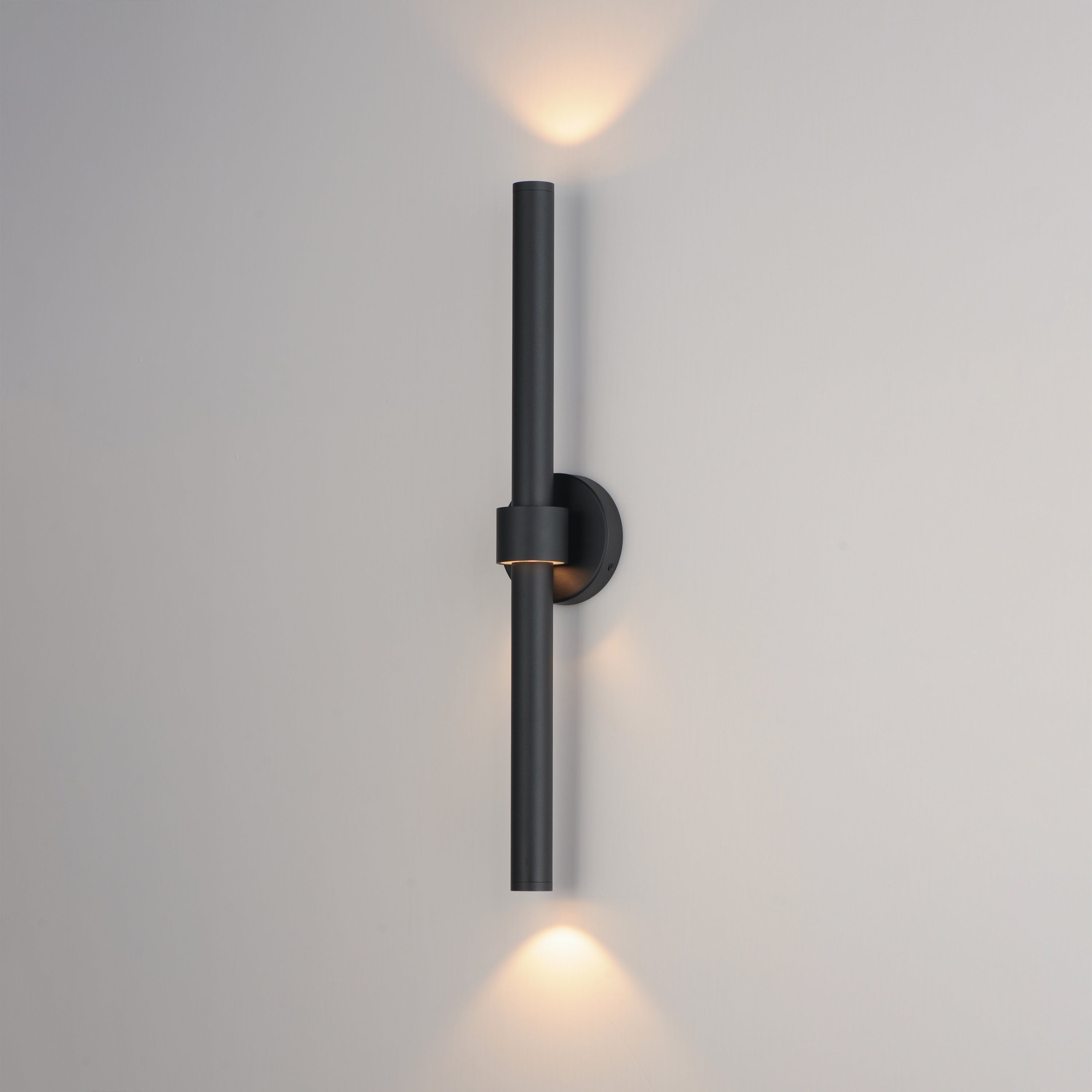

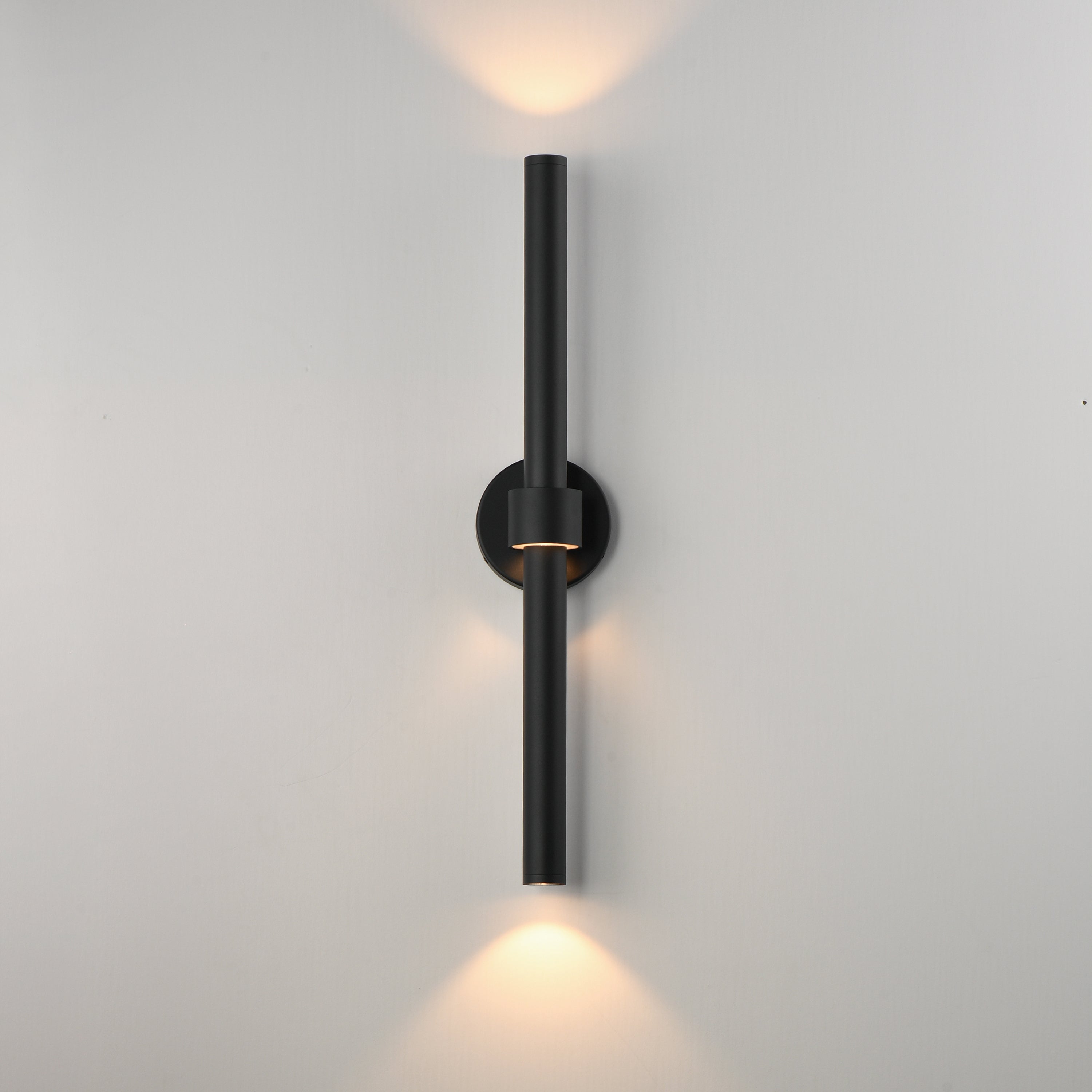

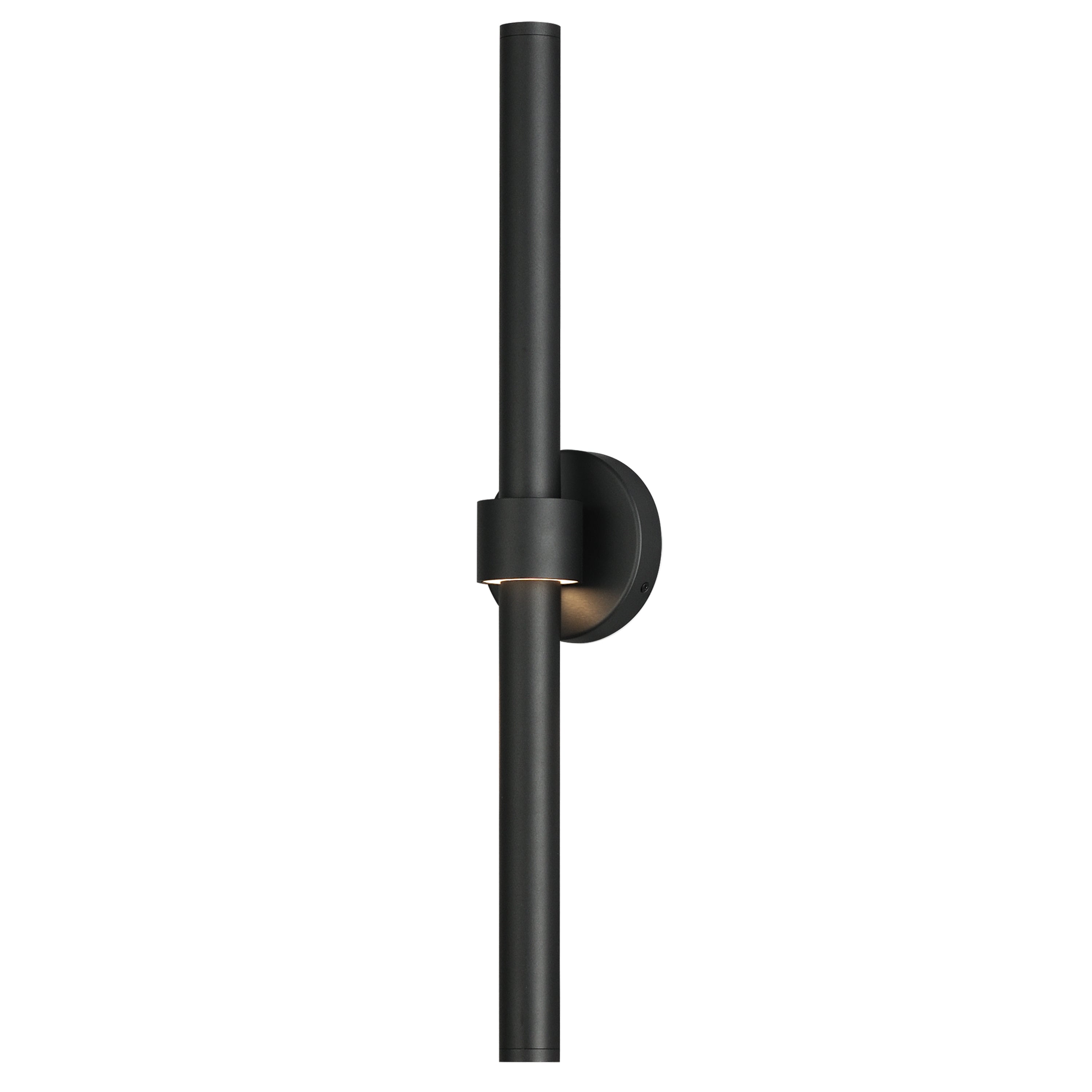

| 28 in | 3 | 2.75 wide x 28 high, 3.75 projection (in) | Wet | Black | E34768-BK |
The Design Story

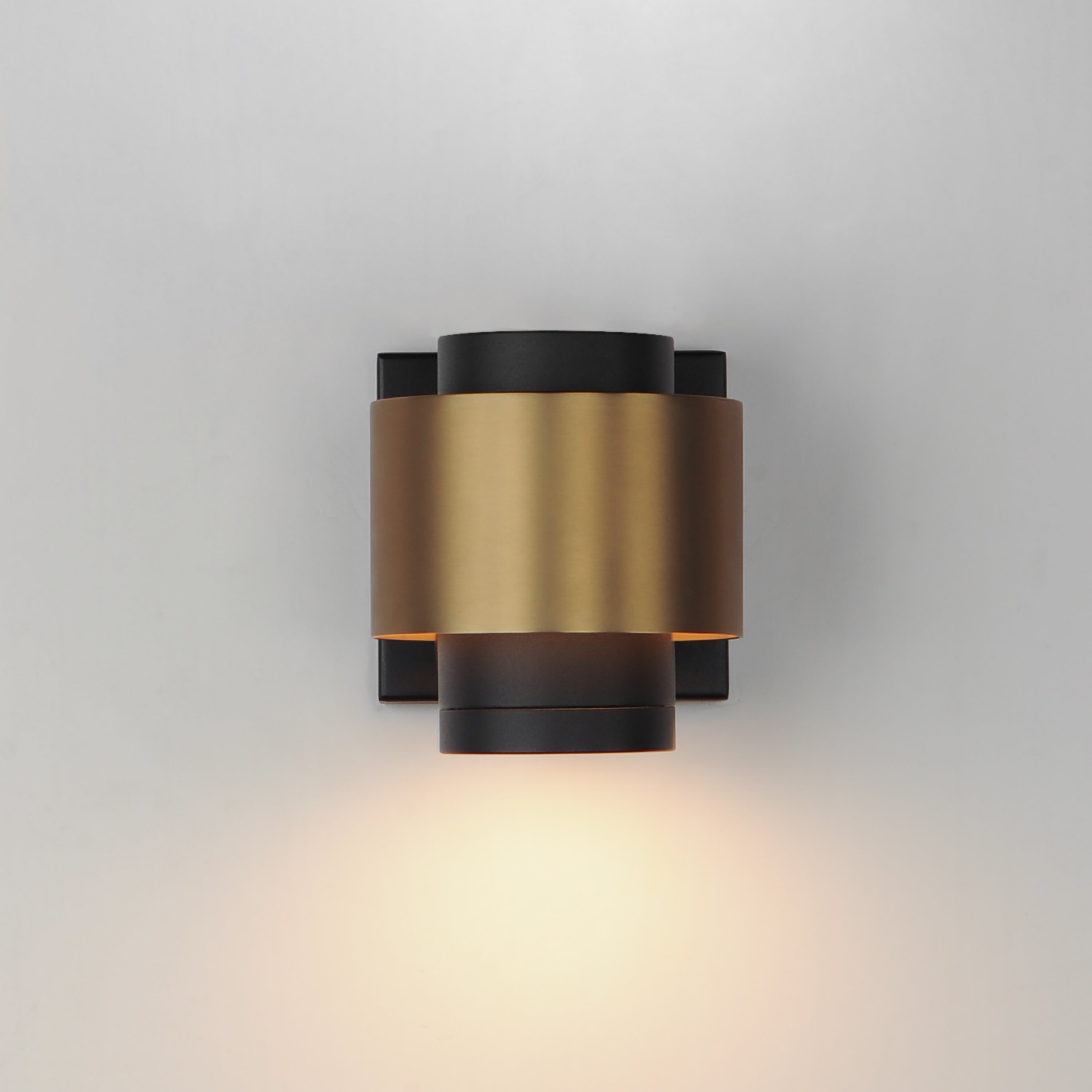

ET2 says this is inspired by its best-selling indoor Reveal series. The Black / Gold versions are Sandy Black with a Gold stainless steel band, with light from the bottom and a reveal glow behind the band.
Why You’ll Love It
The LED is integrated and every version is rated for wet locations. Output differs by version, from 590 lumens on the Small to 1260 on the Medium and Large, and 600 lumens on the three Black versions, all at 3000K with CRI 90. Input is 120V on the Black / Gold versions and 120-277V on the Black.
Made for Real Life
The LED is built in, so there is no bulb to find or match. Wipe the finish with a soft damp cloth and skip abrasive or solvent cleaners.
Not sure which finish to pick? Finishes explained walks through the options.
Putting It Together
ET2 posts an assembly sheet for each version: Small (PDF), Medium (PDF), 14 in (PDF), 20 in (PDF), 28 in (PDF) and Large (PDF). ET2 recommends a qualified electrician for the install.
Product Details
| Maker | ET2 |
|---|---|
| Product | Reveal Outdoor LED Banded Tube Wall Sconce |
| Type | Tubular LED outdoor wall sconce, wall-mounted |
| Number of lights | 2 (Small); 3 (Medium, 14 in, Large, 20 in and 28 in) |
| Height | 5.25 in (Small), 12 in (Medium), 14 in, 20 in, 28 in, 18 in (Large) |
| Width | 5 in (Small, Medium and Large); 2.75 in (14 in, 20 in and 28 in) |
| Projection from wall | 6 in (Small); 6.25 in (Medium and Large); 3.75 in (14 in, 20 in and 28 in) |
| Backplate (width x height) | 4.75 x 4.75 in (Small); 4.75 x 7 in (Medium and Large); 5 x 5 in (14 in, 20 in and 28 in) |
| Finishes | Black / Gold; Black |
| Material | Steel, Acrylic, Aluminum |
| Light source | Integrated LED, 30,000 hour rated life (Small, Medium and Large); Integrated LED, 25,000 hour rated life (14 in, 20 in and 28 in) |
| Wattage | 6W (Small, Medium and Large); 14W (14 in, 20 in and 28 in) |
| Lumens | 590 (Small); 1260 (Medium and Large); 600 (14 in, 20 in and 28 in) |
| Color temperature | 3000K |
| CRI | 90 |
| Input voltage | 120V (Small, Medium and Large); 120-277V (14 in, 20 in and 28 in) |
| Dimming | Triac |
| Light direction | Vertical (14 in, 20 in and 28 in); not listed for Small, Medium and Large |
| Mounting orientation | Vertical (14 in, 20 in and 28 in); not listed for Small, Medium and Large |
| Location rating | Wet |
| ADA compliant | No (Small, Medium and Large); Yes (14 in, 20 in and 28 in) |
| Certification | cETLus |
| Net weight | 3.67 lb (Small), 4.53 lb (Medium), 1.76 lb (14 in), 2.42 lb (20 in), 3.52 lb (28 in), 5.8 lb (Large) |
| Packed weight | 5.67 lb (Small), 6.5 lb (Medium), 2.84 lb (14 in), 3.52 lb (20 in), 4.4 lb (28 in), 8 lb (Large) |
| Item numbers | Small Black / Gold: E34752-BKGLD; Medium Black / Gold: E34754-BKGLD; 14 in Black: E34764-BK; 20 in Black: E34766-BK; 28 in Black: E34768-BK; Large Black / Gold: E34756-BKGLD |
Where It Shines
On either side of a door or along an exterior wall. The 14, 20 and 28 inch Black versions are 2.75 inches wide, and the Black / Gold versions are 5 inches wide.
Questions We Hear Most
How do the two Reveal Outdoor groups differ?
The Black / Gold Small, Medium and Large are 5 inches wide with 2 or 3 lights and project 6 to 6.25 inches. The 14, 20 and 28 inch Black versions are 2.75 inches wide with 3 lights, project 3.75 inches and are listed as ADA compliant.
How big is the Reveal Outdoor, and how far does it project?
Heights run from 5.25 to 28 in and widths run from 2.75 to 5 in, depending on the version. Projection from the wall is 6 in (Small); 6.25 in (Medium and Large); 3.75 in (14 in, 20 in and 28 in). The Choose Your Version table above lists each size.
How much light does the Reveal Outdoor give?
Delivered output in lumens is 590 (Small); 1260 (Medium and Large); 600 (14 in, 20 in and 28 in), with a color temperature of 3000K and CRI 90.
Which way can the Reveal Outdoor be mounted?
ET2 lists the mounting orientation as vertical (14 in, 20 in and 28 in); not listed for Small, Medium and Large. The light direction is listed as vertical (14 in, 20 in and 28 in); not listed for Small, Medium and Large. Confirm the orientation you want against the product details before you rough in the box.
Will my dimmer work with it?
ET2 lists the dimming as Triac. Send us your dimmer model and we will help you confirm the match before you order.
Can the LED in the Reveal Outdoor be replaced?
The LED is integrated and ET2 does not list the board as replaceable, so plan on it as a permanent light source with a rated life of 25,000 and 30,000 hours.
Where can I install the Reveal Outdoor?
It is wet rated, so it can be installed outdoors where rain and spray reach it, as well as in covered or indoor spaces. ADA compliance: No (Small, Medium and Large); Yes (14 in, 20 in and 28 in). ET2 recommends a qualified electrician for the install.
Why We Love It
It offers two tubular sizing ranges and a gold-banded or all-black look, all rated for the outdoors.
