Universal Dimmable Constant Voltage LED Driver, Class 2, 110–277V (Phase, 0-10V & PWM Dimming) | Nora NPSU Series
Universal Dimmable Constant Voltage LED Driver, Class 2, 110–277V (Phase, 0-10V & PWM Dimming) | Nora NPSU Series
$131.31
/
%20%7C%20Nora%20NPSU%20Series){kind=link}
Nora Universal Dimmable Constant Voltage LED Driver, Class 2, 110–277V (Phase, 0-10V & PWM Dimming) powers your Nora tape and puck lights.
2 output voltage choices and 3 wattage choices. Find your exact part number in the table at the bottom of this page.
Specs & Downloads
Exact measurements and wiring details are in the spec sheet: Spec sheet: NPSU-60W-12 (PDF) · Spec sheet: NPSU 24V (PDF) · Spec sheet: NPSU-3X96W-24 (PDF) · Install guide
Before You Order
Pick the voltage that matches your lights, then a wattage above their total load. Works with 24V Nora tape and pucks: NUTP5, NUTP8, NUTP9, NUTP10, NUTP12, NUTP14 and more. 12V: NMP-A, NMP-LED.
Not included: The 12V or 24V lights it powers (tape or pucks); NALTL power line connector to reach the lights; A compatible dimmer (Triac, ELV, MLV, 0-10V or PWM), if you want dimming; NATL-302W power line splitter (optional).
Why You'll Love It
- Dims on Triac, ELV, MLV, 0-10V or PWM.
- Made for Nora tape and pucks, so voltages match.
Product Details
| Brand | Nora Lighting |
|---|---|
| Model Number | NPSU Series |
| Product Type | LED driver (power supply) |
| Voltage In | 110–277V |
| Power Out | 12V DC 60W; 24V DC 60W, 96W or 3 × 96W (288W, three channels) |
| Dimmer Compatibility | Triac, ELV, MLV, 0-10V or PWM |
| Class | Class 2 constant voltage |
| Optional | NALTL-10 / NALTL-30 power line connectors, NATL-302W splitter |
| Finish | Black |
| Safety Listing | cULus, NEMA 4X rated enclosure |
| Made In | China |
| Nora Part Numbers | 4 options (listed at the end of this page) |
Questions We Hear Most
Which size do I need?
Add up the watts of your lights and pick a driver at least 20% bigger (our advice), in the same voltage.
Can I dim it?
Yes.
Do color-changing strips need more?
Yes, a matching Nora controller as well.
Can I order for a whole project?
Yes. Contractors order in project quantities all the time. Contact us for larger jobs.
Is LoftModern an authorized Nora seller?
Yes. Every item is sold new, and stock is synced with Nora weekly.
When will it ship?
In-stock options typically leave within 2–3 business days, with free shipping on orders over $100.
Why We Love It
The right driver is what makes low-voltage lighting work: steady, flicker-free and dimmable. We sync stock with Nora weekly, so what you add to your cart is ready to ship.
Shipping Info
| Processing Time | In-stock items typically leave within 2–3 business days. |
|---|---|
| Ships From | United States |
| Shipping | Free shipping on orders over $100 |
Find Your Part Number
| Part # | Output Voltage | Wattage |
|---|---|---|

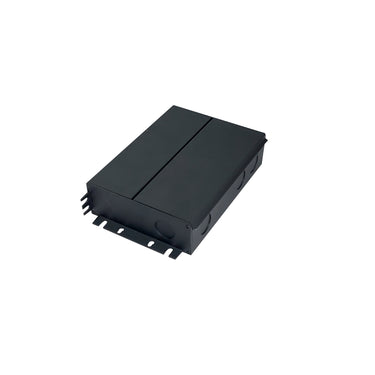

| NPSU-60W/12 | 12V DC | 60W |
| NPSU-60W/24 | 24V DC | 60W |
| NPSU-96W/24 | 24V DC | 96W |
| NPSU-3X96W/24 | 24V DC | 288W (3 x 96W channels) |
