MonoRail 300W Surface Electronic Transformer | Visual Comfort Modern

MonoRail 300W Surface Electronic Transformer by Visual Comfort Modern

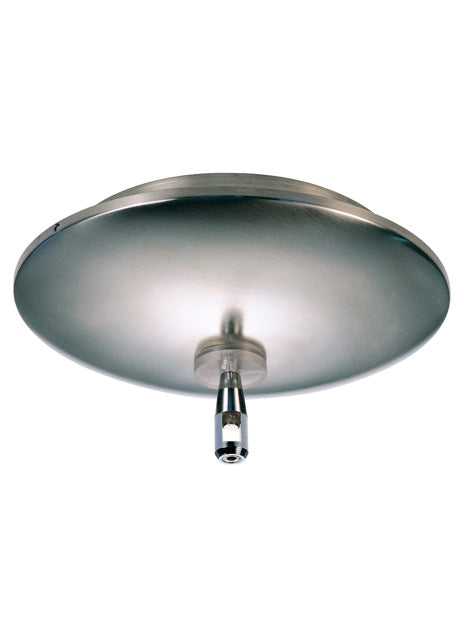

This single-feed surface transformer converts standard 120 line-voltage to 12 volts to provide the necessary voltage for powering a MonoRail low-voltage lighting system. It can power lamps totaling up to 300 watts. The transformer is concealed inside a decorative housing with a single integral power feed and fast acting secondary short circuit and overload protection that will safely turn the system off should a short occur. Once the short has been removed, the unit can be reset by simply flipping the wall switch off and on.

Installation
This product can mount to either 4" square electrical box with round plaster ring or an octagon electrical box (not included). Rail is installed through the power feed on the canopy to bring power to the run.

NOTES
Black and white finish have satin nickel feeds. The shortest rigid standoff that can be used with this surface transformer is the 4" rigid standoff (sold separately). If dropping the rail more than 4" below the ceiling, order the desired rigid standoff length and one compatible power extender (sold separately). This surface transformer may be plugged in with the addition of a Plug Option, a 16' cord with plug (sold separately). 12V transformers require the use of 12V lamps.

Finish
Z: Antique Bronze
S: Satin Nickel

Dimension
9.1" D x 4.8" H

Shipping
If in stock, item ships in 3 to 7 business days.

Certification
ETL Listed

Item Code
700MOSRT30E
