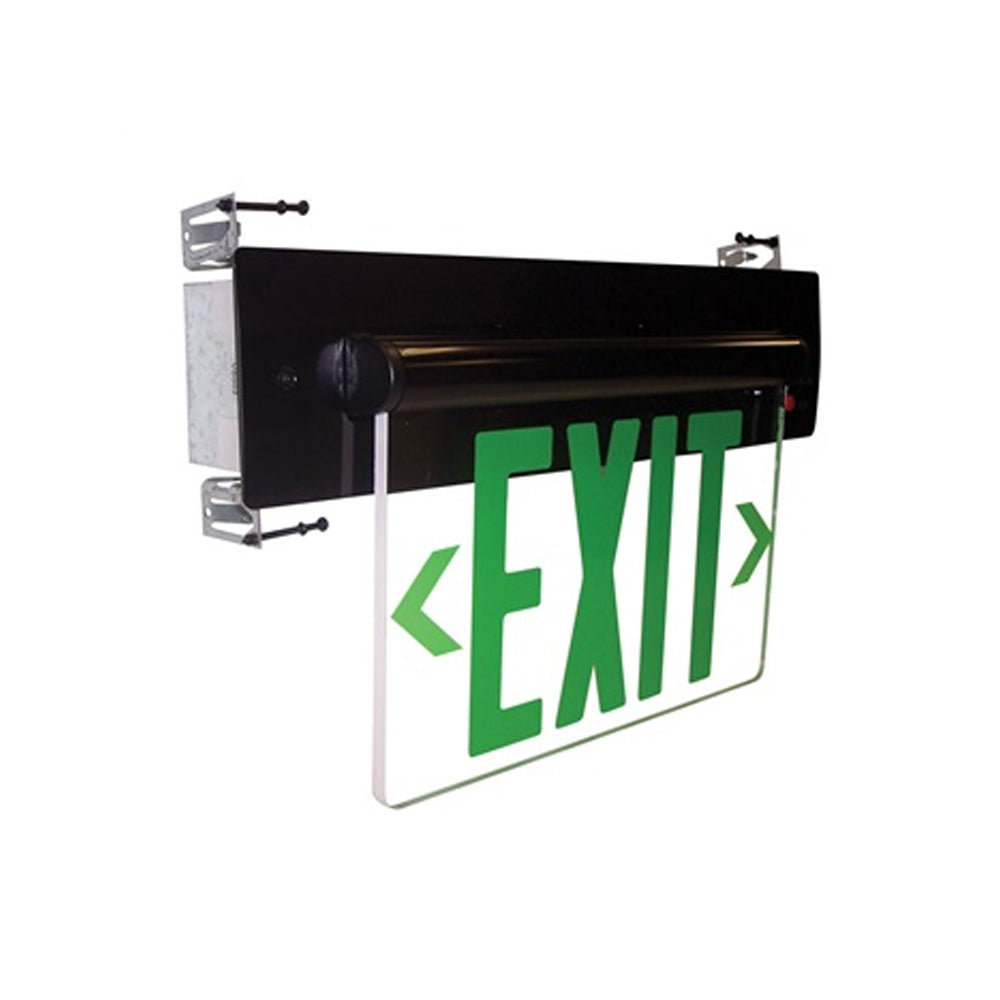

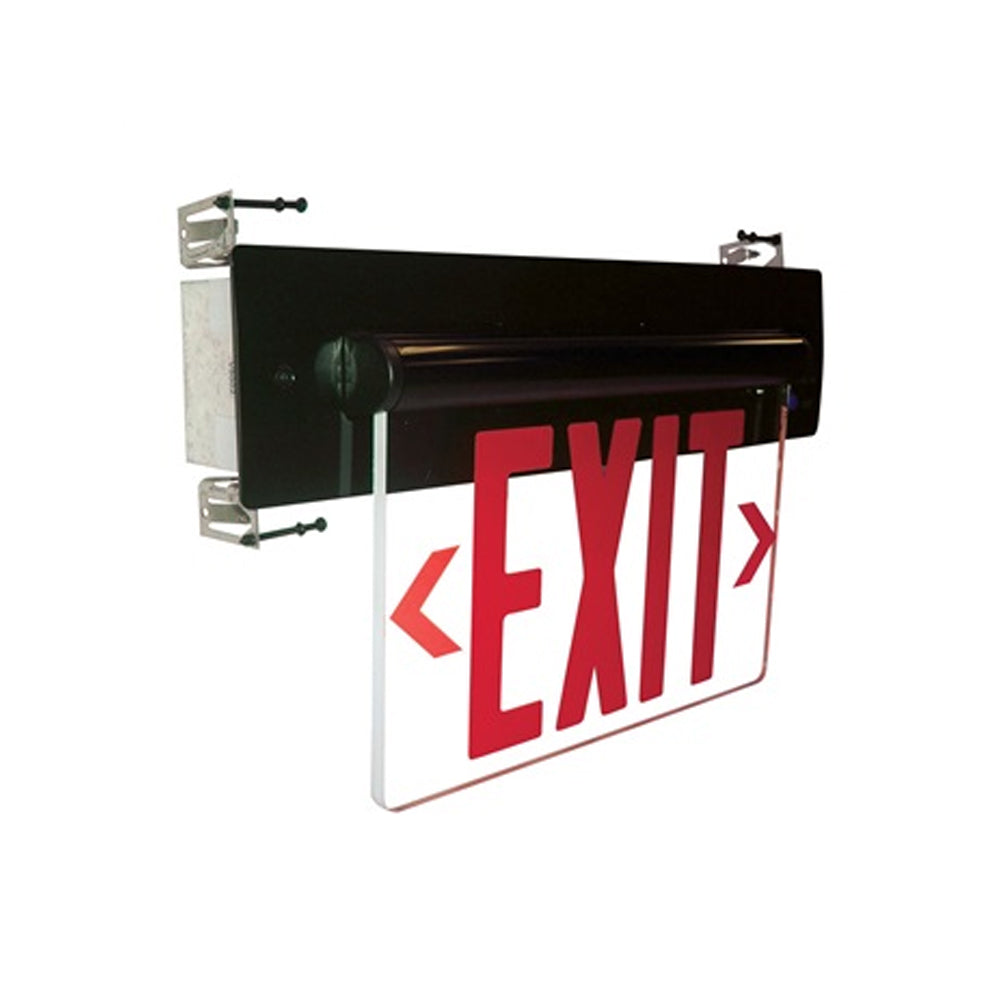

Nora Lighting NX-814-LED Recessed Adjustable LED Edge-Lit Exit Sign, 2-Circuit
Nora Lighting NX-814-LED Recessed Adjustable LED Edge-Lit Exit Sign, 2-Circuit
Couldn't load pickup availability
Nora Lighting NX-814-LED Recessed Adjustable LED Edge-Lit Exit Sign, 2-Circuit
Ideal for architectural applications where aesthetic and minimal profile appearance is desired. LED sources within the adjustable housing cast a brilliant red or green illumination on letters embedded inside the acrylic face.
Body
- Galvanized steel housing with die-cast cover plate and acrylic panel
Face
- Edge-lit Exit is available in either single or double face
- Acrylic face has rounded and finished edge for attractive appearance
- Red or green 6" lettering inside face with adhesive mounted chevrons included

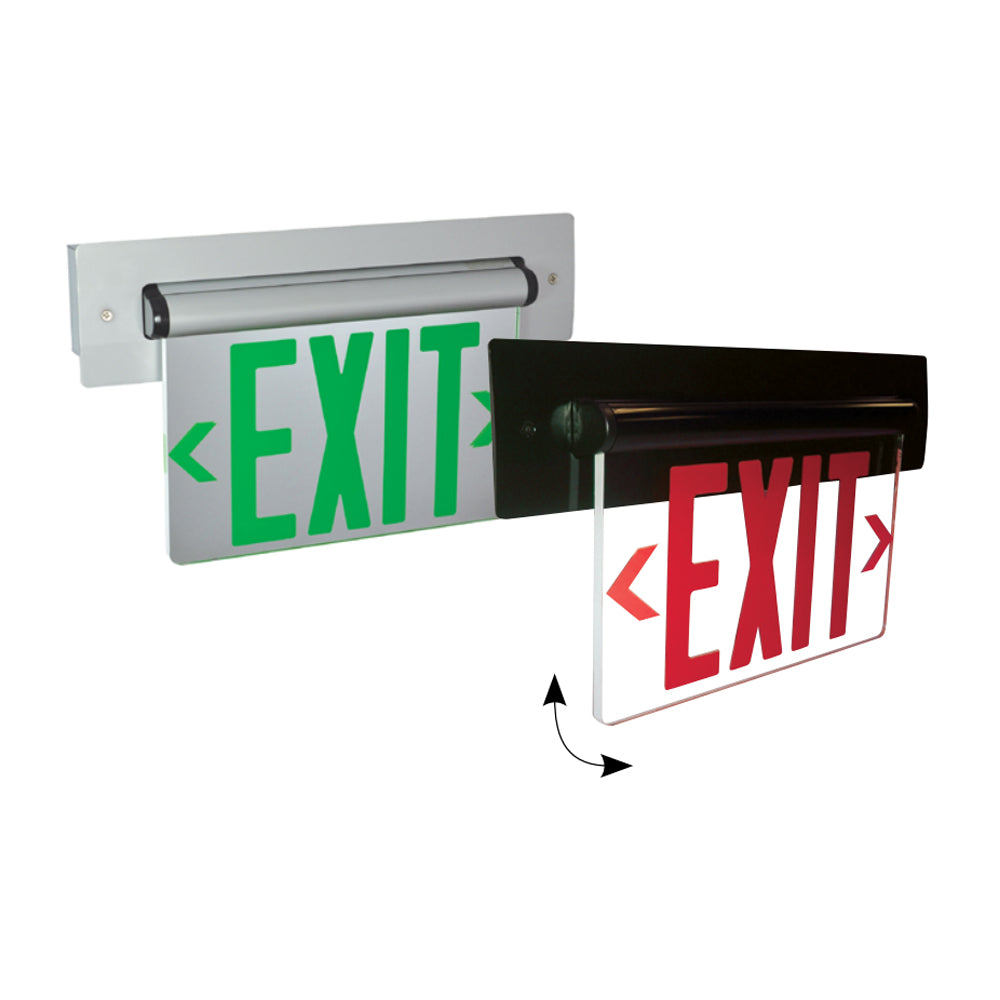

- Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications
Mounting
- Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing
- Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired
- A T-Bar notch allow for easy installation in a suspended ceiling
Electrical
- Voltage: Dual 120V/277V (0.038A / 0.017A)
- LED Wattage: 3 Watts normal / 5 Watts emergency operation
- Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
- Battery (NX-815-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
- Testing: High charge / ready operation indicator light with test button and automatic reset
- Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
- Life Expectancy: 25 Years with no change in illumination level
Labels and Listings
- UL Listed
- NEC
- NFPA
- State & Municipal
- 5-Year Limited Warranty
- Certified to the energy efficiency standards of California Title 20

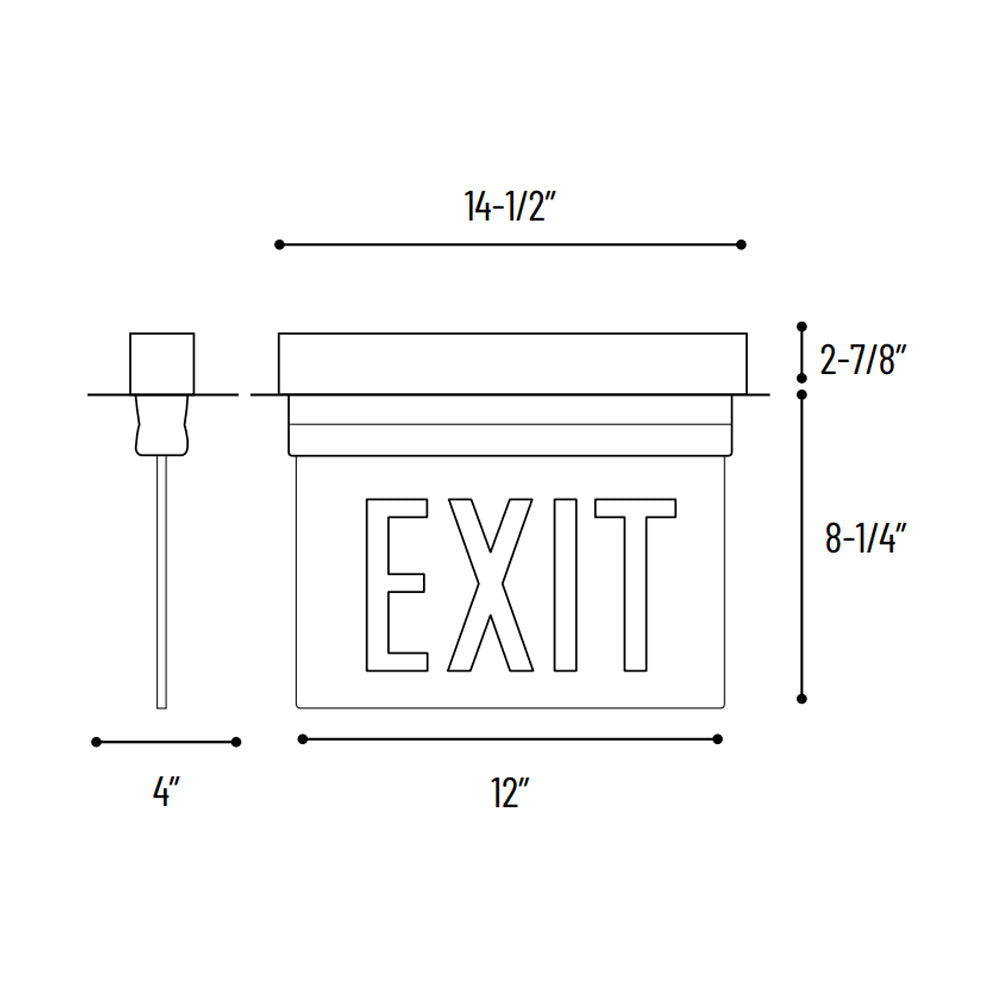

Dimension
- 12" W x 8 1/4" H
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
