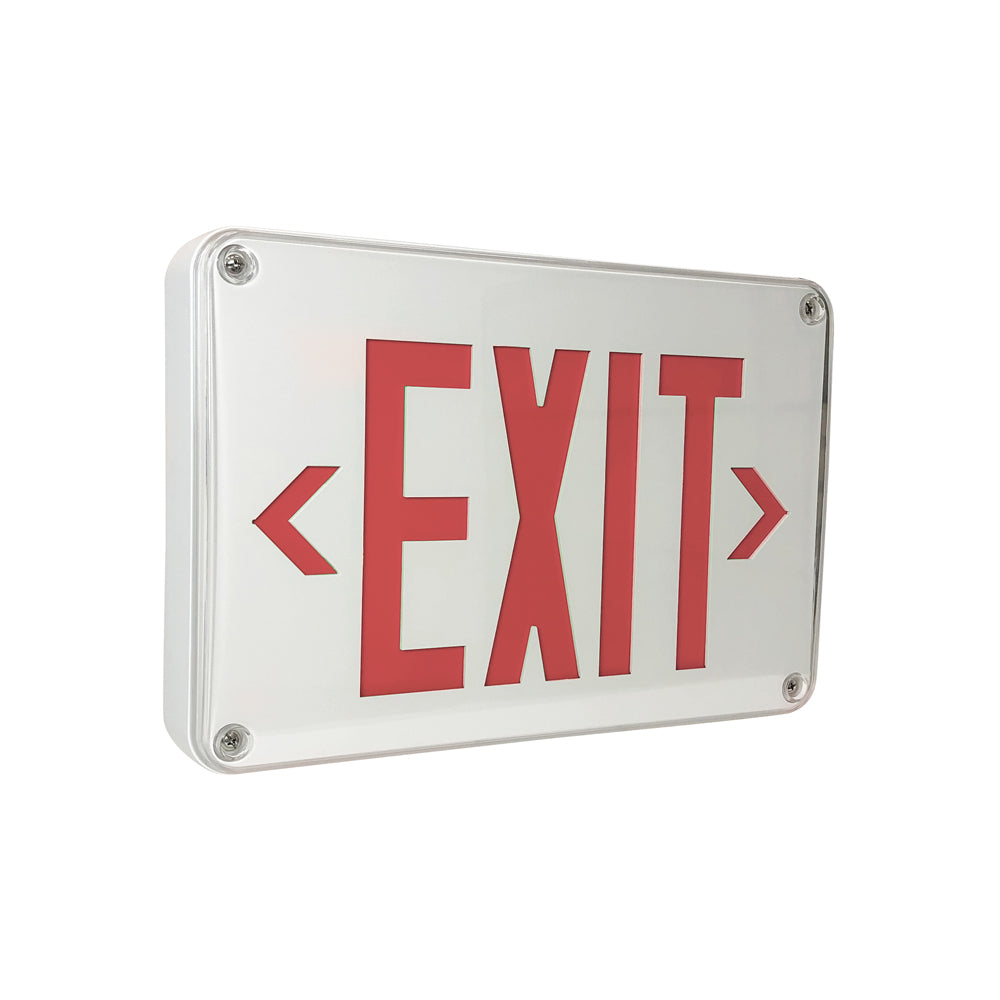

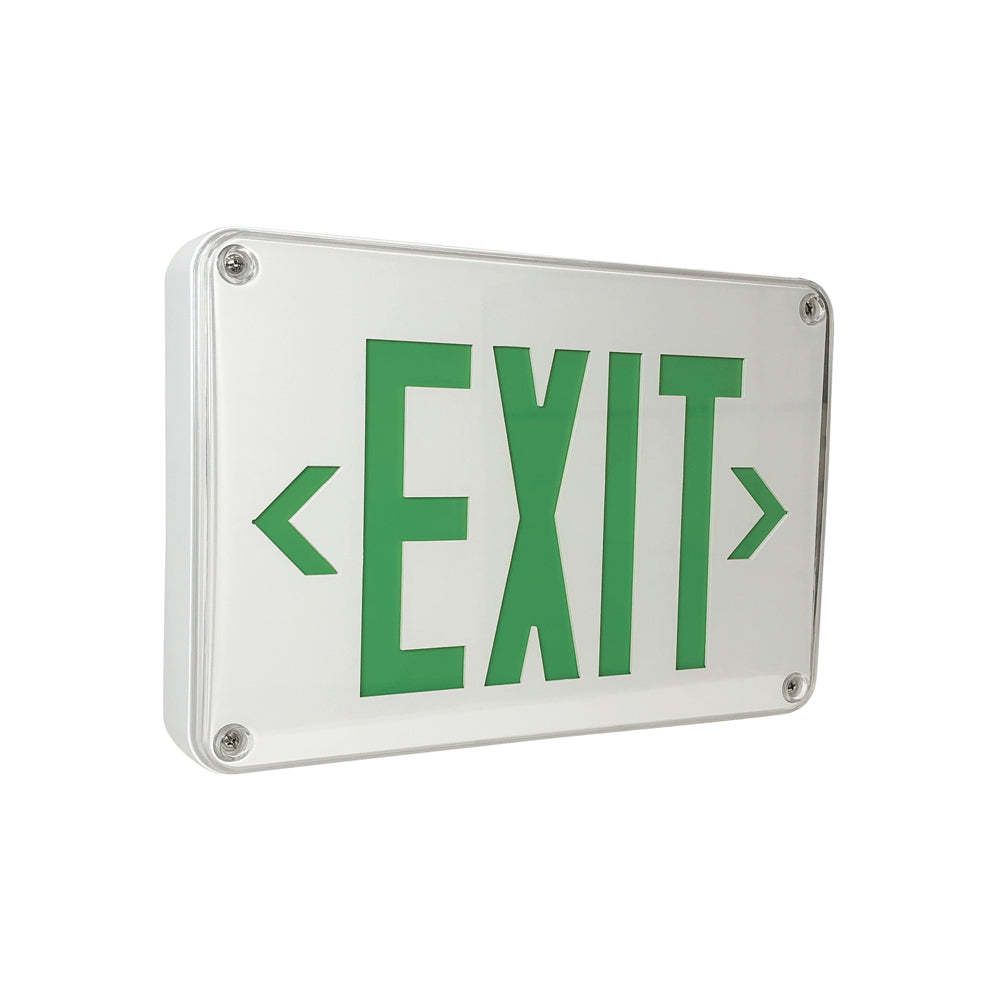

Nora Lighting NX-617-LED Wet Location LED Exit Sign with Battery Backup and Self Diagnostics

Nora Lighting NX-617-LED Wet Location LED Exit Sign with Battery Backup and Self Diagnostics

LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur.

Features

• Universal Mounting - Wall, Ceiling or Side Mounting
• UL Listed and meets or exceeds UL 924, NFPA 70 and
NFPA 101 Life Safety Code requirements
• Self Diagnostic Testing
• Polycarbonate plastic enclosure with flame retardant and wet location rated
• Push-To-Test Switch
• High temperature maintenance free NiCad battery
• 120V or 277V AC input
• 6" Letters and 3/4" stroke
• Cold weather option includes heating pad to maintain operating temperature

Electrical

• Voltage: 120/277VAC 60Hz input
• Wattage: 2.4W
• Battery: 3.6V Replaceable 400mAh NiCad battery
• Recharge Time: 24 hours
• Standard Operating Temperature: 0°C to 50°C
• Cold Weather Option: -25°C to 50°C

Face

• Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating
• Optional dual face plate included
• Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included

Emergency

• During loss of power, NiCad battery will operate LED exit sign for 90 minutes
• Battery requires 24 hours to recharge when power is restored

Mounting

• Mounting hardware included for ceiling, wall or side mount applications
• Listed for installations indoor, outdoor or wet locations

Brownout Circuit

• Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs
• This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred

Short Circuit Protection

• Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur
• The overload current protection eliminates the need for fuses or circuit breakers for the DC load

Testing

• Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly
• Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and exit sign
• If a failure is detected, an indicator LED will blink red until fault is corrected
• A solid green indicator LED indicates no faults and blinked green indicates a test is in progress

Cold Weather Option

• Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix
• When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C

Labels and Listings

• UL 924 Listed for Wet Locations
• NFPA 70 & NFPA 101 Life Safety Code
• California Energy Commission (CEC) Compliant
• Title 20 Compliant

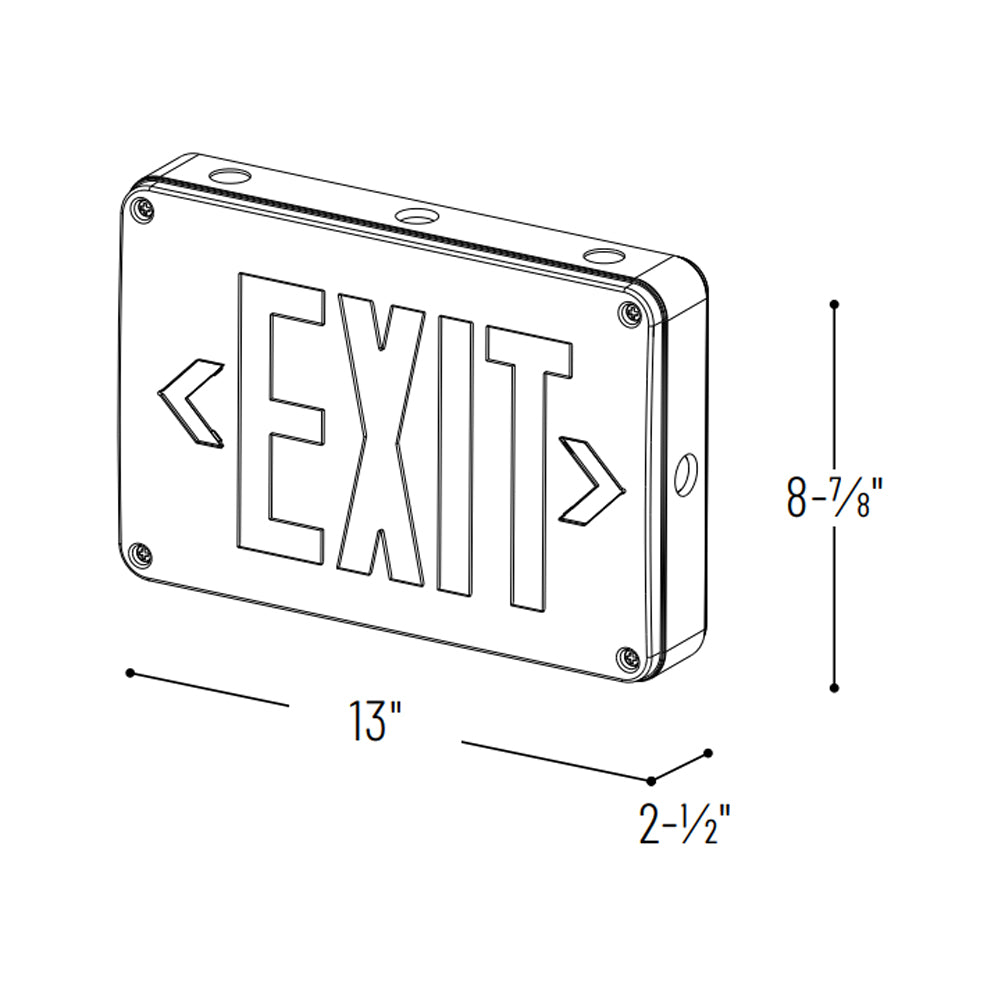

Dimension

• 13" W x 8 7/8" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
