Nora Lighting X Shaped L-Line LED Direct, 5200lm
Nora Lighting X Shaped L-Line LED Direct, 5200lm
Couldn't load pickup availability
Nora Lighting "X" Shaped L-Line LED Direct, 5200lm

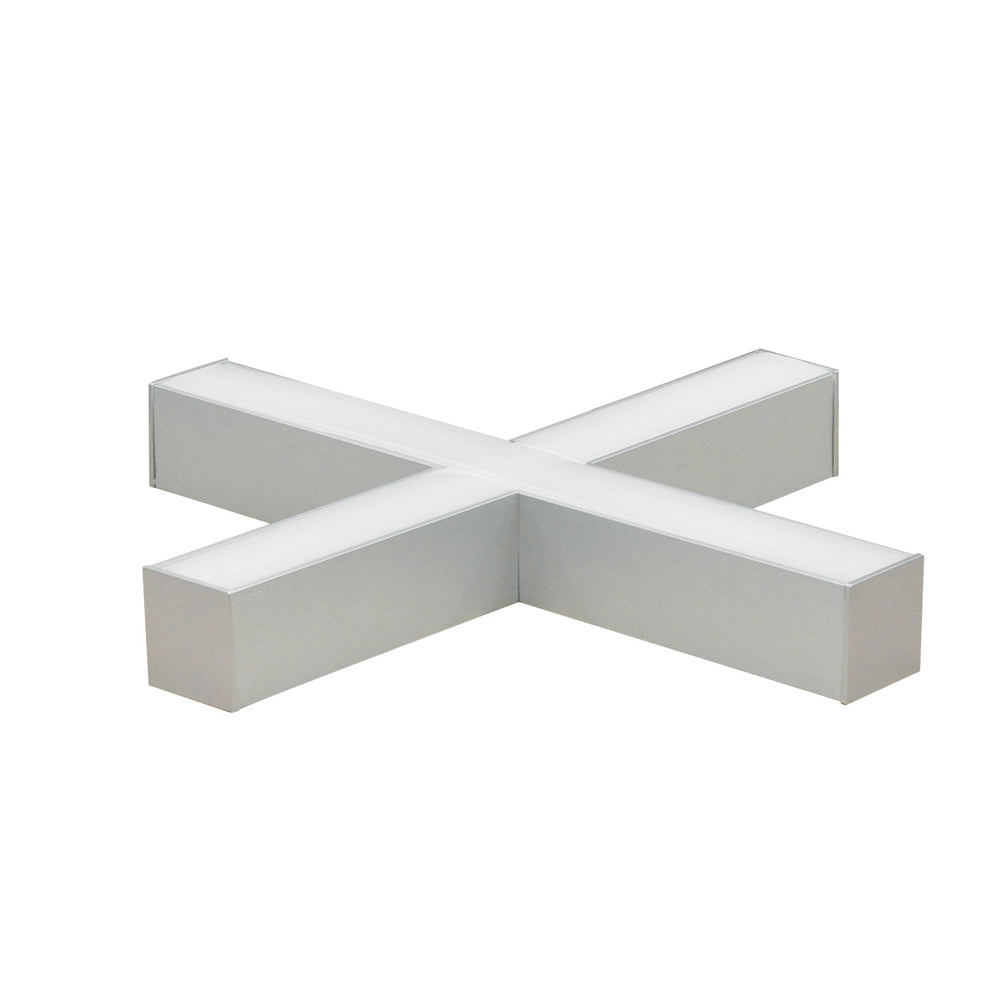

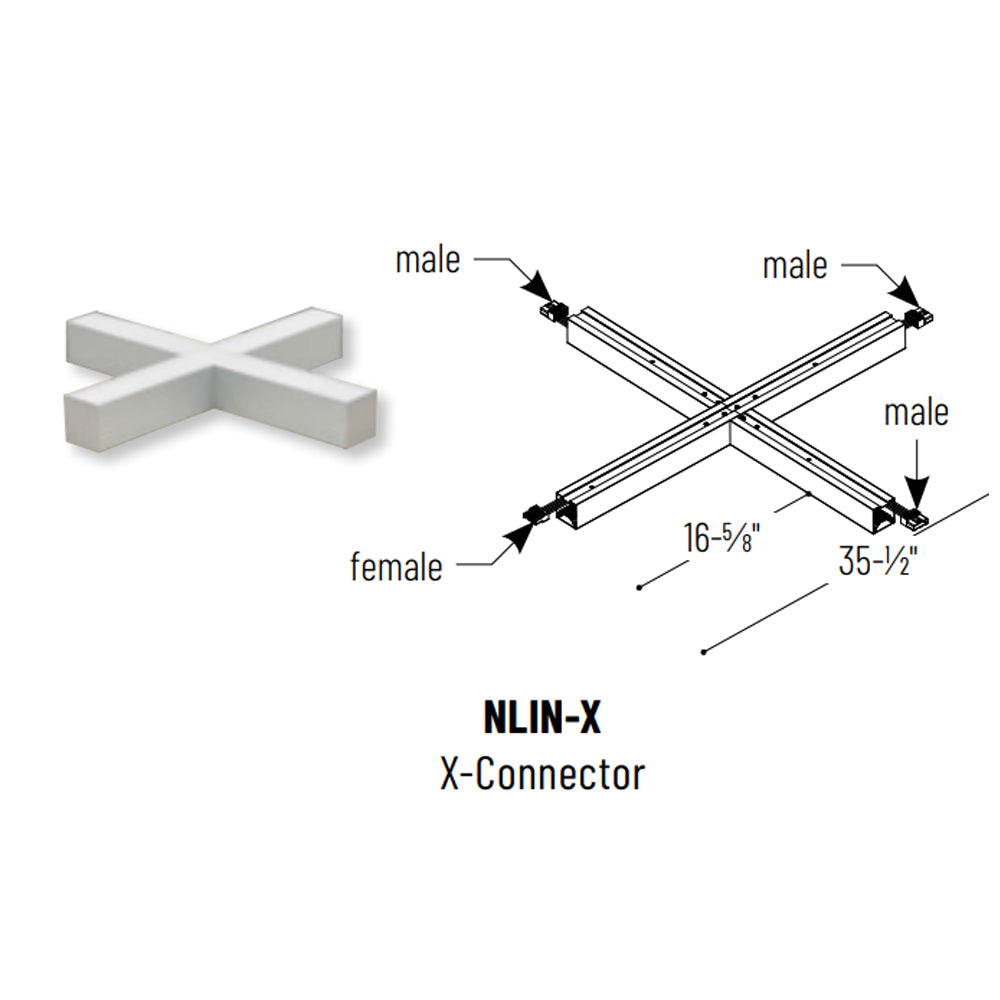

Luminous X-Connector connects four L-Line Linear luminaires in a "X" shape. X-Connector includes three male connectors and one female connector for seamless continuity.
Features
- 2100lm, 4200lm or 8400lm LED packages
- 3000K, 3500K, 4000K
- Surface mount or pendant kits available
- 120-277V input and 0-10V dimming
- 5-Year Limited Warranty
Finish
Aluminum
Construction
One piece extruded aluminum housing with solid end caps. Includes diffused polycarbonate lens for symmetrical light distribution. Luminaires include three integral switches to control light direction (direct, indirect/ direct, indirect) and color temperature switch for direction of light.
Mounting
Luminaires can be wall mounted or pendant mounted with kits (ordered separately). Pendant mounted systems require a mounting kit at each end of luminaire. Wall mount kit includes wall plate and wiring for luminaires.
Input Voltage
120-277V
Lumens / Wattage
NLIN-L = 3000lm / 31W
Color Temperature
3000K, 3500K, 4000K
Color Rendering Index
80+ CRI
Operating Temperature
0°C to 30°C
Dimming
0-10V dimming down to 10%
Maximum Wattage Per Run
80'
Labels / Listing
cULus Listed for Damp Location
Dimension
35" L
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
