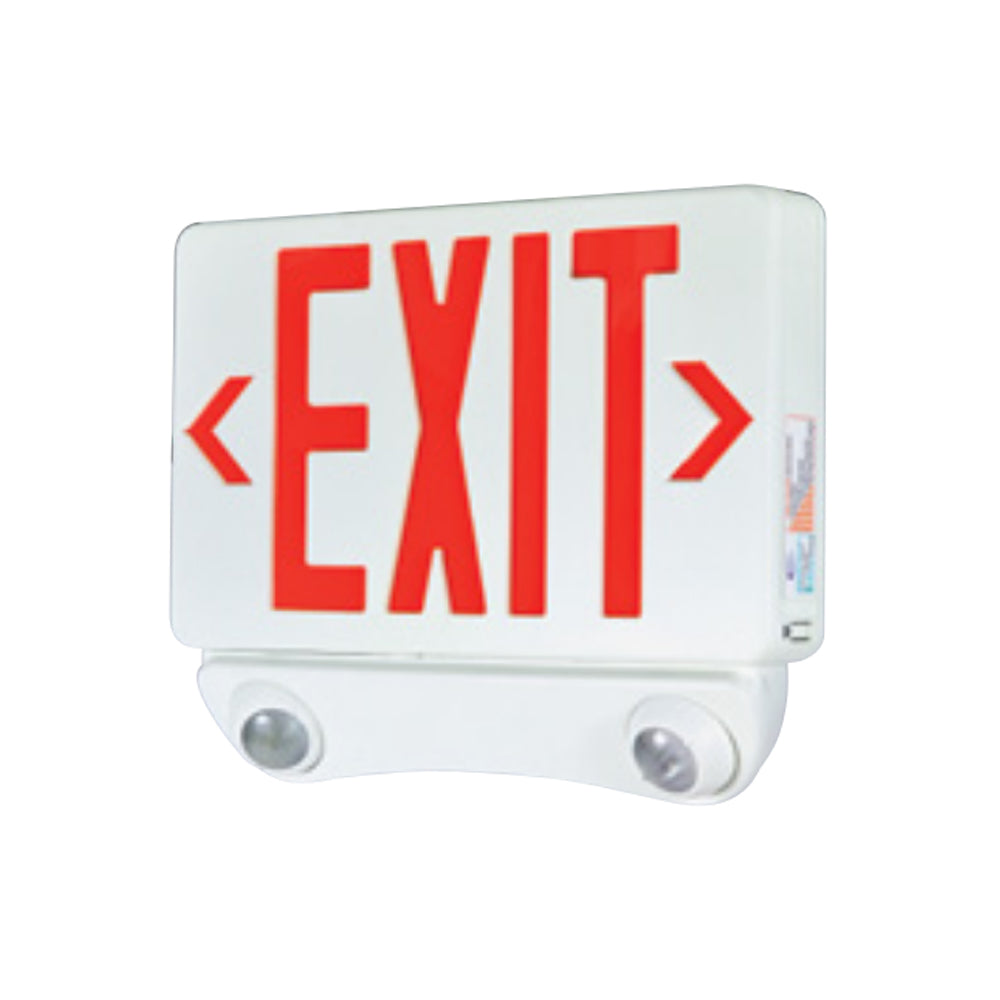

Nora Lighting NEX-730-LED LED Exit & LED Emergency Combo

Nora Lighting NEX-730-LED LED Exit & LED Emergency Combo

LED Exit sign with dual emergency fixtures feature Ball and Socket LED lights for full adjustability. The exit sign is powered by LED source for maximum life without maintenance; Expected life 100,000 hours. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.

Features

• Fully adjustable 2.8 watt high-intensity LED heads
• Universal Mounting - Wall or ceiling
• UL Listed and meets or exceeds UL924, NEC, OSHA and NFPA 101 Life Safety Code requirements
• Injection molded high impact and scratch resistant corrosion-proof and UL94 5V-O flame retardant housing
• Push-To-Test Switch
• Maintenance free NiCad battery
• 120 or 277 VAC input
• Field selectable Chevrons
• 6" High and 3/4" Stroke letters
• External LED Status indicator
• Available in Black or White
• 100,000 hour expected life
• Wet Location shield accessory available

Electrical

• Voltage: 120V or 277V Input
• Wattage: 2.8 Watts, normal operation. 3.5 Watts, emergency operation
• Lumens: 40lm per emergency head

Light Source

• Exit: LED strip for normal operation
• Emergency: LED Strip and 2 wedge base LED lamps

Battery

• 4.8V Replaceable 1.0Ah Ni-Cad battery operates integral heads and exit LED sources
• 90 minute emergency operation Internal solid state charging circuit

Body

• Injection-molded dual housing

Face

• Single or dual configuration
• Optional solid face panel is included
• 6" high text with color diffusion
• Knockout directional chevrons

Emergency

• Two adjustable Balls & socket with round heads holding self-protected, covered LEDs
• Emergency heads can be mounted on top or bottom of exit sign

Mounting

• Wall or Ceiling
• Mounting hardware included

Testing

• High-charge/ready operation indicator light
• Test button
• Isolated surge/short circuit protection

Labels and Listings

• UL Listed for Damp locations

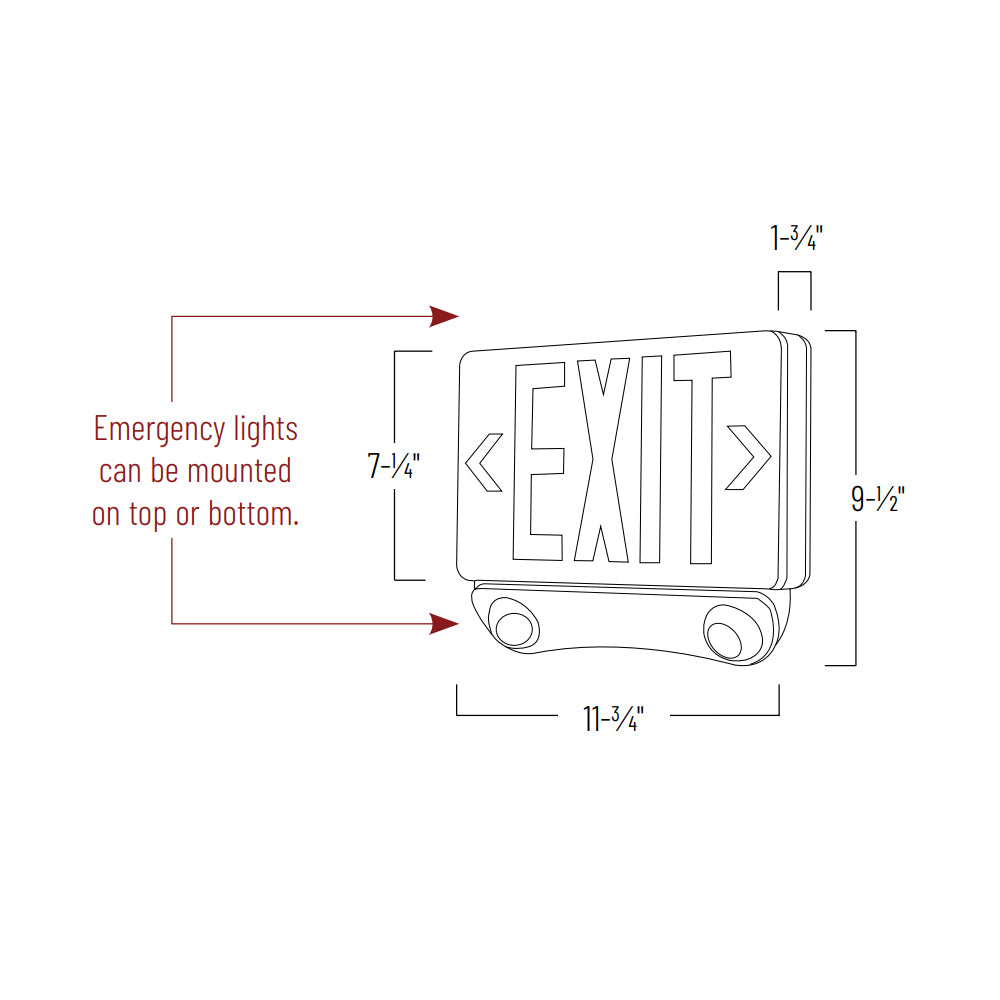

Dimension

• 11 3/4" W x 9 1/2" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
