Nora Lighting

Nora Lighting 8" Sapphire I, Universal New Construction Frame-In

Nora Lighting 8" Sapphire I, Universal New Construction Frame-In

Regular price $227.97
Regular price $273.55 Sale price $227.97
Sale Sold out

Nora Lighting 8" Sapphire I, Universal New Construction Frame-In

Architectural grade LED High Lumen Downlights featuring deep cone reflectors. Dimmable Cree® LEDs and Cree® LED drivers make for a solid, complete and tested package. The Sapphire series is available in 4", 6" or 8" apertures and also in new construction or remodel frame-ins.

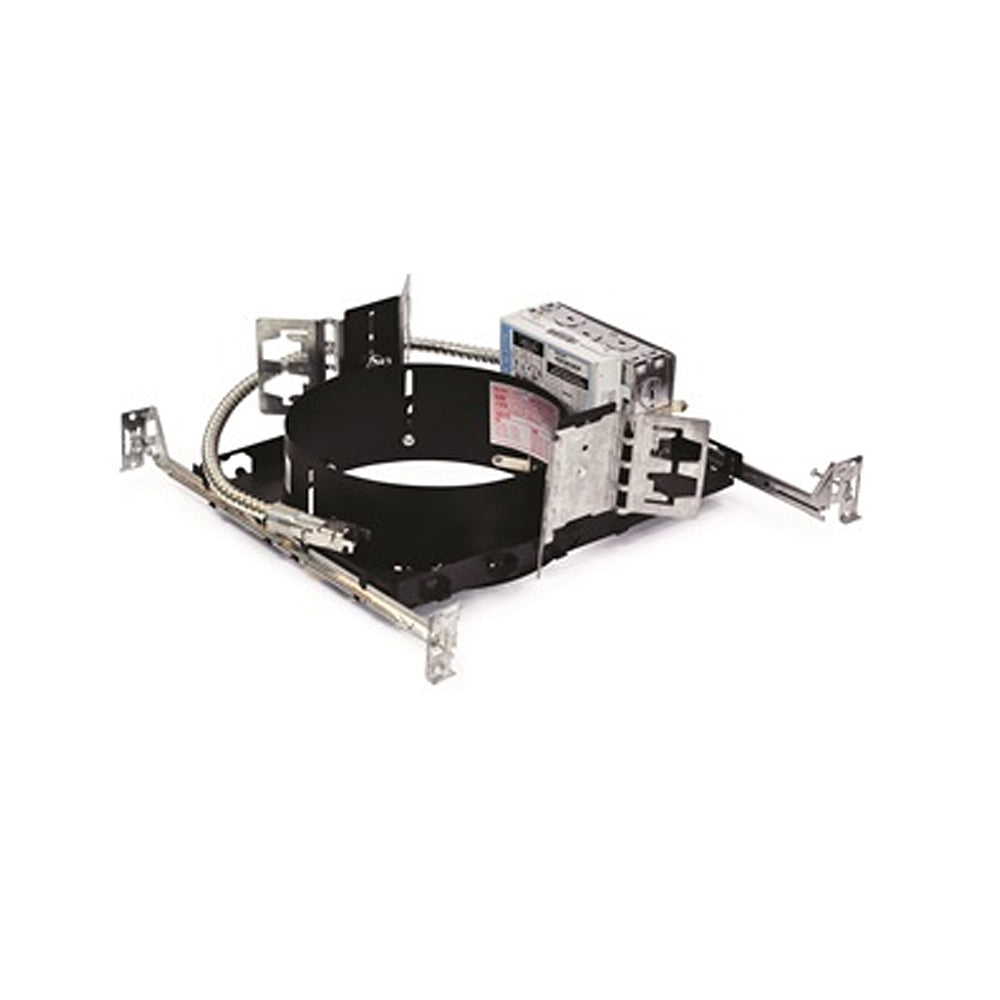

Plaster Frame
Architectural quality 0.050 galvanized steel ring riveted to 0.064 steel junction box and driver tray. Plaster frame opening includes (3) "butterfly" spring clips to hold reflector assembly in place.

Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2" conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".

Minimum Clearances
Minimum clearance of 24" from thermal insulation and adjacent building component, and 48" between any recessed fixtures.

Junction Box
Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.

Thermal Protector
External thermal device is located on the junction box.

Isolated driver separates the primary side from the secondary side.

Input Voltage
120V 277V

Lumens / Wattage

  • L60 = 6000lm / 85W
  • L80 = 8000lm / 105W

Operating Temp.
0°C to 45°C ambient temperature

Triac, ELV or 0-10V dimming

Compatible Reflectors
NC-831: 8" Open Reflecto

Emergency LED Driver (NEPK-07LEDUNV)

  • Up to 7.5W emergency illumination with LEDs
  • Illumination Time: 90min
  • Voltage: 120/277 VAC, 60Hz
  • Output Voltage: 15.0-50.0 VDC
  • Available with remote or integral test switch, must specify

Labels and Listings

  • cULus Listed for Damp Location (Wet Location when used with compatible reflector)
  • 10-Year Limited Warranty
  • RoHS Compliant
  • Emergency LED Driver meets Title 20 CEC efficiency standards

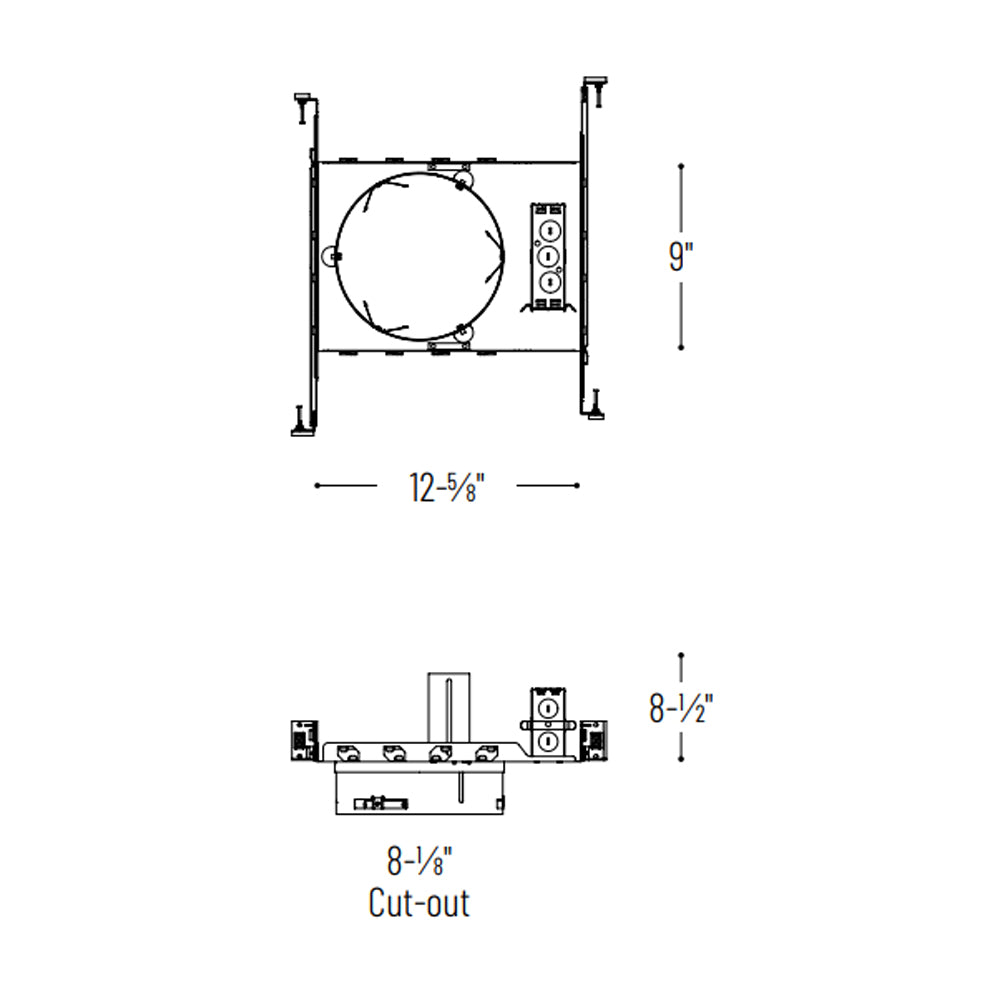

12 5/8" L x 9" W x 8 1/2" H
