Nora Lighting 4" Quartz LED Downlight with Selectable Lumens & CCT, up to 1150lm

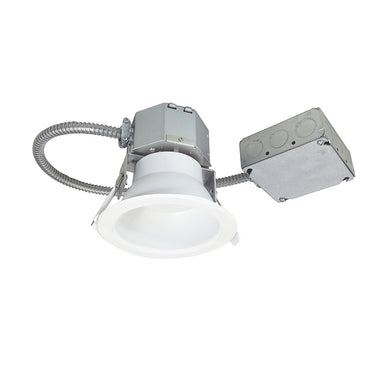

Quartz Series series is an architectural and commercial grade LED high lumen downlight. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Reflectors include two tension steel spring clips, which allow the luminaires to install without any frame-in or housing for an easy installation.
Features
- Can-less installation (No frame-in or housing required)
- Easy installation for retrofit, remodel or new construction applications
- Selectable Lumen switch changes output from 500lm to 1150lm
- Selectable CCT switch changes color temperature from 3000K / 3500K / 4000K
- Field changeable reflector allows for easy customization
- 120-277V input and 0-10V dimming
- 5-year Limited Warranty
Finish
MPW = Matte Powder White
Reflector
Aluminum spun reflector with deep set diffused lens for excellent visual comfort while providing high lumen output. Each reflector comes standard with matte powder white finish, optional haze and diffused snap-in reflectors are available and field changeable.
Tunable Switches
Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Minimum Clearances
Non-IC luminaire requires a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components.
Mounting
Pre-wired 4" junction box with through branch circuit wiring (3 in / 3 out). No housing is required, two tensions steel spring clips accommodate ceiling thickness from 1/2" to 1-1/4". New construction frame-in available, must specify NQZ-4R-F.
Input Voltage
120-277V
Lumens / Wattage
Selectable Lumens: 500lm / 6W, 750lm / 9W, 950lm / 12W and 1150lm / 15W
Beam Spread
83° Wide Flood
Color Temperature
3000K, 3500K and 4000K
CRI
90+ CRI
Operating Temp.
0°C - 45°C
Dimming
Dimmable down to 10% with 0-10V dimmer
Optional Emergency
Luminaire includes pre-wired 120-277V emergency battery with remote test switch. Battery operates luminaire at 7W for 90 minute emergency operation with a fully charged battery.
Labels and Listings
- cULus Listed for Wet Locations
- ENERGY STAR certified
- FCC compliant
Dimension
5 3/4" Dia. x 5 1/2" H
