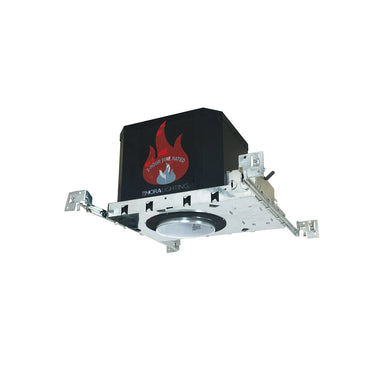

Nora Lighting 4" MR16 GU10 Line Voltage IC Air-Tight Fire Rated Housing

Nora Lighting 4" MR16 GU10 Line Voltage IC Air-Tight Fire Rated Housing

Specification grade fire-rated new construction housing. The double wall fixture incorporates a non-combustible fiber insulation to prevent passage of flames, toxic gases, ignitable gasses into ceiling plenums. The cULus listed housing is rated for a minimum of two hours protection. Suitable for commercial, multi-family and residential applications.

Features

• Rated for direct contact with insulation
• cULus classified Two Hour Fire Rating
• cULus listed for wet location and through branch circuit wiring
• 24-1/2" Bar hangers with captive nails & alignment feet
• Accommodates 1-3/4" maximum ceiling thickness

Plaster Frame
High quality 0.03" steel die cut one piece frame.

Housing
Die formed 20 gauge galvanized steel construction. Housing interior is comprised of a flexible non-combustibleinsulation.

Air Flow Restriction
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubicfeet per minute) in accordance with ASTM-283 Air-Tight requirements.

Junction Box
Prewired 0.03" thick galvanized steel contains one 3/4" trade size knockout, one 3/8" trade size knokcout,three 1/2" trade size knockouts and four Romex pryouts with strain relief and snap on covers. All leads are #18AWG wire, theground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in,4-out).

Quick Connect Feature
Housing contains three quick connections that allow insertion of 1/4" standard conductors to beinserted into the connector. Connectors are pre-attached to fixture power, common, and ground circuits.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallelto junction box, but can be repositioned 90ﾺ perpendicular to junction box if desired. "L" Shaped bar hanger foot to align tobottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.

Installation
Classified for use in two hour fire rated L500 Series floor-ceiling designs in the UL Fire Resistance Directory.Mark Spacing, number of luminaires not to exceed the ratio, one per 25sq ft of the total ceiling area, with minimum separationof 3ft between luminaires.

Electrical

• Voltage: 120V
• Socket: Porcelain GU10
• Wattage: 25W max.
• Lamp Type: MR16 GU10

Dimension
10-11/16" L x 6-3/4" H x 7-11/18" W
4-3/8" Ceiling Cut-Out

Thermal Protection
Standard UL thermal protector rated for 135ﾺC is affixed to inner top surface of housing

Compatible Housing
Housing is compatible with trims manufactured by Nora Lighting.
NL-410, NL-411, NL-412, NL-413, NL-414, NL-416, NL-418, NL-420, NL-421, NL-422, NL-423, NL-425, NL-426, NL-427, NL-429, NL-432, NL-440, NL-445, NL-448, NL-449, NL-450, NL-452, NL-453, NL-463, NL-465, NL-467, NL-468, NL-469, NL-4810, NL-4814,NL-4826, NL-4827, NL-4840, NL-4845, NL-4855, NL-4856, NL-4857, NL-4859, NL-4865

Labels and Listings

• cULus Classified for Two Hour Fire Rating
• cULus Listed for Wet Locations when used with compatible trims
• Meets or exceeds ASTM-283 Air-Tight requirements
• ANSI/UL 263
• ANSI/UL 1598
