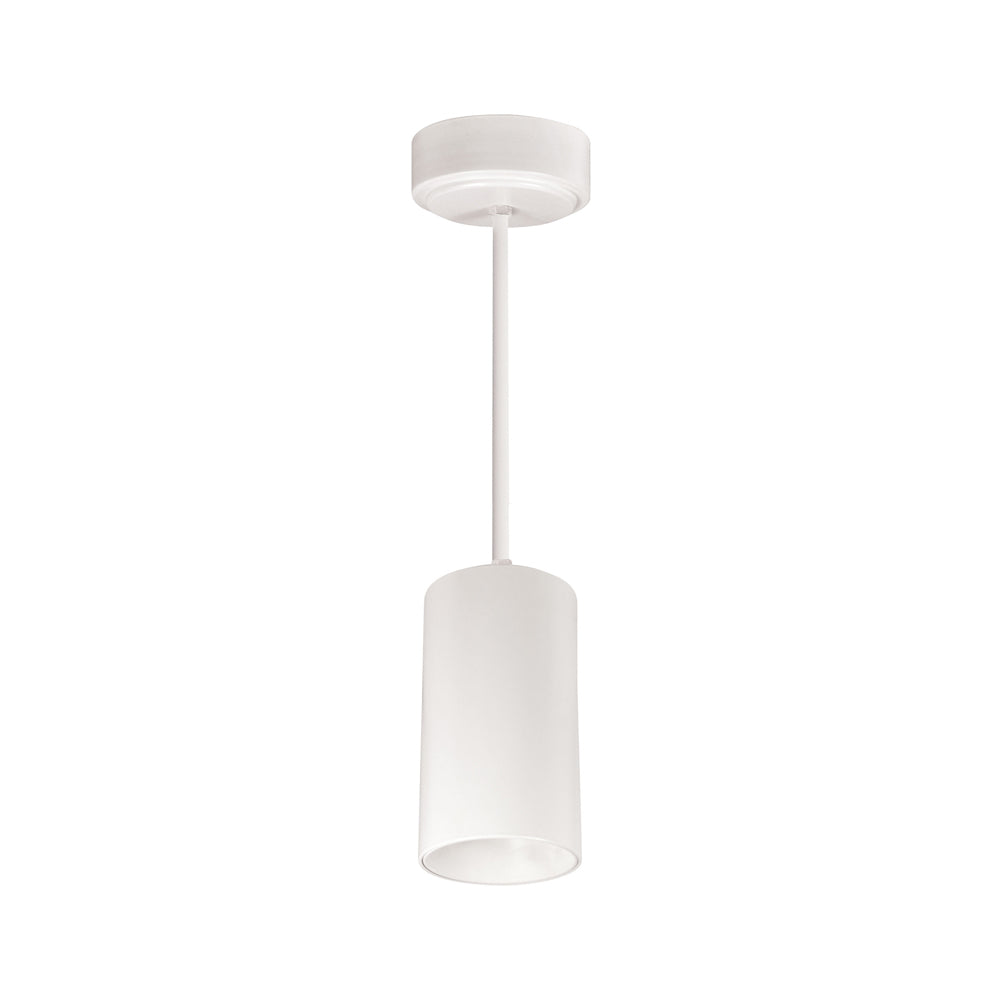

Nora Lighting 3" iLENE LED Mini Cylinder - Stem Mounted, 1500lm / 30W

Nora Lighting 3" iLENE LED Mini Cylinder - Stem Mounted, 1500lm / 30W

iLENE Mini Cylinders are available in three sizes and lumen outputs. Using Cree COB LED technology, each iLENE includes three field changeable optics for spot, narrow flood and flood beam spreads. The optics are deep set for excellent visual comfort. The canopy mounted driver allows for cool operation and optional driver and dimming options.

Features

• 1500lm / 30W LED
• Cree® LED COB or Comfort Dim Technology
• Stem, Surface or Cable Mounted
• 2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
• Flood (installed), narrow flood and spot optics included
• Triac, ELV or 0-10V dimming
• Pendant cone accessory available for decorative appearance
• ENERGY STAR® certified
• 5-year limited warranty

Finish

• BB = Black
• SS = Silver
• WW = White

Construction
Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.

Reflector
Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.

Optic
Each iLENE cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.

Installation
Canopy includes driver and mounts on a junction box.

Cable Mount
Cylinder comes with 8ﾒ of field adjustable aircraft cable.

Pendant Mount
Cylinder can be stem mounted, must specify stem lenght (12" increments). 12" Stems are internally threaded to be connected together up to 7ﾒ.

Surface
Cylinder is connected to canopy to mount directly over junction box.

Voltage
120V/277V

Lumens / Wattage
1500lm / 30W (1300lm with Comfort Dim)

Color Temperature
2700K, 3000K, 3500K or 4000K

Comfort Dim
Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 725 lumens.

Color Rendering Index
90+ CRI

Dimming
Triac, ELV or 0-10V (must specify)

ACCESSORIES (MUST SPECIFY A)
3" iLENE cylinders accept decorative translucent collars or opaque snoots. Translucent collars color the aperture with the specified color while producing white general light. Opaque snoots greatly reduce aperture brightness while preserving light output. (Note: black snoot will reduce light).

Labels / Listing

• cULus Listed for Damp Locations
• ENERGY STAR certified
• Certified to the high efficacy requirements of California Title 24 JA8-2019

Dimension
3-3/4" Dia. x 4-3/8" W x 6"-8" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
