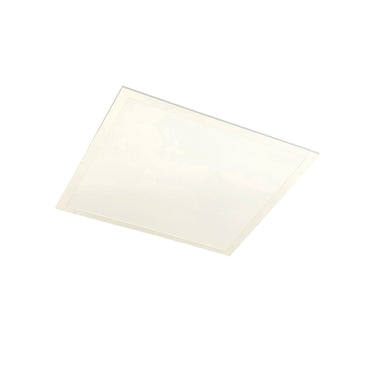

Nora Lighting 2'x2' LED Backlit Panel, 3500lm

Nora Lighting 2'x2' LED Backlit Panel, 3500lm

LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. White opalescent diffused lens optimizes output while reducing LED diode image.

Features

• Dedicated 5000K CCT or Field Selectable Color Temperature (3000K, 3500K or 4000K)
• 1' x 4', 2' x 2' or 2' x 4' sizes
• Surface, pendant and hard ceiling recessed kits available
• 0-10V dimming down to 5%
• Universal 120-347V input
• cULus listed for damp location
• 5-Year Limited Warranty

Construction
An array of LEDs are mounted on the back of aluminum frame. White opalescent diffused lens optimizes output while reducing LED diode image. The construction seals the conditioned air from the plenum or non-conditioned air, eliminates bugs or dirt getting to top of lens for savings on maintenance cost.

Lens
PMMA (Polymethyl methacrylate) lens is lightweight and shatter resistant. Additional screws are provided to keep luminaire tight and free of bugs and insects.

Clearance
"IC" Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.

Installation
Wiring compartment is on the back of panel and includes replaceable driver, which is accessible via a service door secured with two screws. Wiring compartment consists of three 1/2" knockouts for romex or flex wiring.

Finish
W = White

Input Voltage
120-347V (120-277V with emergency battery)

Lumens / Wattage
2' x 2': Average of 3500lm / 30W (Tunable White) or 3500lm / 30W (5000K)

Color Temperature
Tunable White: Field Selectable - 3000K / 3500K / 4000K (Preset at 3000K)
Dedicated: 5000K

Color Rendering Index
80+CRI

Operating Temperature
0°C to 45°C

Lifetime
60,000 hours @ L70

Dimming
0-10V dimming down to 5%

Emergency
Luminaire can be specified with 120-277V emergency battery with remote test switch. Battery operates luminaire at 7W for 90 minute emergency operation on fully charged battery.

Note: EM option not available for surface and pendant kit

Labels / Listing

• cULus Listed for Damp Locations
• DLC Listed
• FCC certified

Dimension
23.75" W x 23.75" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
