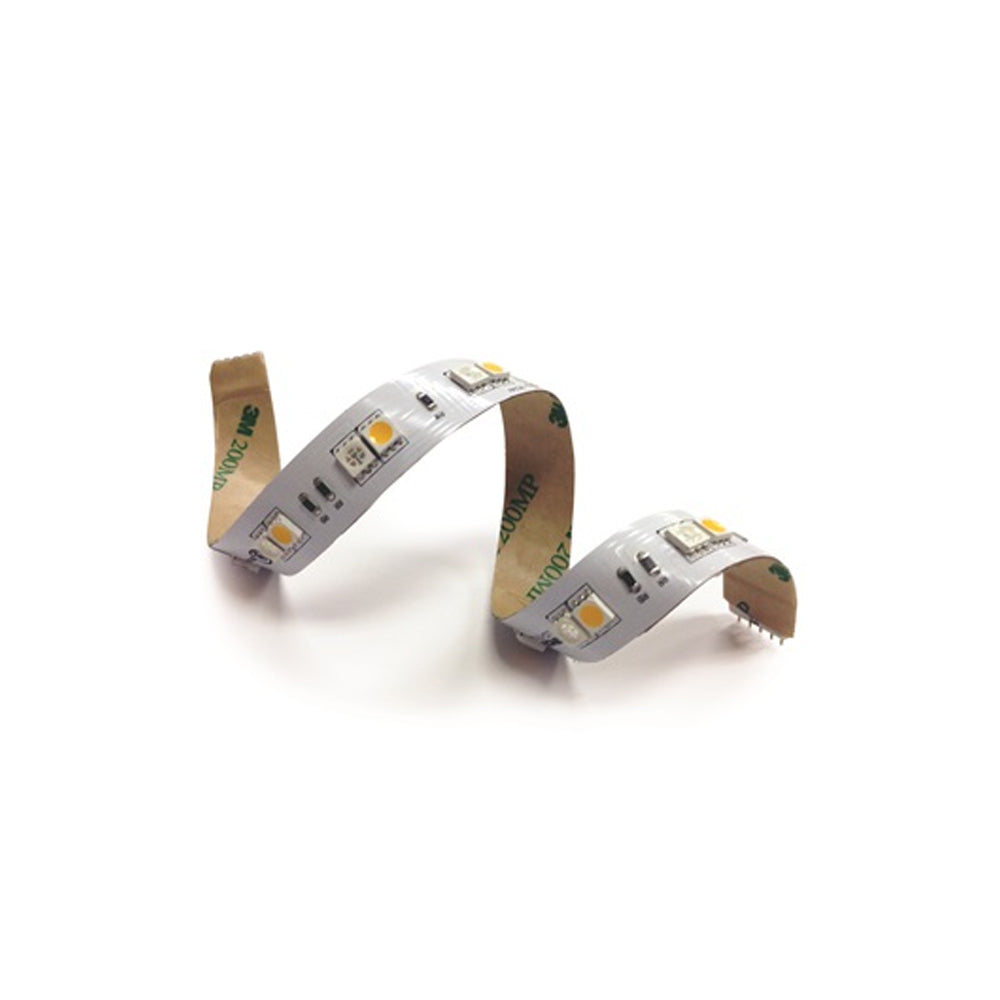

Nora Lighting 24V 6" RGBW LED Tape Light Section

Nora Lighting 24V 6" RGBW LED Tape Light Section

Nora introduces RGBW tape. This tape takes the existing RGB (Red, Green, Blue) tape and adds a separate 30K diode for quality usable white light. The RGBW tape consumes 5 watts per foot with a bright 2.5 watts dedicated to the 30K chip and 2.5 watts dedicated to the RGB chip. The RGBW offers the flexibility to create pastel colors using the RGB at the same time as the white, as well as producing a high quality white light when needed, and the ability to change to RGB and color changing when the mode or application changes. The 4-wire system has a dedicated RF controller allowing flexibility during installation and a hand-held control with multiple functions, too numerous to list here.

Features

• 5 watt per foot - 2.5W RGB and 2.5W 30K
• Available in 10' roll, 12" section, and 6" section
• Separable every 12", easily disconnected and connected without soldering
• Field cuttable every 6" or 6 LEDs
• 120° Beam Angle
• Easy to install; pre-applied 3Mﾙ tape or 15 acrylic mounting clips (included with roll)
• Primary Colors: Red, Green, Blue,and White (3000K)
• cULus listed for damp location
• No soldering or additional wiring is required
• No flicker delay or warm up like compact fluorescent products
• No UV light or infrared wavelengths
• White LED Lumen output - 160lm/ft

INCLUDED WITH EVERY 10' ROLL
(1) 10ﾒ Tape Light Roll with 12" separable sections, (15) Acrylic Mounting Clips with screws [NATHR-685], and (1) 12" Power Line Interconnector [NARGBW-910W].

Construction
The tape can be cut every 6" or 6 LEDs at marked intervals. Cutting does not effect circuit (shrink wrap tube included for concealment). RGBW Tape Light is also separable every 12", each connection has pre-installed shrink wrap around power connections to ensure listing. Simply slice the clear shrink wrap at each electrical connection, and separate pieces. This eliminates soldering when using partial rolls.

Mounting
Each Tape Light includes pre-applied 3Mﾙ adhesive tape for simple installation. Optional channels and clear acrylic clips are available.

Controller
Each run requires a controller or DMX decoder, which can be linked together for color synchronization. The controller can be controlled locally or with an optional hand held remote. DMX decoder requires a DMX controller (by others).

Dimming
Dimming RGBW tape light is controlled by RGBW controller and hand held remote or DMX decoder and DMX controller. Dimmable drivers are only for powering tape light runs.

Electrical

• Input Voltage: 24V
• Light Source: 12 Dual LEDs per foot
• Lumens / Wattage: 350lm / 5W per foot
• Color Temperature: Color Changing RGB with dedicated 3000K LED
• Dimming: Dimmable with RGBW controller or DMX decoder
• Maximum Run Length: 10'

Labels and Listings

• cULus Listed for Damp Location
• 3-Year Limited Warranty

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
