Nora Lighting 2" Iolite LED Dedicated IC Air-Tight New Construction Housing, 800lm-1000lm

Nora Lighting 2" Iolite LED Dedicated IC Air-Tight New Construction Housing, 800lm-1000lm

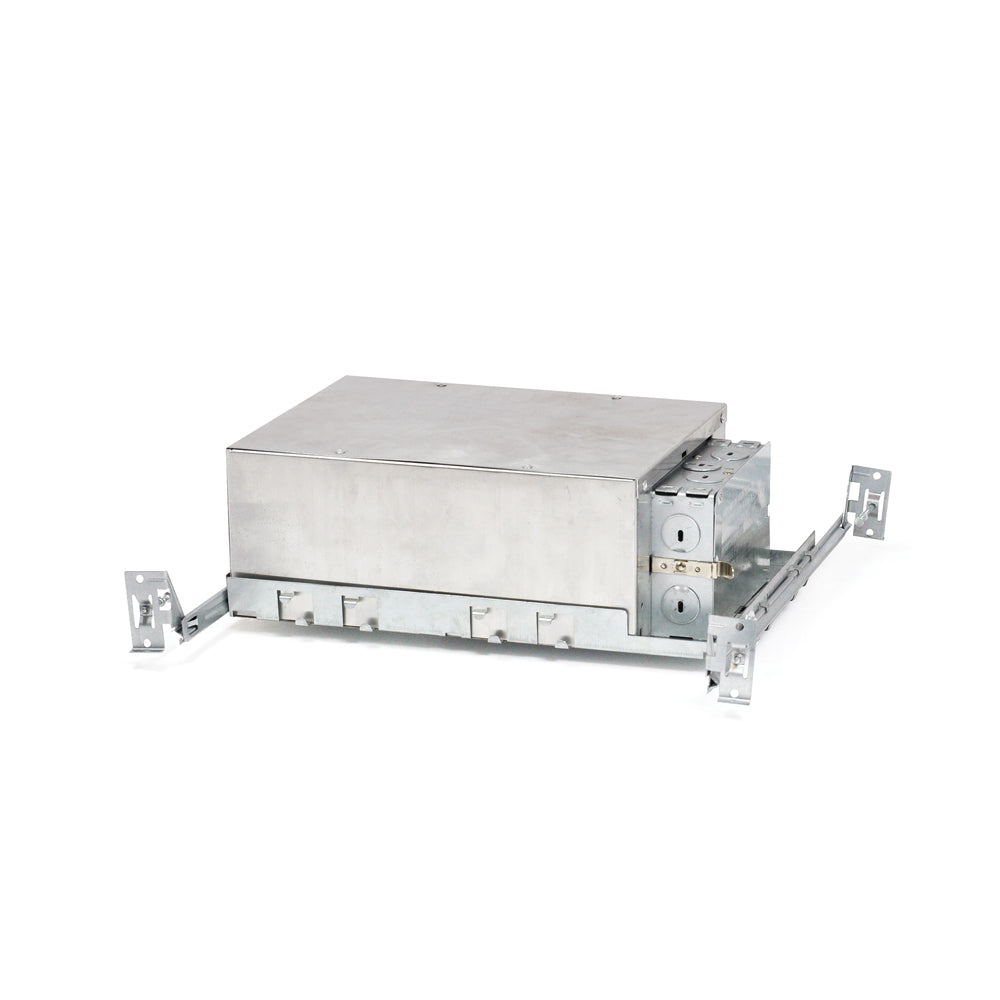

Dedicated new construction housing for 2" Iolite reflectors or 2" iPOINT monopoints. Rated for use in insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows easy, tool-less removal of the driver.

Features

• IC Air-Tight rated
• Quick connects provided for easy installation
• Dimmable
• 24-1/2" hanger bars with alignment feet and nails included
• cULus listed for damp location (wet location when used with specific reflectors)
• 5-year limited warranty

Compatible iPOINT Monopoints

• NIOB-2RC 2" Round Adjustable Cone Regress
• NIOB-2SC 2" Square Adjustable Cone Regress
• NIOB-2RG 2" Round Adjustable Surface Gimbal
• NIOB-2SG 2" Square Adjustable Surface Gimbal
• NIOB-2RNDC WETWET 2" Round Deep Reflector
• NIOB-2SNDC WETWET 2" Square Deep Reflector
• NIOB-2RPH WETWET 2" Round Pinhole
• NIOB-2RPHA 2" Round Adjustable Pinhole
• NIOB-2RSL 2" Round Adjustable Slot Aperture
• NIOB-2RNB WETWET 2" Round Bullnose
• NIOB-2SNB WETWET 2" Square Bullnose
• NIOB-2SNDSQ WETWET 2" Square Reflector / Square Aperture
• NIO-2RTLA 2" Round Trim less Adjustable Reflector
• NIO-2RTLNDC WETWET 2" Round Trim less Reflector
• NIOP-2RCY 2" iPOINT Cylinder
• NIOP-2RTC 2" iPOINT Cone

Housing

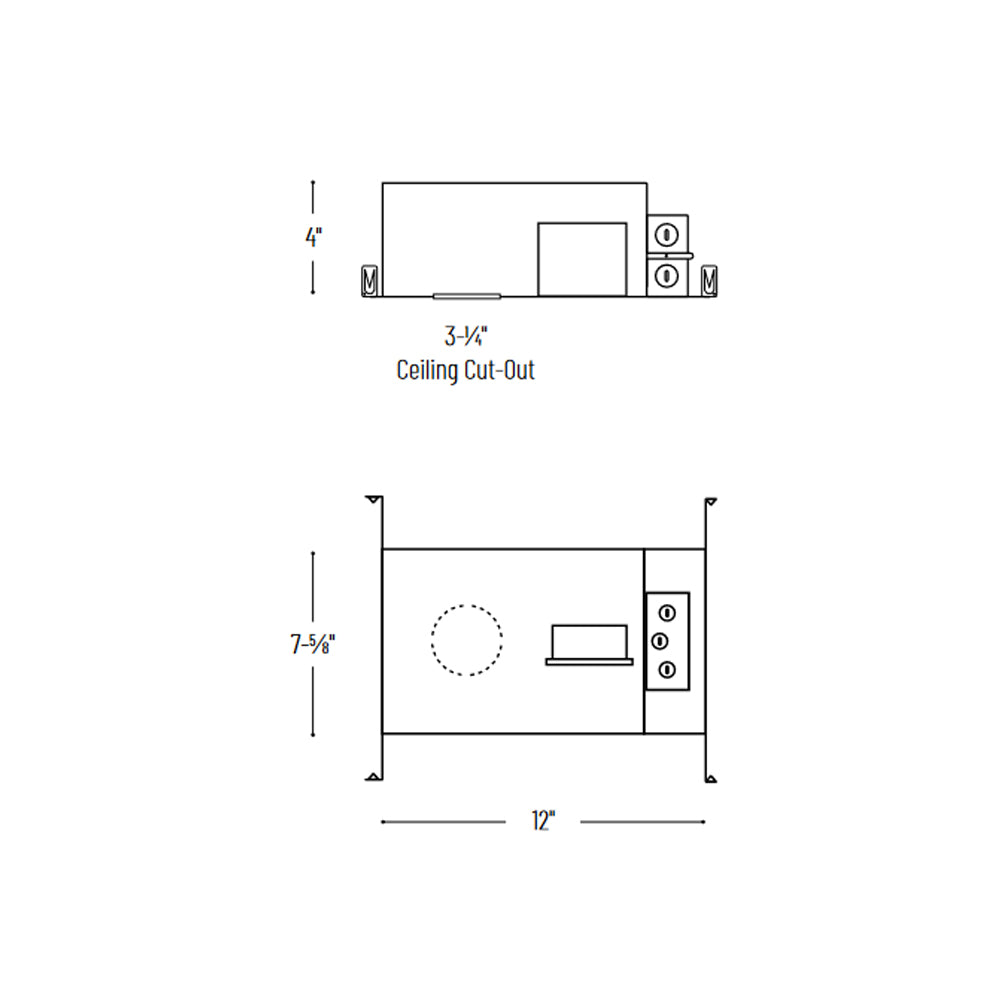

0.040" Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2EXTC2) is available for ceiling thickness up to 2".

Patented Driver Assembly
Allows driver to slide out of housing without tools from the room side.

Air Flow Restriction
Meets requirments of Air-Tight (AT)<2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance
"IC" Insulated ceiling housings are direct contact rated. Not to be used in direct contact with sprayfoam insulation.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90°perpendicular to junction box if desired. "L"-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.

Junction Box
Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four Romex®pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12AWG through branch circuit conductors suitable for at least90°C permitted in junction box. Junction box is accessiblefrom the room side through housing opening.

Emergency
Housing can be specified with connectionsfor emergency battery installation. Requires accessabove the ceiling. Must specify battery with remote testswitch separately, NEPK-07LEDUNV. Note: Emergency is notcompatible with chicago plenum housings.

Electrical

• Input Voltage: 120V / 120-277V / 120/277V
• Input Power: 13W / 12W / 13W
• Power Factor: =0.90
• Dimming: Triac / ELV Triac / ELV /0-10VLutronEcoSystem
• Operating Temp.: 40°C max.

Labels / Listing

• cULus Listed for Damp Location (Wet Location when used with compatible trim)
• RoHS Compliant
• FCC compliant
• Patent #D824567S
• Meets or exceeds ASTM-283 Air-Tight requirements

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
