Nora Lighting 2" Iolite LED Dedicated Chicago Plenum New Construction Housing, 800-1000lm

Nora Lighting 2" Iolite LED Dedicated Chicago Plenum New Construction Housing, 800-1000lm

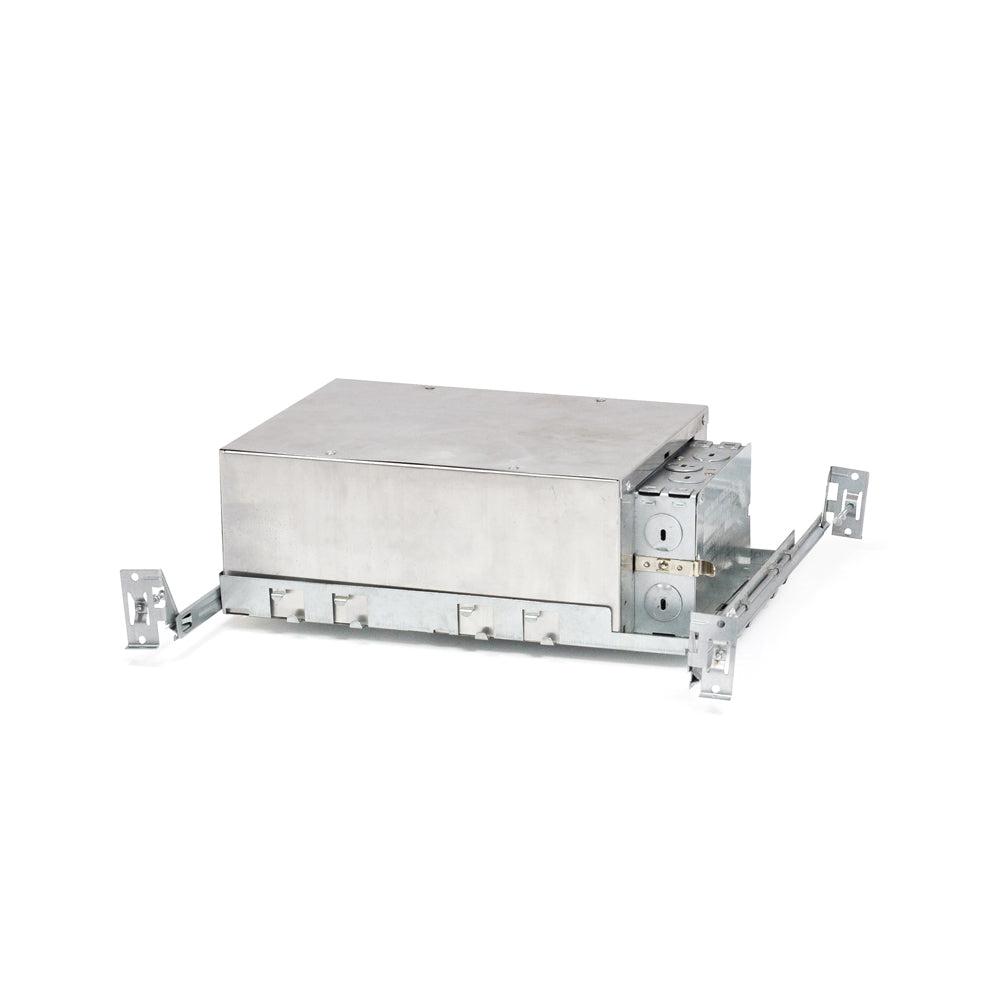

Dedicated new construction housing for 2" Iolite reflectors or 2" iPOINT monopoints. Chicago plenum rated (CCEA) for use in insulated ceilings and can be in direct contact with insulation. Air-tight construction the driver.

Features

• IC Air-Tight rated
• Quick connects provided for easy installation
• Dimmable
• 24-1/2" hanger bars with alignment feet and nails included
• cULus listed for damp location (wet location when used with specific reflectors)
• 5-year limited warranty

Compatible Accessories

• NIO-2EXTC2: Extension collar for ceilings up to 2" thick
• NIO-TLMR-2R: Trimless mud plate for 2" round trimless reflectors
• NIO-FMMR-2R: Flush mount mud plate for 2" round flanged reflectors
• NIO-FMMR-2S: Flush mount mud plate for 2" square flanged reflectors

Compatible Trims and Monopoints

• NIOB-2RC 2" Round Adjustable Cone Regress
• NIOB-2SC 2" Square Adjustable Cone Regress
• NIOB-2RG 2" Round Adjustable Surface Gimbal
• NIOB-2SG 2" Square Adjustable Surface Gimbal
• NIOB-2RNDC WETWET 2" Round Deep Reflector
• NIOB-2SNDC WETWET 2" Square Deep Reflector
• NIOB-2RPH WETWET 2" Round Pinhole
• NIOB-2RPHA 2" Round Adjustable Pinhole
• NIOB-2RSL 2" Round Adjustable Slot Aperture
• NIOB-2RNB WETWET 2" Round Bullnose
• NIOB-2SNB WETWET 2" Square Bullnose
• NIOB-2SNDSQ WETWET 2" Square Reflector / Square Aperture
• NIO-2RTLA 2" Round Trimless Adjustable Reflector
• NIO-2RTLNDC WETWET 2" Round Trimless Reflector
• NIOP-2RCY 2" iPOINT Cylinder
• NIOP-2RTC 2" iPOINT Cone

Dimension
12" L x 4" H x 7-5/8" W

Housing
0.040" Aluminum shallow housing can be installedin 1/2" ceiling thickness, an extension collar (NIO-2EXTC2) isavailable for ceiling thickness up to 2".

Patented Driver Assembly
Allows driver to slide out ofhousing without tools from the room side.

Air Flow Restriction
Meets requirments of Air-Tight (AT)<2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance
"IC" Insulated ceiling housings are directcontact rated. Not to be used in direct contact with sprayfoam insulation.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangerswith captive nails are included on housing. Bar hangersare parallel to junction box, but can be repositioned 90°perpendicular to junction box if desired. "L"-shaped barhanger foot to align to bottom of construction joist. A T-barnotch allows for easy installation in a suspended ceiling.

Junction Box
Pre-wired 25 cubic inch 0.064" thickgalvanized steel, with seven 1/2" knockouts, four Romex®pryouts, and snap on covers. All leads are #18AWG wire,the ground wire is connected to the bottom, and quickconnectors are supplied on all leads. Maximum of 8 no. 12AWG through branch circuit conductors suitable for at least90°C permitted in junction box. Junction box is accessiblefrom the room side through housing opening.

Emergency
Housing can be specified with connectionsfor emergency battery installation. Requires accessabove the ceiling. Must specify battery with remote testswitch separately, NEPK-07LEDUNV. Note: Emergency is notcompatible with chicago plenum housings.

Electrical

• Input Voltage: 120V / 120-277V / 120/277V
• Input Power: 13W / 12W / 13W
• Power Factor: =0.90
• Dimming: Triac / ELV Triac / ELV /0-10VLutronEcoSystem
• Operating Temp.: 40°C max.

Labels / Listing

• cULus Listed for Damp Location (Wet Location when used with compatible trim)
• RoHS Compliant
• FCC compliant
• Patent #D824567S
• Meets or exceeds ASTM-283 Air-Tight requirements

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
