Nora Lighting 1" M1 LED Recessed Downlight, 100 lumens

Nora Lighting 1" M1 LED Recessed Downlight, 100 lumens

M1 miniature recessed series features quality and convenience with easy installation for indoor or outdoor applications. The IC rated M1 modules are excellent for niche lighting. Luminaires include four plastic downlight trims, four optics and 6" quick connect. Series is available in 2700K or 3000K and requires a Class 2 12V DC driver.

Features

• No housing required
• Easy installation for remodel or new construction applications
• Field changeable optics (spot, narrow flood, flood & wide)
• Threaded LED module allows for field changeable trims
• Quick disconnect allows for extended lengths
• 100lm LED packages
• 2700K or 3000K @ 90+ CRI
• Triac or ELV dimming
• 5-year Limited Warranty

Finish
2PBW = (2) Black & (2) White Plastic Trims

Included with each luminaire

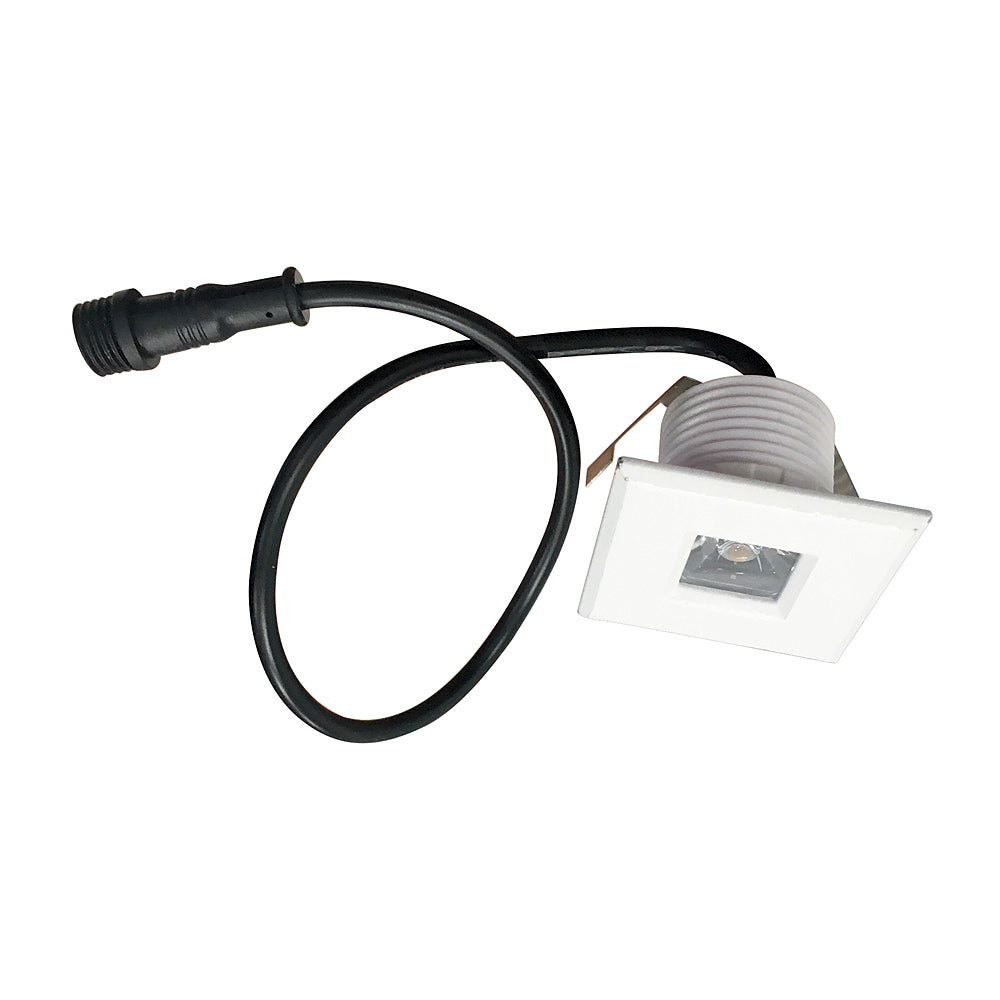

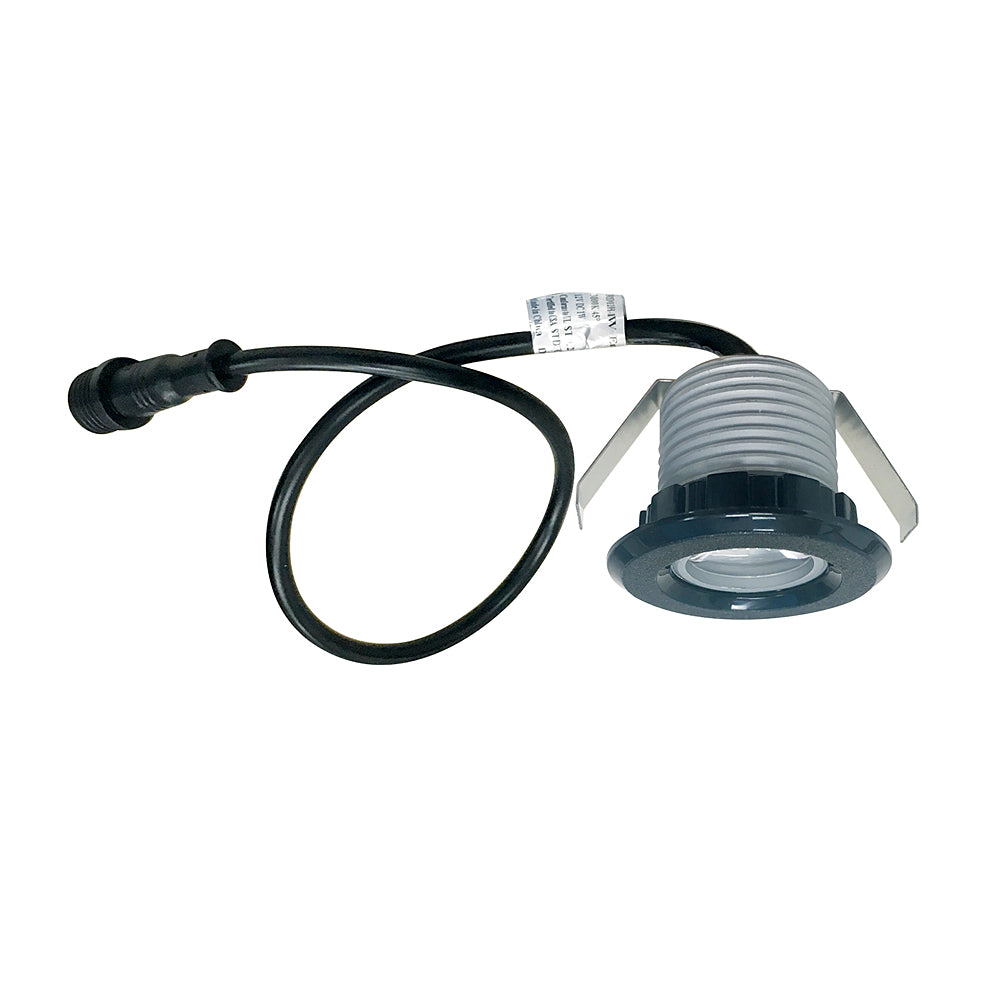

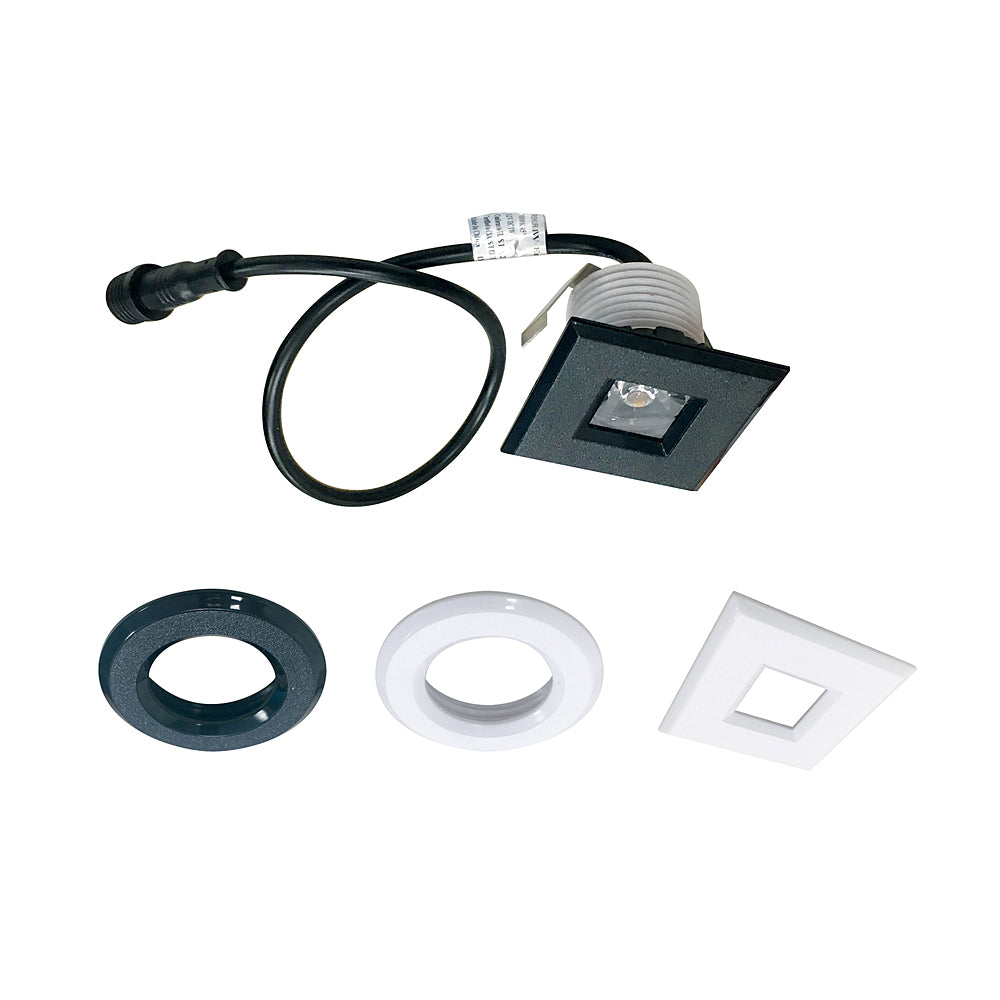

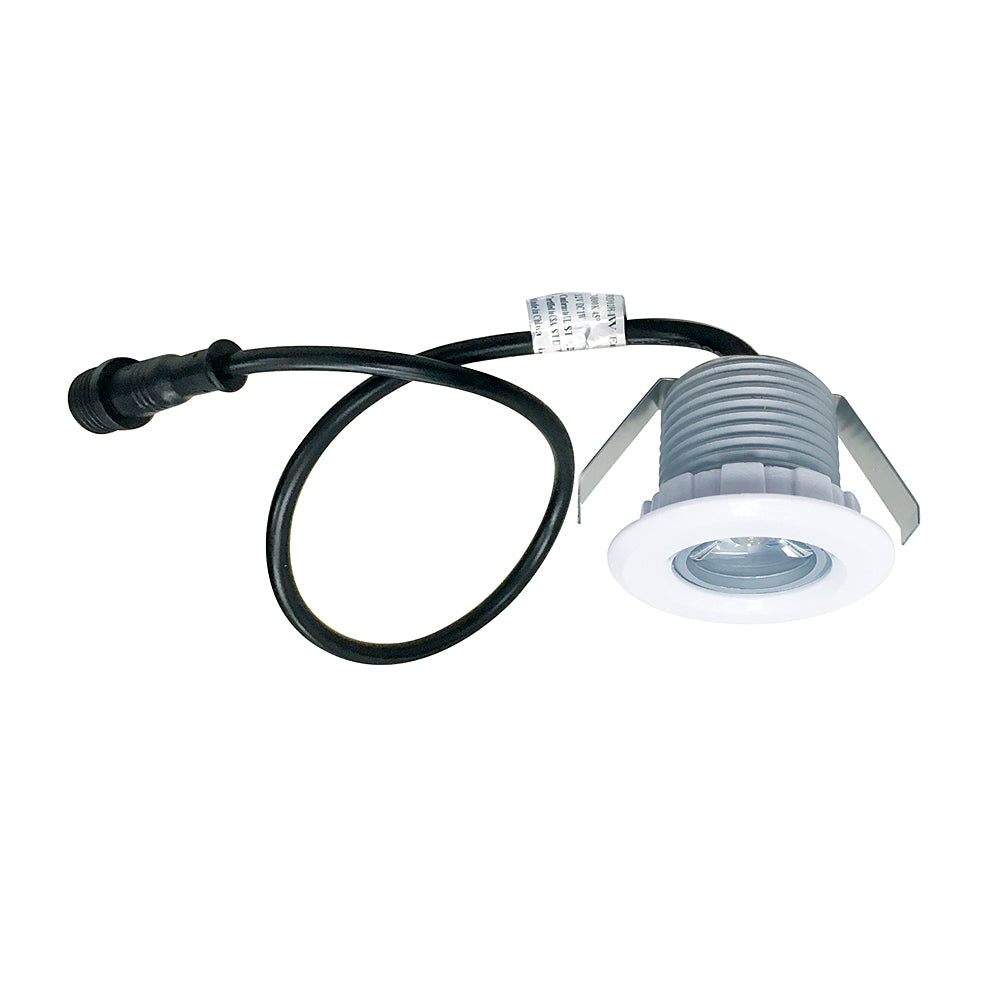

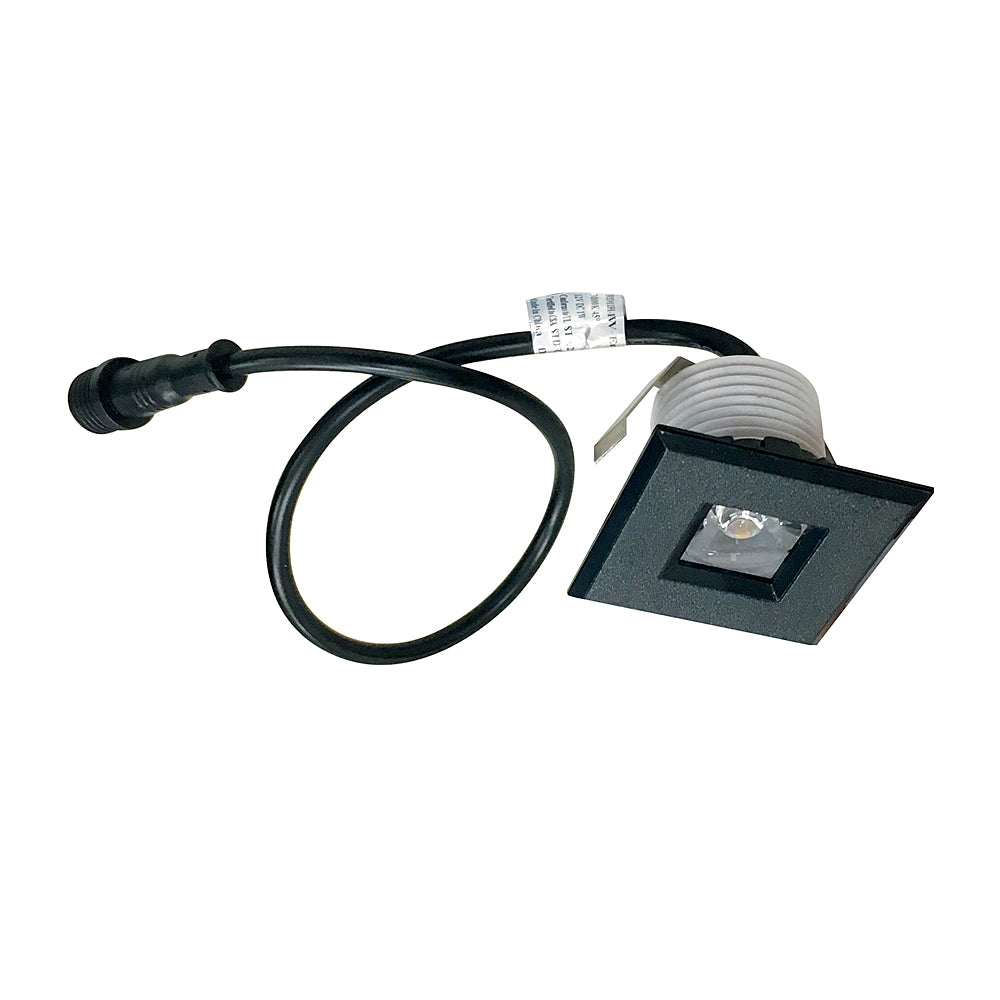

LED module includes four plastic trims (round and square) in black and white finishes. Also included are four optics for desired beam spread and output.

Construction
Threaded LED module allows for field changeable optics and trims.

Clearance
IC rated luminaires are rated for direct contact with insulation (not spray foam insulation). When LED module NM1 is installed in a cabinet type installation, minimum distance between luminaires is 6".

Mounting
No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/8". New construction frame-in or plate are available (ordered separately), not required.

Driver
Class 2 power supply required, ordered separately. NM1-DVR drivers include a pre-wired junction box with quick connect to LED fixtures for ease of installation. NAPKED drivers require splitter cable or wire harness system (ordered separately).

Mounting
No housing is required, two tensions steel spring clips secure luminaire to surface. 1/4" minimum ceiling thickness.

Field Changeable Optics
Each luminaire includes four field changeable optics. 15° spot (frosted), 45° narrow flood (frosted - installed), 60° flood (frosted) and 60° flood (clear).

Input Voltage
12V DC

Lumens / Wattage
100lm / 2W

Beam Spread
15° Spot, 45° Flood installed, Frosted 60° Wide Flood and Clear 60° Wide Flood (each luminaire includes all four optics)

Color Temperature

• 2700K
• 3000K

CRI
90+ CRI

Operating Temp.

• 0-40°C (Undercabinet installation)
• 0-25°C (Cabinet and IC installation)

Max. Run Length
Total combined runs cannot exceed 80'

Dimming
Dimmable down to 10% with Triac or ELV dimmer

Labels and Listings

• cETLus Listed for Wet Locations, cabinet and type IC (NM1-170)
• cETLus Listed for Damp Locations, under-cabinet and type IC (NM1-DVR12)
• cETLus Listed for Damp Locations, cabinet and type IC (NAPKED-5040HW)
• cETLus Listed for Damp Locations and cabinet (NAPKED-5060HW)
• FCC compliant

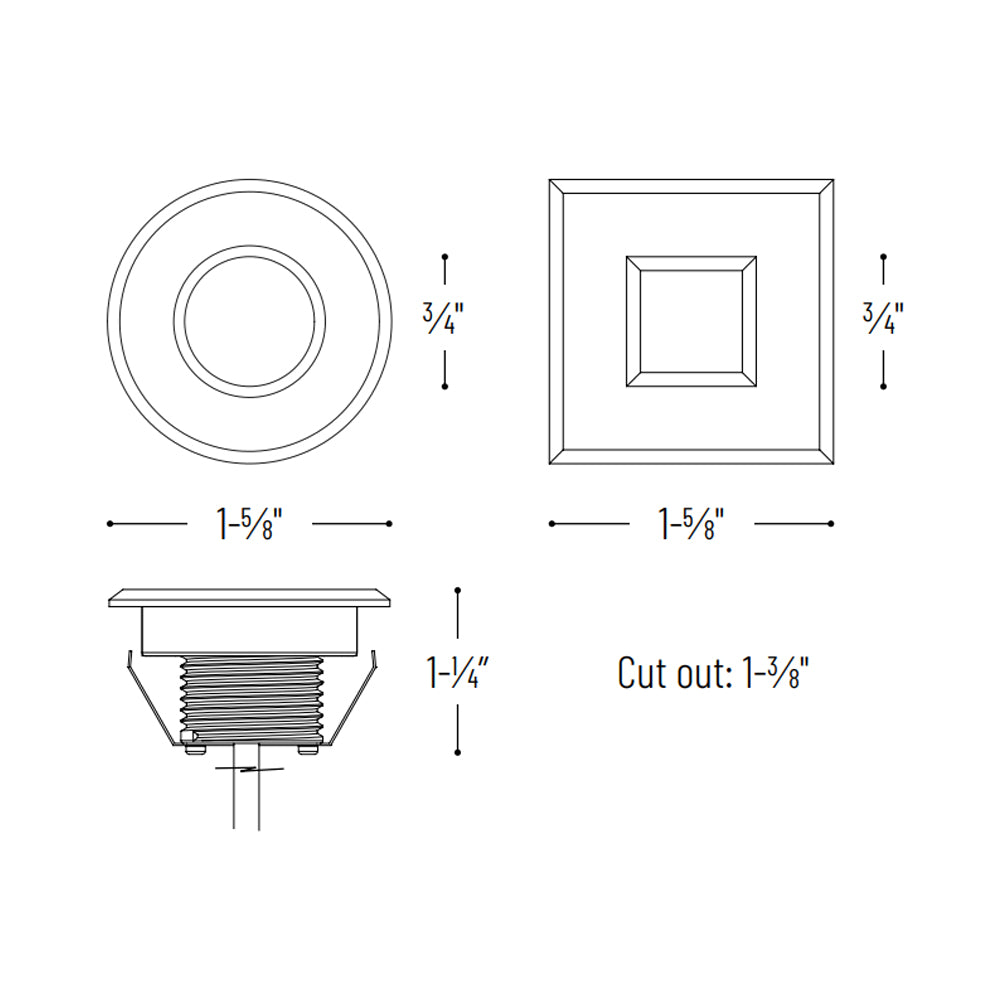

Dimension
1 5/8" W x 1 1/4" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
