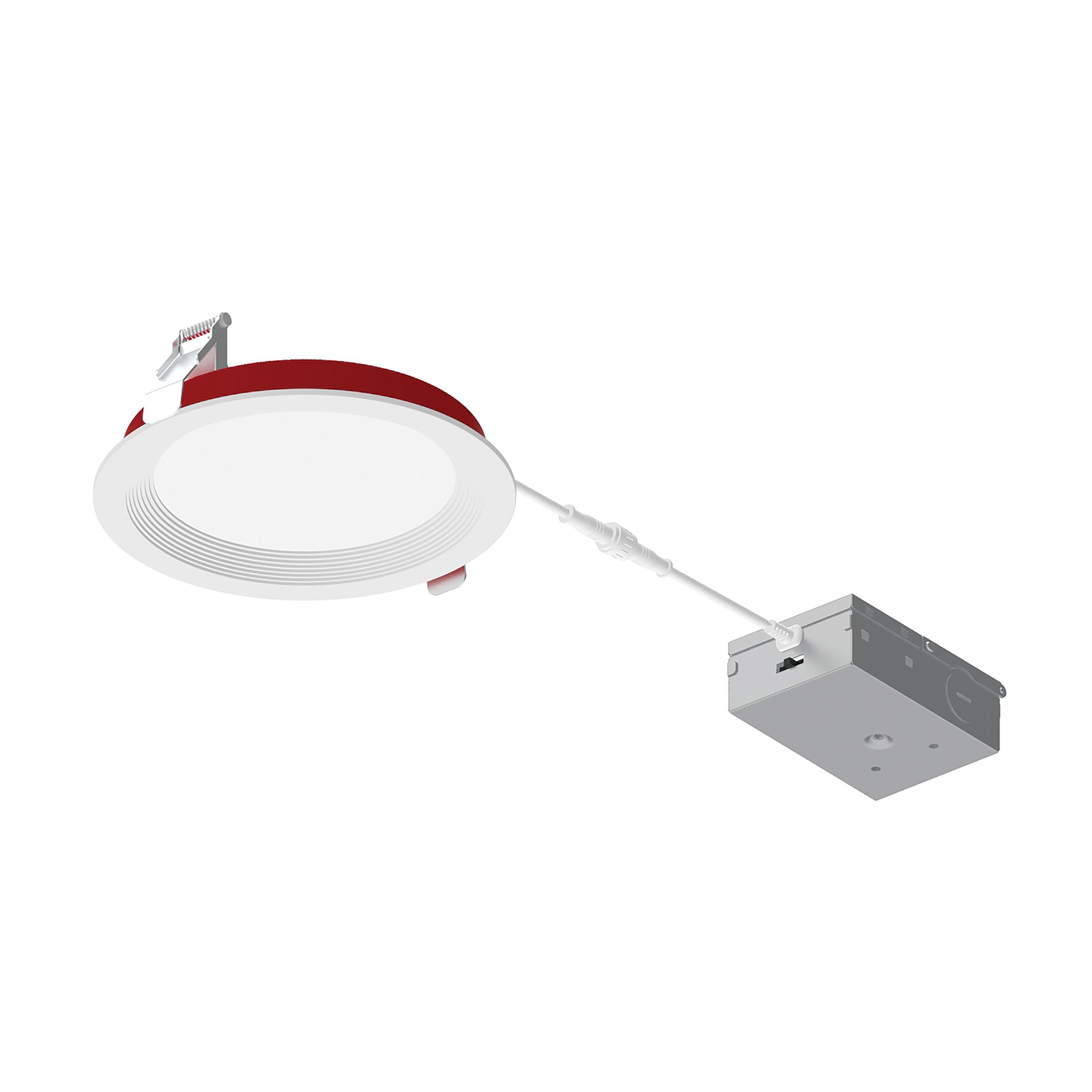

Nora NFRC-R6W2TWMPW 6" Fire Rated Canless Baffled LED Downlight, 1500LM, 5-CCT

The Nora Lighting NFRC-R6W2TWMPW 6" Fire Rated Canless Baffled LED Downlight combines a traditional baffled recessed-light appearance with modern canless construction and certified fire-rated performance. Delivering a nominal 1500 lumens from only 15 watts, this 6-inch LED downlight provides broad, efficient illumination without requiring a conventional recessed housing.

Designed for new construction and remodel applications, the NFRC-R6W2TWMPW features five selectable color temperatures from 2700K to 5000K, 90+ CRI, Triac/ELV dimming, IC Airtight construction and wet-location suitability. Its shallow profile makes it especially useful for installations with limited plenum space.

Why Choose the Nora NFRC-R6W2TWMPW?

• 2-Hour Fire Rated: Tested and listed to UL 263, ASTM E119 and CAN/ULC S101 for 2-hour fire-rated applications.
• 6" Baffled Aperture: Combines the dimensional appearance of a traditional baffled recessed light with canless construction.
• No Housing Required: Installs without a conventional recessed can and includes a pre-wired junction box.
• Shallow Design: Designed for low-clearance and shallow plenum applications.
• 1500 Lumens: Delivers powerful general illumination while consuming only 15 watts.
• 5-CCT Selectable: Choose 2700K, 3000K, 3500K, 4000K or 5000K in the field.
• 90+ CRI: Provides high-quality color rendering for natural-looking interiors.
• 112° Wide Flood: Broad light distribution helps provide even general illumination.
• Dimmable: Compatible with Triac and ELV phase dimming.
• IC Airtight: Designed for insulated ceiling applications when installed according to Nora's requirements.
• Wet Location Listed: Suitable for applications requiring a wet-location-rated luminaire.
• ENERGY STAR Certified: Designed for energy-efficient LED performance.
• Title 24 Compliant: Certified to California Title 24 high-efficacy requirements.
• 5-Year Limited Warranty: Backed by Nora Lighting's limited warranty.

Product Specifications

Baffled Design with Broad, Comfortable Illumination

The NFRC-R6W2TWMPW combines a baffled aperture with shallow canless construction. Compared with a completely flat wafer-style downlight, the baffle creates a more dimensional recessed-light appearance while maintaining a clean, contemporary ceiling profile.

Nora specifies a 112° wide-flood beam distribution, providing broad coverage for general illumination in living spaces, multifamily residences, hospitality projects and commercial interiors.

2-Hour Fire Rated Recessed Lighting

The NFRC-R6W2TWMPW is part of Nora's Fire Rated Canless family, designed for applications where a fire-rated recessed luminaire is required. Multi-piece construction provides an additional protective layer above the ceiling, and the family is tested and listed for a 2-hour fire rating to UL 263, ASTM E119 and CAN/ULC S101.

Fire-resistance performance depends on the complete ceiling assembly, proper installation and applicable building requirements. Always verify the approved ceiling construction, Nora installation instructions and local codes for your project.

5 Selectable Color Temperatures

A five-position CCT selector located in the junction box allows the installer to choose the desired white-light appearance in the field. This flexibility reduces the need to select a fixed color temperature before ordering.

• 2700K Warm White: Warm, inviting illumination for bedrooms, living rooms and hospitality spaces.
• 3000K Soft White: A versatile choice for kitchens, hallways and general residential lighting.
• 3500K Neutral White: Balanced illumination for residential and commercial interiors.
• 4000K Cool White: Crisp light for kitchens, workspaces and commercial environments.
• 5000K Daylight: Cooler white illumination for spaces where bright visual clarity is preferred.

Canless Design for Shallow Ceilings

No traditional recessed housing is required. The shallow design allows the NFRC-R6W2TWMPW to be installed in low-clearance plenums where conventional recessed cans may be difficult to accommodate.

A pre-wired junction box is included, and a quick-disconnect connection helps simplify installation. The fixture is suitable for both remodel projects and new construction, with optional Nora frame-in accessories available when fixture locations need to be established before the finished ceiling is installed.

1500 Lumens of Efficient LED Light

The integrated LED system delivers a nominal 1500 lumens from 15 watts, providing substantial general illumination with efficient energy use. A 90+ CRI helps interior finishes, furnishings and surfaces appear natural and accurately rendered.

Triac and ELV phase-dimming compatibility allows the light level to be adjusted when the fixture is paired with a compatible dimmer, making it suitable for both brighter task illumination and softer ambient lighting.

IC Airtight & Wet Location Rated

The NFRC-R6W2TWMPW is IC Airtight rated for appropriate insulated ceiling applications and is cETLus listed for wet locations. These ratings increase its flexibility for residential, multifamily, hospitality and commercial installations.

Installation should always follow Nora's current instructions, applicable electrical and building codes, and the requirements of the complete fire-rated ceiling assembly.

Recommended Applications

• Single-family homes
• Apartments and condominiums
• Multifamily residential projects
• Hotels and hospitality interiors
• Commercial spaces
• New construction projects
• Remodel and renovation projects
• Shallow and limited-plenum ceilings
• Projects requiring fire-rated recessed lighting
• Spaces where a baffled recessed-light appearance is preferred

Compatible Accessories

• NF-R246: Universal New Construction Frame-In for 4" and 6" canless downlights
• NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch
• NEPK-23LEDUNV-JB: 23W Emergency LED Driver Kit with Remote Test Switch

Accessories are sold separately. Verify current accessory compatibility and all project requirements before ordering.

Frequently Asked Questions

Is the Nora NFRC-R6W2TWMPW fire rated?

Yes. The NFRC-R6W2TWMPW is part of Nora's 2-hour fire-rated canless family. Nora lists the family as tested and listed to UL 263, ASTM E119 and CAN/ULC S101. The complete ceiling assembly and installation must also meet applicable requirements.

How bright is the NFRC-R6W2TWMPW?

Nora rates the 6-inch baffled model at a nominal 1500 lumens while consuming 15 watts, making it suitable for broad general illumination.

What is the benefit of the baffled design?

The baffled aperture creates a more dimensional, traditional recessed-light appearance than a completely flat wafer downlight. It is a good choice when you want shallow canless construction without the completely flat look of a wafer-style aperture.

Does the NFRC-R6W2TWMPW require a recessed housing?

No. It is a canless LED downlight and does not require a conventional recessed housing. A pre-wired junction box is included.

What color temperatures can I select?

Five settings are available: 2700K, 3000K, 3500K, 4000K and 5000K. This allows the color temperature to be selected in the field rather than ordering separate fixed-CCT fixtures.

Is this 6-inch fire rated downlight dimmable?

Yes. Nora specifies Triac and ELV phase dimming. Use a compatible dimmer and follow the manufacturer's installation requirements.

Is the NFRC-R6W2TWMPW IC rated?

Yes. Nora identifies the fixture as IC Airtight rated. Installation must follow Nora's current instructions and applicable electrical, building and fire-rating requirements.

Can the NFRC-R6W2TWMPW be used in wet locations?

Yes. Nora lists the fixture for wet locations when properly installed.

Can it be used for both remodel and new-construction projects?

Yes. The canless design is suitable for remodel applications, and optional Nora frame-in accessories are available for new-construction projects.

What is the difference between NFRC-R6W1, NFRC-R6W2 and NFRC-R6W3?

All three are 6-inch fire-rated canless LED downlights with selectable CCT. NFRC-R6W1 uses a flat aperture and is rated at 1550 nominal lumens. NFRC-R6W2 uses a baffled aperture and is rated at 1500 nominal lumens. NFRC-R6W3 uses a regressed aperture and is also rated at 1500 nominal lumens.
