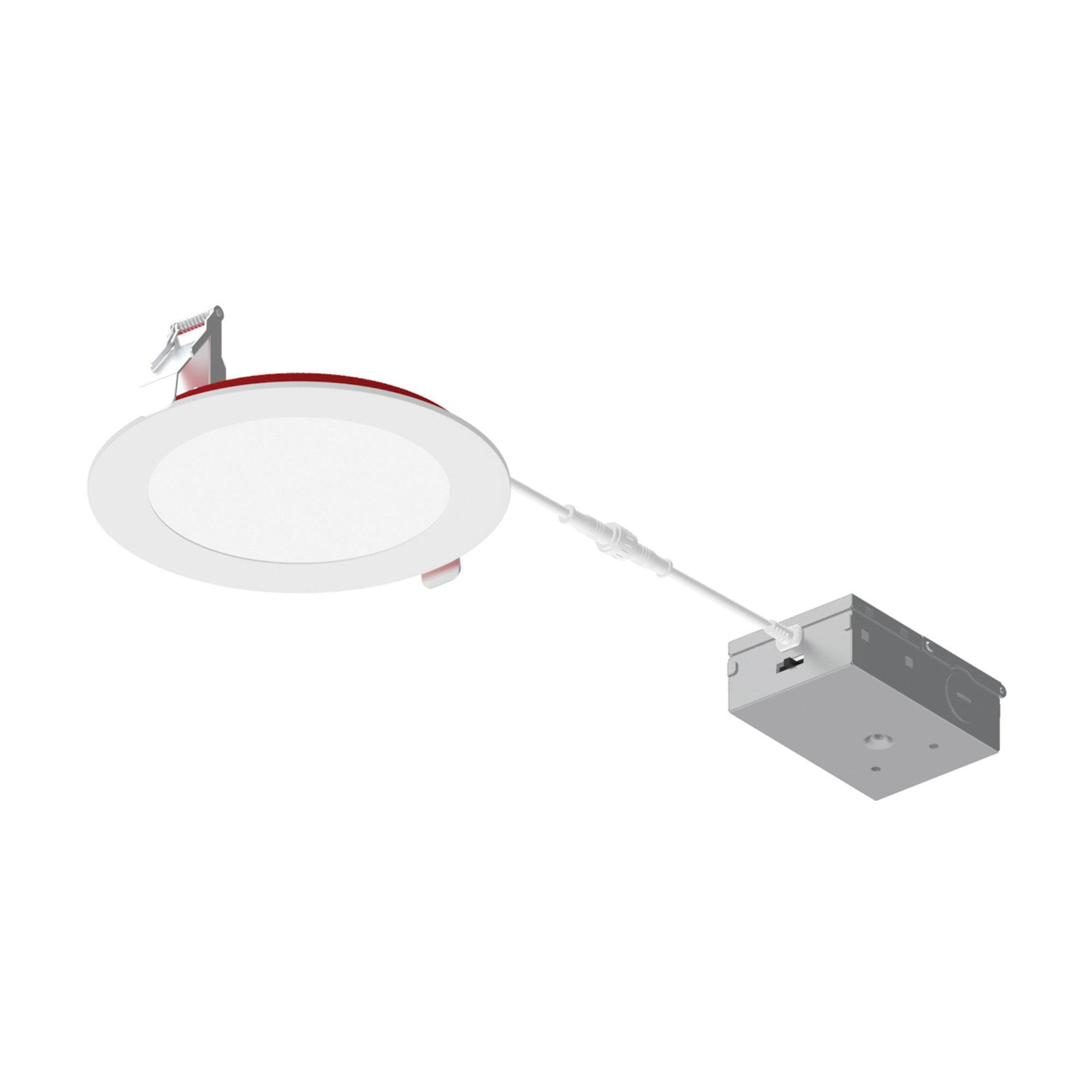

Nora NFRC-R6W1TWMPW 6" Fire Rated Canless Flat LED Downlight, 1550LM, 5-CCT

The Nora Lighting NFRC-R6W1TWMPW 6" Fire Rated Canless Flat LED Downlight combines powerful LED illumination, a slim wafer profile and certified fire-rated performance in one easy-to-install fixture. Delivering a nominal 1550 lumens from only 15 watts, this 6-inch canless downlight is an excellent choice for residential, multifamily, hospitality and commercial projects where fire-rated ceiling performance and limited plenum space are important.

A built-in 5-CCT selector provides 2700K, 3000K, 3500K, 4000K and 5000K options, while 90+ CRI provides high-quality color rendering. The NFRC-R6W1TWMPW is IC Airtight rated, suitable for wet locations and compatible with Triac or ELV dimming. Its canless design eliminates the need for a traditional recessed housing and includes a pre-wired junction box for streamlined installation.

Why Choose the Nora NFRC-R6W1TWMPW?

• 2-Hour Fire Rated: Designed and certified for 2-hour fire-rated applications to UL 263 and ASTM E119.
• 6" Flat Wafer Design: Clean, low-profile appearance that sits close to the ceiling plane.
• Canless Installation: No traditional recessed housing is required.
• Shallow Plenum Friendly: Slim construction is ideal where ceiling clearance is limited.
• 1550 Lumens: High nominal light output from only 15 watts.
• 5-CCT Selectable: Choose 2700K, 3000K, 3500K, 4000K or 5000K in the field.
• 90+ CRI: Provides accurate, natural-looking color rendering.
• Wide Flood Distribution: Approximately 110° beam spread for broad general illumination.
• Dimmable: Compatible with Triac and ELV phase dimmers.
• IC Airtight: Designed for insulated ceiling applications when installed according to Nora's requirements.
• Wet Location Listed: Suitable for applications requiring a wet-location-rated luminaire.
• ENERGY STAR Certified: Energy-efficient LED performance.
• Title 24: Certified to California Title 24 JA8-2025 high-efficacy requirements.
• 5-Year Limited Warranty: Backed by Nora Lighting's limited warranty.

Product Specifications

2-Hour Fire Rated Canless Downlight

The NFRC-R6W1TWMPW is designed for projects that require fire-rated recessed lighting without the bulk of a conventional recessed housing. Its multi-piece construction provides an additional protective layer above the ceiling, and Nora lists the fixture as tested and certified to UL 263 and ASTM E119 for a 2-hour fire rating.

Fire-resistance performance depends on the complete ceiling assembly and proper installation. Always verify the approved ceiling assembly, Nora installation instructions and applicable local building and electrical codes before installation.

1550 Lumens from a Slim 6" Wafer Downlight

With a nominal output of 1550 lumens from only 15 watts, this 6-inch LED downlight provides substantial general illumination while maintaining an exceptionally shallow profile. Its flat luminous surface creates a clean, contemporary ceiling appearance without requiring a traditional recessed can.

The wide-flood optical distribution spreads light broadly across the room, making the NFRC-R6W1TWMPW well suited for general lighting in residential, multifamily, hospitality and commercial interiors.

5 Selectable Color Temperatures

One fixture provides five popular white-light color temperatures. The selectable CCT switch is located in the junction box, allowing the preferred setting to be chosen in the field.

• 2700K Warm White: Warm, comfortable illumination for bedrooms, living rooms and hospitality spaces.
• 3000K Soft White: A versatile residential choice for kitchens, hallways and general living areas.
• 3500K Neutral White: Balanced illumination for residential and commercial interiors.
• 4000K Cool White: Crisp light for kitchens, work areas and commercial environments.
• 5000K Daylight: Cooler white illumination for spaces where brighter visual clarity is preferred.

Shallow Canless Installation

The NFRC-R6W1TWMPW does not require a conventional recessed housing. Its shallow wafer construction is designed for low-clearance plenums and makes the fixture particularly useful for remodel projects or locations where traditional recessed cans are difficult to accommodate.

A pre-wired junction box is included, while a quick-disconnect connection simplifies the connection between the LED downlight and its driver enclosure. Optional new-construction frame-in accessories are available when fixture locations need to be established before the finished ceiling is installed.

IC Airtight & Wet Location Rated

The NFRC-R6W1TWMPW is IC Airtight rated for appropriate insulated ceiling applications and is cETLus listed for wet locations. This combination provides additional installation flexibility across residential and commercial projects.

Always follow Nora's installation instructions regarding insulation, ceiling construction, environmental conditions and required clearances.

Dimmable, High-Quality LED Lighting

With 90+ CRI, the integrated LED system provides high-quality color rendering so interior finishes, furnishings and surfaces appear natural. The fixture supports Triac and ELV phase dimming when paired with a compatible dimmer, allowing light levels to be adjusted for different activities and times of day.

Recommended Applications

• Single-family homes
• Apartments and condominiums
• Multifamily residential projects
• Hotels and hospitality spaces
• Commercial interiors
• New construction
• Remodel and renovation projects
• Shallow and limited-plenum ceilings
• Projects requiring fire-rated recessed lighting
• Spaces requiring broad general illumination

Compatible Accessories

• NF-R246: Universal New Construction Frame-In for 4" and 6" canless downlights
• NFRC-EW-4: 4' Quick-Connect Extension Cable for Fire Rated Canless Downlights
• NFRC-EW-20: 20' Quick-Connect Extension Cable for Fire Rated Canless Downlights
• NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch
• NEPK-23LEDUNV-JB: 23W Emergency LED Driver Kit with Remote Test Switch

Accessories are sold separately. Verify compatibility and project requirements before ordering.

Frequently Asked Questions

Is the Nora NFRC-R6W1TWMPW a 2-hour fire rated downlight?

Yes. Nora lists the NFRC-R6W1TW as tested and certified to UL 263 and ASTM E119 for a 2-hour fire rating. The complete ceiling assembly and installation must meet applicable project and code requirements.

Does this 6-inch downlight require a recessed housing?

No. The NFRC-R6W1TWMPW is a canless LED downlight and does not require a traditional recessed can. A pre-wired junction box is included.

How bright is the NFRC-R6W1TWMPW?

Nora rates the fixture at a nominal 1550 lumens while consuming 15 watts, providing substantial general illumination from a shallow 6-inch fixture.

What color temperatures can I select?

The fixture provides five field-selectable settings: 2700K, 3000K, 3500K, 4000K and 5000K.

Is the NFRC-R6W1TWMPW dimmable?

Yes. Nora specifies Triac and ELV phase dimming. Use a compatible dimmer and follow Nora's installation requirements.

Is this downlight IC rated?

Yes. Nora identifies the NFRC-R6W1TWMPW as IC Airtight rated. Installation should follow the manufacturer's instructions and applicable building and electrical codes.

Is the NFRC-R6W1TWMPW wet-location rated?

Yes. Nora lists the fixture for wet locations when properly installed.

Can I use it for both new construction and remodeling?

Yes. The fixture is designed for both new-construction and remodel applications. Optional Nora frame-in accessories are available for new-construction projects.

What is the difference between the NFRC-R6W1, R6W2 and R6W3?

All three are 6-inch fire-rated canless LED downlights with selectable CCT. The NFRC-R6W1 uses a flat aperture and is rated at 1550 nominal lumens. The NFRC-R6W2 uses a baffled aperture, while the NFRC-R6W3 uses a regressed design; both are rated at 1500 nominal lumens.
