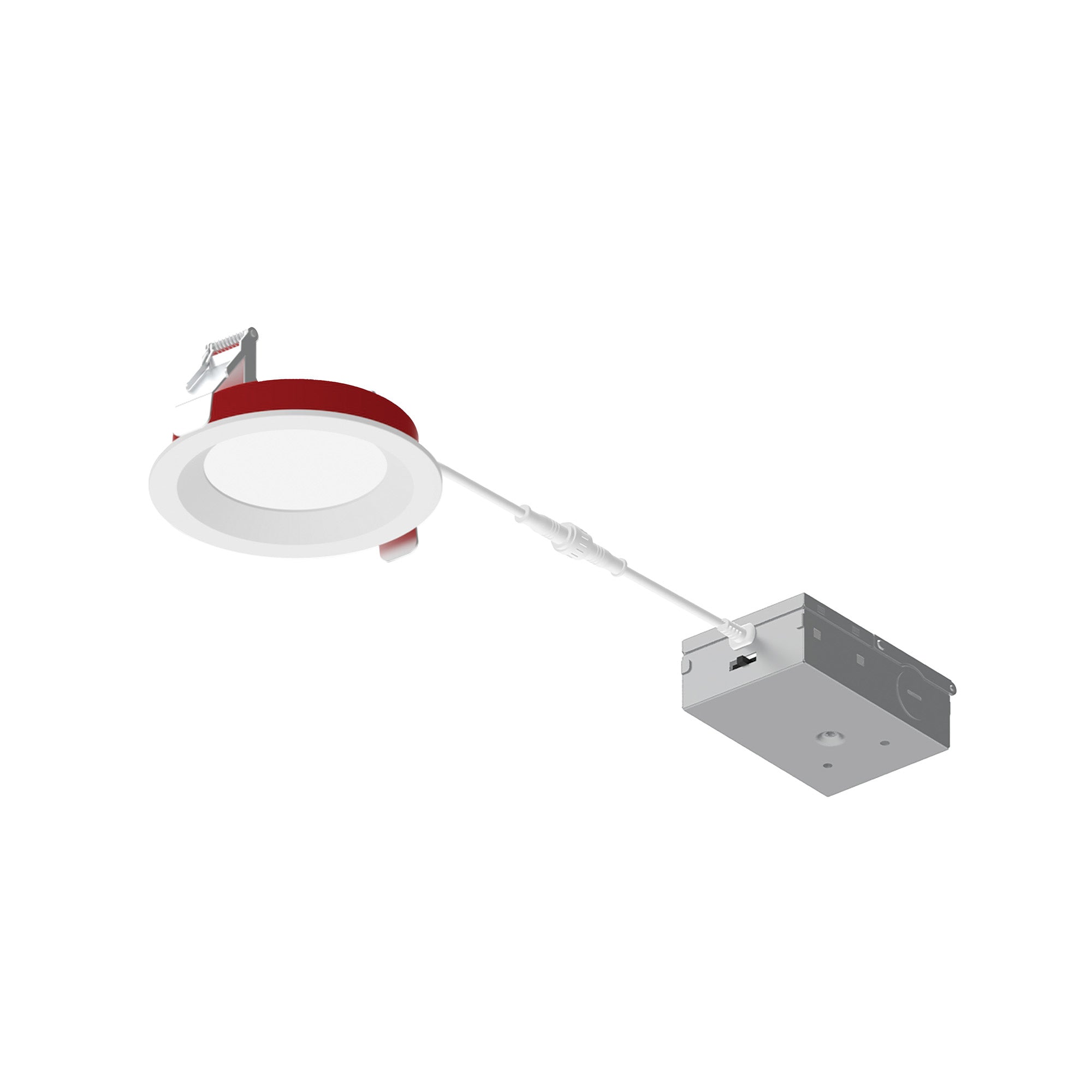

Nora NFRC-R4W3TWMPW 4" Fire Rated Regressed Canless LED Downlight, 1200LM, 5-CCT

The Nora Lighting NFRC-R4W3TWMPW 4" Fire Rated Regressed Canless LED Downlight delivers powerful, comfortable illumination in a shallow housing-free design. Producing 1200 lumens from only 12 watts, this fire-rated LED downlight features a regressed lens and smooth reflector that help reduce aperture brightness for a more comfortable, refined lighting appearance.

Designed for new construction and remodel applications, the NFRC-R4W3TWMPW combines a certified 2-hour fire rating with five selectable color temperatures, 90+ CRI, Triac/ELV dimming, IC Airtight construction and wet-location suitability. No traditional recessed housing is required, making it an excellent solution for residential, multifamily, hospitality and commercial projects where ceiling space may be limited.

Why Choose the Nora NFRC-R4W3TWMPW?

• 2-Hour Fire Rated: Certified to UL 263, ASTM E119 and CAN/ULC S101 for 2-hour fire-rated ceiling applications.
• Regressed Optical Design: A regressed lens and smooth reflector help reduce aperture brightness for greater visual comfort.
• Canless Installation: No conventional recessed housing is required.
• Shallow Design: Well suited for installations with limited plenum space.
• 1200-Lumen Output: Delivers bright general illumination while consuming only 12 watts.
• 5-CCT Selectable: Choose 2700K, 3000K, 3500K, 4000K or 5000K in the field.
• 90+ CRI: Provides accurate, natural-looking color rendering.
• Wide Flood Distribution: Designed for broad, even general illumination.
• Dimmable: Phase dimmable to 10% with compatible Triac or ELV dimmers.
• IC Airtight Rated: Designed for direct contact with approved insulation when installed according to manufacturer instructions.
• Wet Location Listed: Suitable for applications requiring a wet-location-rated recessed luminaire.
• ENERGY STAR Certified: Also certified to California Title 24 JA8-2025 high-efficacy requirements.
• 5-Year Limited Warranty: Backed by Nora Lighting's limited warranty.

Product Specifications

Regressed Design for Greater Visual Comfort

Unlike a flat wafer-style downlight where the luminous surface sits close to the ceiling plane, the NFRC-R4W3TWMPW uses a regressed lens with a smooth reflector. By positioning the light source deeper within the aperture, the design helps reduce aperture brightness while maintaining broad general illumination.

The result is a more refined recessed-light appearance that works especially well in living areas, multifamily residences, hospitality environments and commercial interiors where visual comfort is important.

2-Hour Fire Rated Canless Downlight

The NFRC-R4W3TWMPW features multi-piece construction designed to provide an additional layer of protection above the ceiling. Nora lists the fixture as certified for a 2-hour fire rating to UL 263, ASTM E119 and CAN/ULC S101.

Fire-resistance performance depends on the complete ceiling assembly and proper installation. Always verify the requirements of the project, approved ceiling assembly, manufacturer instructions and applicable building codes before installation.

5 Selectable Color Temperatures in One Fixture

A five-position CCT switch allows the installer to select the desired color temperature in the field. The fixture is preset to 3000K and can be changed to any of five settings:

• 2700K Warm White: Warm, comfortable light for bedrooms, living areas and hospitality spaces.
• 3000K Soft White: A versatile choice for residential and hospitality interiors.
• 3500K Neutral White: Balanced light for residential and commercial environments.
• 4000K Cool White: Crisp illumination for kitchens, workspaces and commercial applications.
• 5000K Daylight: Cooler white light for applications where brighter visual clarity is preferred.

Shallow Canless Installation

No traditional recessed housing is required. Two steel spring clips secure the fixture directly to the ceiling, and the design accommodates ceiling thicknesses from 1/2" to 1-1/2". A pre-wired junction box and quick-connect wiring help simplify installation for both remodel and new-construction projects.

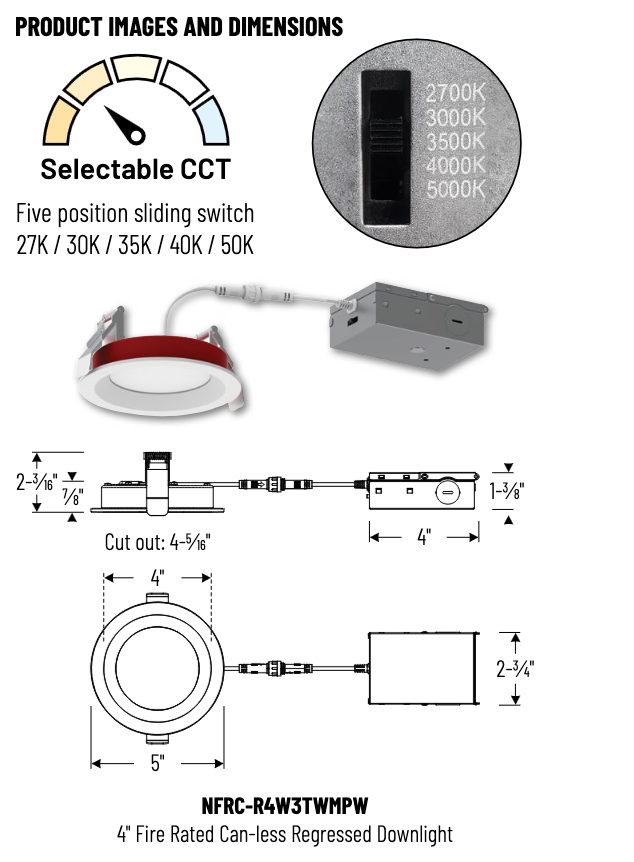

The 4-inch model requires a 4-5/16" ceiling cutout. For new construction, optional Nora frame-in accessories can be used to establish the wiring location and provide a cutting guide before the finished ceiling is installed.

IC Airtight & Wet Location Rated

The NFRC-R4W3TWMPW is IC rated for direct contact with compatible insulation (excluding spray foam insulation per Nora's specification) and meets ASTM 283 airtight requirements by restricting airflow from the room into the ceiling plenum to less than 2 CFM.

A factory-supplied gasket supports the airtight and wet-location listing without requiring additional caulking when installed according to Nora's instructions.

Dimmable 1200-Lumen LED Performance

The integrated LED system delivers a nominal 1200 lumens while consuming only 12 watts. With 90+ CRI, the fixture provides high-quality color rendering, while its wide-flood distribution produces broad illumination for general lighting.

The fixture operates on 120VAC and supports phase dimming down to 10% with compatible Triac or ELV dimmers.

Recommended Applications

• Single-family homes
• Apartments and condominiums
• Multifamily residential projects
• Hotels and hospitality interiors
• Commercial spaces
• New construction
• Remodel and renovation projects
• Shallow or limited-plenum ceilings
• Applications requiring fire-rated recessed lighting
• Spaces where a regressed aperture is preferred for visual comfort

Compatible Accessories

• NF-R246: Universal New Construction Frame-In for 4" and 6" downlights
• NFC-R430: New Construction Frame-In with Collar for 4" downlights
• NFRC-EW-4: 4' Quick-Connect Extension Cable
• NFRC-EW-20: 20' Quick-Connect Extension Cable
• NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch
• NEPK-23LEDUNV-JB: 23W Emergency LED Driver Kit with Test Switch
• NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV

Accessories are sold separately. Confirm accessory compatibility and all project requirements before ordering.

Frequently Asked Questions

Is the Nora NFRC-R4W3TWMPW fire rated?

Yes. Nora lists the NFRC-R4W3TWMPW as certified to UL 263, ASTM E119 and CAN/ULC S101 for a 2-hour fire rating. The complete ceiling assembly and installation must meet applicable project and code requirements.

What is the difference between a regressed and flat canless downlight?

A regressed downlight positions the lens deeper within the fixture rather than directly at the ceiling plane. On the NFRC-R4W3TWMPW, Nora combines the regressed lens with a smooth reflector to help reduce aperture brightness and create a more comfortable recessed-light appearance.

Does the NFRC-R4W3TWMPW require a recessed housing?

No. This is a canless LED downlight, so a conventional recessed can is not required. The fixture includes a pre-wired junction box and quick-connect wiring.

What size ceiling opening does it require?

Nora specifies a 4-5/16" ceiling cutout for the 4-inch NFRC-R4W3TWMPW.

What color temperatures can I select?

The fixture provides five field-selectable settings: 2700K, 3000K, 3500K, 4000K and 5000K. The factory preset is 3000K.

Is this LED downlight dimmable?

Yes. Nora specifies phase dimming down to 10% with compatible Triac or ELV dimmers.

Can it be installed in an insulated ceiling?

Yes. The fixture is IC rated for direct contact with compatible insulation. Nora specifically excludes spray foam insulation from this direct-contact provision. Always follow the manufacturer's installation instructions and applicable codes.

Is the NFRC-R4W3TWMPW wet-location rated?

Yes. The fixture is cETLus listed for wet locations when properly installed.

Can I use it for both new construction and remodeling?

Yes. The NFRC-R4W3TWMPW is designed for both new-construction and remodel applications. Optional frame-in accessories are available for new-construction projects.

What warranty does Nora provide?

Nora specifies a 5-year limited warranty for the NFRC-R4W3TWMPW.
