Nora NFRC-R4W2TWMPW 4" Fire Rated Canless Baffled LED Downlight, 1200LM, 5-CCT

The Nora Lighting NFRC-R4W2TWMPW 4" Fire Rated Canless Baffled LED Downlight combines a shallow, housing-free design with a baffled aperture, powerful LED output and certified fire-rated performance. Delivering a nominal 1200 lumens from only 12 watts, this 4-inch downlight is designed for residential, multifamily, hospitality and commercial projects where fire-rated ceiling performance and flexible installation are important.

A five-position CCT switch lets you select 2700K, 3000K, 3500K, 4000K or 5000K in the field. The NFRC-R4W2TWMPW also provides 90+ CRI, wide-flood illumination, Triac/ELV dimming, IC Airtight construction and wet-location suitability. Its canless design eliminates the need for a traditional recessed housing and is especially useful in shallow plenums.

Why Choose the Nora NFRC-R4W2TWMPW?

• 2-Hour Fire Rated: Listed for 2-hour fire-rated ceiling applications and tested to UL 263, ASTM E119 and CAN/ULC S101.
• Baffled Aperture: Provides the classic appearance of a baffled recessed downlight in a modern canless design.
• Canless Installation: No conventional recessed housing is required.
• Shallow Design: Ideal for installations where plenum or ceiling space is limited.
• 1200-Lumen Output: Provides bright general illumination using only 12 watts.
• 5-CCT Selectable: Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation.
• 90+ CRI: Delivers accurate, natural-looking color rendering.
• 112° Wide Flood: Broad light distribution for general illumination.
• Dimmable: Phase dimmable down to 10% with compatible Triac or ELV dimmers.
• IC Airtight Rated: Suitable for direct contact with compatible insulation when installed according to Nora's requirements.
• Wet Location Listed: Suitable for applications requiring a wet-location-rated luminaire.
• ENERGY STAR Certified: Also certified to California Title 24 JA8-2025 high-efficacy requirements.
• 5-Year Limited Warranty: Backed by Nora Lighting's limited warranty.

Product Specifications

Baffled Design with Wide-Flood Illumination

The NFRC-R4W2TWMPW combines a traditional baffled recessed-light appearance with modern canless construction. The baffled aperture gives the fixture a more dimensional recessed look than a flat wafer downlight while maintaining broad illumination for general lighting.

Nora specifies a 112° wide-flood beam distribution, making this fixture a versatile option for evenly illuminating living spaces, hallways, multifamily projects, hospitality interiors and commercial environments.

2-Hour Fire Rated Canless Recessed Lighting

Designed for applications requiring fire-rated recessed lighting, the NFRC-R4W2TWMPW uses multi-piece construction to provide an additional protective barrier above the ceiling. Nora lists the fire-rated canless family for a 2-hour fire rating to UL 263, ASTM E119 and CAN/ULC S101.

Fire-resistance performance depends on the complete ceiling assembly and proper installation. Always confirm the approved ceiling construction, installation requirements and applicable local building codes for your project.

5 Selectable Color Temperatures

Instead of selecting a fixed color temperature when ordering, the NFRC-R4W2TWMPW provides five CCT settings in one fixture. The switch is located in the junction box and is factory preset to 3000K.

• 2700K Warm White: Warm, inviting light for bedrooms, living rooms and hospitality spaces.
• 3000K Soft White: A versatile choice for residential interiors, kitchens and hallways.
• 3500K Neutral White: Balanced illumination for residential and commercial spaces.
• 4000K Cool White: Crisp illumination for task areas and commercial applications.
• 5000K Daylight: Cooler white light for spaces where bright visual clarity is preferred.

Shallow Canless Installation

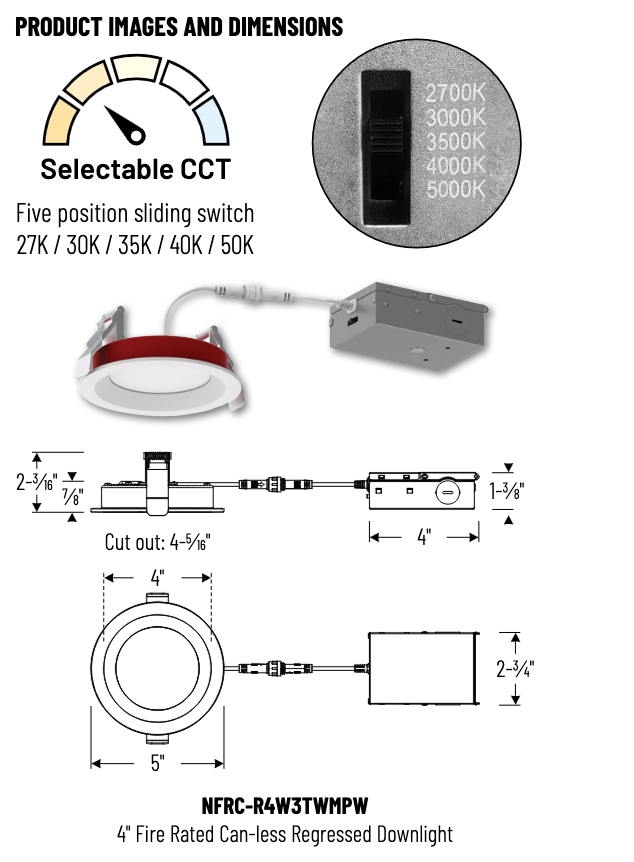

No traditional recessed can is required. The fixture is secured directly to the ceiling using two tension steel spring clips and accommodates ceiling thicknesses from 1/2" to 1-1/2".

The 4-inch model requires a 4-5/16" ceiling cutout. A pre-wired junction box with quick-connect wiring helps streamline installation for remodel projects, while optional Nora frame-in accessories are available for new construction.

IC Airtight & Wet Location Rated

The NFRC-R4W2TWMPW is IC rated for direct contact with compatible insulation and is designed for airtight ceiling applications. Nora's current specification excludes spray foam insulation from direct-contact use, so installation should always follow the manufacturer's instructions.

The fixture is also cETLus listed for wet locations, increasing its flexibility for projects where a wet-location-rated recessed luminaire is required.

Efficient, Dimmable LED Performance

The integrated LED system provides a nominal 1200 lumens while consuming only 12 watts. A 90+ CRI helps colors and finishes appear natural, while the broad wide-flood distribution provides effective general illumination.

Light output can be reduced to approximately 10% using a compatible Triac or ELV phase dimmer, allowing the same fixture to provide brighter task illumination or softer ambient lighting as needed.

Recommended Applications

• Single-family homes
• Apartments and condominiums
• Multifamily residential projects
• Hotels and hospitality spaces
• Commercial interiors
• New construction projects
• Remodel and renovation projects
• Shallow and limited-plenum ceilings
• Projects requiring fire-rated recessed lighting
• Spaces where a baffled recessed-light appearance is preferred

Compatible Accessories

• NF-R246: Universal New Construction Frame-In for 4" and 6" canless downlights
• NFC-R430: New Construction Frame-In with Collar for 4" canless downlights
• NFRC-EW-4: 4' Quick-Connect Extension Cable
• NFRC-EW-20: 20' Quick-Connect Extension Cable
• NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch
• NEPKA-20/23LEDRTS: Ribbon Test Switch for compatible emergency driver

Accessories are sold separately. Verify compatibility and project requirements before ordering.

Frequently Asked Questions

Is the Nora NFRC-R4W2TWMPW a 2-hour fire rated downlight?

Yes. Nora lists this fire-rated canless family for 2-hour fire-rated ceiling applications to UL 263, ASTM E119 and CAN/ULC S101. The complete ceiling assembly and installation must meet applicable project and code requirements.

What does the baffled design do?

The baffled aperture gives the downlight the dimensional appearance associated with traditional baffled recessed lighting instead of the completely flat appearance of a wafer-style trim. It is a good choice when a more traditional recessed-light aesthetic is preferred.

Does the NFRC-R4W2TWMPW require a recessed housing?

No. This is a canless downlight. The fixture mounts directly in the ceiling and includes a pre-wired junction box, eliminating the need for a conventional recessed can.

What size hole is required?

Nora specifies a 4-5/16" ceiling cutout for the 4-inch NFRC-R4W2TWMPW.

What color temperatures can I select?

The fixture offers five field-selectable settings: 2700K, 3000K, 3500K, 4000K and 5000K. It is factory preset to 3000K.

Is the Nora NFRC-R4W2TWMPW dimmable?

Yes. Nora specifies phase dimming down to 10% using compatible Triac or ELV dimmers.

Can this downlight be installed in an insulated ceiling?

The fixture is IC rated for direct contact with compatible insulation. Nora's specification excludes spray foam insulation from direct-contact use. Follow all manufacturer instructions and applicable electrical and building codes.

Is the NFRC-R4W2TWMPW wet rated?

Yes. Nora lists the fixture for wet locations when properly installed.

Can it be used for remodel and new-construction projects?

Yes. The canless design works for remodel applications, while optional Nora new-construction frame-ins are available when the fixture location needs to be established before the finished ceiling is installed.

What is the difference between Nora NFRC-R4W1, R4W2 and R4W3?

All three are 4-inch fire-rated canless LED downlights with selectable CCT and nominal 1200-lumen output. The primary difference is the aperture style: NFRC-R4W1 uses a flat design, NFRC-R4W2 uses a baffle, and NFRC-R4W3 uses a regressed design.
