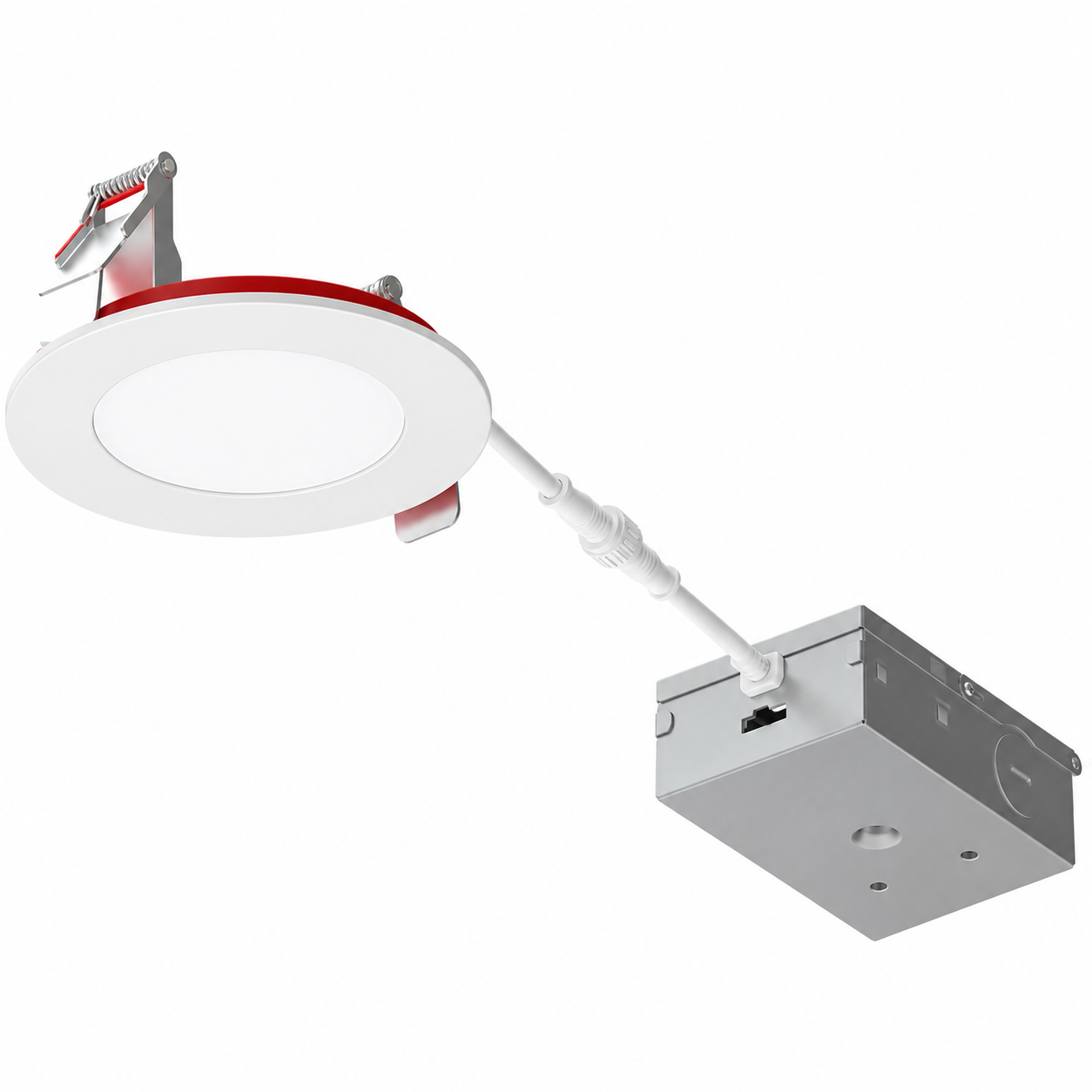

Nora Lighting NFRC-R4W1TW 4" Fire Rated Canless LED Downlight – 1200LM, 5-CCT

The Nora Lighting NFRC-R4W1TW 4" Fire Rated Canless LED Downlight combines a slim, housing-free design with 1200 lumens of high-quality LED illumination and a certified 2-hour fire rating. Designed for new construction and remodel applications, this 4-inch recessed downlight is ideal when fire-rated ceiling performance, shallow installation depth and flexible color temperature selection are required.

A built-in 5-CCT switch lets you select 2700K, 3000K, 3500K, 4000K or 5000K in the field, while 90+ CRI delivers accurate, natural-looking color. The fixture is IC Airtight rated, wet-location listed and compatible with Triac or ELV dimming.

Why Choose the Nora NFRC-R4W1TW?

• 2-Hour Fire Rated: cETLus listed and certified to UL 263 and ASTM E119 for a 2-hour fire rating.
• Canless Installation: No traditional recessed housing is required.
• Shallow Wafer Design: Well suited for installations where ceiling or plenum space is limited.
• Bright 1200-Lumen Output: Delivers substantial illumination while consuming only 12 watts.
• 5 Selectable Color Temperatures: Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation.
• 90+ CRI: Provides high-quality color rendering for residential and commercial interiors.
• Dimmable: Compatible with Triac and ELV dimming.
• IC Airtight Rated: Designed for direct contact with insulation where installed according to applicable instructions and codes.
• Wet Location Listed: Suitable for applications requiring a wet-location-rated recessed luminaire.
• Energy Efficient: ENERGY STAR certified and meets California Title 24 JA8-2025 high-efficacy requirements.
• Pre-Wired Junction Box: Includes the junction box and quick-disconnect connection for streamlined installation.

Product Specifications

5-CCT Selectable Lighting

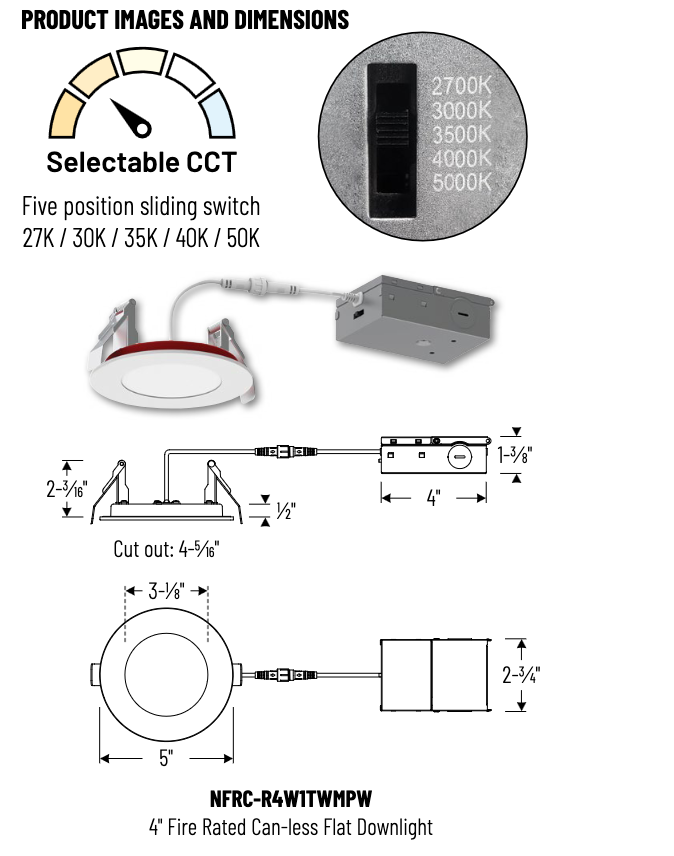

Choose the color temperature that best fits the space before installation using the selector located in the junction box. One fixture provides five commonly specified white-light options:

• 2700K – Warm White: Warm, comfortable light for residential living spaces.
• 3000K – Soft White: A versatile choice for homes, hospitality and similar interiors.
• 3500K – Neutral White: Balanced light suited to many residential and commercial applications.
• 4000K – Cool White: Crisp illumination for task-oriented and commercial spaces.
• 5000K – Daylight: Bright, cooler white light for applications where high visual clarity is preferred.

2-Hour Fire Rated Recessed Lighting

The NFRC-R4W1TW uses a multi-piece construction designed to provide an additional layer of protection against the spread of fire above the ceiling. The luminaire is cETLus listed and tested and certified to UL 263 and ASTM E119 for a 2-hour fire rating. Always confirm that the complete ceiling assembly, installation method and local code requirements are appropriate for your project.

Canless Design for Shallow Ceilings

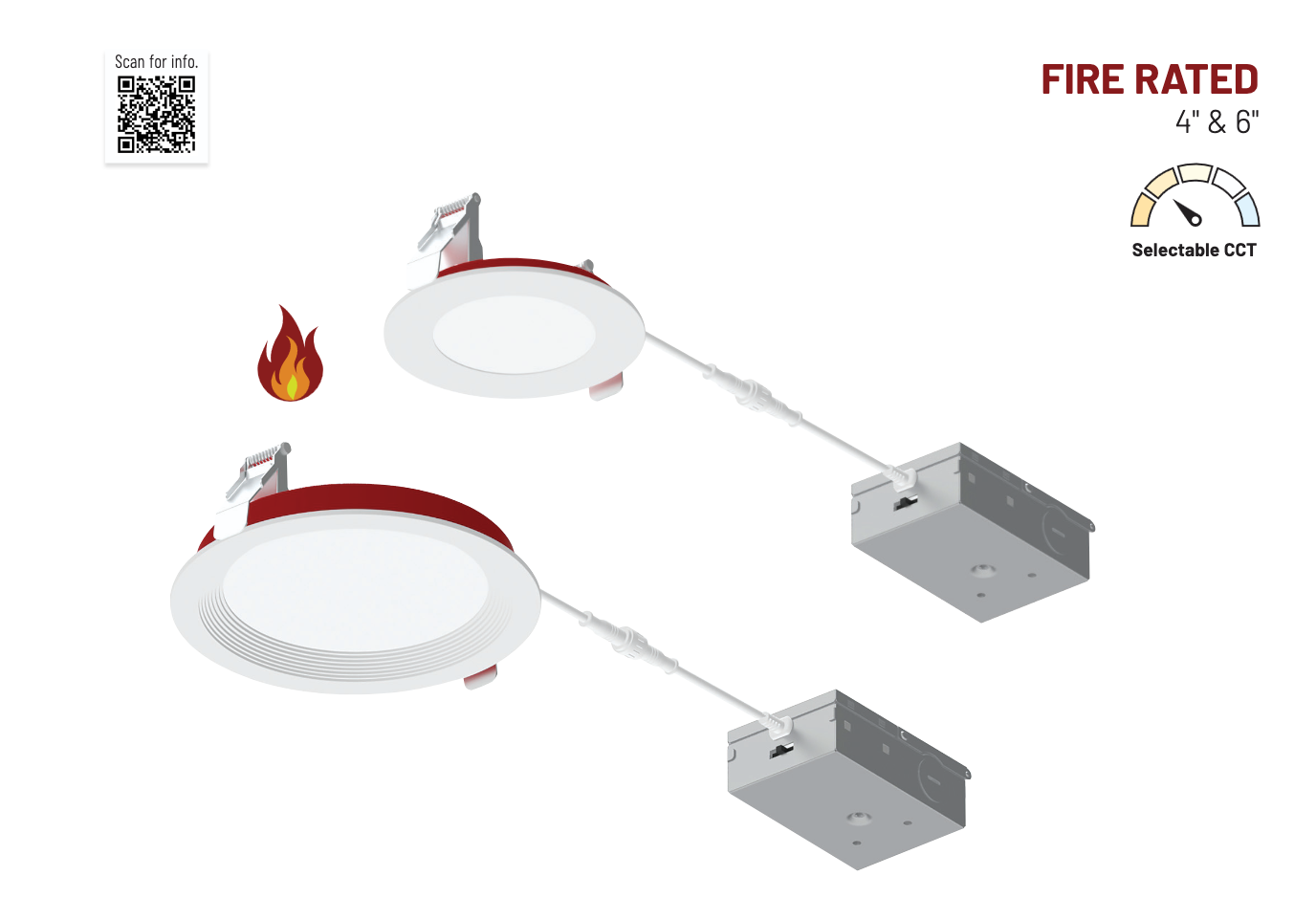

Unlike traditional recessed lighting that requires a separate recessed can, the NFRC-R4W1TW is a canless downlight with a pre-wired junction box. Its low-profile wafer design makes it particularly useful where plenum space is limited and simplifies both new-construction and remodel installations.

Wide, Even Illumination

The 4-inch flat downlight produces approximately 1200 lumens with a wide-flood light distribution, making it well suited for general illumination. Its combination of high output, compact aperture and 90+ CRI makes it a versatile choice for residential, multifamily, hospitality and commercial lighting projects.

Compatible Accessories

• NF-R246: Universal New Construction Frame-In for canless downlights.
• NFC-R430: New Construction Frame-In with Collar for 4" downlights.
• NFRC-EW-4: 4' Quick Connect Extension Cable for fire-rated canless downlights.
• NFRC-EW-20: 20' Quick Connect Extension Cable for fire-rated canless downlights.
• NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch.

Accessories are sold separately. Verify accessory compatibility and project requirements before ordering.

Frequently Asked Questions

Is the Nora NFRC-R4W1TW fire rated?

Yes. Nora lists the NFRC-R4W1TW as cETLus listed and tested and certified to UL 263 and ASTM E119 for a 2-hour fire rating.

Does the NFRC-R4W1TW require a recessed housing?

No. This is a canless LED downlight and does not require a traditional recessed-light housing. A pre-wired junction box is included.

What color temperatures can I select?

The field-selectable switch provides five choices: 2700K, 3000K, 3500K, 4000K and 5000K.

Is this 4-inch fire-rated downlight dimmable?

Yes. Nora specifies Triac and ELV dimming for the NFRC-R4W1TW.

Can it be installed in insulated ceilings?

The NFRC-R4W1TW is IC Airtight rated. Installation should always follow Nora's instructions and applicable electrical and building codes.

Can it be used in wet locations?

Yes. Nora lists this downlight for wet locations, making it suitable for applications where a wet-location-rated luminaire is required, subject to installation instructions and local code.

Is it suitable for remodel projects?

Yes. Nora categorizes the NFRC-R4W1TW for both new-construction and remodel applications. Its canless, shallow design can be particularly useful where ceiling access or plenum depth is limited.
