Nora Lighting

Nora Lighting X Shaped L-Line LED Indirect/Direct, Selectable CCT

Nora Lighting X Shaped L-Line LED Indirect/Direct, Selectable CCT

Regular price $406.71
Regular price $358.45 Sale price $406.71
Sale Sold out

Nora Lighting "X" Shaped L-Line LED Indirect/Direct, Selectable CCT

X shaped L-Line Indirect/Direct luminaires offer a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution evenly illuminate surfaces with a diffused lens, making L-Line ideal for commercial, retail, healthcare and education applications. Luminaires can be daisy chained with linear, L, T luminaires or installed separately.


  • Three built in switches to control direction of light output and color temperature per direction
  • Average of 1643 lumens per foot (70% direct / 30% indirect)
  • Selectable CCT (3000K/3500K/4000K) in both directions
  • Wall mounted or pendant mounted
  • Luminaires can be daisy chained with accessories
  • 120-347V input with 0-10V dimming
  • DLC Listed

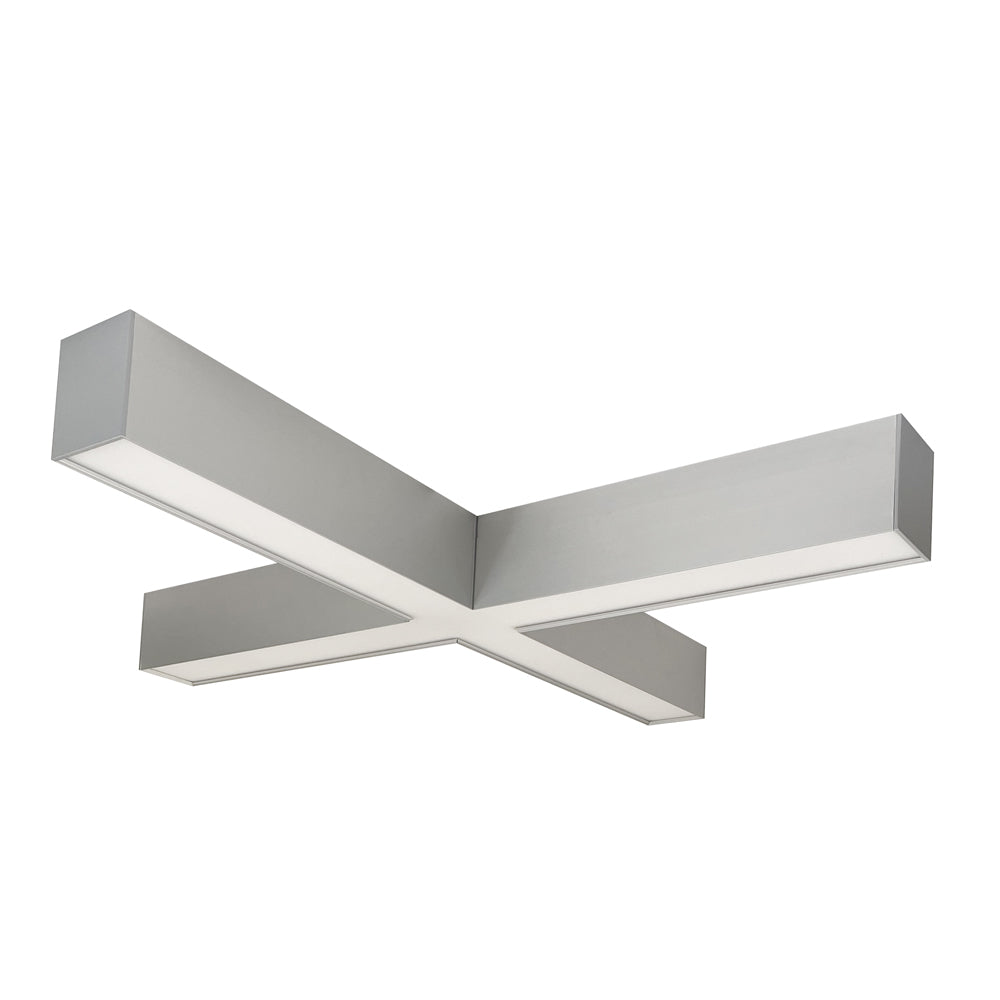

  • A = Aluminum

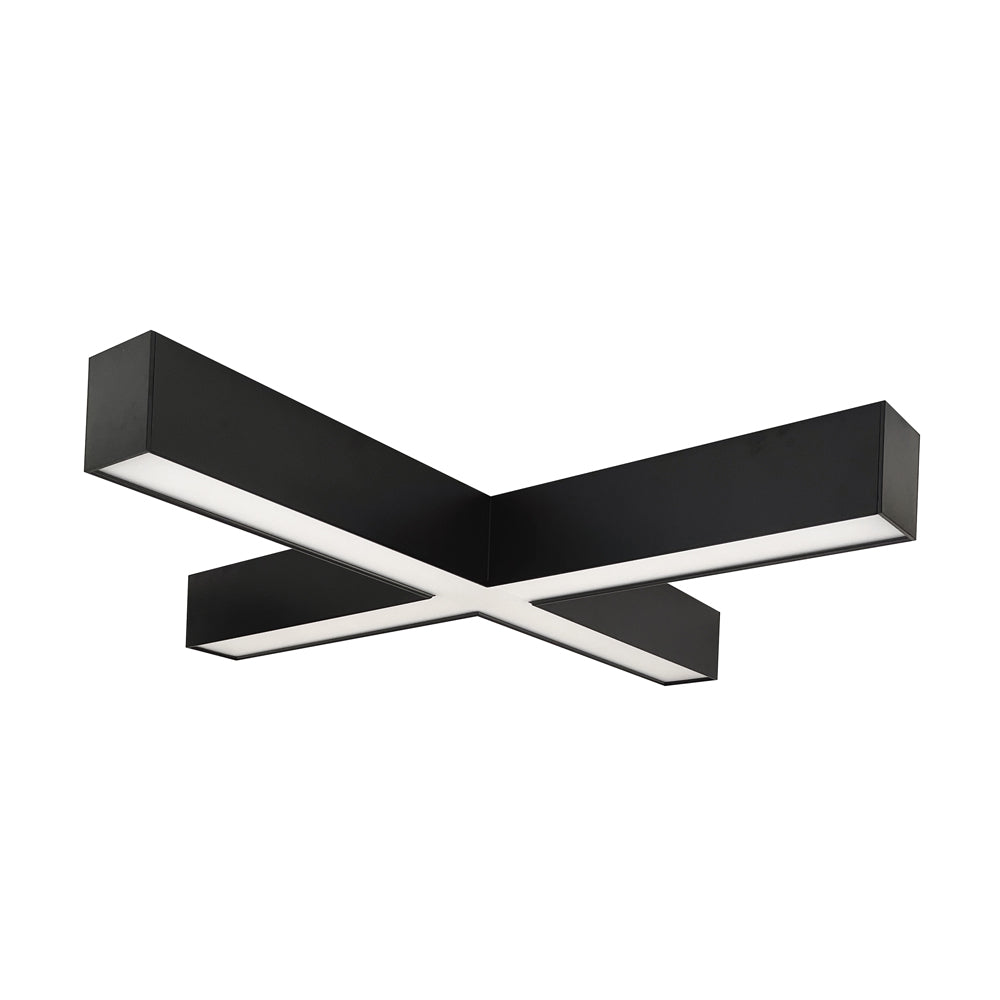

  • B = Black

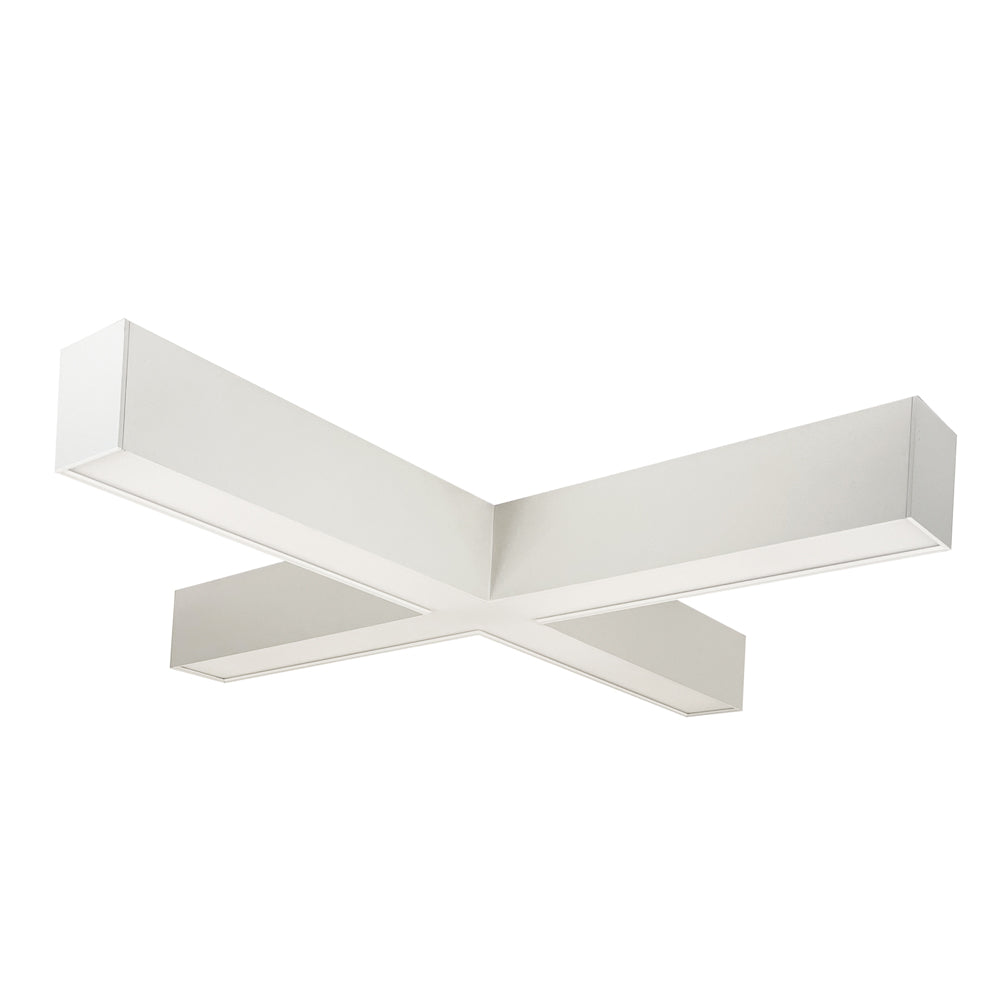

  • W = White

One piece extruded aluminum housing with solid end caps. Includes diffused polycarbonate lens for symmetrical light distribution. Luminaires include three integral switches to control light direction (direct, indirect/ direct, indirect) and color temperature switch for direction of light.

Luminaires can be wall mounted or pendant mounted with kits (ordered separately). Pendant mounted systems require a mounting kit at each end of luminaire. Wall mount kit includes wall plate and wiring for luminaires.

Daisy Chain

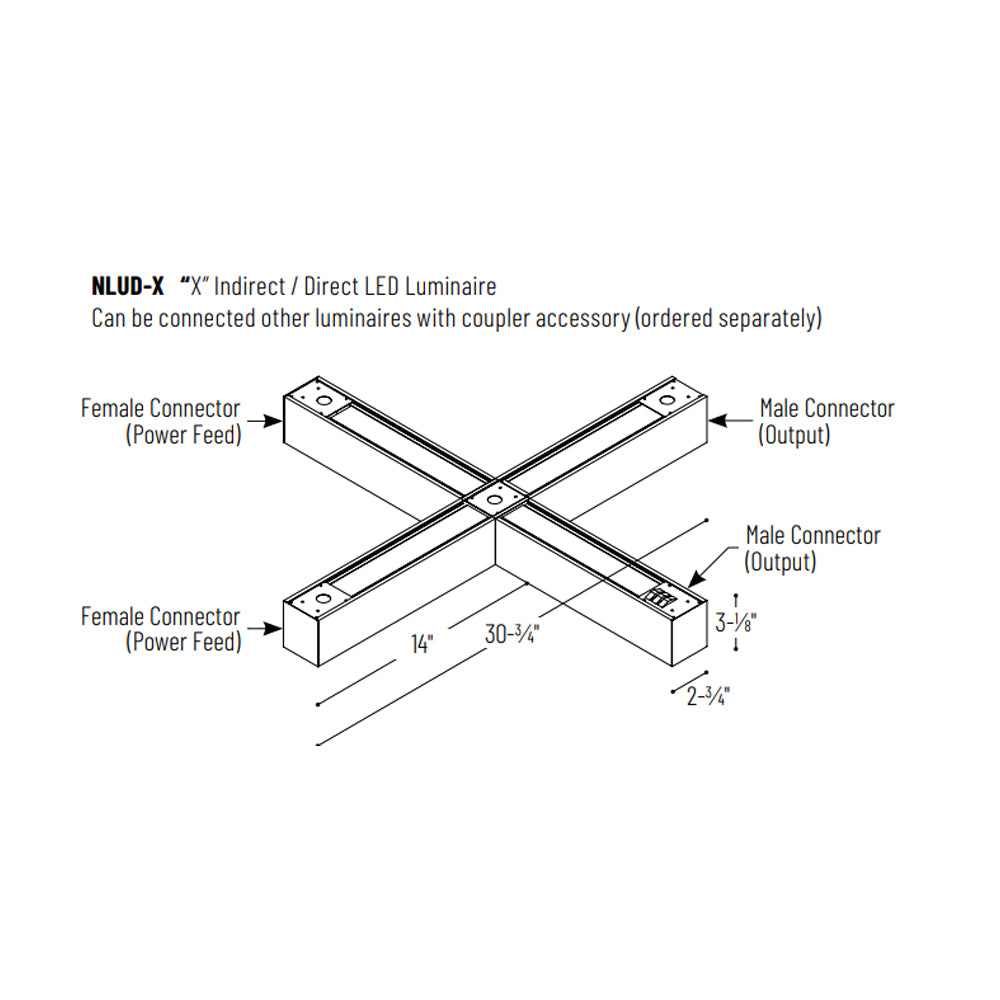

Luminaires can be connected with daisy chain bracket (ordered separately). Bracket allows luminaires to be connected (refer to tables on page 3, 4 and 5).

Input Voltage

Color Temperature
Selectable CCT per direction (3000K/3500K/4000K)
Note: Both CCT switches are preset to 3000K

DIrection of Light
Selectable Direction (direct only / indirect & direct / indirect only)
Note: Preset to indirect & direct position

Color Rendering Index
80+ CRI

Operating Temperature
-20°C to 50°C


Maximum Wattage Per Run

Labels / Listing

  • DLC Listed
  • cETLus Listed for Damp Location
  • FCC Compliant
  • 3-Year Limited Warranty

30" L x 3" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
