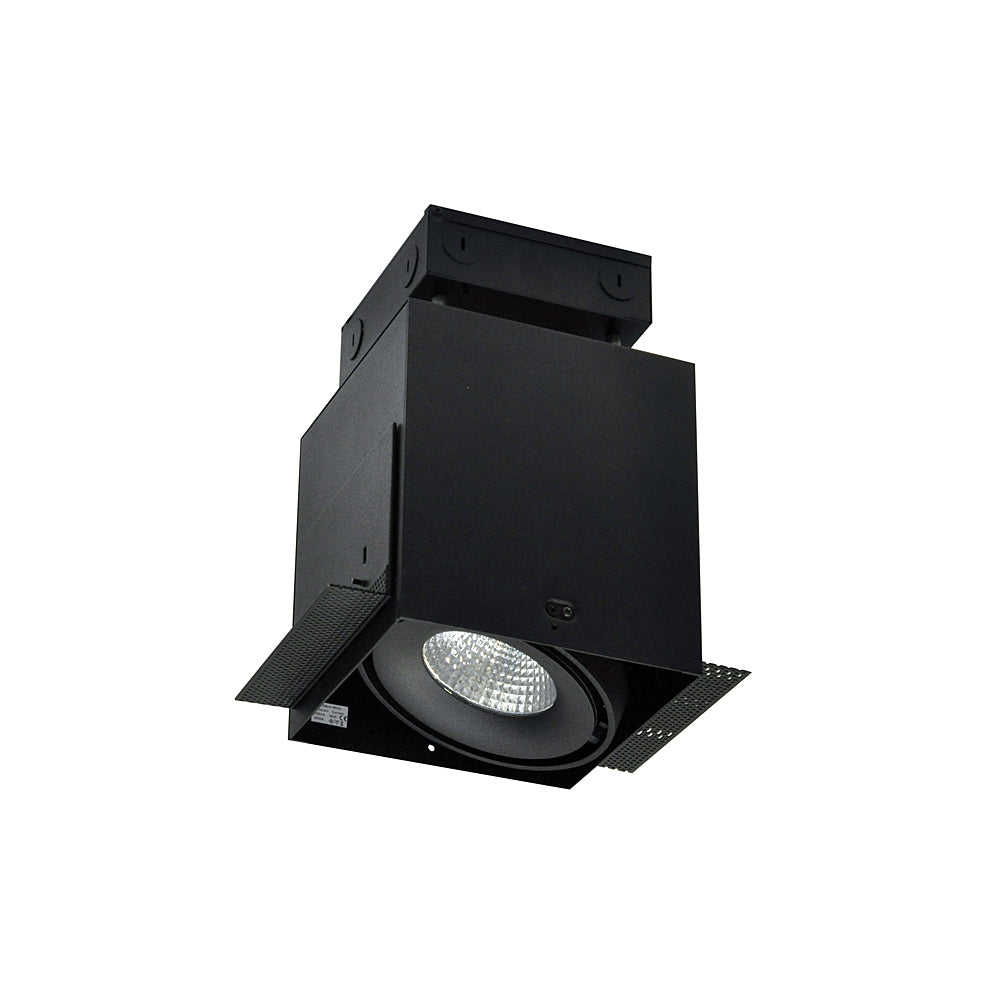

Nora Lighting Trimless One Head LED Multiple Lighting System

Nora Lighting Trimless One Head LED Multiple Lighting System

Multi-LED functionality and architectural aesthetics define LED Trimless Multiple Lighting System. This recessed family of fixtures are available in one to three LED linear configurations, must specify LED modules separately. These LED trimless units can be installed in new or remodel construction with drywall ceilings. The finished look blends with the ceiling line with no visible flange. Accessories include a frame for new construction rough-in and a flange kit for application where trimless does not work.

Finish

• B = Black
• W = White

Housing
Housing: 0.05" galvanized steel with ventilation openings for proper heat dissipation. A separate driver compartment with eight 1/2" knockouts for in and out wiring. Housing includes adjustable brackets for various ceiling depths and separate mud ring for finishing.

Minimum Clearance
Requires a minimum clearance of 3" from thermal insulation and 1/2" from any adjacent building components.

LED Module(s) (Ordered Separately)
Each driver includes a quick connect that easily attaches to quick connect from the LED module. Drivers can be supplied with a single supply or individual supply line for independent control. Lamp holders simply twist and lock into housing, and specified in black or white.

Thermal Protector
Standard UL thermal protection provided to guard against overheating and misuse of insulation over and around fixture. Vent holes in housing allow greater airflow.

Input Voltage

• D1 = 120V
• D2 = 277V

Lumens / Wattage Per Head
2100lm / 30W

Color Temperature
2700K, 3000K, 3500K, 4000K

Color Rendering Index
90+ CRI

Beam Spread
16° Spot or 32° Flood

Operating Temperature
0°-35°C

Dimming
0-10V

Labels and Listings

• cULus Listed for Damp Locations
• ENERGY STAR® Certified

Dimension
9 3/4" L x 6 1/4 W x 9 3/4" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
