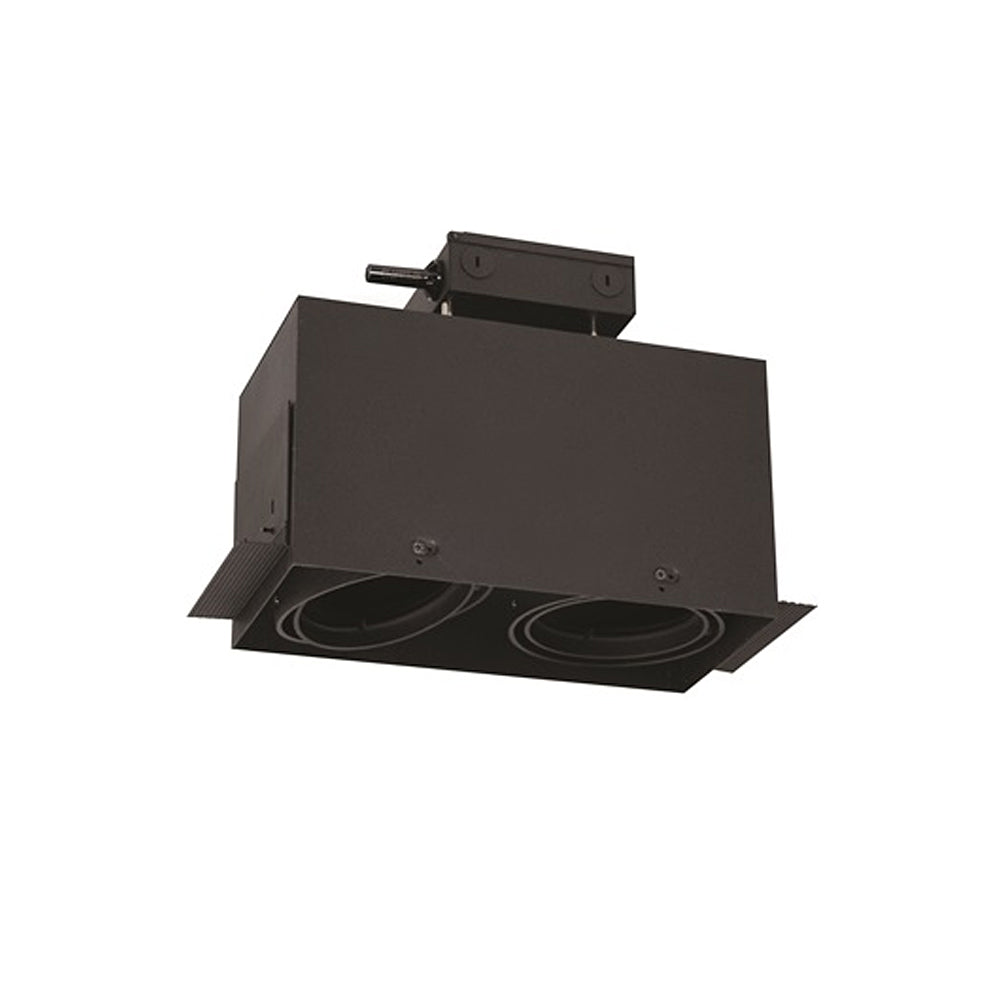

Nora Lighting Trimless Line Voltage (LED Compatible) MLS Two Modules Housing

Nora Lighting Trimless Line Voltage (LED Compatible) MLS Two Modules Housing

Multi-LED functionality and architectural aesthetics define LED Trimless Multiple Lighting System. This recessed family of fixtures are available in one to three LED linear configurations, must specify lamp holders separately. These LED trimless units can be installed in new or remodel construction with drywall ceilings. The finished look blends with the ceiling line with no visible flange. Accessories include a frame for new construction rough-in and a flange kit for application where trimless does not work.

Finish

• B = Black
• W = White

Housing
Housing: 0.05" galvanized steel with ventilation openings for proper heat dissipation. A separate driver compartment with eight 1/2" knockouts for in and out wiring. Housing includes adjustable brackets for various ceiling depths and separate mud ring for finishing.

Minimum Clearance
Requires a minimum clearance of 3" from thermal insulation and 1/2" from any adjacent building components.

Lamp Holder(s) (Ordered Separately)
Each lamp holder includes a quick connect that easily attaches to quick connect from the wiring compartment. Quick connects can be supplied with a single supply or individual supply line for independent control. Lamp holders simply twist and lock into housing, and specified in black or white.

Input Voltage
120V

Socket
Medium base

Wattage
75W max. each socket (can be factory labeled for reduced wattage)

Operating Temp.
0°-70°C max. ambient temp.

Dimming
Triac / ELV dimming

Labels and Listings
cULus Listed

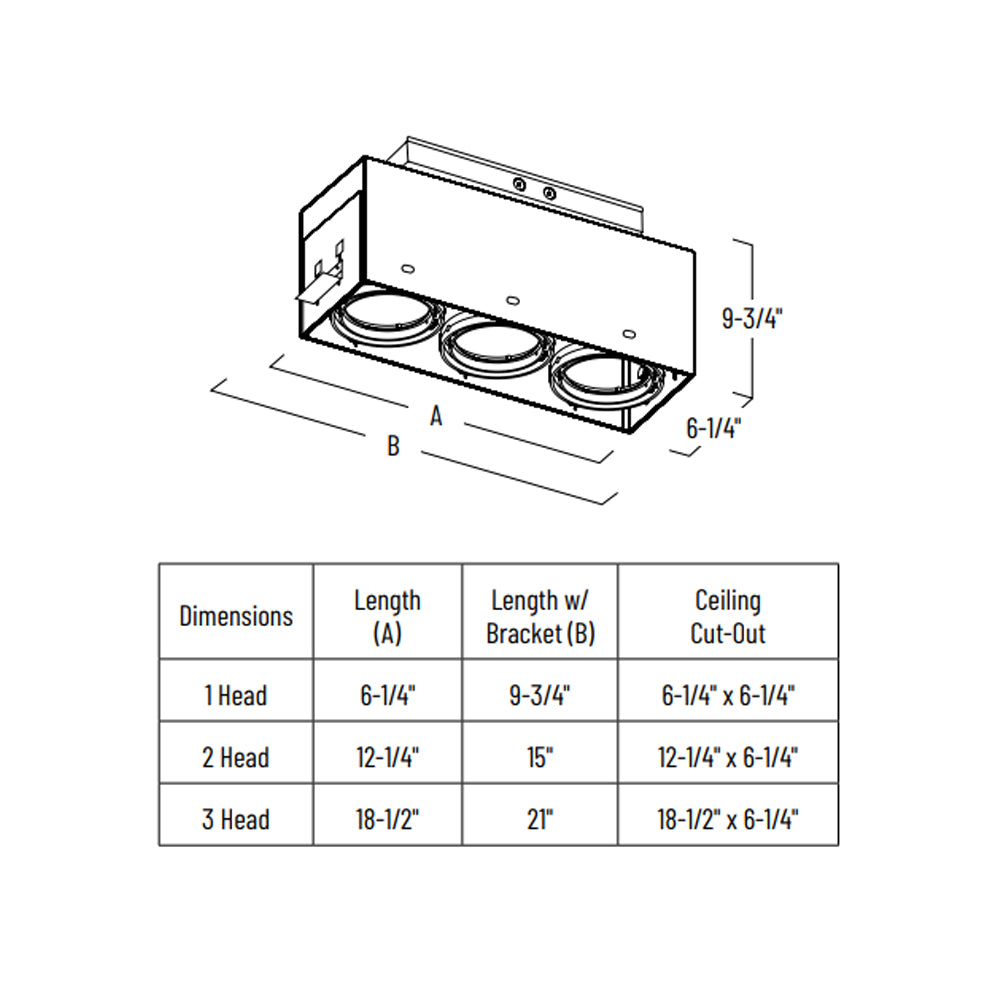

Dimension
15" L x 6 1/4 W x 9 3/4" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
