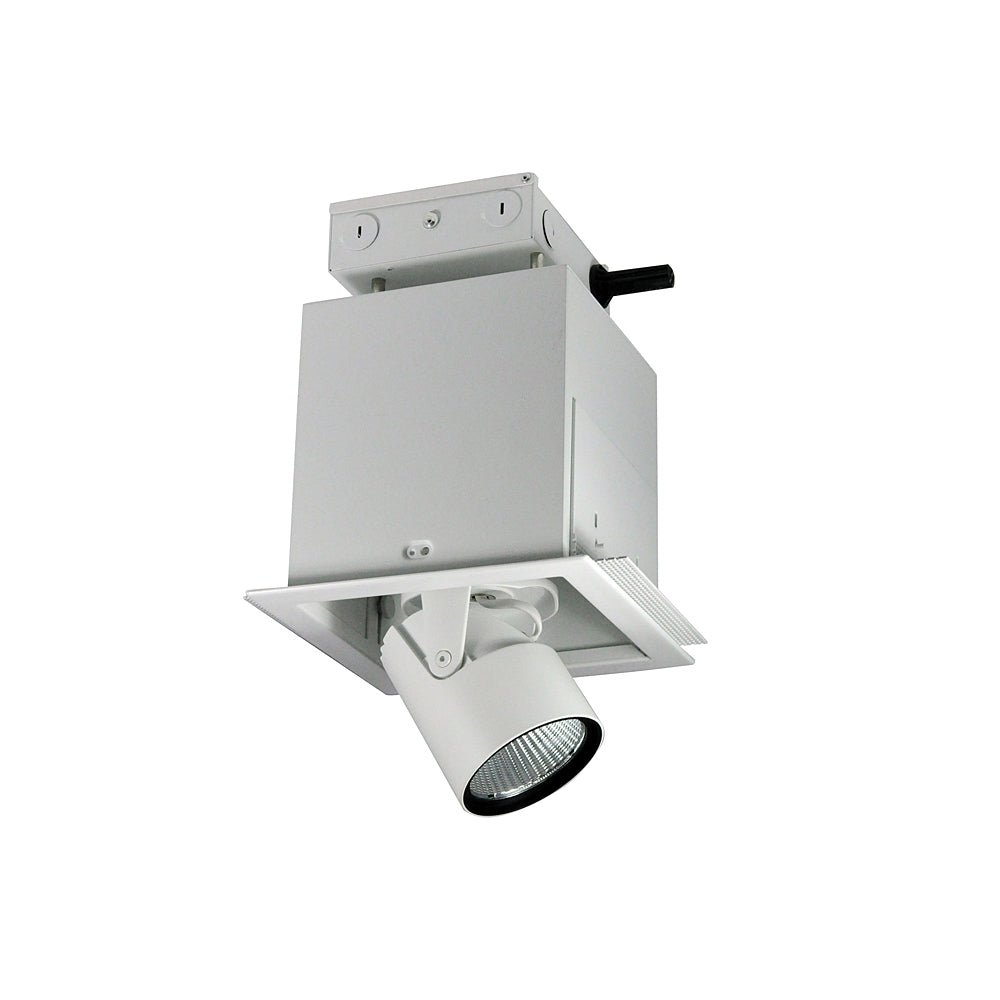

Nora Lighting Pull-Down Adjustable LED Trimless Mulitple Lighting System (1 Head)

Nora Lighting Pull-Down Adjustable LED Trimless Mulitple Lighting System (1 Head)

Multi-lamp functionality and architectural aesthetics define LED Pull-Down Multiple Lighting System. This recessed family of fixtures is available in one to three lamp liner configurations and can be installed in new or remodel construction. The trimless look blends with the ceiling line with no visible flange. Accessories include a frame for new construction rough-in and a flange kit for application where trimless does not work.

Features

• 2100lm / 30W per head
• 2700K, 3000K, 3500K or 4000K @ 90+ CRI
• Specifiable with Spot or Narrow Flood beam spread
• Dimmable - 120V Triac/ELV or 0-10V / 277V 0-10V
• Three configurations: one-light square, two- and three-light linear
• Can be installed as a remodel or new construction
• Optional new construction frame-in
• Optional flange kit
• 359ﾺ horizontal rotation / 85ﾺ vertical tilt
• 5-Year Limited Warranty

Finish

• B = Black
• W = White

Housing
0.05" galvanized steel with ventilation openings for proper heat dissipation. A separate driver compartment with eight 1/2" knockouts for electrical entry to the wiring compartment are available. Housing includes adjustable brackets for various ceiling depths (max. 1-5/8") and separate mud ring for finishing.

Adjustability
359ﾺ horizontal and 85ﾺ vertical adjustment when fully extended. Each head can be pulled down or adjusted individually.

Installation
The housing can be installed in existing drywall ceilings or can be roughed-in for new construction with optional frame-in. Housing comes standard with mud ring for trimless installation, optional flange kit is available.

Minimum Clearance
Requires a minimum clearance of 3" from thermal insulation and 1/2" from any adjacent building components.

Quick Connect
Each driver has a lead with quick connect. The quick connect easily attaches to quick connect of the LED module. Drivers can be supplied with a single supply or individual supply line for independent control.

Input Voltage
120V or 277V

Lumen / Wattage
2100lm / 30W each module

Color Temperature
2700K, 3000K, 3500K and 4000K

CRI
90+

Beam Spreads
16° Spot or 29° Flood

Operating Temp.
0°-45ﾺC max. ambient temp.

Dimming
Triac, ELV or 0-10V

Labels and Listings

• cULus Listed for Damp Locations
• ENERGY STAR® Certified

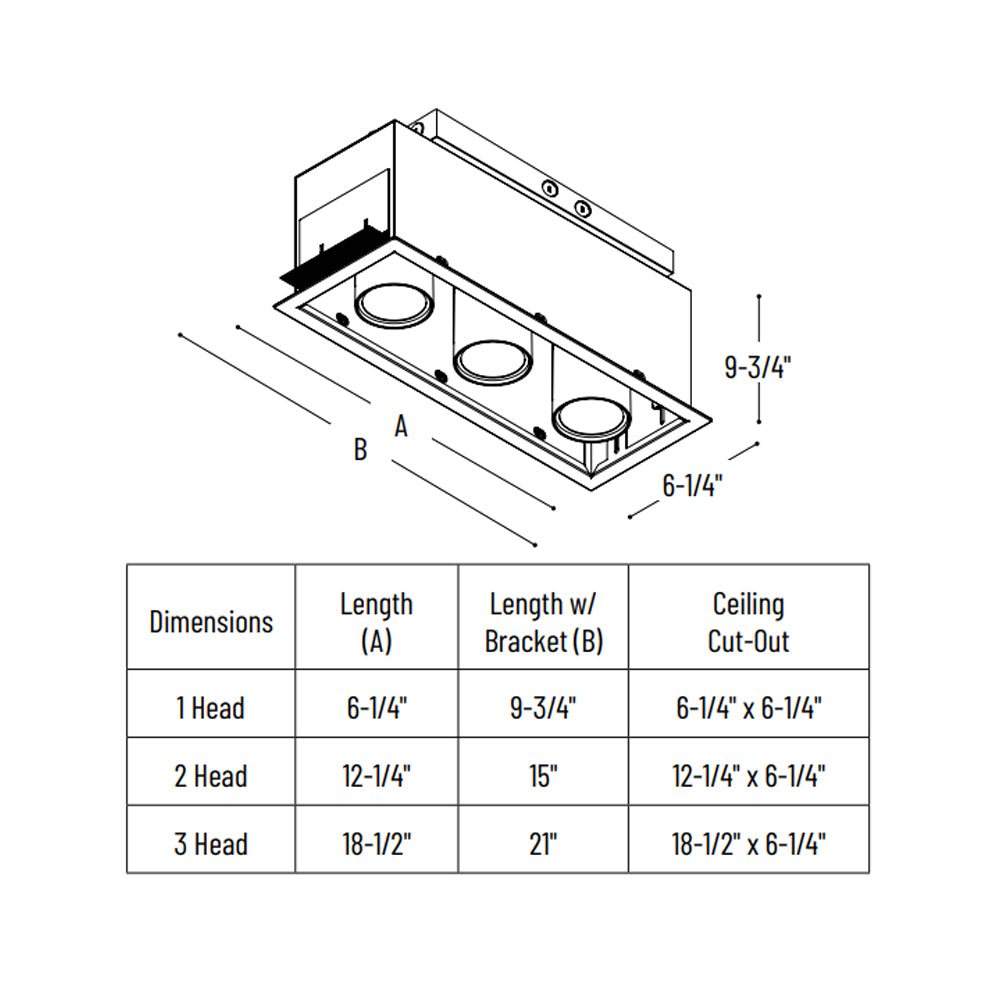

Dimension
9 3/4" L x 6 1/4" W x 9 3/4" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
