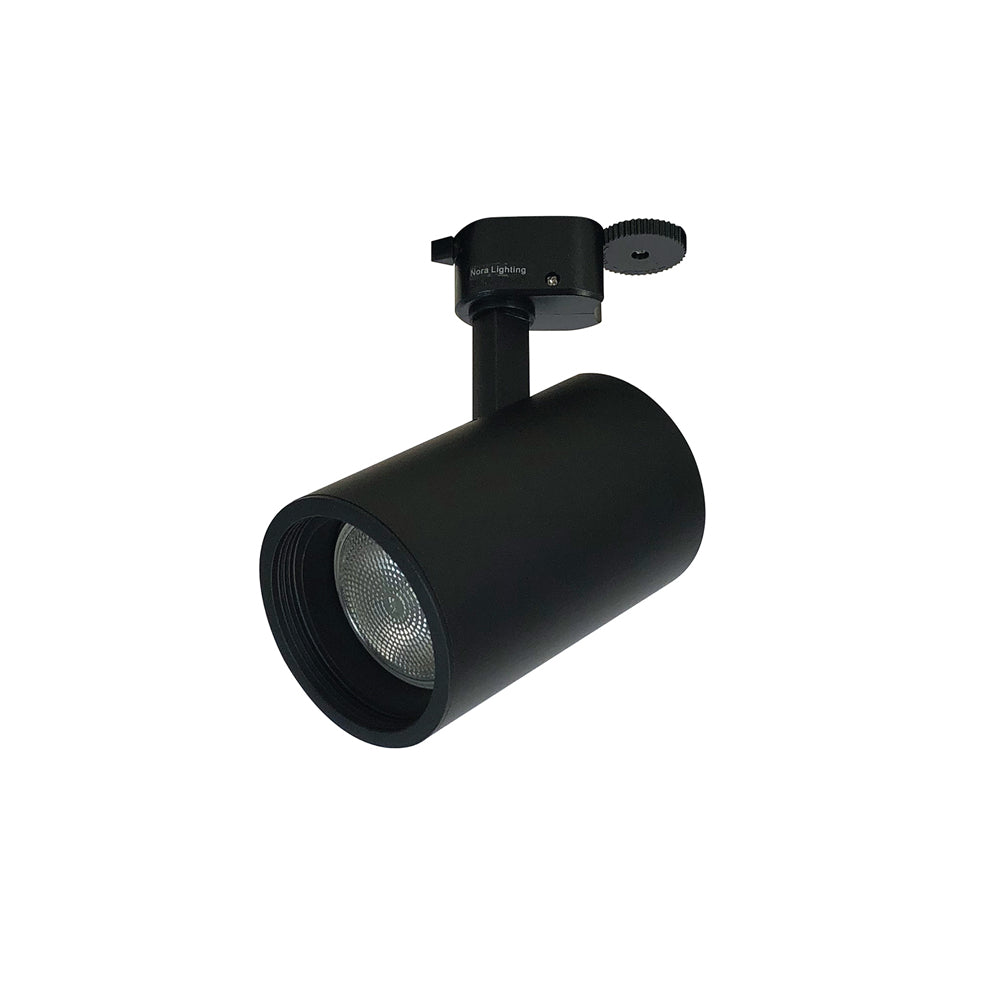

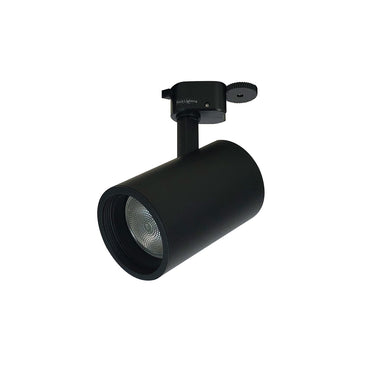

Nora Lighting PAR20 Architectural Cylinder Track Head

Nora Lighting PAR20 Architectural Cylinder Track Head

Constructed of die cast and extruded aluminum the Architectural Cylinder is minimal in design. A die cast baffle ring shields aperture brightness. The fixture is excellent for LED PAR lamps.

Features

• Die-cast aluminum provides superior strength and rigidity
• Baffle eliminates glare
• One or Two-Circuit track capable

Finish

• NTH-920B = Black with Black Baffle
• NTH-920W = White with White Baffle

Construction
Extruded aluminum construction with simple, cylindrical design. All edges are sharp and clean.

Structural Arm
Extruded 0.055" aluminum arm connects fixture housing to electrical contacts. Internal tightening mechanism maintains desired lamp aiming angles. Structural arm also functions as wire way, completely concealing lead wire from socket to contact head.

Baffle
0.085" die-cast aluminum baffle, provides finished appearance and assists in eliminating glare from housing interior.

Socket
Porcelain jacketed aluminum screw thread medium-base socket

Lamp
R/PAR20

Wattage
50W maximum

One/Two Circuit Conversion
Positive contact (opposite neutral and ground contacts) is preset to "down" position at factory but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.

Listing
cULus Listed for Dry Locations

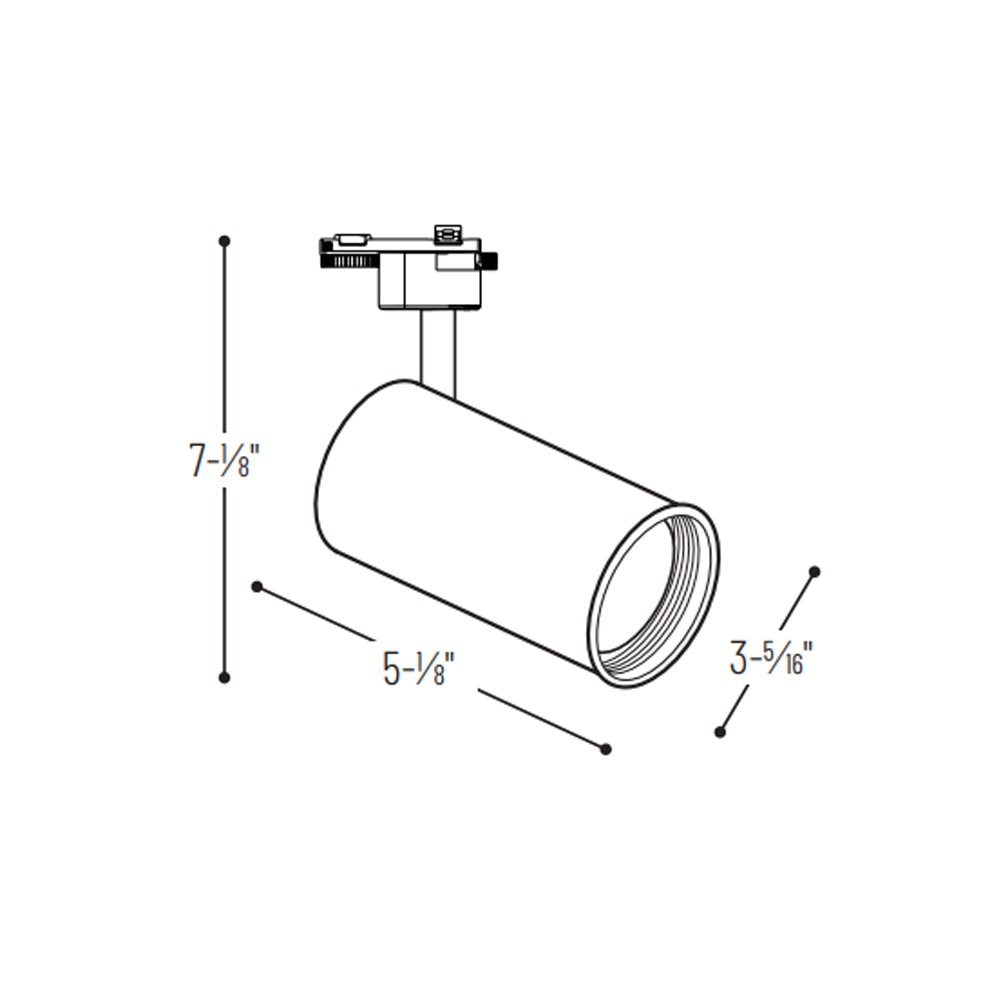

Dimension
3-5/16" Dia.x 5-1/8" L x 7-1/8" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
