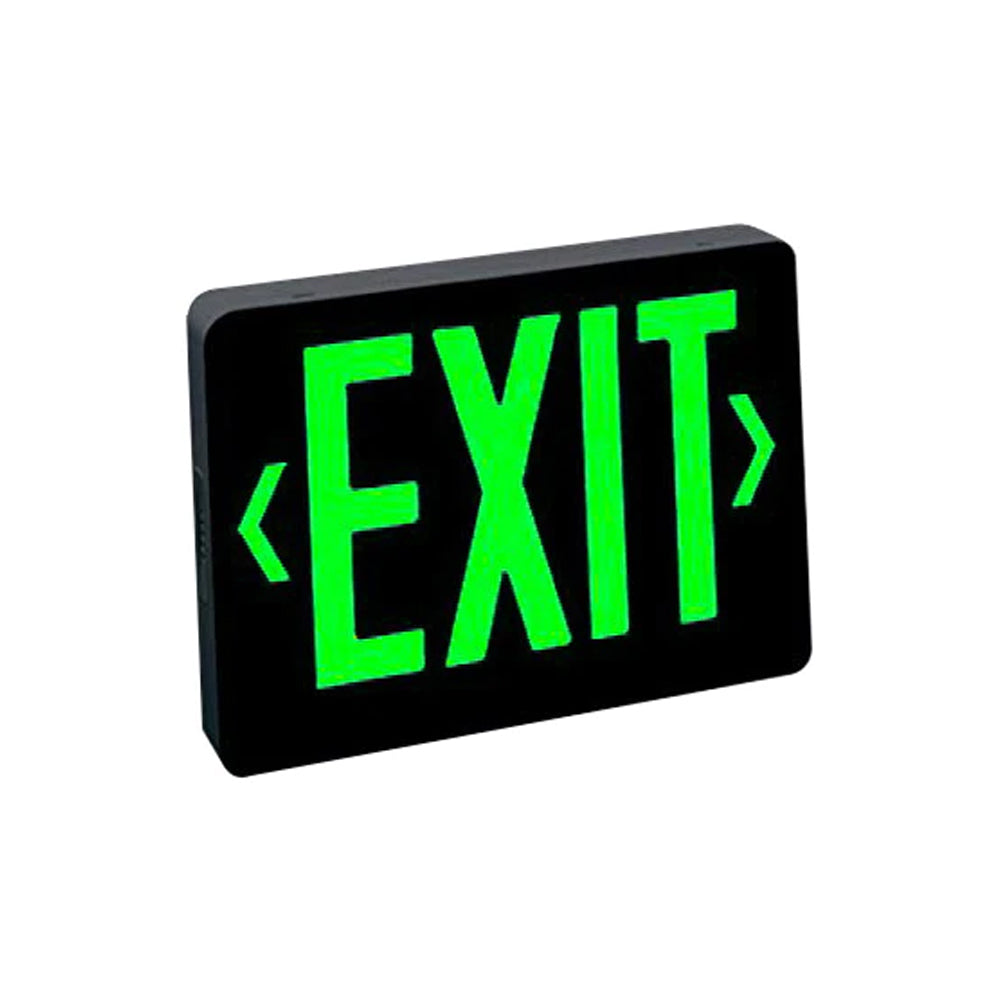

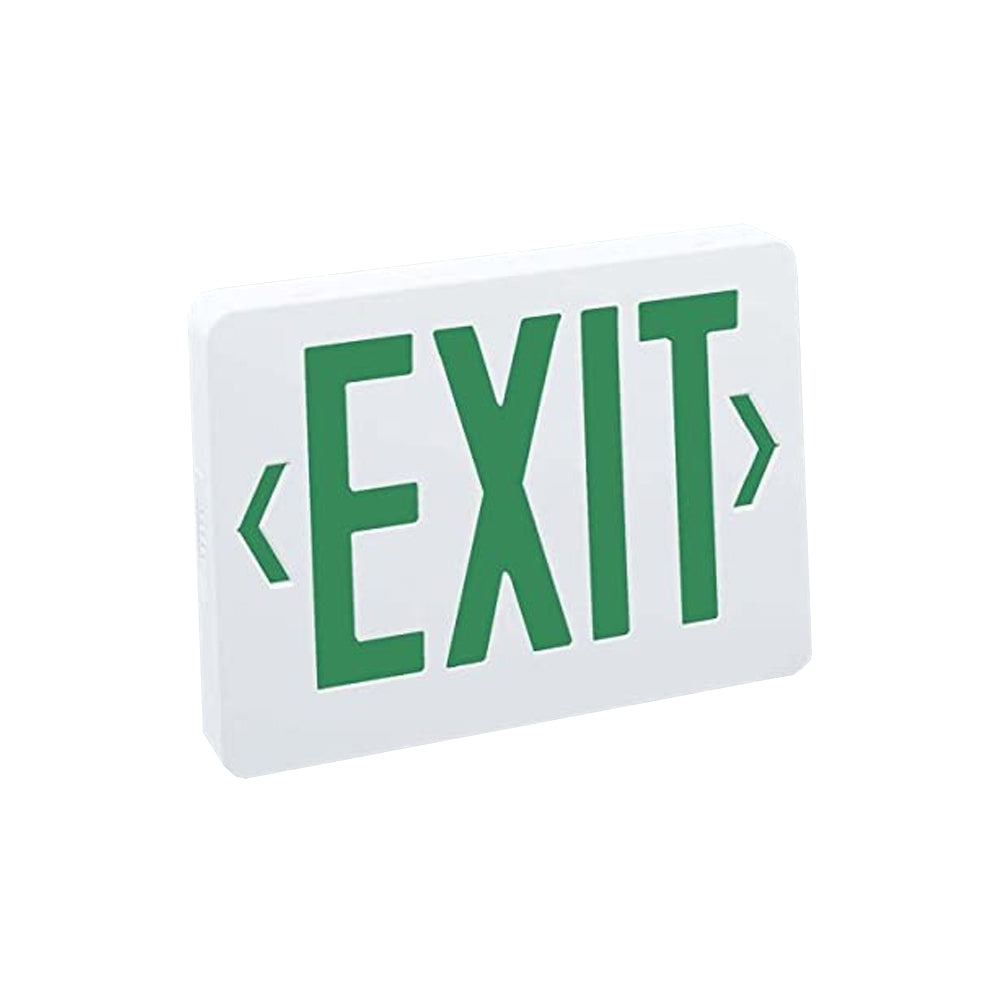

Nora Lighting NX-504-LED LED Exit Sign with Emergency Circuit

Nora Lighting NX-504-LED LED Exit Sign with Emergency Circuit

Dual 120V/277V LED Exit sign with the second circuit allowing the sign to be automatically switched to an external emergency power source such as a generator. Ideal for hospitals, banks, high rises, and any application where a self-generated power source is used in the event of an emergency.

Body

• Injection-molded thermoplastic housing
• Black or white housing finish

Face

• 6" high text with color diffusion
• Both double and a blank face are included
• Replaceable knockout directional chevrons

Mounting

• Wall, side or ceiling
• Mounting hardware and canopy included

Electrical

• Voltage: 120V or 277V Input
• Wattage: 2W normal operation, 3.5W emergency operation
• Light Source: LED
• Circuit Protection: Isolated surge and short circuit protection (Disconnect for deep discharge)

Operation

• NX-503-LED: AC only
• NX-504-LED: Second circuit for input from external EPS or other alternative emergency power source or generator
• NX-603-LED: Emergency battery back-up included for 90 minute emergency operation

Life Expectancy

• LED sources and PC circuitry are rated for a minimum of 25 years with no change in illumination level

Labels and Listings

• UL 924 Compliant
• NFPA
• NEC
• State & Municipal
• Certified to the energy efficiency standards of California Title 20

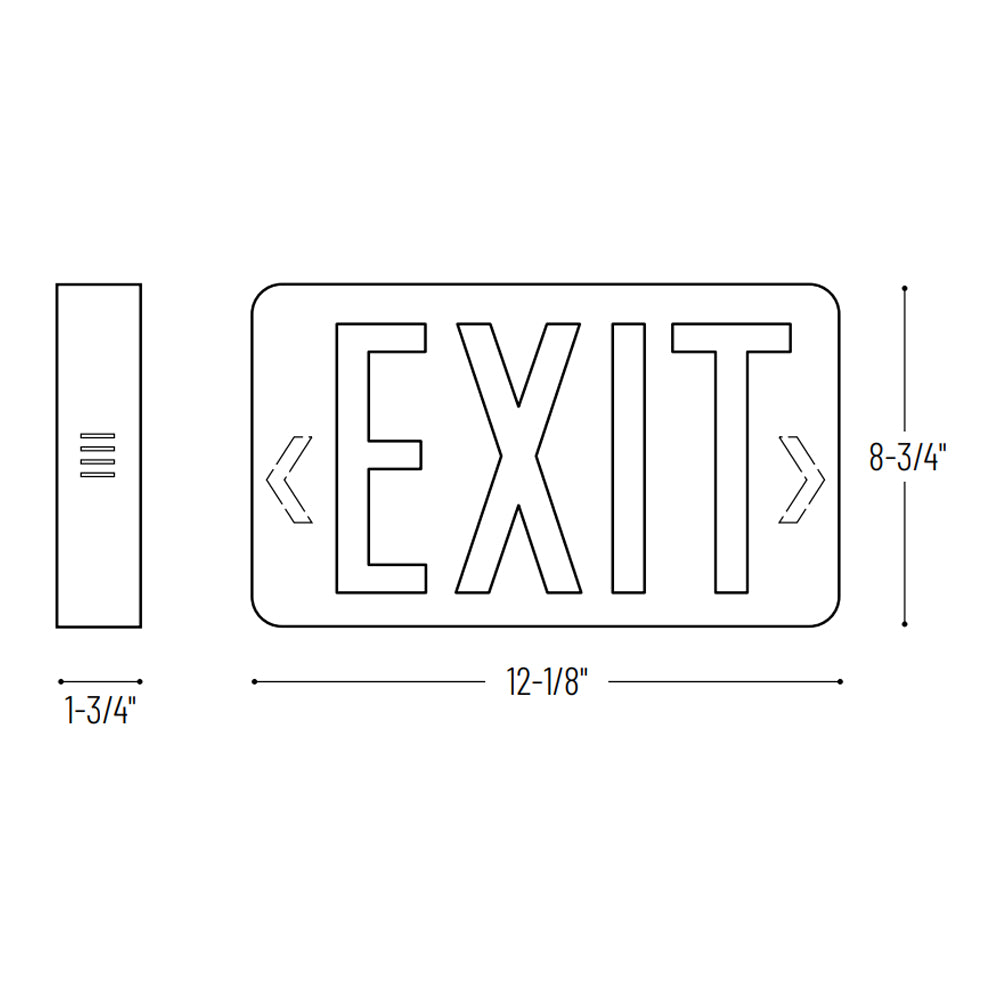

Dimension

• 12 1/8" W x 8 3/4" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
