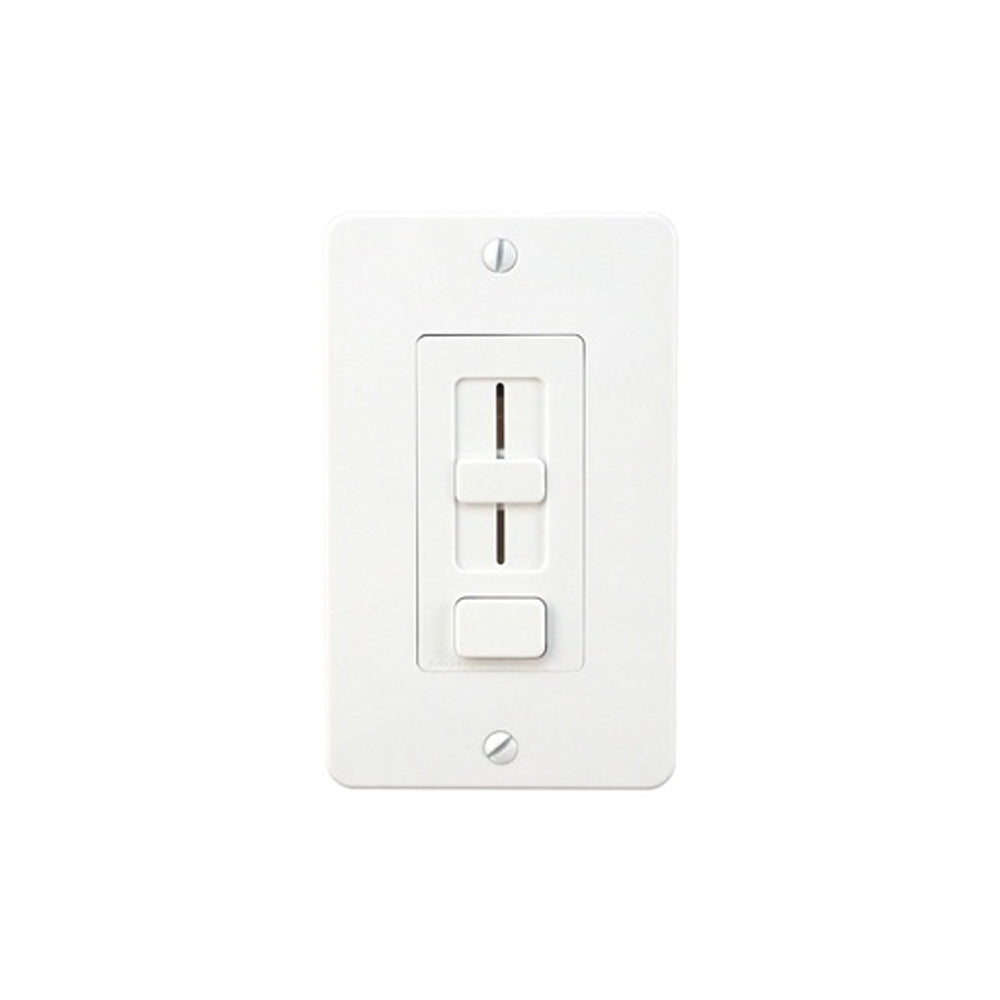

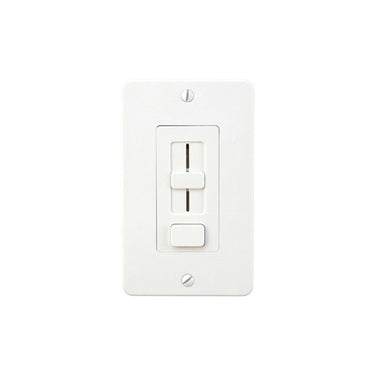

Nora Lighting NEXUS 24V 60W Dimmer+Driver Switch

Nora Lighting NEXUS 24V 60W Dimmer+Driver Switch

Regular price $187.11
Regular price $224.53 Sale price $187.11
Sale Sold out

Nora Lighting NEXUS 24V 60W Dimmer+Driver Switch

NEXUS simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. NEXUS mounts in a standard in-wall switch box, accepts 120VAC and converts to 24V.

Face Plate: White face included. Optional face plate kit available, includes Glossy Light Almond, Glossy Brown and Glossy Black (NATL-SWEX/3FP)Note: Decora switch plate not included

Features

  • LED Driver + In-Wall Dimmer Switch in one unit
  • Simplifies LED installation by eliminating compatibility issues between driver and dimmer
  • Fits in a standard recessed electrical box
  • 100% - 5% Smooth dimming
  • No minimum load
  • Single pole preset dimmer with on / off switch
  • Adjustable voltage output dial to address voltage drop
  • Includes voltage barrier partition to install high and low voltage circuit in same switchbox
  • No derating required when ganging units
  • Power failure memory: If power is interrupted, NEXUS will return to setting prior to interruption
  • Optional NATL-SWEX/3FP Face Plate Kit: Glossy light almond, glossy dark brown and glossy black field changeable face plates sold separately. (Decora trim plates not included)

Electrical

  • Input Voltage: 120VAC, 50/60Hz
  • Output Voltage: 24V
  • Power Factor: >0.9 @ 120VAC 60Hz max load
  • Total Harmonic Distortion (THD): =20% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2
  • Stand-by Power: =0.5W
  • Efficiency: >91% @ 120VAC max load
  • In-Rush Current: Meets NEMA-410 requirement at any nominal input full sine wave voltage and maxiumum load at 25ᄎC
  • Leakage Current: <500 ᄉA @ 120VAC
  • Surge Transient: Tested to meet transient defined in IEC 6100-4-4; level 3 & IEC 6100-4-5, level 3
  • Dimming: Output voltage is adjustable via sliding lever Voltage Adjustment Dial: Increases output +1V to compensate for voltage drop from control to luminaire
  • Startup Time: The main supply output voltages remain within the regulation limit of +/- 3%
  • Protections: Short circuit, thermal runway, and over voltage
  • Output Ripple Current: =20% of the rated output current @ 120VAC max load.

Compatible Fixtures

  • NEXUS is compatible with 24V systems
  • NULB Series Silk SBC Lightbar
  • NUTP1 Series Standard Tape Light
  • NUTP7 Series Standard Tape Light
  • NUTP9 Series Side-Lit Tape Light
  • NUTP5 Series Hy-Brite Tape Light
  • NUTP8 Series High Output Tape Light

Labels and Listings

  • cULus Listed (US & Canada) Low Voltage, Wall Recessed Power Units. #E472619
  • FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules
  • RoHS Certified

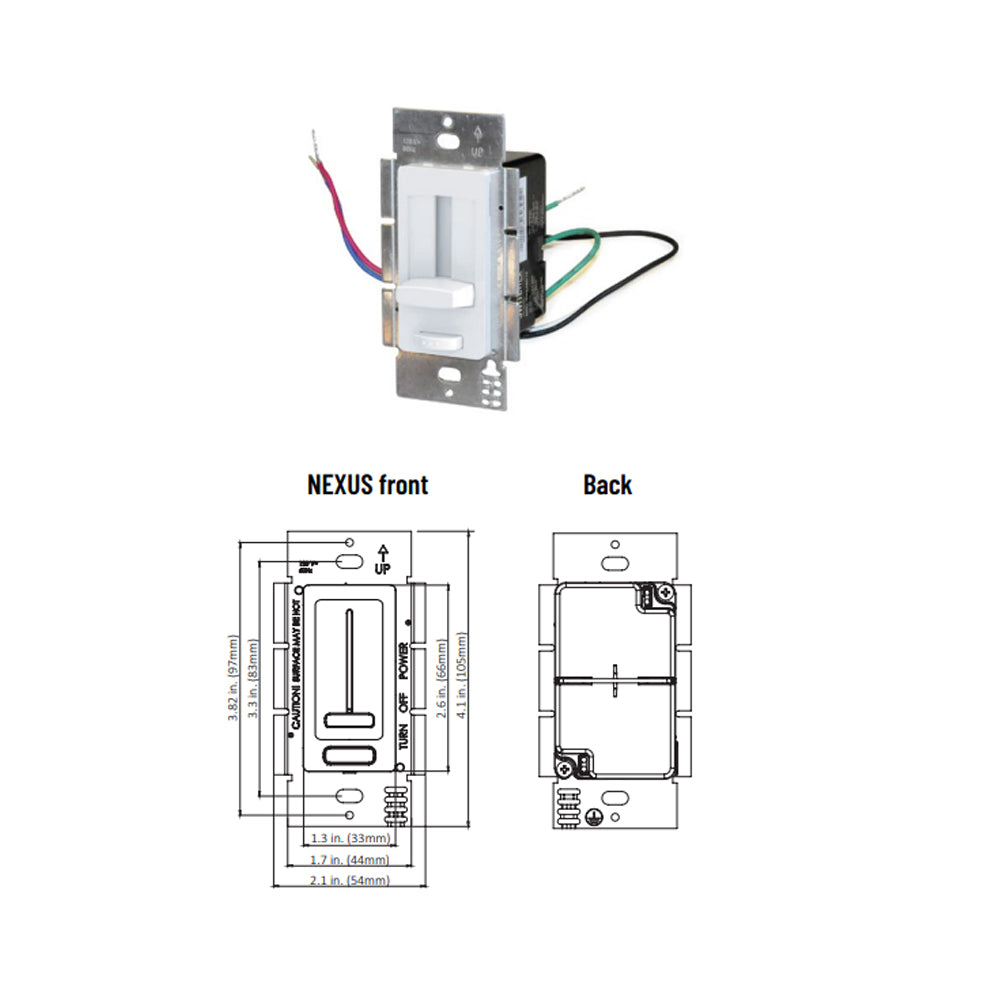

  • Conforms to NEC Code 725.136 (See Mechanical Diagram): Class 1 and Class 2 circuit in same enclosure must be separated by a barrier (partition) unless Class 2 circuit conductors are installed in accordance with 725.41 Class 1 Circuits
  • 5-year limited warranty from the date of shipment
