Nora Lighting NEXUS 24V 100W Dimmer+Driver Switch

Nora Lighting NEXUS 24V 100W Dimmer+Driver Switch

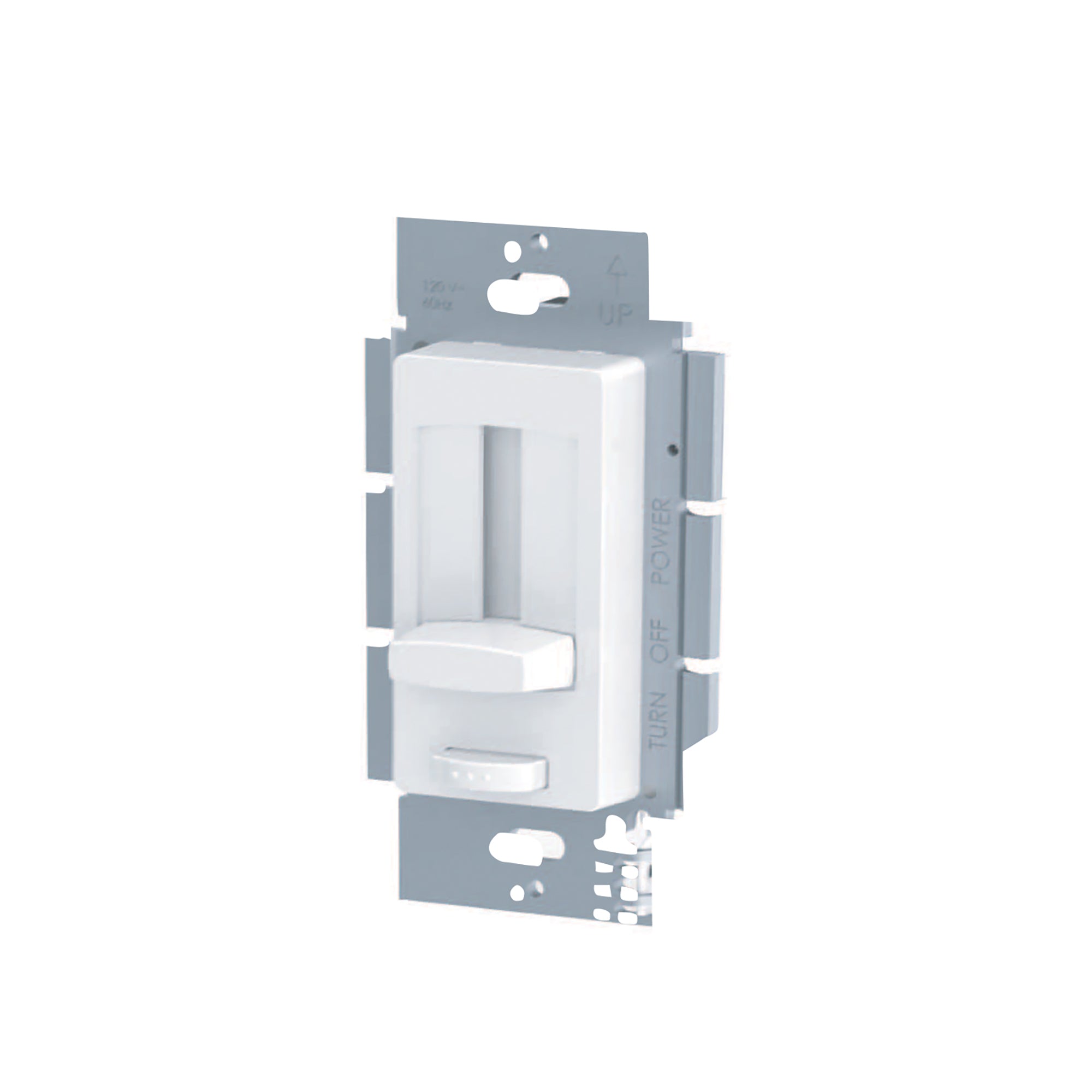

NEXUS simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. NEXUS mounts in a standard in-wall switch box, accepts 120VAC and converts to 24V.

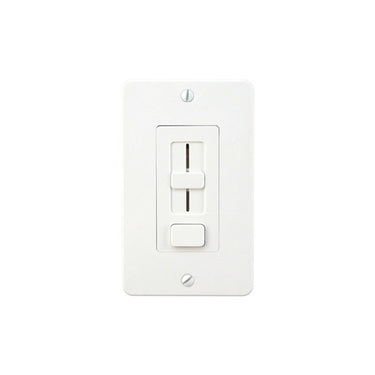

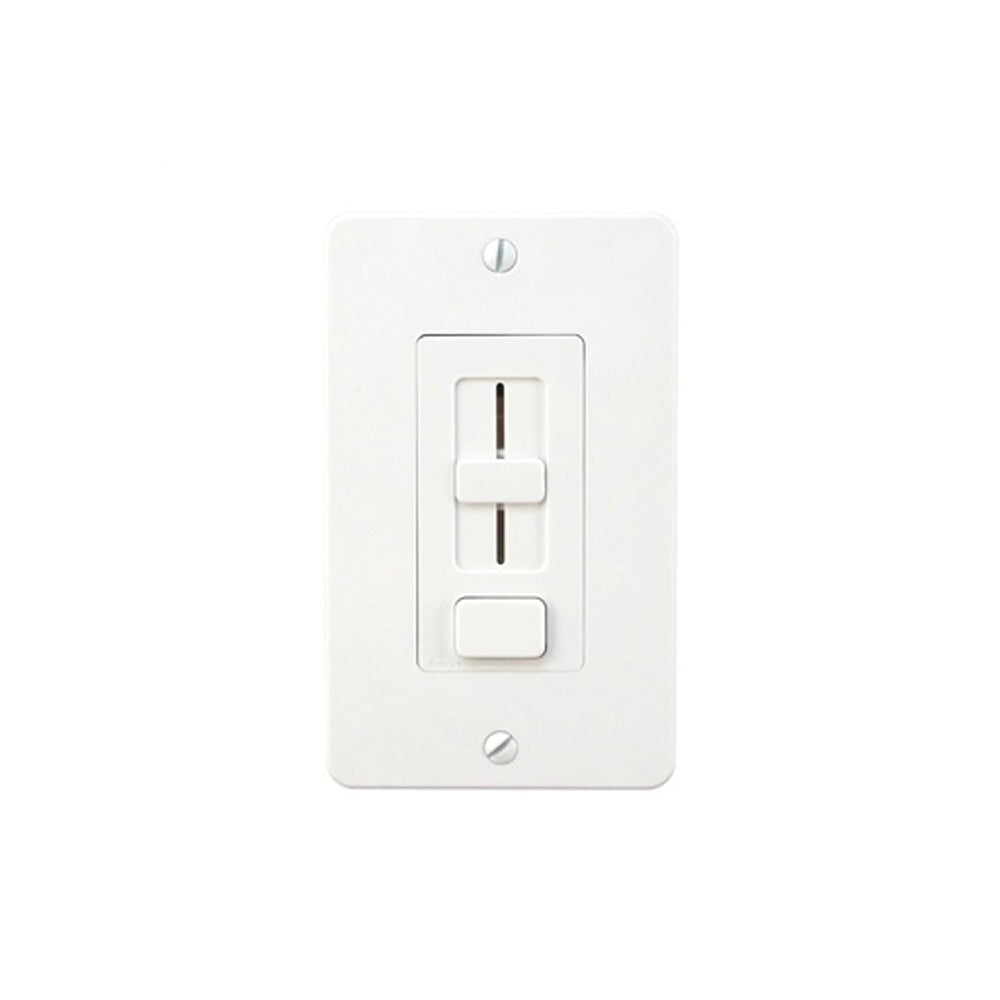

Face Plate: White face included. Optional face plate kit available, includes Glossy Light Almond, Glossy Brown and Glossy Black (NATL-SWEX/3FP)Note: Decora switch plate not included

Features

• LED Driver + In-Wall Dimmer Switch in one unit
• Simplifies LED installation by eliminating compatibility issues between driver and dimmer
• Fits in a standard recessed electrical box
• 100% - 5% Smooth dimming
• No minimum load
• Single pole preset dimmer with on / off switch
• Adjustable voltage output dial to address voltage drop
• Includes voltage barrier partition to install high and low voltage circuit in same switchbox
• No derating required when ganging units
• Power failure memory: If power is interrupted, NEXUS will return to setting prior to interruption
• Optional NATL-SWEX/3FP Face Plate Kit: Glossy light almond, glossy dark brown and glossy black field changeable face plates sold separately. (Decora trim plates not included)

Electrical

• Input Voltage: 120VAC, 50/60Hz
• Output Voltage: 24V
• Power Factor: >0.9 @ 120VAC 60Hz max load
• Total Harmonic Distortion (THD): =20% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2
• Stand-by Power: =0.5W
• Efficiency: >91% @ 120VAC max load
• In-Rush Current: Meets NEMA-410 requirement at any nominal input full sine wave voltage and maxiumum load at 25ﾺC
• Leakage Current: <500 ﾵA @ 120VAC
• Surge Transient: Tested to meet transient defined in IEC 6100-4-4; level 3 & IEC 6100-4-5, level 3
• Dimming: Output voltage is adjustable via sliding lever Voltage Adjustment Dial: Increases output +1V to compensate for voltage drop from control to luminaire
• Startup Time: The main supply output voltages remain within the regulation limit of +/- 3%
• Protections: Short circuit, thermal runway, and over voltage
• Output Ripple Current: =20% of the rated output current @ 120VAC max load.

Compatible Fixtures

• NEXUS is compatible with 24V systems
• NULB Series Silk SBC Lightbar
• NUTP1 Series Standard Tape Light
• NUTP7 Series Standard Tape Light
• NUTP9 Series Side-Lit Tape Light
• NUTP5 Series Hy-Brite Tape Light
• NUTP8 Series High Output Tape Light

Labels and Listings

• cULus Listed (US & Canada) Low Voltage, Wall Recessed Power Units. #E472619
• FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules
• RoHS Certified

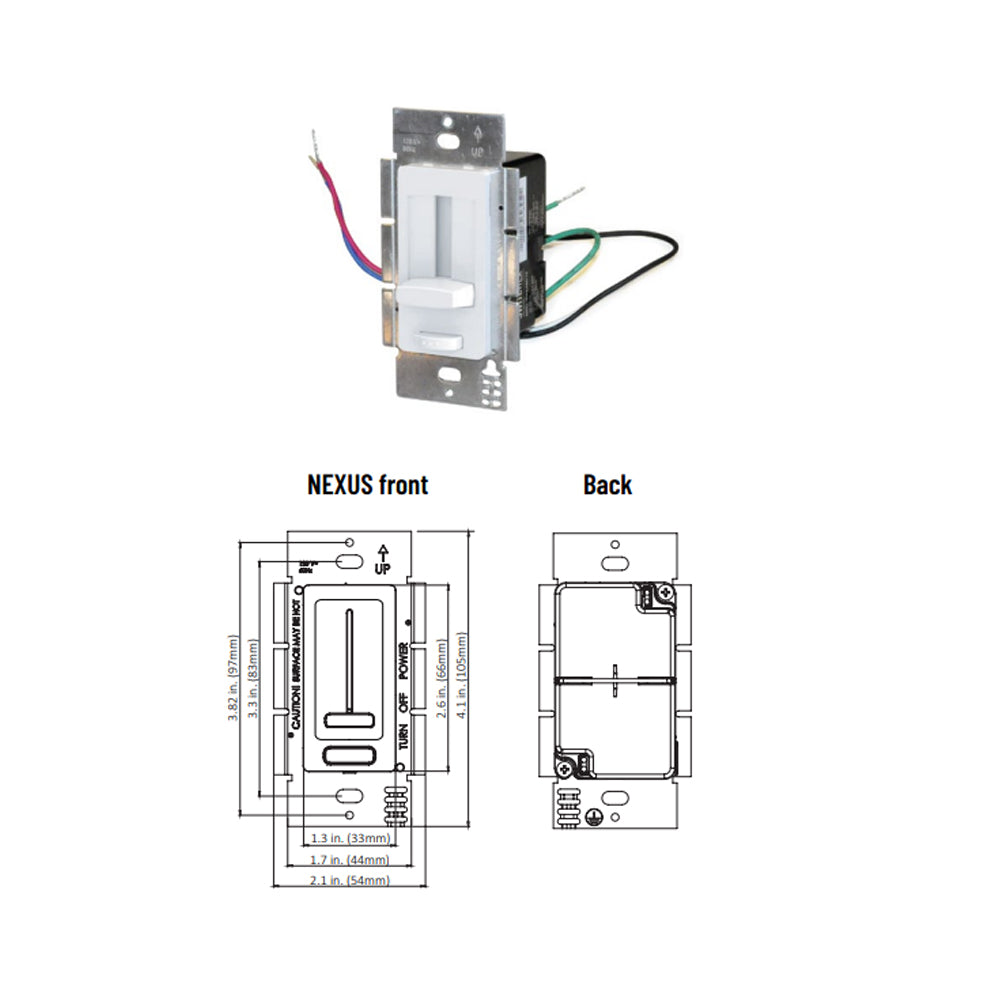

• Conforms to NEC Code 725.136 (See Mechanical Diagram): Class 1 and Class 2 circuit in same enclosure must be separated by a barrier (partition) unless Class 2 circuit conductors are installed in accordance with 725.41 Class 1 Circuits
• 5-year limited warranty from the date of shipment
