Nora Lighting NE-970 Wet Location LED Emergency Light with Self Diagnostics

Nora Lighting NE-970 Wet Location LED Emergency Light with Self Diagnostics

Wet location rated LED emergency luminaire with two adjustable heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, LED heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur.

Features

• Fully adjustable 2.5W LED emergency heads
• Wall Mounted
• UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
• Polycarbonate plastic enclosure with flame retardant and wet location rated
• Self Diagnostic Testing
• Push-To-Test Switch
• High temperature maintenance free NiCad battery
• 120-277V AC input

Housing

• Injection-molded thermoplastic ABS housing
• Plastic enclosure with 5VA flame retardant
• Snap-together design for easy installation
• Two fully adjustable glare-free square heads for emergency lighting

Electrical

• Voltage: 120-277VAC 50/60Hz input
• Power Consumption: 3W
• Lumens / Wattage Per Head: 310lm / 2.5W
• Battery: 7.2V Replaceable 2000mA NiCad battery
• Recharge Time: 24 hours
• Operating Temperature: 0°C to 50°C

Face

• Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating

Emergency

• During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes
• Battery requires 24 hours to recharge when power is restored

Mounting

• Mounting hardware included for wall mount applications
• Listed for installations indoor, outdoor or wet locations

Brownout Circuit

• Brownout circuit monitors the flow of AC current to the unit and triggers the emergency lighting system once a set reduction of AC power occurs
• This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred

Short Circuit Protection

• Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur
• The overload current protection eliminates the need for fuses or circuit breakers for the DC load

Testing

• Luminaire includes manual test button for manual verification the transfer circuit and emergency heads operate correctly
• Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and LED emergency heads
• If a failure is detected, an indicator LED will blink red until fault is corrected
• A solid green indicator LED indicates no faults and blinked green indicates a test is in progress

Labels and Listings

• UL 924 Listed for Wet Locations
• NFPA 70 & NFPA 101 Life Safety Code
• California Energy Commission (CEC) Compliant

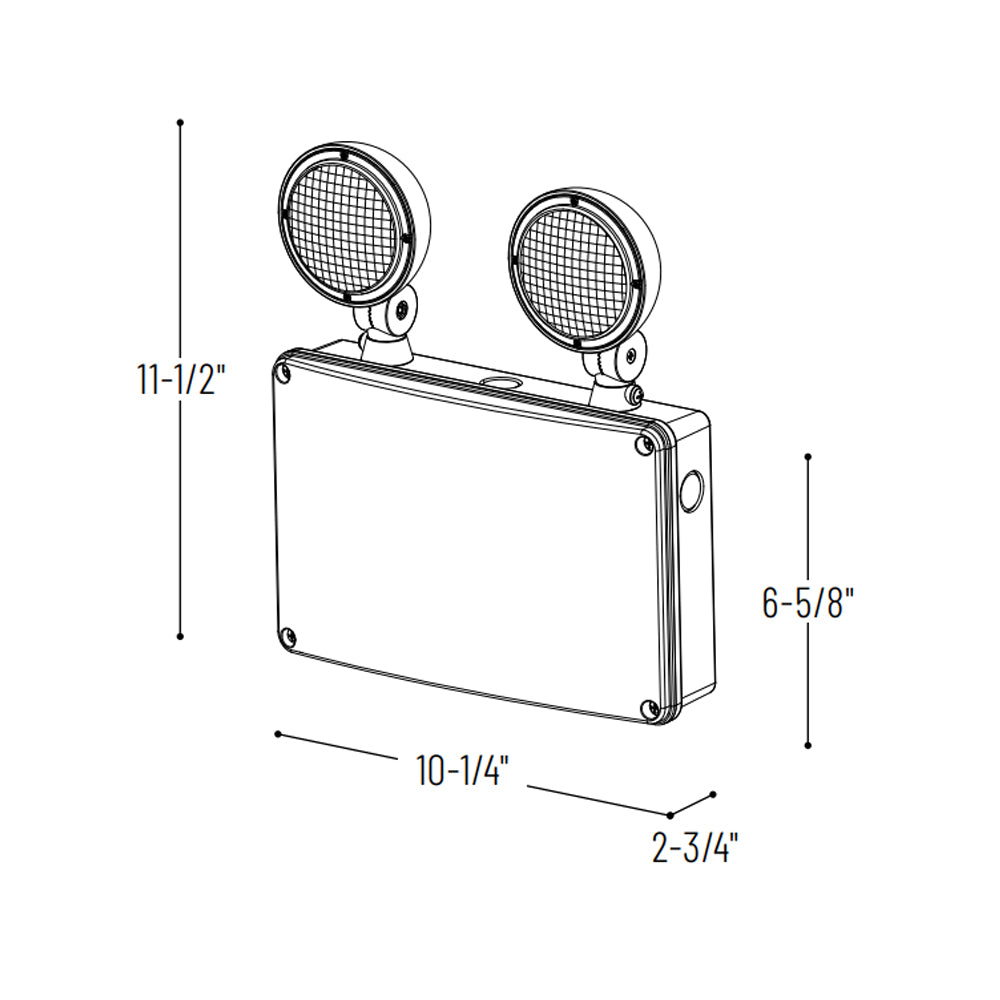

Dimension

• 10 1/4" W x 11 1/2" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
