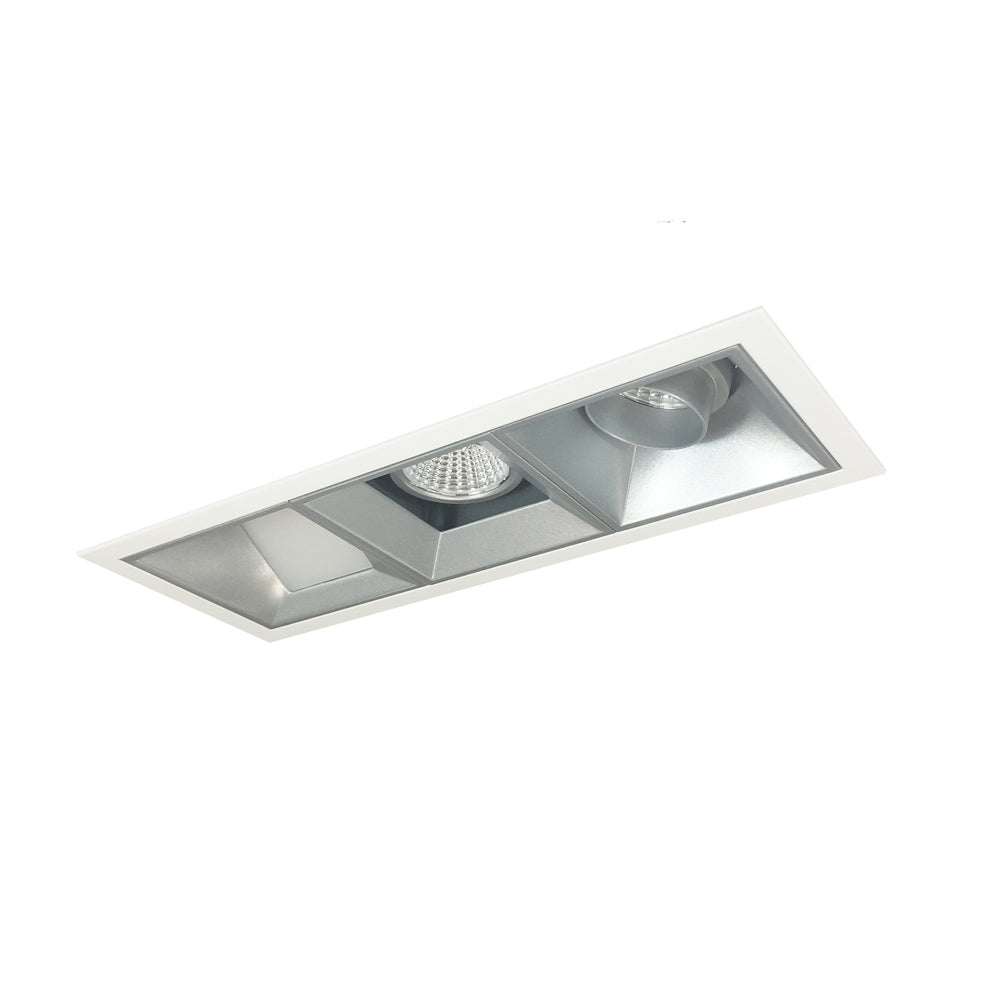

Nora Lighting Iolite MLS Three Head, Flanged

Nora Lighting Iolite MLS Three Head, Flanged

Endless possibilities with Iolite multipleﾒs functionality and architectural aesthetics. Iolite multiple recessed family consist of one to three independently adjustable heads, variety of beam distributions and multiple reflector options. Iolite multiple series is a perfect solution for most retail, hospitality and commercial applications.

Features

• Trimless of Flanged appearance
• One to three head configurations
• Three optics included with each trim type(Premium TIR optics available)
• Customizable reflector options
• Housing includes individual drivers for each module
• Comfort Dim (warm dim) also available in 800lm only
• Triac, ELV or 0-10V dimming

Housing
0.0475" Galvanized steel housing with quickconnects from each driver for ease of installation. Housingaccepts standard ceiling thickness up to 1-1/2" may varydepending on ceiling type (up to 1" ceiling thickness whenused with NMIO-W).

Air Flow Restriction
Housing has factory installedgaskets to restrict airflow from room into ceiling plenumto <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance
"IC" Insulated ceiling housings are directcontact rated; no minimum clearance is required. Not to beused in direct contact with spray foam insulation.

Bar Hangers
Two 13-7/8" to 25" adjustable bar hangers withcaptive nails are included with the housing. Bar hangersare parallel to junction box, but can be repositioned 90 °perpendicular to junction box if desired. "L"-shaped barhanger foot to align to bottom of construction joist. A T-barnotch allows for easy installation in a suspended ceiling.

Junction Box
Pre-wired 40 cubic inch 0.0475" thickgalvanized steel, with six 1/2" knockouts. Leads are #18AWGwire. Maximum of 8 no. 12 AWG through branch circuitconductors suitable for at least 90°C permitted in junctionbox (max. of 4 with wall wash trims).

Trimless
Mud plate mounts inside Iolite Multiple Housing andscrews into drywall to be flush. A professional drywall finisherfloats the ceiling to blend in the mud plate, sands and paints.The trims are then inserted into the mud plate and the resultsare a spectacular, minimalist appearance with no flange.

Electrical

• Voltage: 120-277V
• Lumens / Wattage:1000lm / 12W per head (Comfort Dim is 800lm per head)(Delivered lumens will vary depending on reflector, CCT,beam spread and finish)
• Color Temperature:2700K, 3000K, 3500K, 4000K or 5000K
• Color Rendering Index: 90+CRI
• Optics (included): 25° Spot, 38° Narrow Flood, 60° Flood
• Comfort Dim: Comfort Dim color tunes the temperaturefrom a bright 3100K, to a romantic and comfortable 2000Kon a gradual, even curve. Available in 800lm only.
• Dimming: Triac, ELV or 0-10V

Dimension
11-3/4" (Flanged)

Optics
Each reflector includes field changeable optics(spot, narrow flood and flood - preinstalled). Premium 15° and25° TIR optics are also available.(Note: TIR optics are not compatible with Comfort Dim)

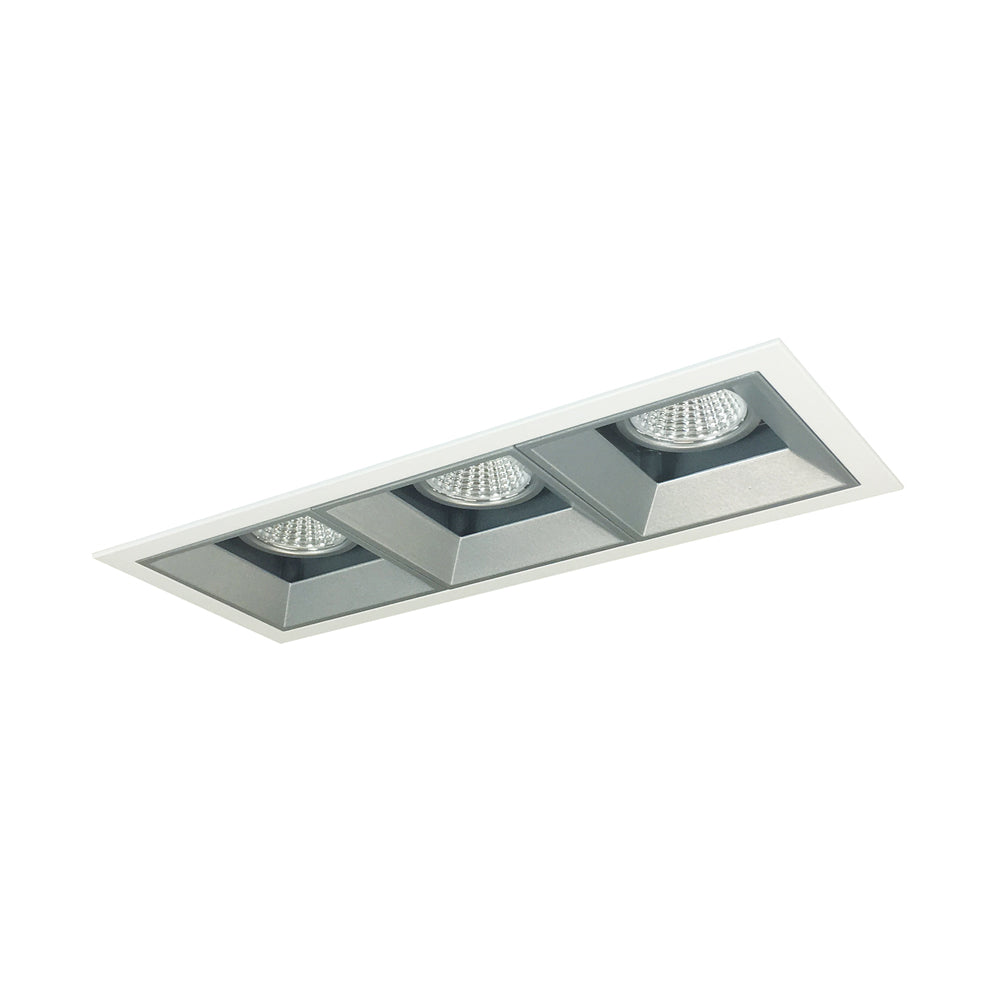

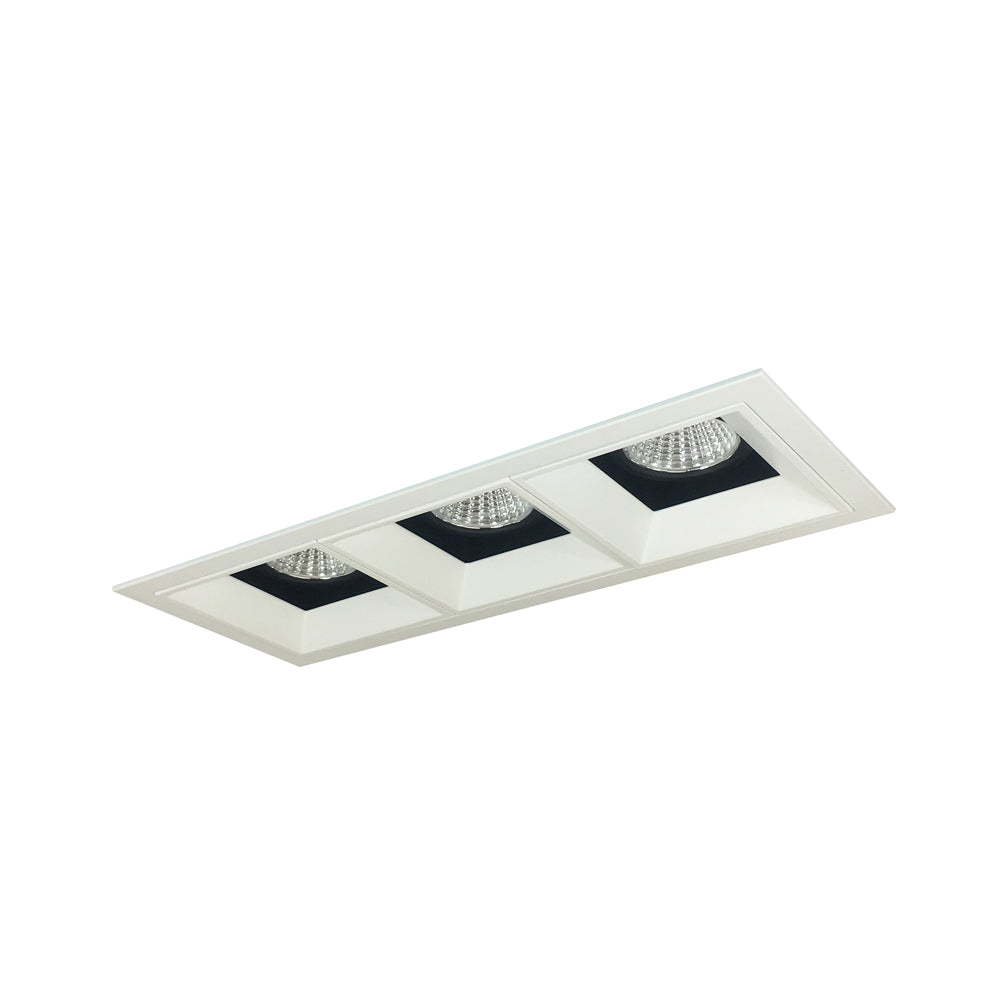

Fixed Downlight

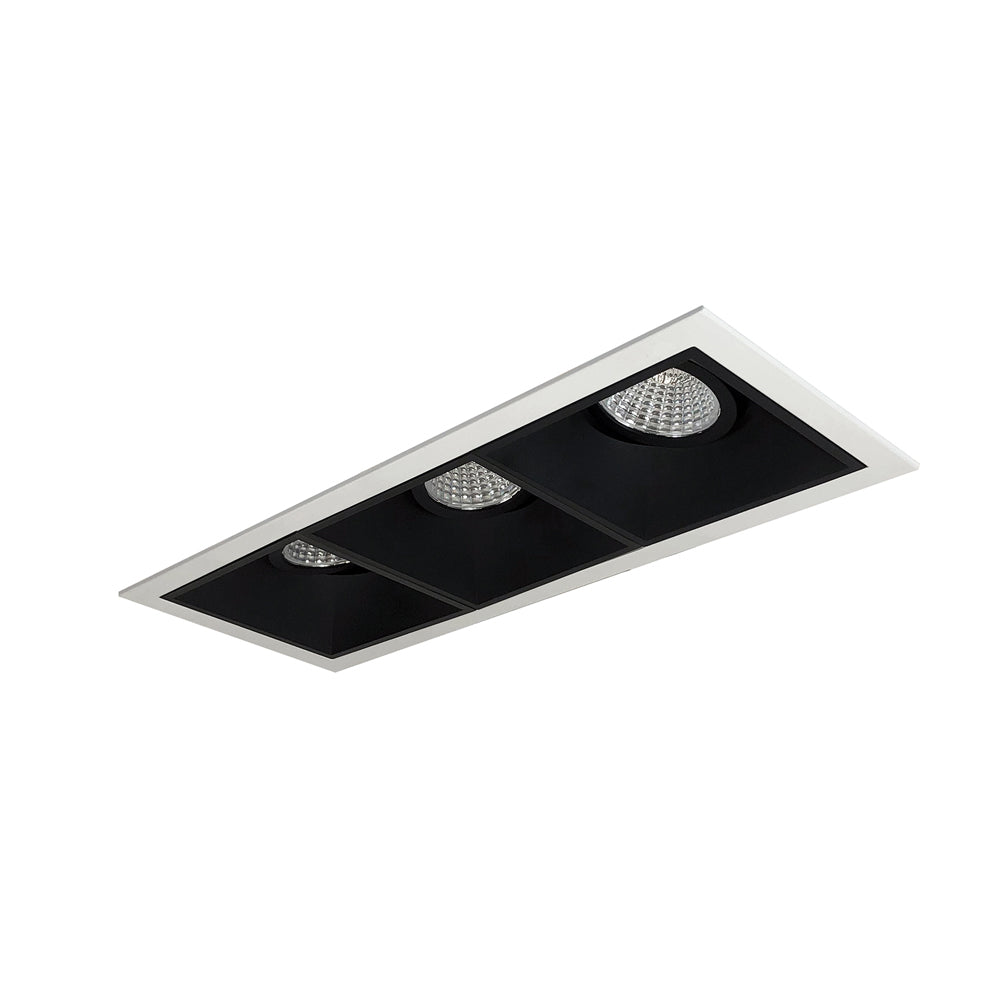

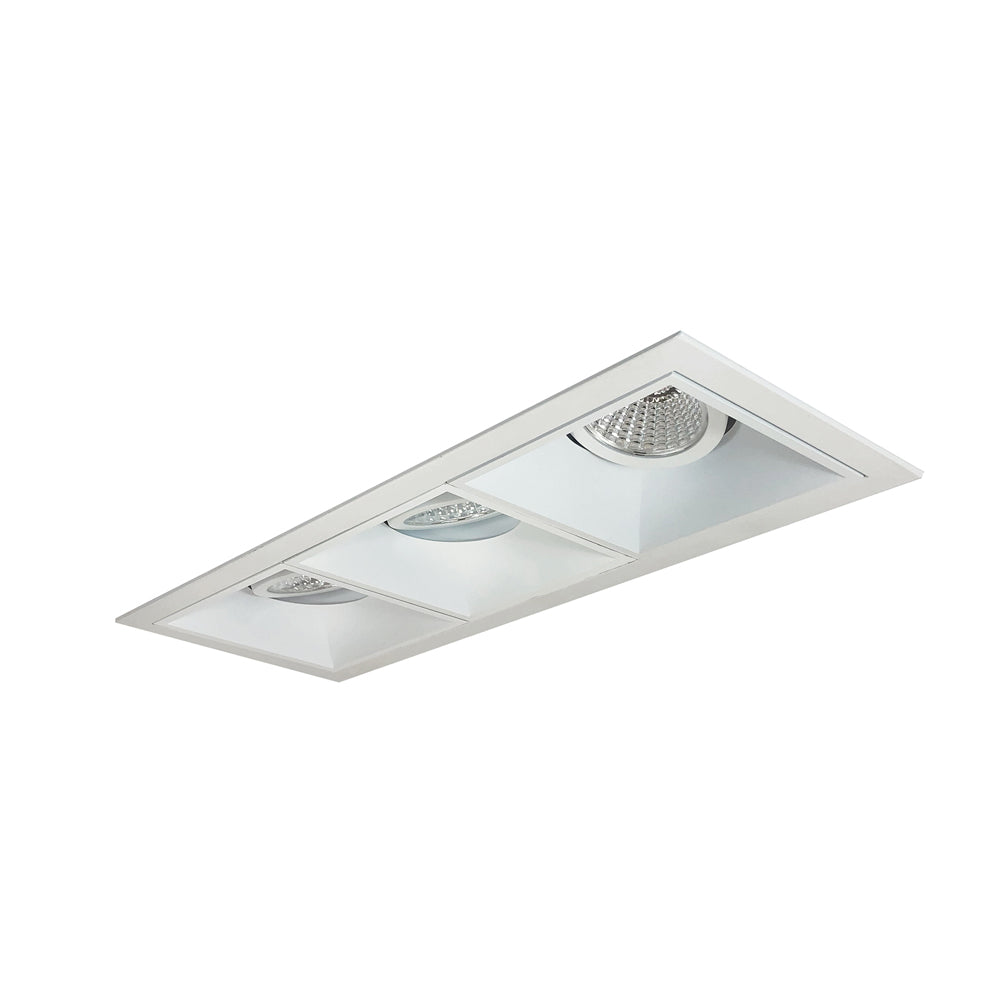

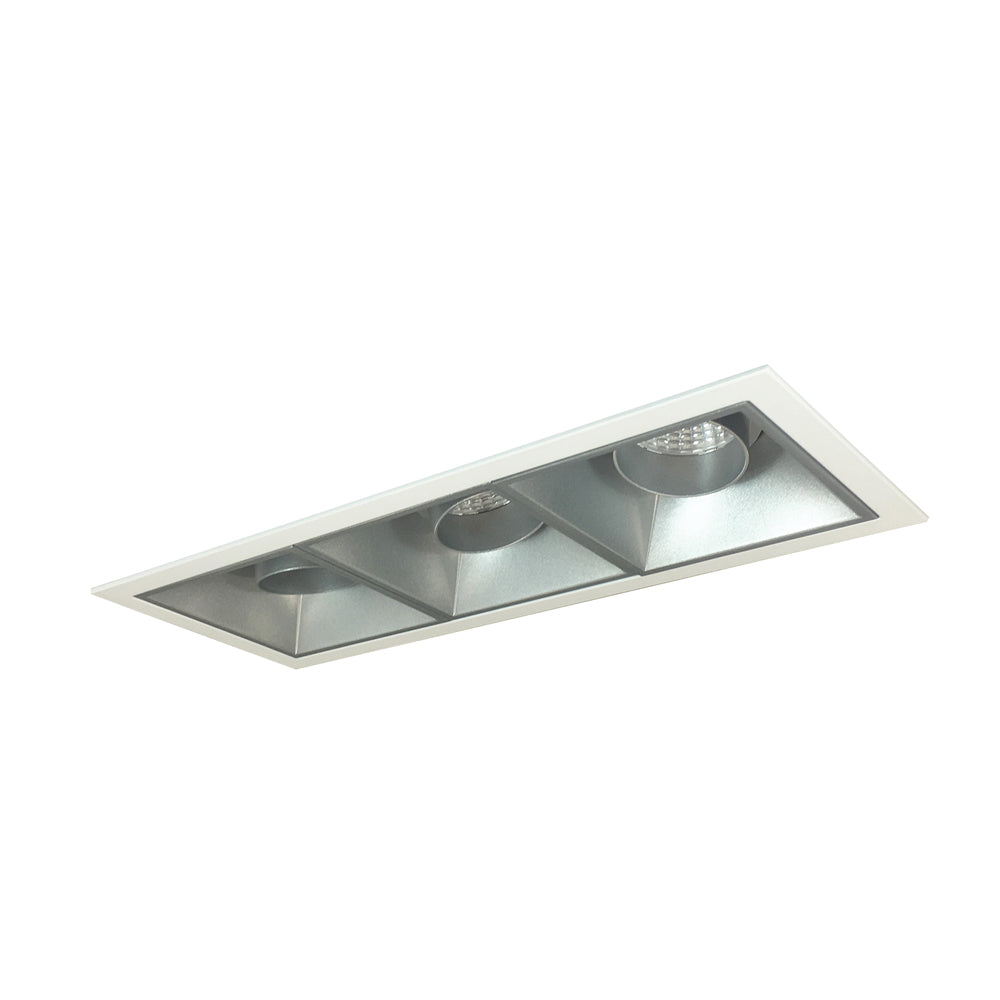

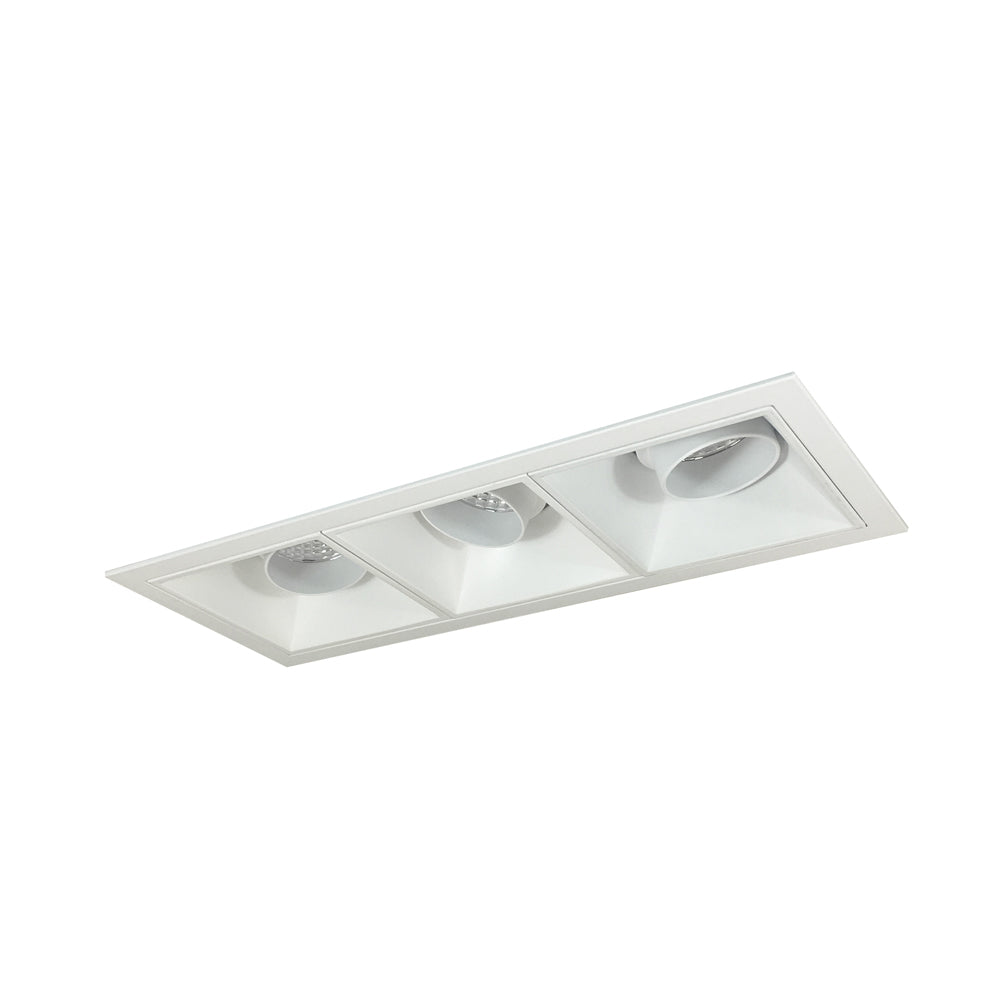

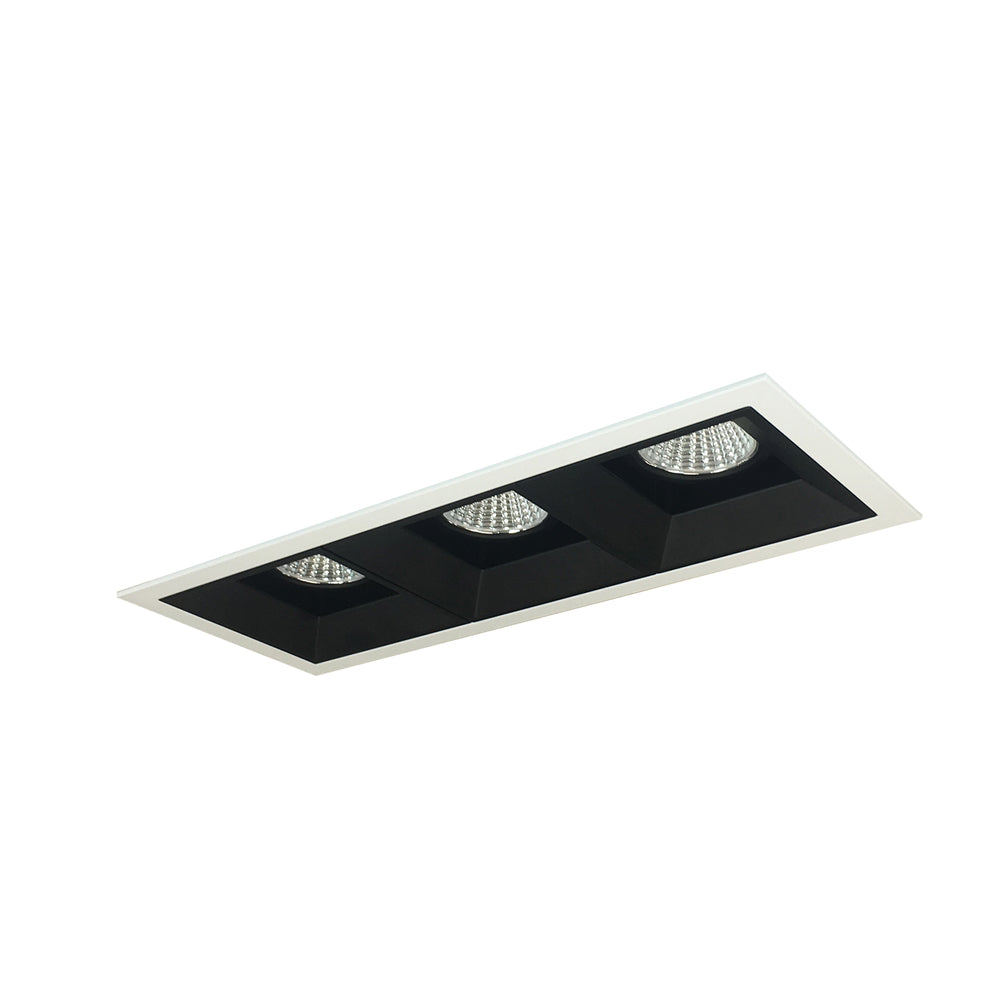

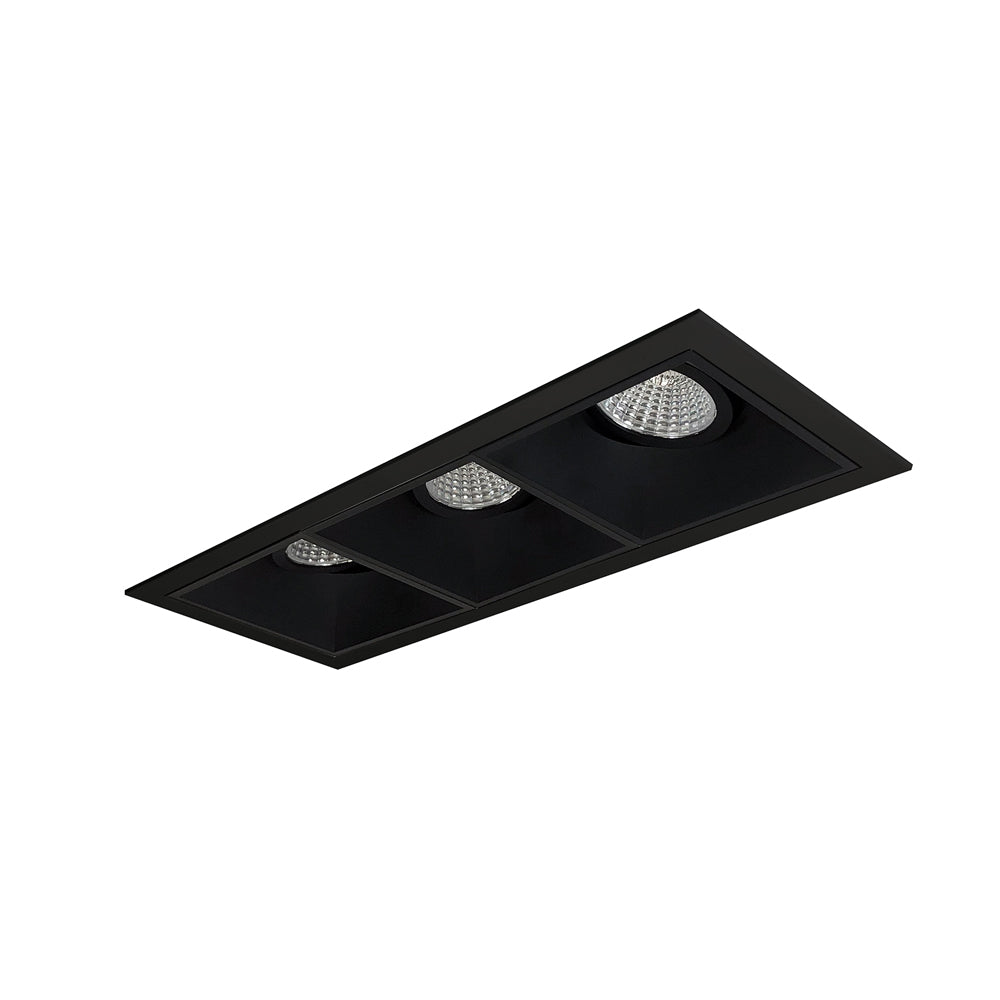

Fixed downlight delivers over 1300lm infour finishes; Black (B), Black interior / Matte Powder White(BMPW - Note: adjustable and wall wash reflectors mixed withBMPW will be MPW), Haze (HZ) or Matte Powder White (MPW).

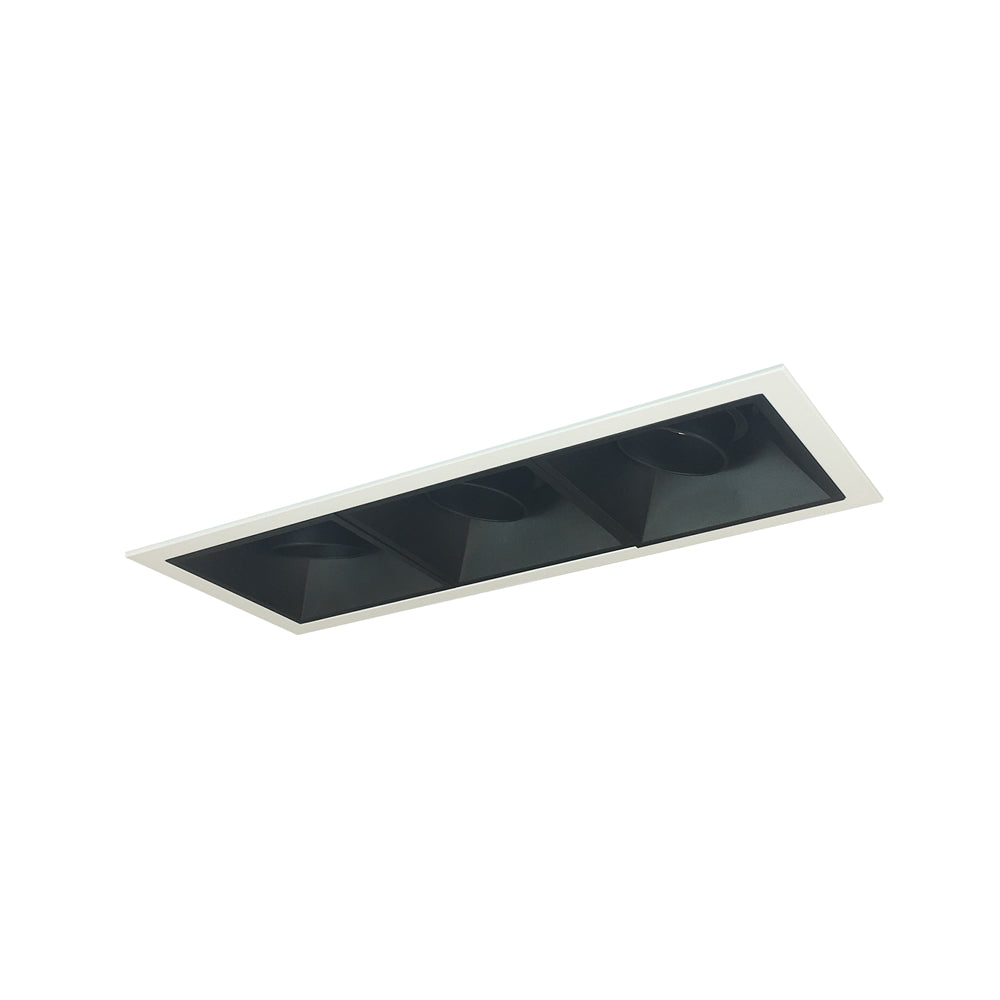

Adjustable Snoot
Rotates 359° horizontally and pivots 20°while delivering over 1100 lumens.

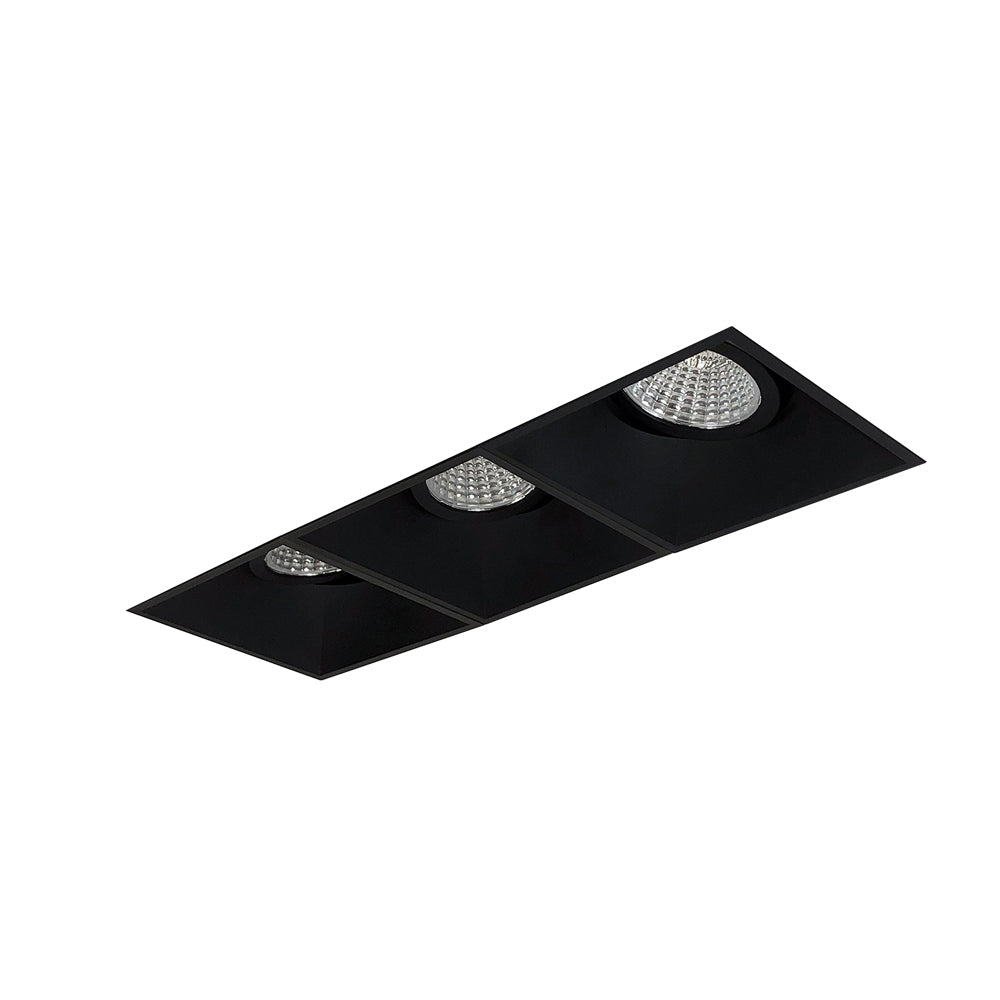

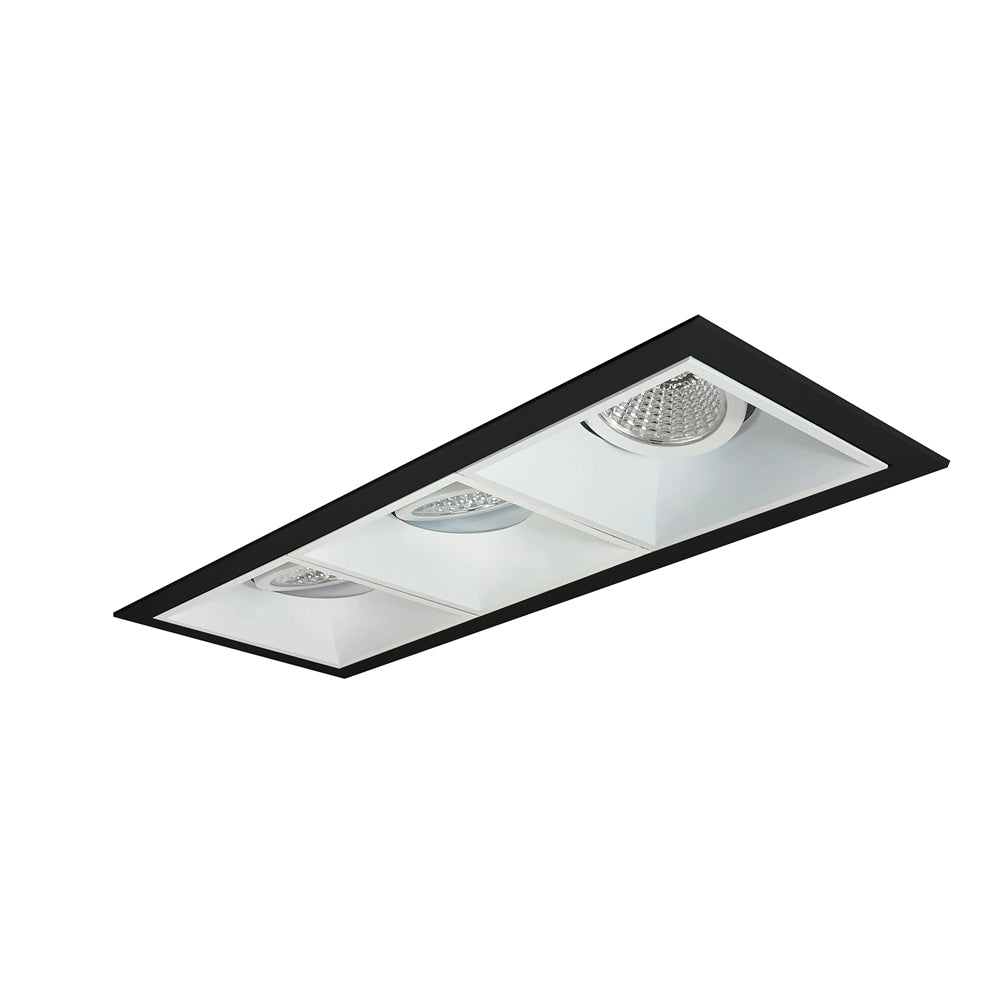

Adjustable Gimbal
Rotates 359° horizontally and pivots 38°while delivering over 1300 lumens.

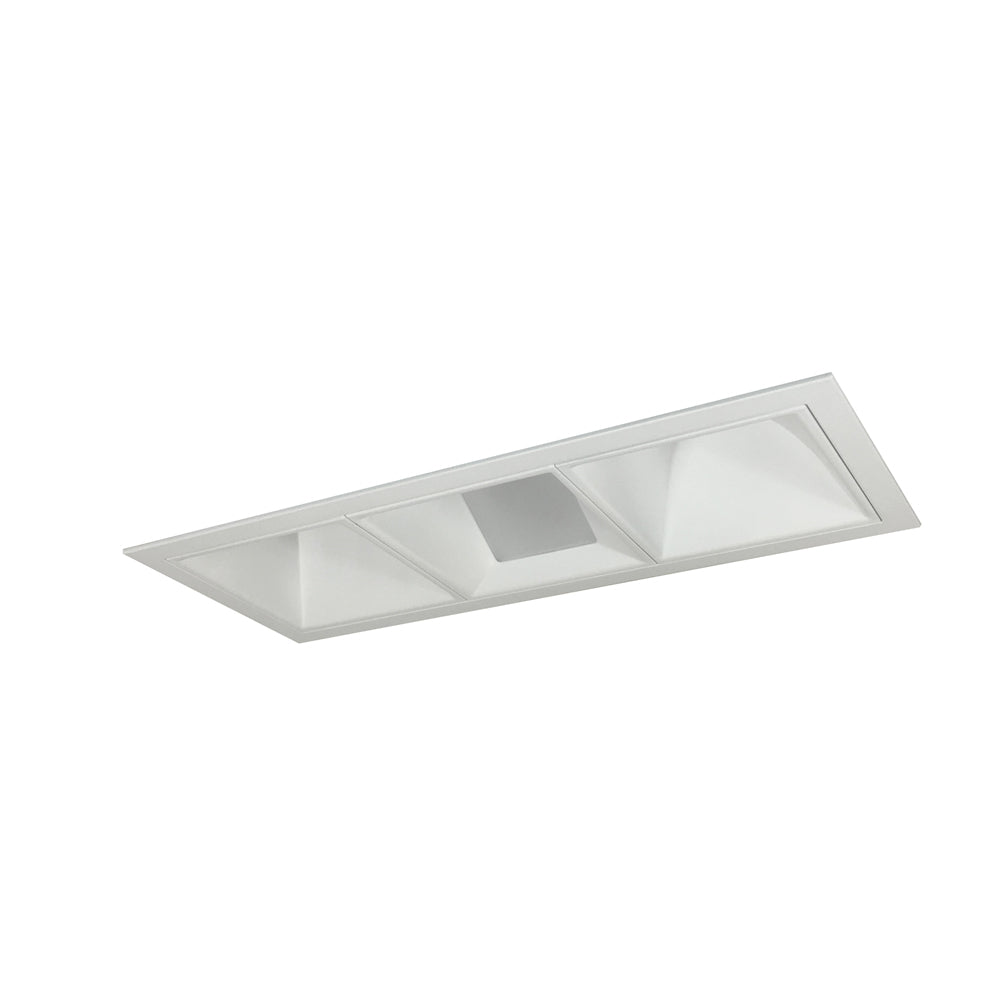

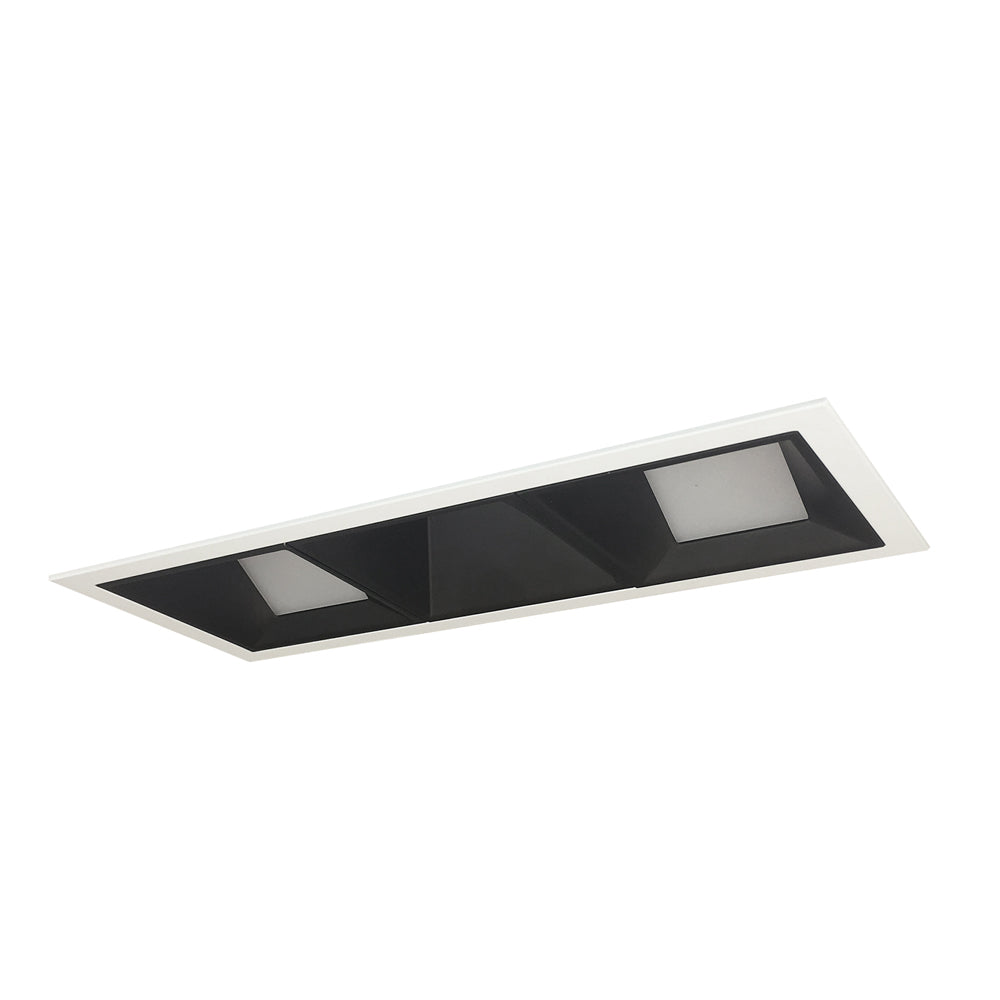

Wall Wash
Fixed wall wash reflector aims LED modulesat optimal angle for maximum light distribution along wallsurfaces.

Blank Plate
Blank plate is used in conjuction with two orthree head configurations where a blank head is needed.

Labels and Listings

• cULus Listed for Damp Location
• ENERGY STAR certified (wall wash not certified)
• Certified to the high efficacy requirements ofCalifornia Title 24 JA8-2019
• 5-Year Limited Warranty

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
