Nora Lighting BR40/PAR38 Shroud
Line voltage BR/PAR Shroud fixture. Yoke provides full adjustment of light source for special aiming and dual tightening knob assure lock on angle position.
Features
- Deep drawn steel socket cup housing for high strength and rigidity
- Heat resistant Teflon coated wire lead
- Low profile gimbal ring with minimal profile
- Adjustable yoke for custom aiming
- High-strength stainless steel electrical contacts
- One or two circuit track capable
- Accepts LED lamps
- 5-year limited warranty
Finish
- B= Black
- S= Silver
- W= White
Housing Socket Cup
0.035" Deep drawn steel construction with simple, cylindrical design. All edges are softened for aesthetic appearance.
Gimbal Ring
0.030" Baked enamel finished steel ring with dual brackets spot welded to socket cup enclosure.
Yoke
0.085" Rigid steel "wishbone" yoke connects fixture housing to electrical contact head. Dual semi tubular rivets and friction washers provide secure hold for vertical angle.
Socket
Porcelain jacketed aluminum screw thread medium-base socket
Wiring
Teflon coated wire lead connects socket and housing to electrical contact head. Teflon coating is durable and resists heat degradation from lamp and housing radiation.
Lamp
250W BR40/PAR38 Maximum (not included)
One / Two Circuit Conversion
Positive contact (opposite neutral and ground contacts) is preset to "down" position at factory but may be raised to the higher position to install onto the second circuit of Nora Lighting NT- 2300 series two-circuit track.
Labels and Listings
UL Listed

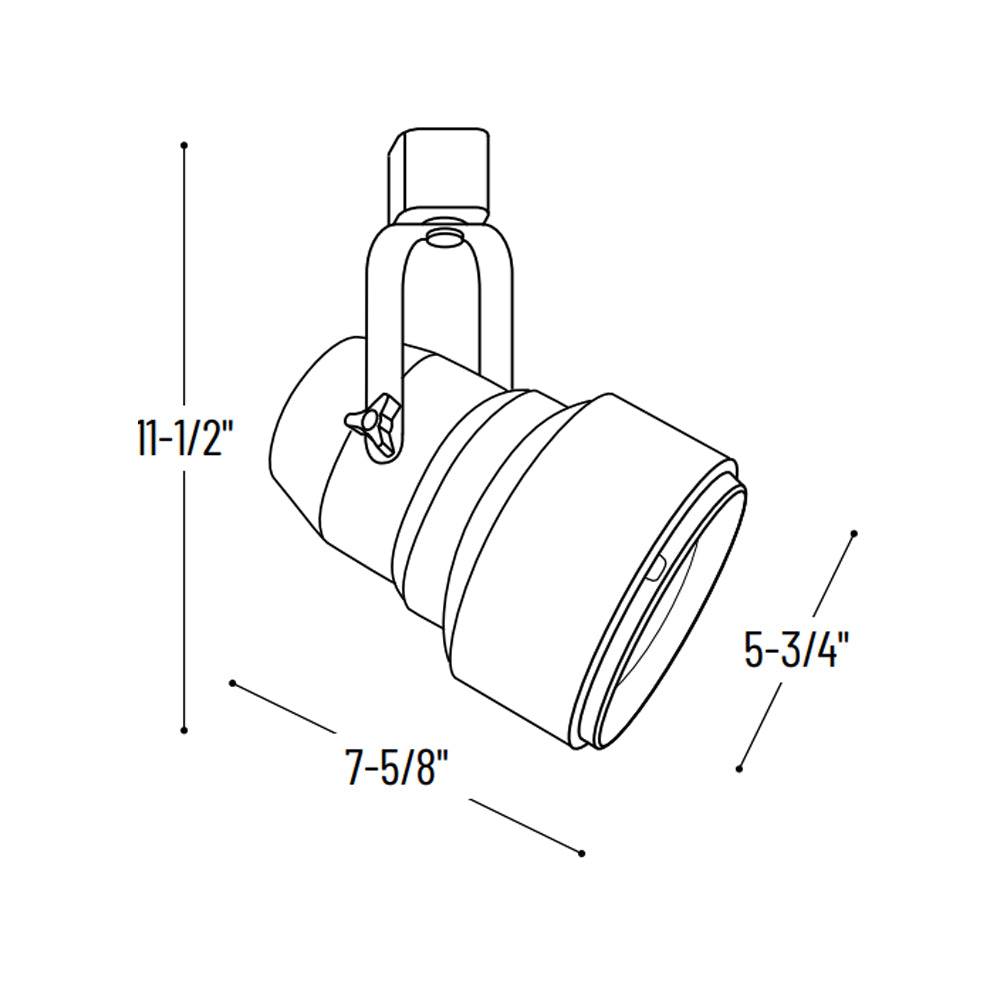

Dimension
7 5/8" L x 5 3/4" Dia. x 11 1/2" H
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
