Nora Lighting BR40/PAR38 Flatback Cylinder with Black Baffle

Nora Lighting BR40/PAR38 Flatback Cylinder with Black Baffle

Line voltage flatback cylinder with black baffle. Fixture includes a yoke that provides full adjustment of light source for special aiming and has dual tightening knobs assure secure lock on angle position.

Features

• Die cast aluminum provides superior strength and rigidity
• Black baffle eliminates glare and adds finished touch
• One or two circuit track capable
• Accepts LED lamps

Finish

• B/A = Black

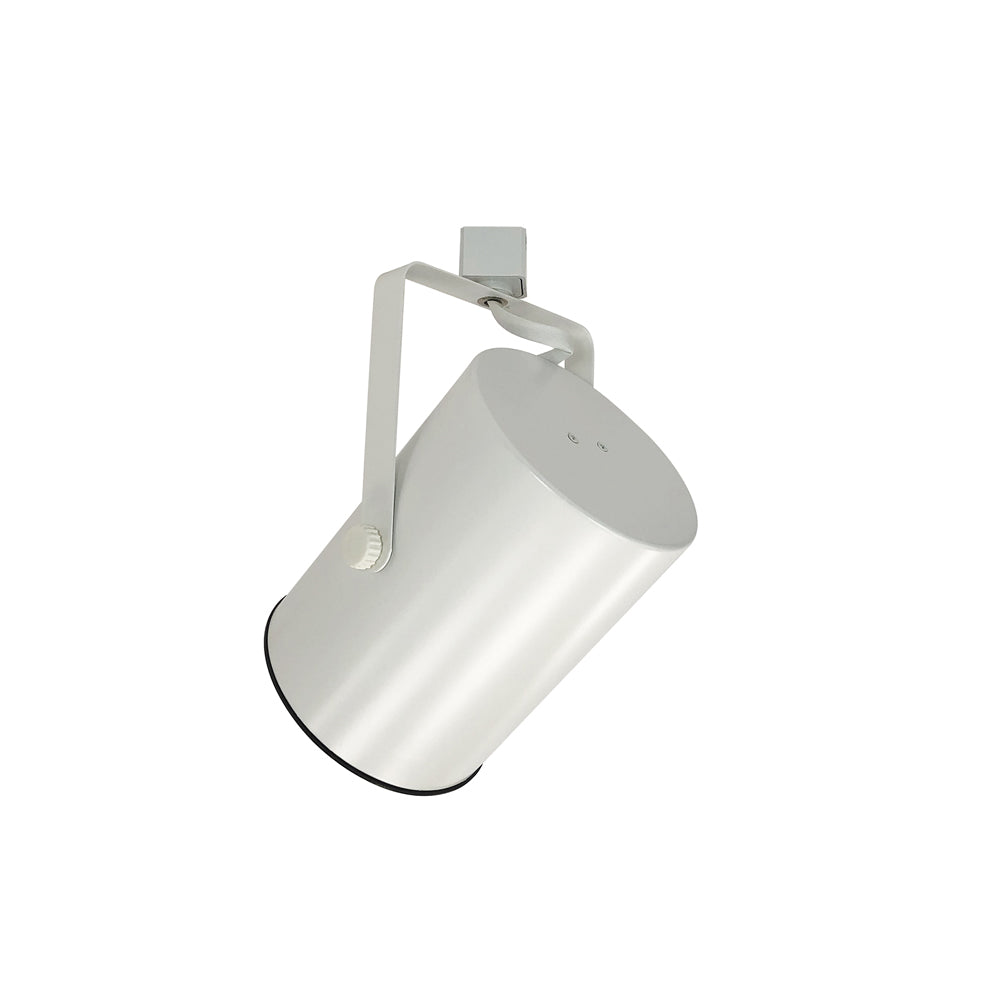

• W/A = White

Housing
0.030" Deep drawn steel construction with simple, cylindrical design. All edges are softened for aesthetic appearance.

Yoke
0.085" Rigid steel "wishbone" yoke connects fixture housing to electrical contact head. Dual plastic angle tightening knobs maintain clean, decorative appearance of the fixture and provide secure angle position.

Baffle
0.085" Black finished phenolic high heat rated plastic baffle, provides finished appearance and assists in eliminating glare from housing interior.

Voltage
120V input

Socket
Medium base

Lamp
150W BR40/PAR38 max. (not included)

ONE/TWO CIRCUIT CONVERSION
Positive contact (opposite neutral and ground contacts) is preset to "down" position at factory but may be raised to the higher position to install onto the second circuit of Nora Lighting NT- 2300 series two-circuit track.

Listing
UL Listed

Dimension

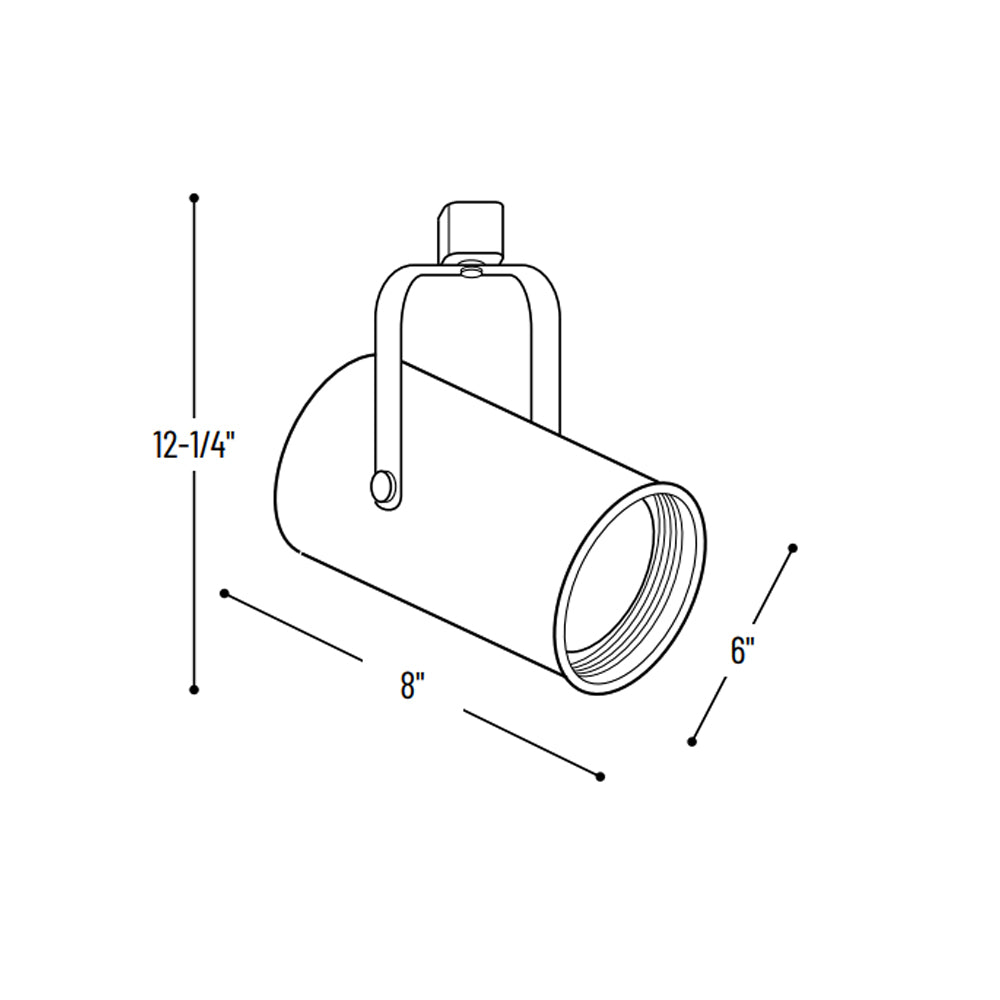

6" Dia.x 8" L x 12-1/4" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
