Nora Lighting 8" Sapphire II Retrofit, Open Reflector, 3500lm

Nora Lighting 8" Sapphire II Retrofit, Open Reflector, 3500lm

The Sapphire II COB Retrofit Series is an architectural grade LED high lumen replacement. Using existing commercial or architectural frame-ins, replace old light source and reflectors with the latest LED technology. Each luminaire includes flexible conduit and junction box with dimmable drivers. The Sapphire II COB Series is an architectural grade LED high lumen downlight. The Sapphire II uses the latest COB technology by Cree®. The COB allows for better optic control offering 3 beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire II COB Series is proudly assembled in the USA.

Features

• Retrofit existing architectural or commerical frame-ins with the latest LED technology
• Over 80% energy savings when compared to incandescent
• Cree® COB technology
• Shatter resistant lens
• Specifiable beam spreads
• Deep cone reflector, wall wash or deco glass
• 3500lm, LED packaes
• 2700K, 3000K, 3500K and 4000K @ 90+ CRI
• 5-year Limited Warranty

Finish

• BSF = Black / Self Flanged
• BWSF = Black / White Flange
• DSF = Clear Diffused / Self Flanged
• DWSF = Clear Diffused / White Flange
• HSF = Haze / Self Flanged
• HWSF = Haze / White Flange
• WSF = White / Self Flanged

Reflector
Deep cone self flanged reflector spun from 0.050 high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NCR2-88 includes three studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.

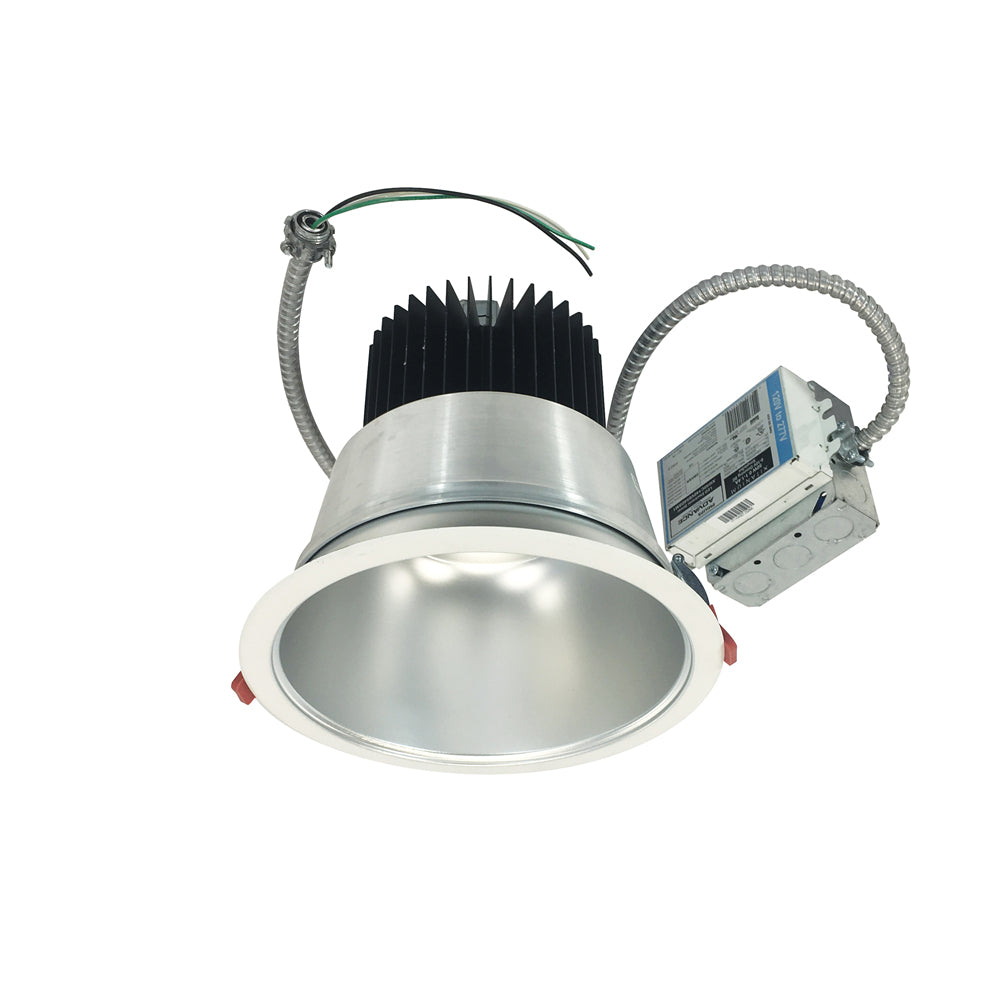

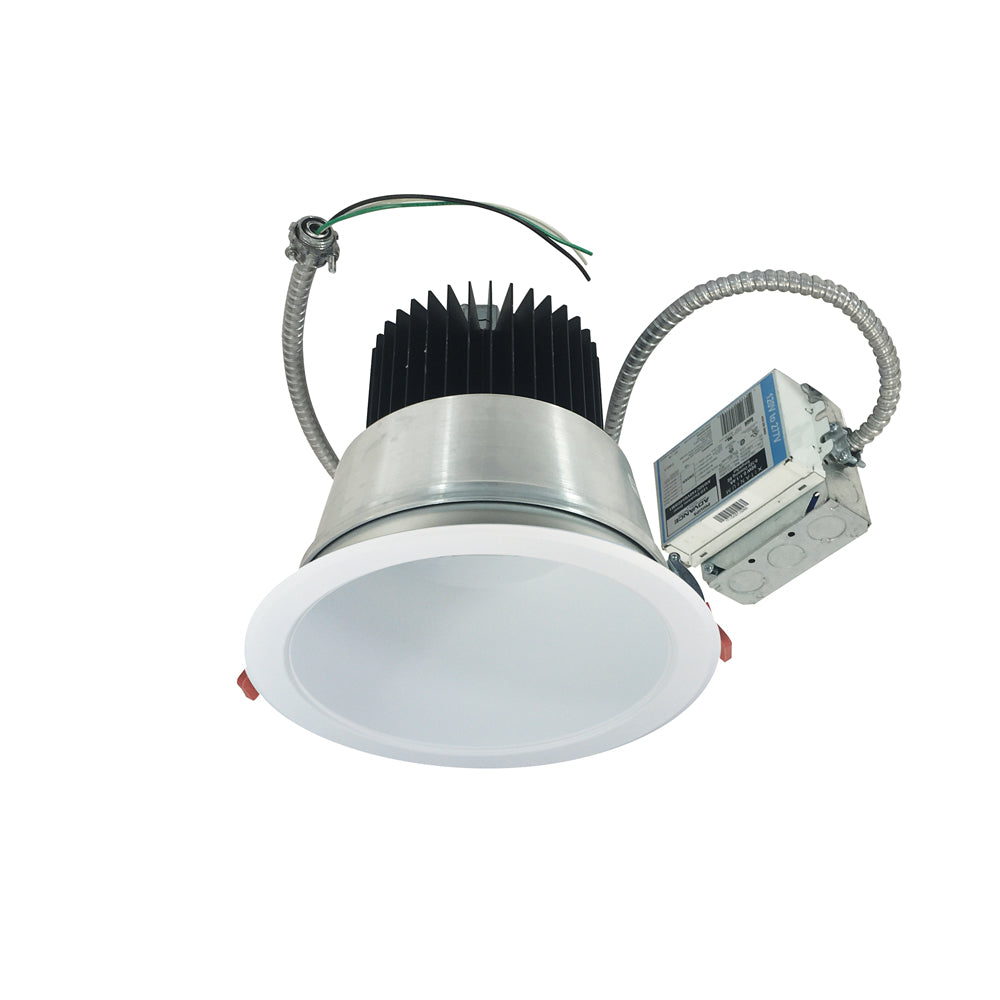

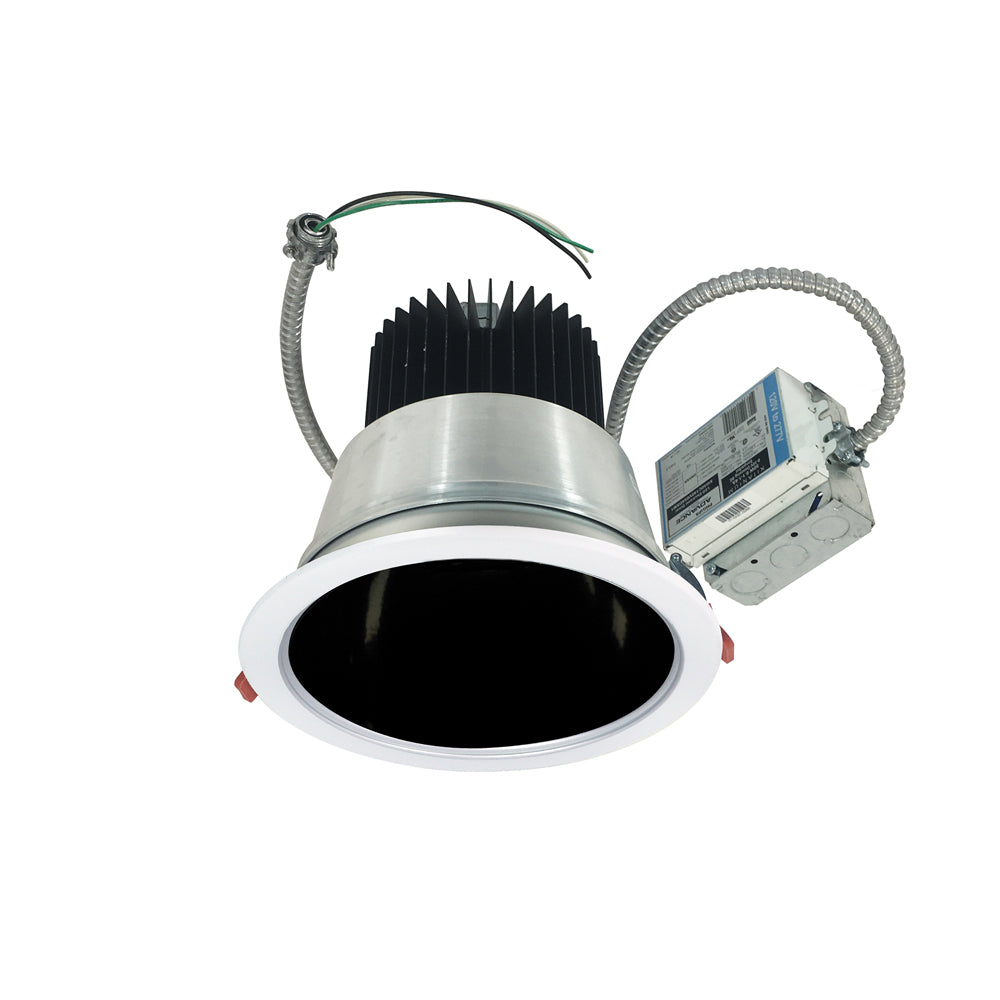

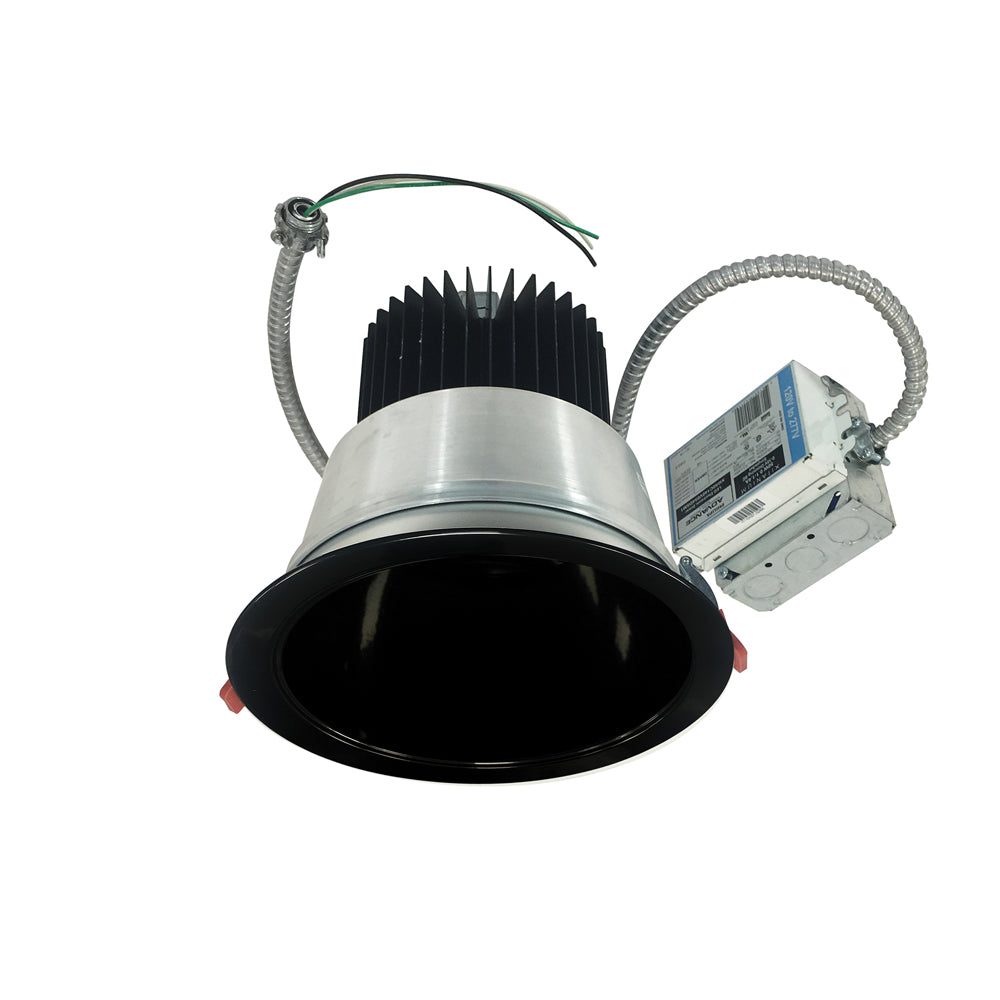

Reflector Assembly
The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly is connected to junction box and dimmable driver. Junction box easily wires to input voltage with wire nuts (included). Luminaire accommodates ceiling thickness from 3/8" to 1-1/2".

Lumens / Wattage
3500lm / 46W

Beam Spread

• S = Spot
• M = Narrow Flood
• F = Flood

Driver

• E3 = 120V Input; Triac/ELV/0-10V dimming
• E6 = 120-277V Input; 0-10V dimming

Color Temperature

• 27 = 2700K
• 30 = 3000K
• 35 = 3500K
• 40 = 4000K

CRI
90+CRI

Operating Temp.
0°C to 45°C ambient temperature

Lifetime
60,000 hours @ L70

Dimming
Triac, ELV or 0-10V dimming

Labels and Listings

• cULus classified for Wet Location
• ENERGY STAR certified
• RoHS Compliant

Dimension

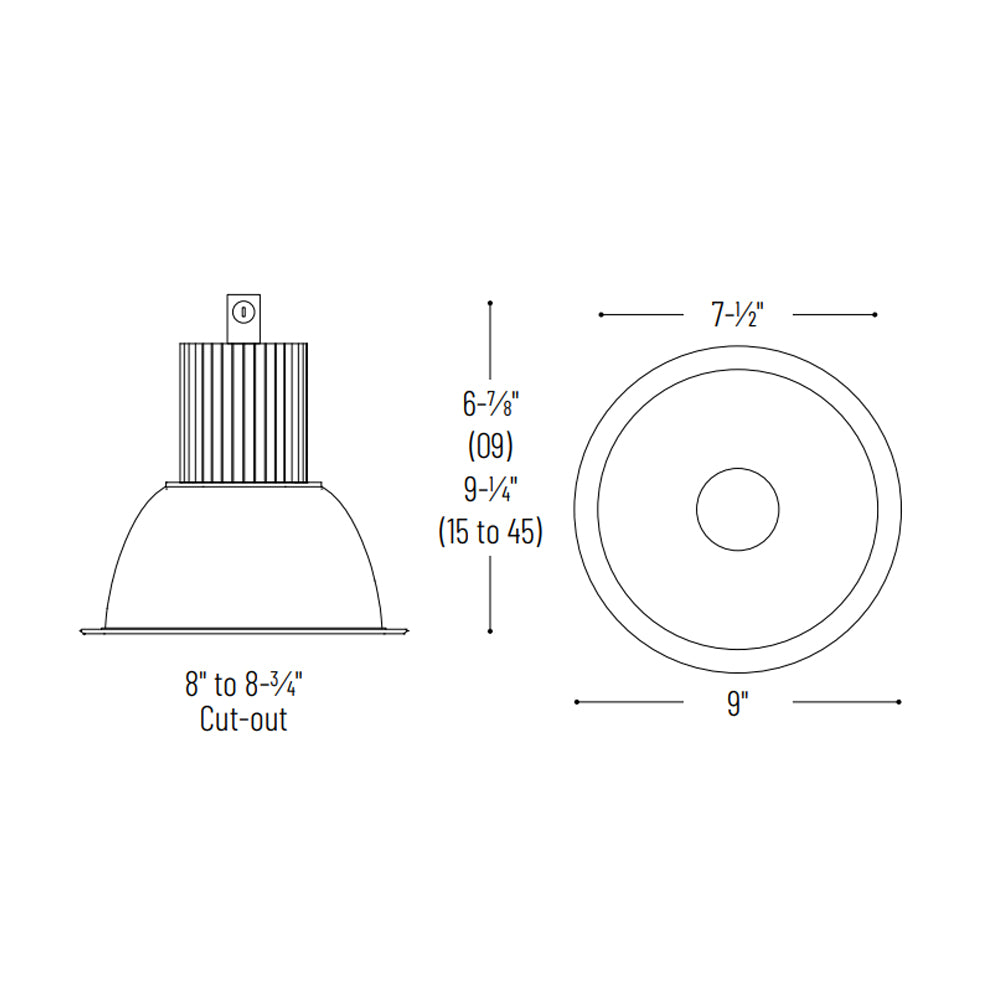

9" Dia. x 6-7/8" - 9-1/4'' H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
