Nora Lighting 8" Sapphire II COB, Universal New Construction Frame-In 4500lm
Nora Lighting 8" Sapphire II COB, Universal New Construction Frame-In 4500lm
Nora Lighting 8" Sapphire II COB, Universal New Construction Frame-In 4500lm
Architectural grade LED High Lumen Downlights featuring deep cone reflectors. Dimmable Cree® LEDs and Cree® LED drivers make for a solid, complete and tested package. The Sapphire series is available in 4", 6" or 8" sizes and also in new construction or remodel frame-ins.

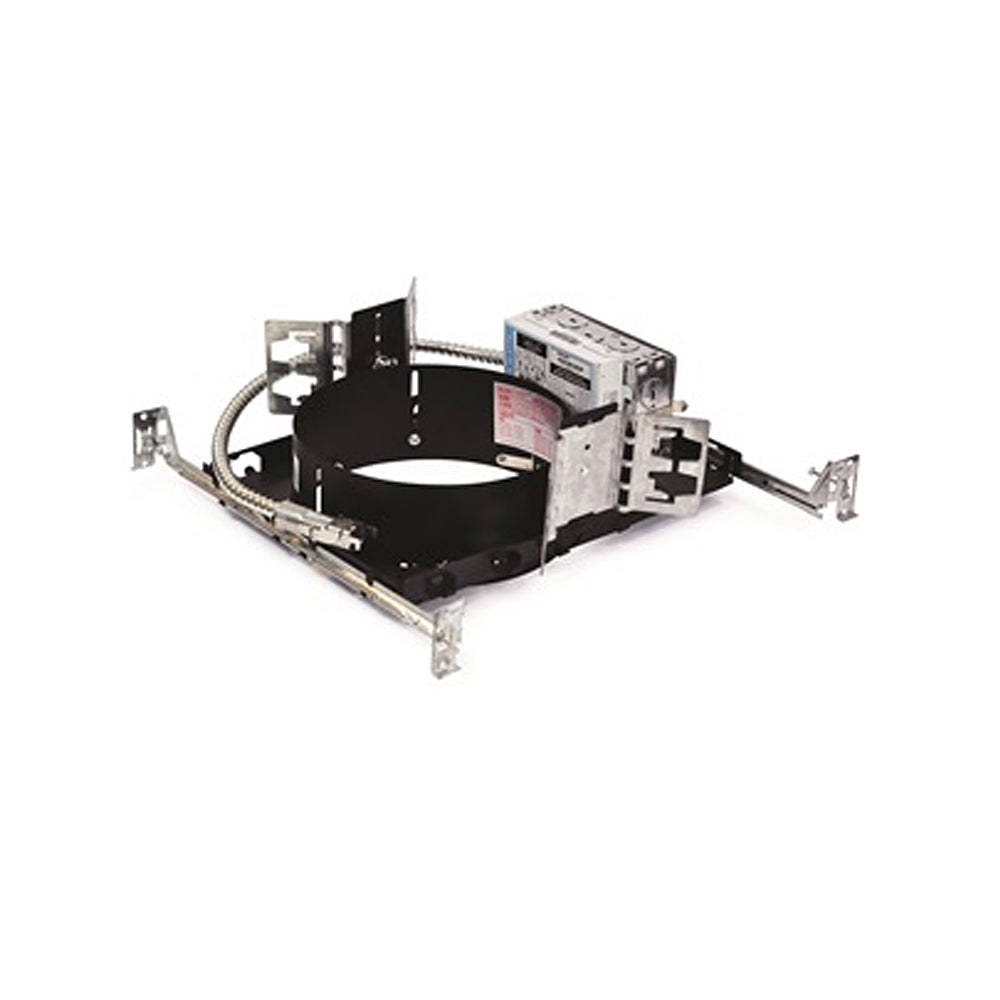

Plaster Frame
Architectural quality 0.050 galvanized steel ring riveted to 0.064 steel junction box and driver tray. Plaster frame opening includes (3) "butterfly" spring clips to hold reflector assembly in place.
Mounting
Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2" conduit. Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame. Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2".
Minimum Clearances
Frames require a minimum of 3" from thermal insulation and 1/2" from adjacent building component.
Junction Box
Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Thermal Protector
- LE3: External thermal device is located on the junction box
- LE6: Thermally protected driver
Driver
Isolated driver separates the primary side from the secondary side.
Input Voltage
120V or 120-277V
Lumens / Wattage
- L09 = 900lm / 16W
- L15 = 1500lm / 18W
- L25 = 2500lm / 30W
- L35 = 3500lm / 46W
- L45 = 4500lm / 60W
Operating Temp.
0°C to 45°C ambient temperature
Dimming
Triac, ELV or 0-10V dimming
Compatible Reflectors
- NC2-831: 8" Open Reflector
- NC2-836: 8" Wall Wash Reflector
- NC2-838: 8" Decorative Glass Reflector
Emergency LED Driver
- Up to 7.5W emergency illumination with LEDs
- Illumination Time: 90min
- Voltage: 120/277 VAC, 60Hz
- Output Voltage: 15.0-50.0 VDC
- Available with remote or integral test switch, must specify
Labels and Listings
- cULus Listed for Damp Location (Wet Location when used with compatible reflector)
- 5-Year Limited Warranty
- RoHS Compliant
- Emergency LED Driver meets Title 20 CEC efficiency standards

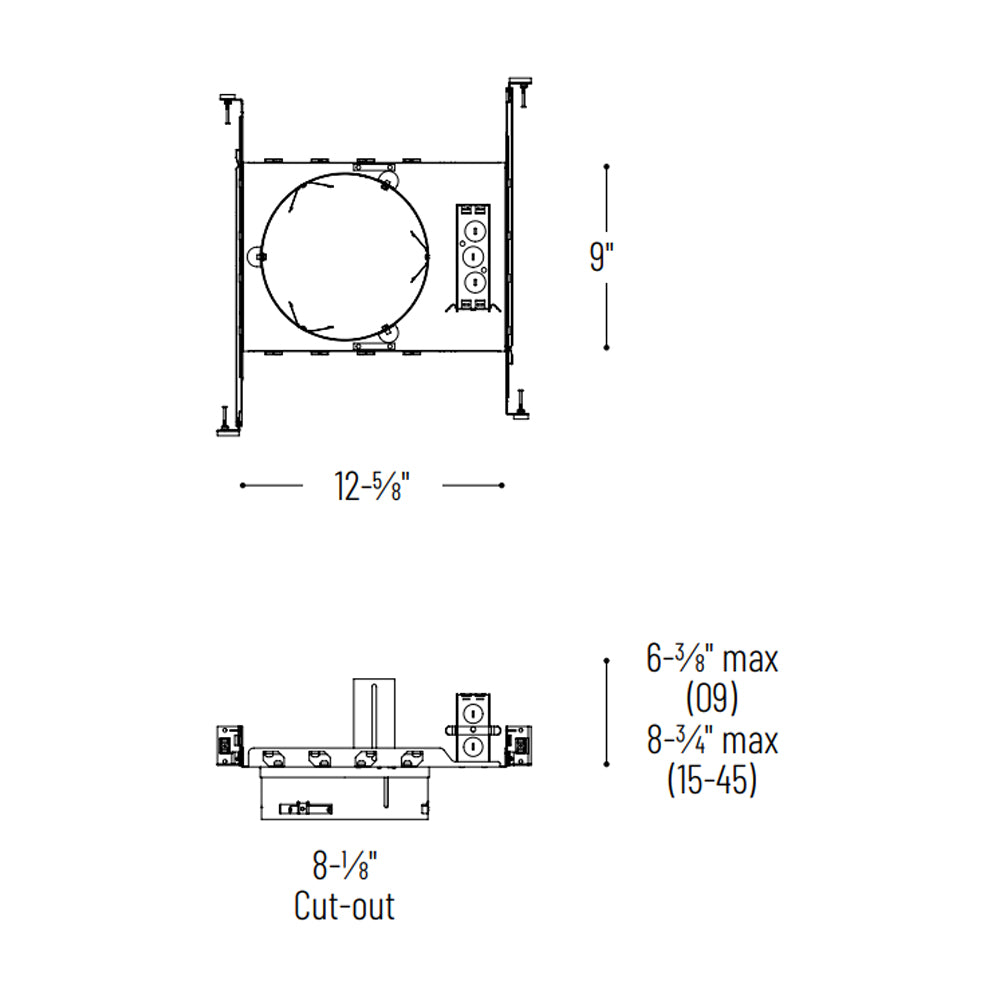

Dimension
12 5/8" L x 9" W x 6 3/8"-8 3/4" H
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
