Nora Lighting

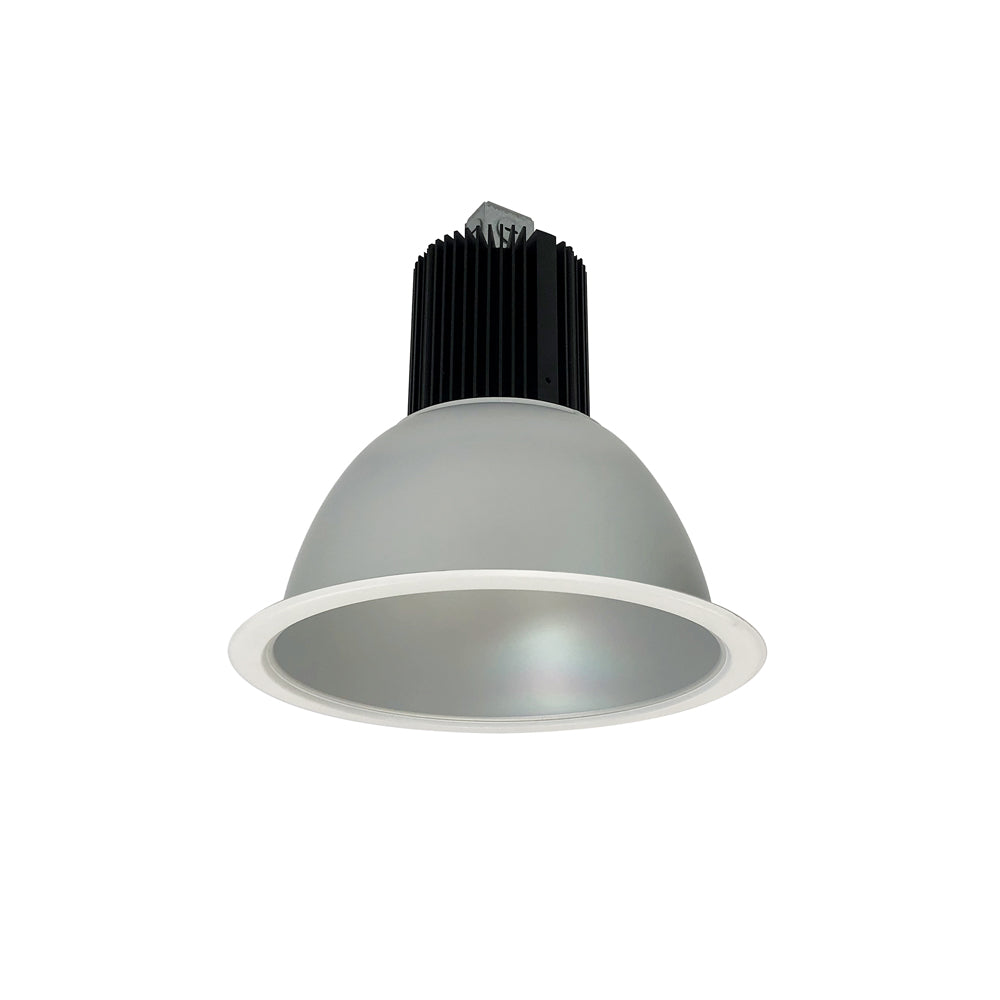

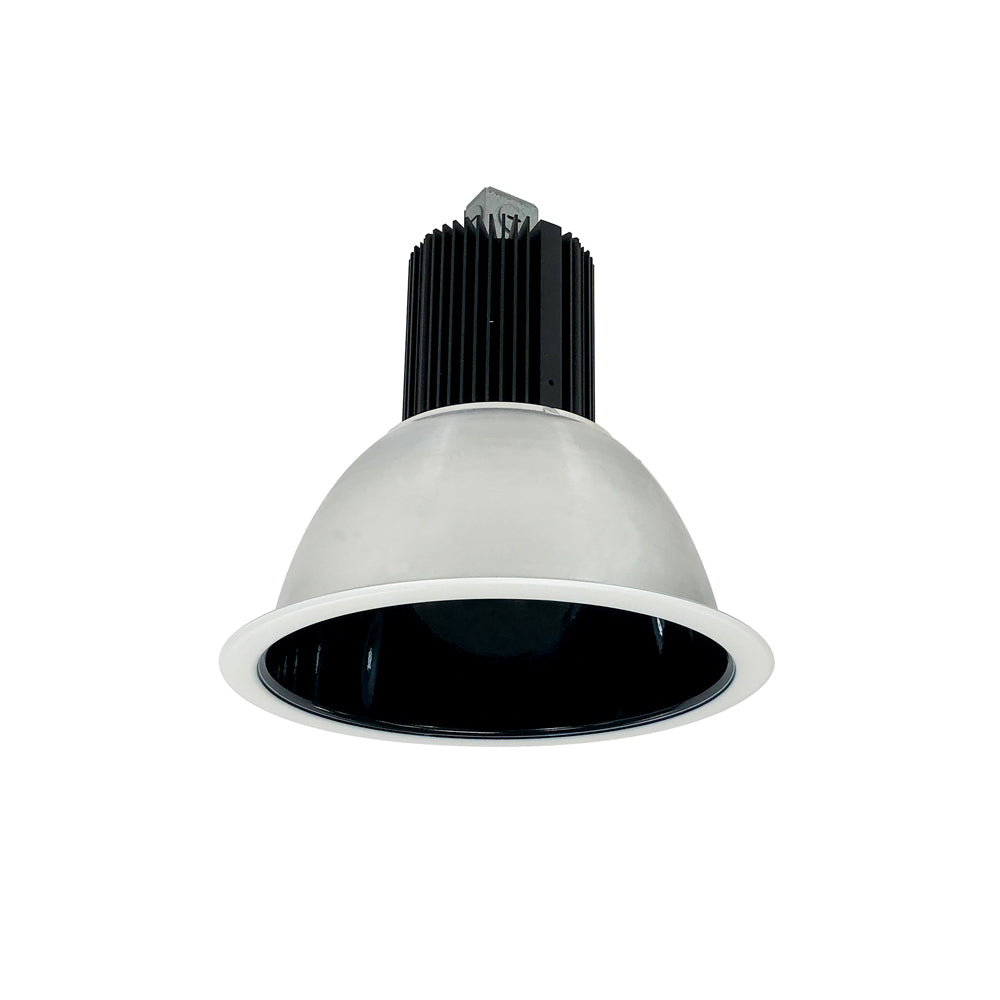

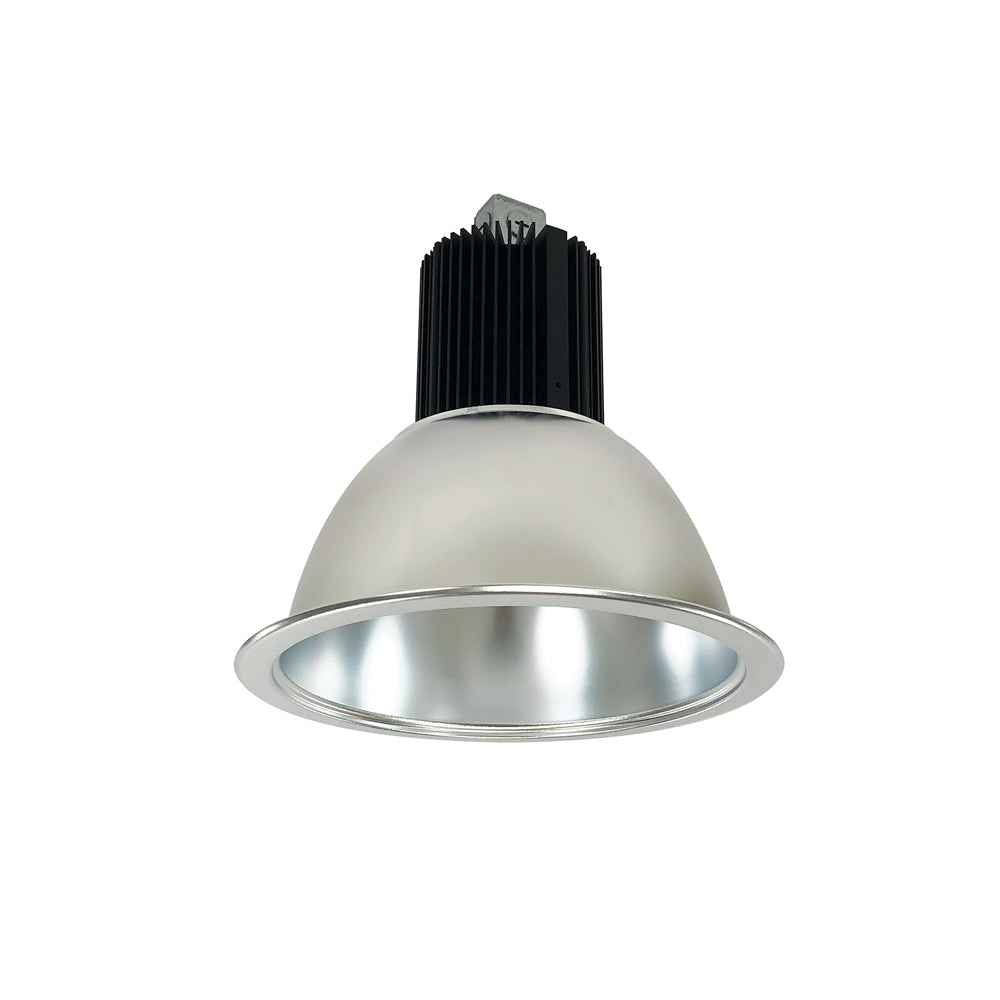

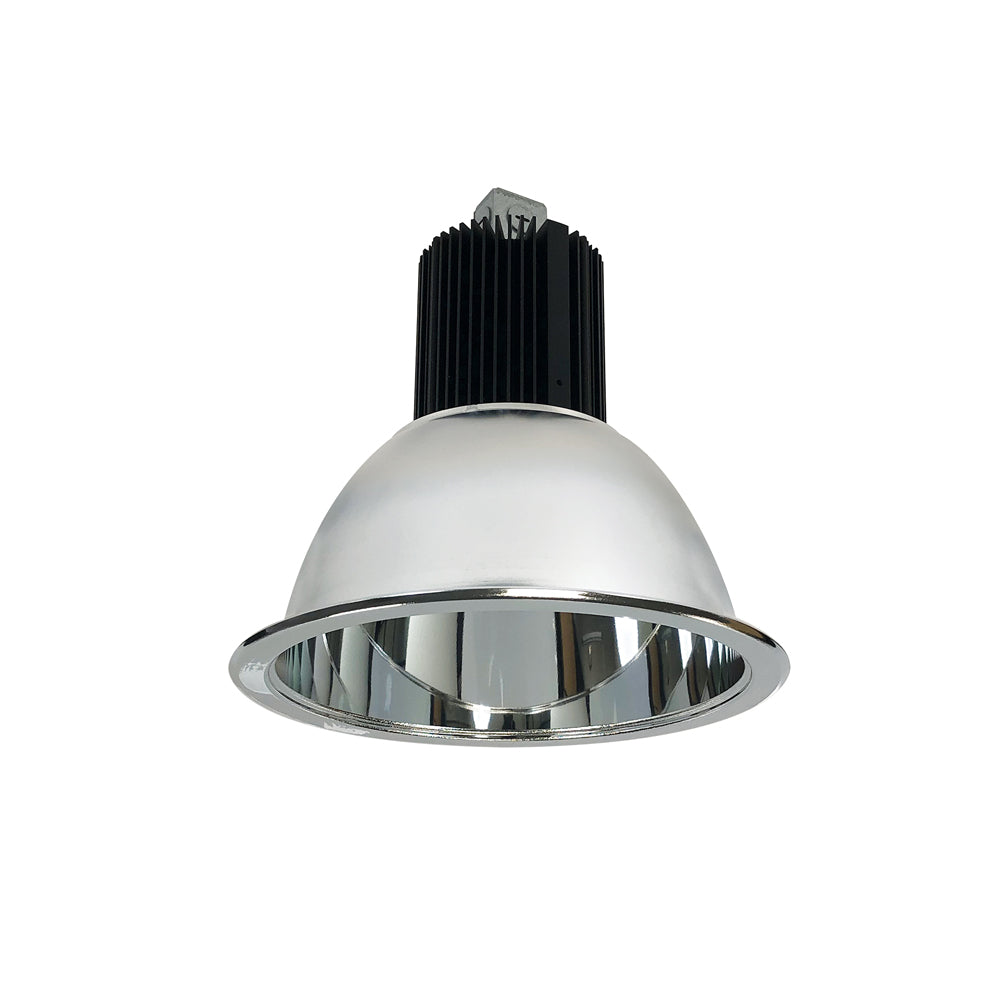

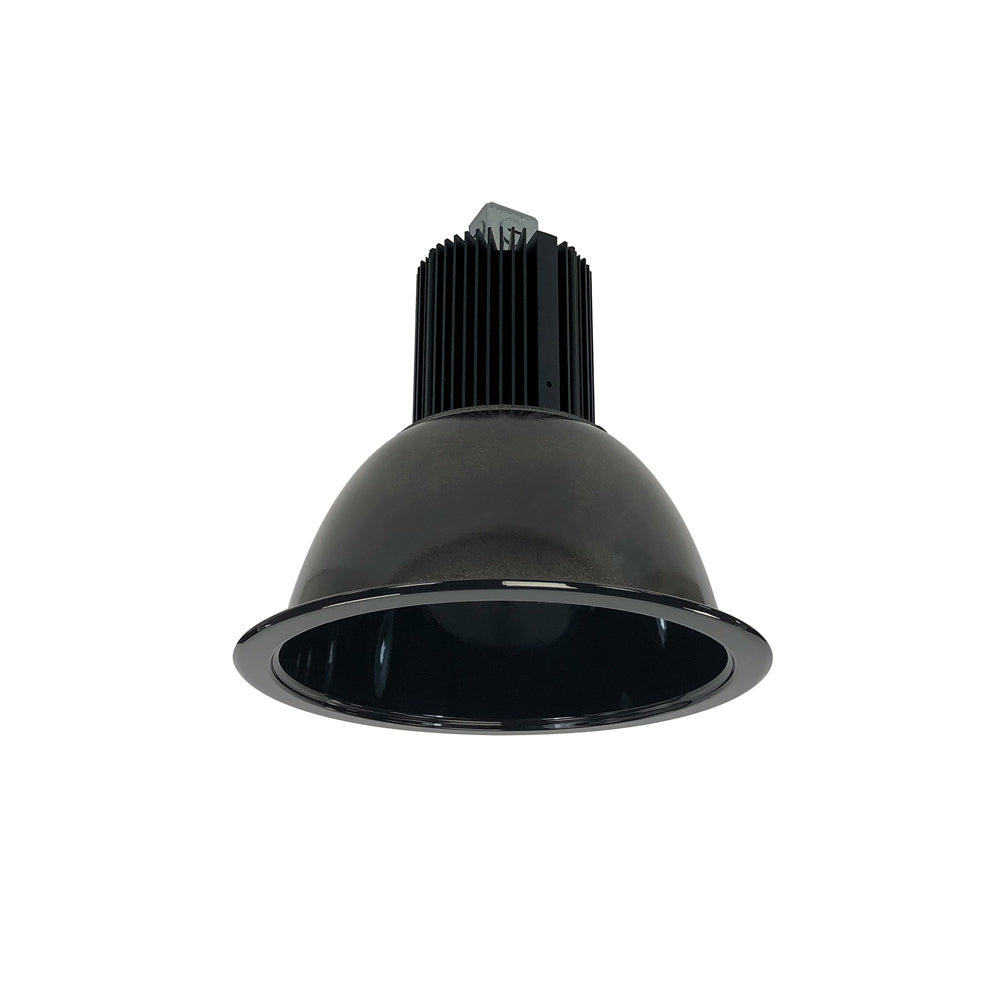

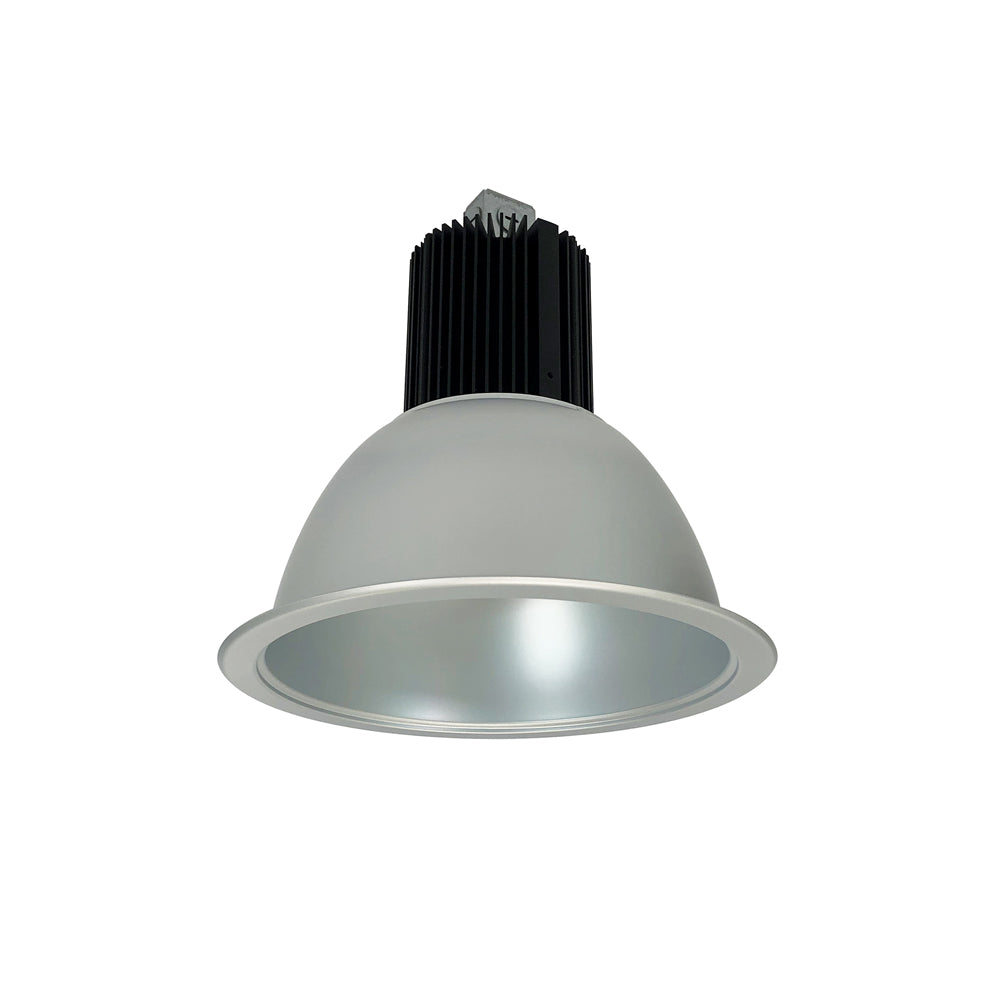

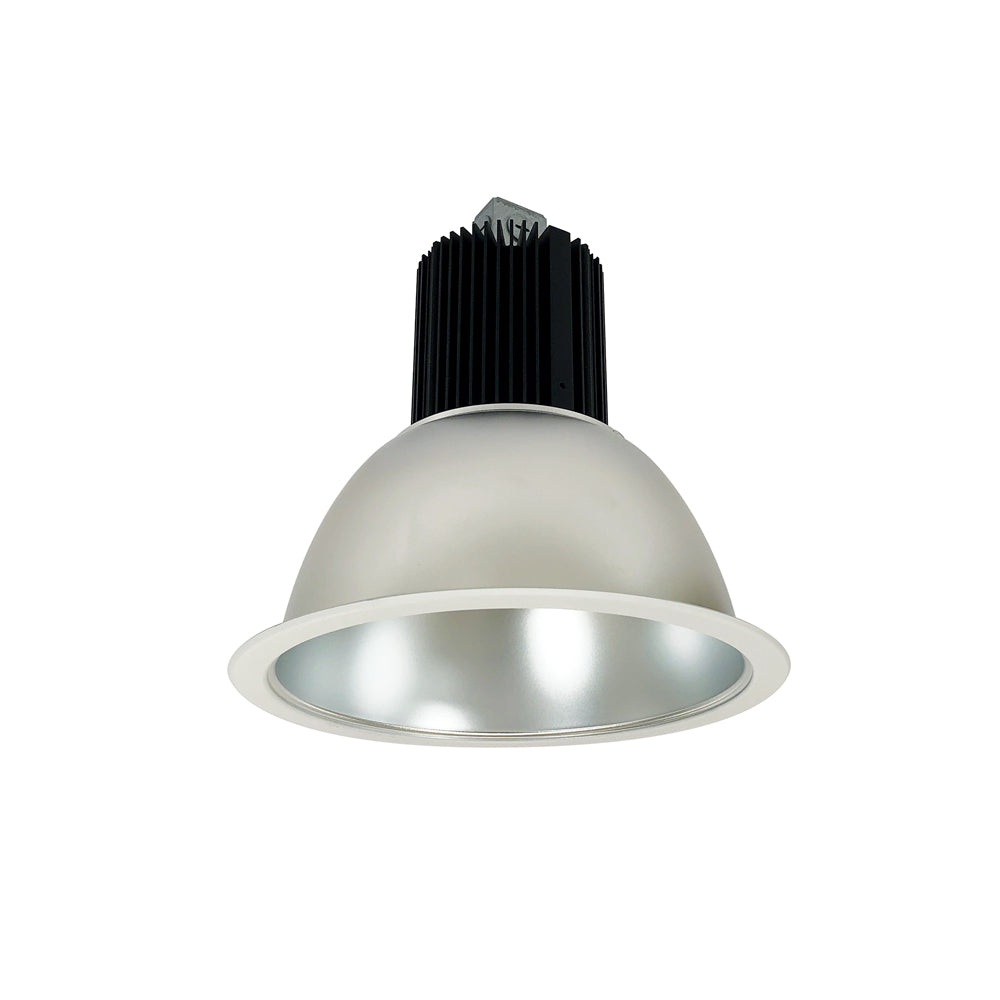

Nora Lighting 8" Sapphire II COB, Open Reflector

Nora Lighting 8" Sapphire II COB, Open Reflector

Regular price $88.83
Regular price $106.59 Sale price $88.83
Sale Sold out

Nora Lighting 8" Sapphire II COB, Open Reflector

Sapphire II series is an architectural grade LED high lumen downlight available in 4", 6" and 8" deep cone reflectors that provide over 55ᄎ cut-off with even illumination for visual comfort. The Sapphire II uses the latest COB technology by Cree®. The COB allows for better optic control offering three beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The Sapphire II series is available in new construction, remodel and retrofit configurations.

Features

  • Cree® COB technology
  • Shatter resistant lens
  • Specifiable beam spreads
  • 8" deep cone reflectors, wall wash and deco glass
  • 900lm, 1500lm, 2500lm , 3500lm and 4500lm LED packages
  • 2700K, 3000K, 3500K and 4000K @ 90+ CRI
  • 5-year limited warranty

Finish

  • BSF = Black / Self Flanged
  • BWSF = Black / White
  • CSF = Specular Clear / Self Flangedニ
  • DSF = Clear Diffused / Self Flanged
  • DWSF = Clear Diffused / White
  • HSF = Haze / Self Flanged
  • HWSF = Haze / White
  • WSF = White / Self Flanged

Reflector
Deep cone self flanged reflector spun from 0.050 high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC2-838 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.

Reflector Assembly
The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.

Lumens / Wattage

  • L09 = 900lm / 15W
  • L15 = 1500lm / 18W
  • L25 = 2500lm / 30W
  • L35 = 3500lm / 46W
  • L45 = 4500lm / 60W

Color Temperature

  • 2700K
  • 3000K
  • 3500K
  • 4000K

Color Rendering Index
90+CRI

Beam Spread
(S) 42° Spot, (M) 64° Narrow Flood, (F) 83° Flood

Operating Temp
0°C to 45°C ambient temperature

Labels and Listings

  • cULus Listed for Wet Location when used with compatible frame-in
  • ENERGY STAR certified
  • RoHS Compliant

Dimension
9" Dia. x 6-7/8''-9-1/4" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
