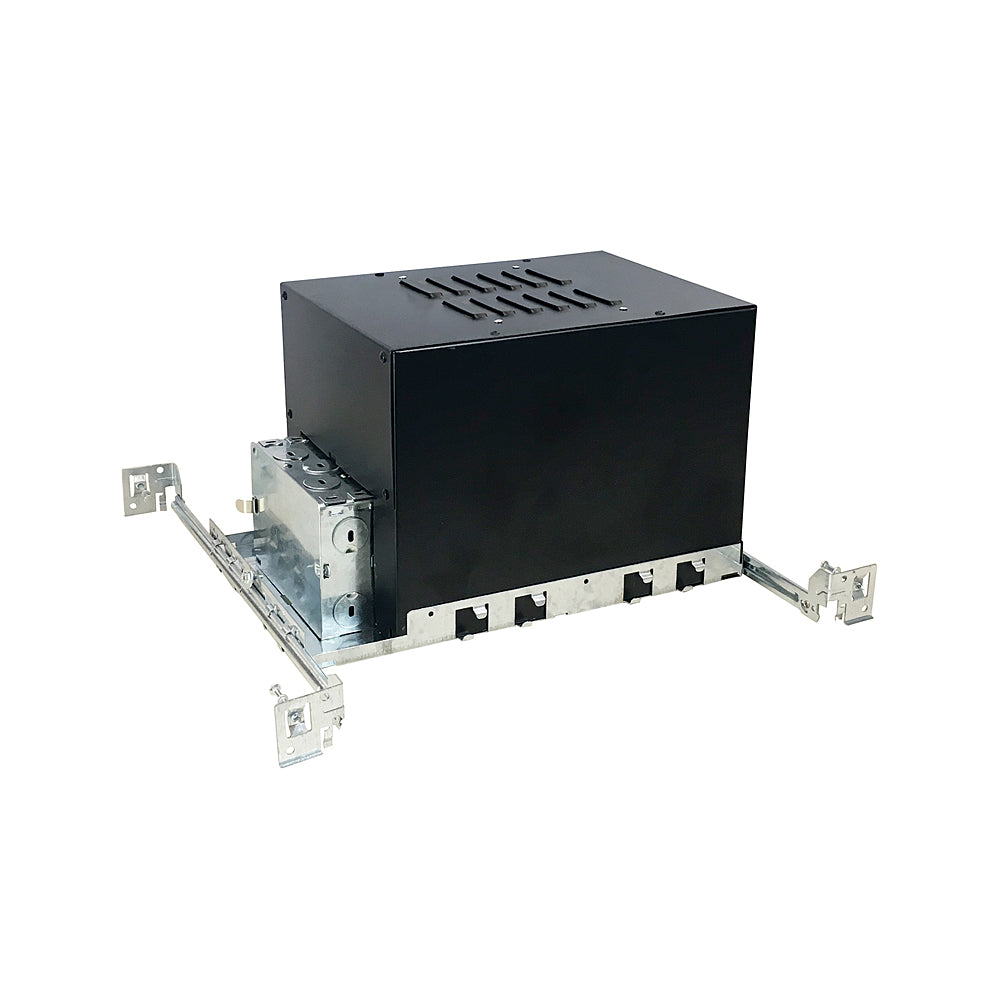

Nora Lighting 8" Adjustable Sapphire II Non-IC New Construction Housing
Nora Lighting 8" Adjustable Sapphire II Non-IC New Construction Housing
Couldn't load pickup availability
Nora Lighting 8" Adjustable Sapphire II Non-IC New Construction Housing
Adjustable Sapphire II COB Series is a commercial grade LED high lumen downlight. The Sapphire II uses the latest COB technology by Cree®, which allows for better optic control offering three beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The Sapphire II series is available in 4", 6" or 8" apertures.
Plaster Frame
0.040" galvanized steel frame with integral bar hanger brackets. Brackets can accommodate longer 27" accessory flat bar hangers. Brackets run along all sides of frame to allow bar hangers to be run parallel or perpendicular to junction box.
Housing
0.040" aluminum housing adjusts for ceiling thicknesses from 1/2" to 1-1/4".
Minimum Clearances
Non-Insulated housings require a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components. Housings require 24" between adjacent recessed luminaires on center.
Junction Box
Plaster frame integrated 29 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four pryouts, and snap on cover. Electrical connections are made through a single junction box door. Green wire provided for installations with ground wire fed through PVC pipe conduit. Junction box connects to reflector assembly with lockable quick connect.
Input Voltage
120-277V
Lumens / Wattage
- L09 = 900lm / 16W
- L15 = 1500lm / 24W
- L25 = 2500lm / 30W
- L35 = 3500lm / 46W
Operating Temp.
0°C to 45°C ambient temperature
Dimming
Triac, ELV or 0-10V
Compatible Reflectors
NC2-839: 8" Adjustable Reflector
Emergency
Housing can be connected to remote emergency battery, requires top access. Must specify battery with remote test switch separately (NEPK-07LEDUNV).
Labels and Listings
- cULus Listed for Damp Locations
- 5-Year Limited Warranty

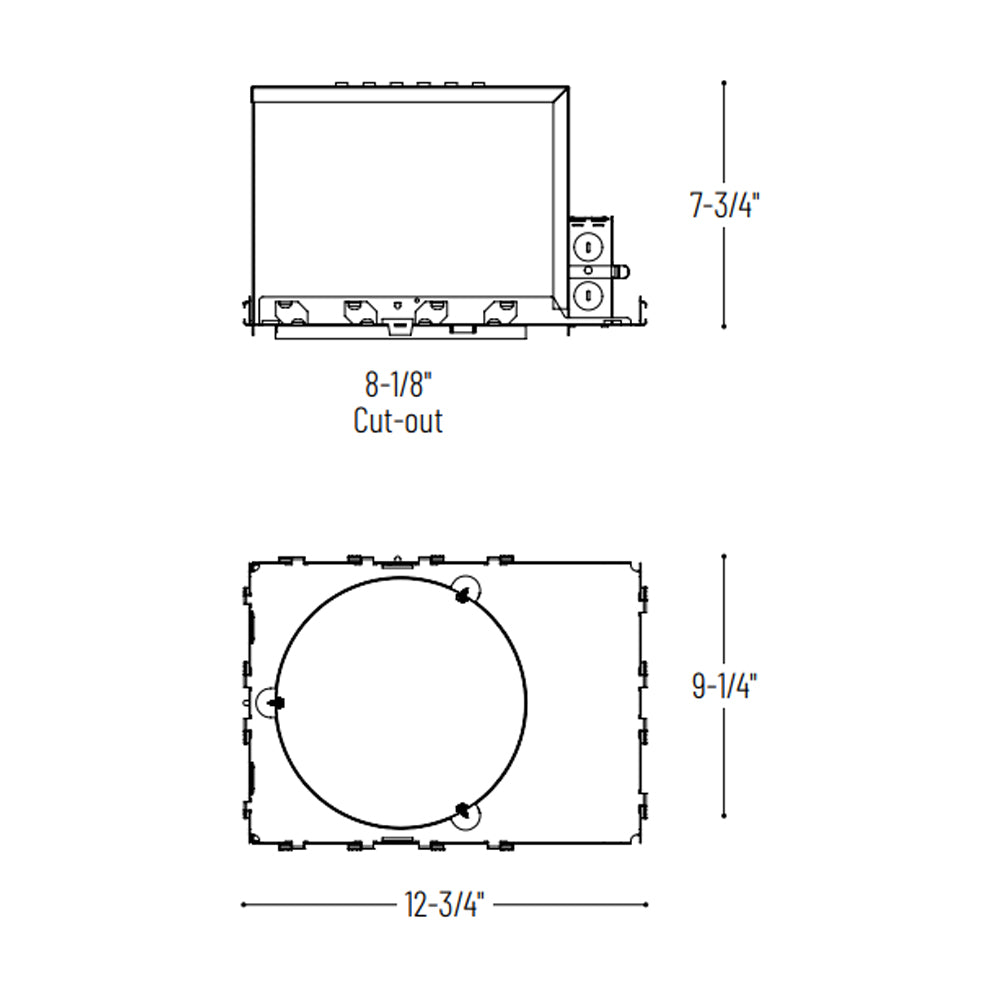

Dimension
12 3/4" L x 9 1/4" W x 7 3/4" H
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
