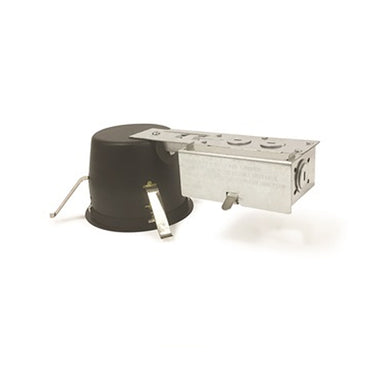

Nora Lighting 4" Shallow LED Dedicated IC Air-Tight Remodel Housing

Nora Lighting 4" Shallow LED Dedicated IC Air-Tight Remodel Housing

Dedicated remodel housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.

Features

• Shallow IC rated housing for direct contact with insulation
• Quick connect provided for electrical connection to the LED downlight
• IC Air-Tight energy saving by reducing the flow of air through the ceiling
• cULus listed for damp location and through branch circuit wiring

Housing
0.040 aluminum housing adjusts to maximum ceiling thickness of 1-5/8". Structural arm consisting of 0.050 steel connects housing with junction box.

Air Flow Restriction
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements. Clearance: "IC"ﾒ insulated ceiling housings are direct contact rated; no minumum clearance is required.

Mounting
Four high tension springs secure the housing to an existing sheet rock ceiling. Accommodates ceiling thickness to 1-5/8".

Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel with six 1/2" trade size knockouts, one 3/4" trade size knockout, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 6 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.

Input Voltage
120V or 277V

Socket
Quick connect for LED reflectors

Operating Temp.
77°F (25°C) max.

Dimming
Specified by downlight

Labels and Listings

• cULus Listed for damp location & feed through (wet location when used with compatible reflectors)
• Meets or exceeds ASTM-283 Air-Tight requirements
• Certified to the high efficacy requirements of California Title 24 JA8-2019 (when used with compatible reflectors)
• RoHS compliant

Dimension
10" L x 4 3/4" W x 3 1/2" H
