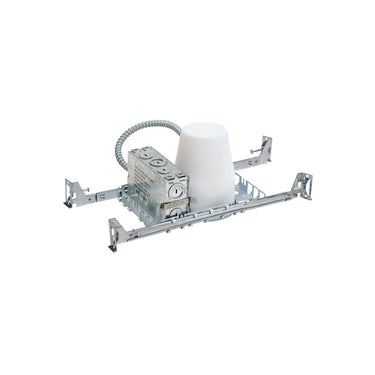

Nora Lighting 4" Non-IC Air-Tight Line Voltage New Construction Housing
Nora Lighting 4" Non-IC Air-Tight Line Voltage New Construction Housing
$24.30
$18.00
/

Nora Lighting 4" Non-IC Air-Tight Line Voltage New Construction Housing
4? Recessed housings deliver ultra-high design quality in any application with minimal apertures ideal for R/PAR20, PAR16 designer light sources. Available in both standard and energy savings airtight configurations, Noraメs 4? products are quick to install and accept a wide variety of high quality, attractive finishing trims.
Features
- Air-Tight energy saving by reducing the flow of air throughthe ceiling
- Internal thermal protection
- cULus listed for damp location and through branch circuit wiring
- Quick connect provided
- 24-1/2" Bar hangers with captive nails and alignment foot
- Accommodates 1-3/8" maximum ceiling thickness
Plastic Frame
0.040 steel frame with integral bar hangerbrackets.
Housing
0.035 white baked enamel one-piece drawn steel.Accommodates ceiling thickness from 5/8" to 1-3/8".
Minimum Clearance
Non-IC housings require a minimumclearance of 3" from thermal insulation and 1/2" fromadjacent building components.
Air Flow Restriction
Housing has factory installed gasketsto restrict airflow from room into ceiling plenum to <2CFM(cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Socket
Galvanized steel socket plate adjusts inside housingfor optimum light performance. Contains a single mediumbase socket. Protective cap included to protect socketinterior during ceiling painting. Socket plate can be removedin the field to convert to a floating socket.
Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangerswith captive nails are included on frame. Hanger bars haveT-Bar slot and alignment feet. Bar hangers are parallel tojunction box, but can be repositioned 90° perpendicular tojunction box if desired. "L" Shaped bar hanger foot to alignto bottom of construction joist. A T-Bar notch allows easyinstallation in a suspended ceiling
Junction Box
Prewired 25 cubic inch 0.060" thick galvanizedsteel, with seven 1/2" knockouts, four Romex® pryouts, andsnap on covers. All leads are #18AWG wire, the ground wire isconnected to the bottom, and quick connectors are suppliedon all leads. Through branch circuit wiring, (4-in, 4-out).
Quick Connect Feature
Housing contains three UL approvedquick connections that allow insertion of 1/4" stripped solid ortinned standard conductors to be inserted into the connector.Connectors are pre-attached to fixture power, common, andground circuits.
Thermal Protector
Standard UL thermal protector rated for90°C is affixed to inner top surface of housing.
Electrical
- Input Voltage: 120V
- Socket: Medium base
- Lamp: R/PAR20
- Wattage: 50W max.
Dimension
5-3/4" H x 4-3/8" Dia. (Ceiling Cut-Out)
Labels and Listings
- cULus Listed for Damp Location w/ Feed Through(WETWET Wet Location when used with designated trims)
- Meets or exceeds ASTM-283 Air-Tight Requirements
COMPATIBLE TRIMS
- NS-12 4" Round Adjustable Gimbal
- NS-18 4" Round Adjustable Eyeball
- NS-22 4" Round Albalite Lensed Trim
- NS-23 4" Round Fresnel Lensed Trim
- NS-24 4" Round Drop Opal Lensed Trim
- NS-25 4" Round Frosted Dome Lensed Trim
- NS-26 4" Round Frosted Flat Lensed Trim
- NS-27 4" Round Frosted Flat Lens w/ Clear Center
- NS-40 4" Baffle
- NS-40P 4" Phenolic Baffle
- NS-41 4" Black Baffle
- NS-41P 4" Black Phenolic Baffle
- NS-42 4" Gold Reflector
- NS-43 4" Black Reflector
- NS-44 4" Clear Reflector
- NS-44HZ 4" Haze Reflector
- NS-45 4" Round Trim with 1" Round Pinhole
- NS-46 4" White Reflector
- NS-47 4" Round Adjustable Slot Aperture
- NS-48 4" Wall Wash with Baffle
- NS-4855 4" Square Trim with 2" Square Pinhole
- NS-4857 4" Square Reflector with Square Aperture
- NS-4910 4" Square Baffle
- NS-4912 4" Square Adjustable Gimbal
- NS-4914 4" Square Reflector with Round Aperture
- NS-4926 4" Square Frosted Flat Lensed Trim
- NS-50 4" Wall Wash with Reflector
- NS-52 4" Natural Metal Reflector
- NS-53 4" Copper Reflector
- NS-53BZ 4" Bronze Reflector
- NS-76 4" Round Lensless Baffle Shower Trim
