Nora Lighting 4" Max. Adjustability LED Dedicated ICAT Housing
Nora Lighting 4" Max. Adjustability LED Dedicated ICAT Housing
Nora Lighting 4" Max. Adjustability LED Dedicated ICAT Housing

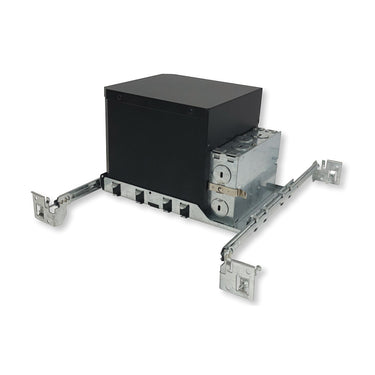

Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with Pearl LED Series to allow maximum adjustability for adjustable reflectors. Housing does not include a "can" inside, allow for adjustable reflectors to adjust up to 35°.
Features
- Allows adjustable reflectors the maximum angle or rotation and tilt
- IC Air-Tight energy saving by reducing the flow of air through the ceiling
- Rated for direct contact with insulation
- cULus listed for damp location (wet location when used with compatible reflectors)
- 24-1/2" Bar hangers with captive nails and alignment foot
Housing
0.040 steel frame with integral bar hanger brackets. Ceiling collar accommodates ceiling thickness from 1/2" to 7/8", optional 1.75" ceiling extension collar available (NSIC-4EXTC2).
Air Flow Restriction
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance
"IC" Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slot and alignment feet. Bar hangers are parallel to junction box, but can be repositioned 90ᄎ perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.
Junction Box
Prewired 25 cubic inch 0.060" thick galvanized steel with seven 1/2" trade size knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
Input Voltage
120V
Socket
Quick connect for LED reflectors
Wattage
12W max.
Dimming
Triac or ELV
Labels and Listings
- cULus Listed for Damp Location (Wet Location when used with compatible reflectors)
- Meets or exceeds ASTM-283 Air-Tight requirements
- Can be used to comply with high efficacy requirements of California Title 24 JA8-2019 when used with compatible reflector
Dimension
24 1/2" L x 8 3/4" W x 5 1/2" H
