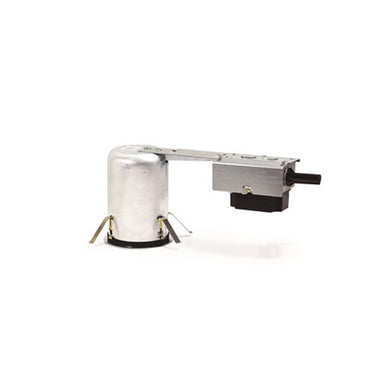

Nora Lighting 4" Marquise II COB, Non-IC Remodel Housing

Nora Lighting 4" Marquise II COB, Non-IC Remodel Housing

Dedicated remodel housing for installation in Non-IC. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.

Housing
0.040 aluminum housing adjusts to a maximum ceiling thickness of 5/8" (16mm). Housing terminates at a 1/4" ceilingflange for even positioning of housing angle within the ceiling. Structural arm consists of 0.050 steel and connects to housingwith j-box and ballast. Integral springs brackets provided.

Air Flow Restriction
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubicfeet per minute) in accordance with ASTM-283 Air-Tight requirements.

Mounting
Four high tension tempered steel springs secure remodel housing to 5/8" thick (max) ceiling (Hole cutout templateprovided for convenience).

Junction Box
Prewired 25 cubic inch 0.064" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts,and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors aresupplied on all leads. Through branch circuit wiring, (4-in, 4-out).

CLEARANCE

• Non-IC: Non-Insulated housings require a minimum clearance of 3" from thermal insulation and 1/2" from adjacent buildingcomponents.
• IC: Insulated ceiling housings are direct contact rated; no minimum clearance is required.

Electrical

• Input Voltage: 120V or 120-277V
• Lumens / Wattage: NHRM2-415 = 1500lm / 18W
• Operating Temperature: NHRM2-415 = 0 °C to 45 °C
• Dimming: Triac, ELV or 0-10V

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
