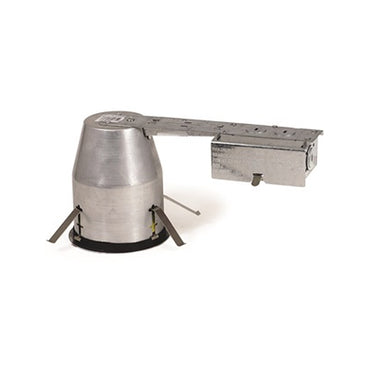

Nora Lighting 4" LED Dedicated IC Air-Tight Remodel Housing
Nora Lighting 4" LED Dedicated IC Air-Tight Remodel Housing
Couldn't load pickup availability
Nora Lighting 4" LED Dedicated IC Air-Tight Remodel Housing
Dedicated remodel housing for use in insulated ceilings can be in direct contact with insulation.* Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
Features
- IC rated for direct contact with insulation
- Quick connect provided for electrical connection to the LED downlight
- ASTM E283 for Air-Tight
- Available with 277V Step-down transformer
Housing
0.040 aluminum housing adjusts to a maximum ceiling thickness of 5/8" (16mm). Housing terminates at a 1/4" ceiling flange for even positioning of housing angle within the ceiling. Structural arm consists of 0.050 steel and connects to housing with junction box. Integral spring brackets provided.
Air Flow Restriction
Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance
"IC" Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Mounting
Four high tension tempered steel springs secure remodel housing to 5/8" thick (max.) ceiling (Hole cutout template provided for convenience)
Junction Box
Prewired 15 cubic inch 0.064" thick galvanized steel with six 1/2" trade size knockouts, one 3/4" knockout, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 6 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
Input Voltage
120/277V
Socket
Quick connect for LED reflectors
Operating Temperature
122°F (50°C) max.
Dimming
Specified by downlight
Step Down Transformer (converts 277V input to 120V)
Optional 50W step down transformer installed (NHRIC-4LMRAT/277).
Emergency (NEPK-07LEDUV)
Remote 90-minute battery back-up and remote test switch can be specified and installed separately.
Labels and Listings
- cULus Listed for damp location & feed through (wet location when used with compatible downlight)
- Meets or exceeds ASTM-283 Air-Tight requirements
- Certified to the high efficacy requirements of California Title 24 JA8-2019 (when used with compatible downlight)
- RoHS compliant
Dimension
11 1/2" L x 4 3/4" W x 5 1/2" H
