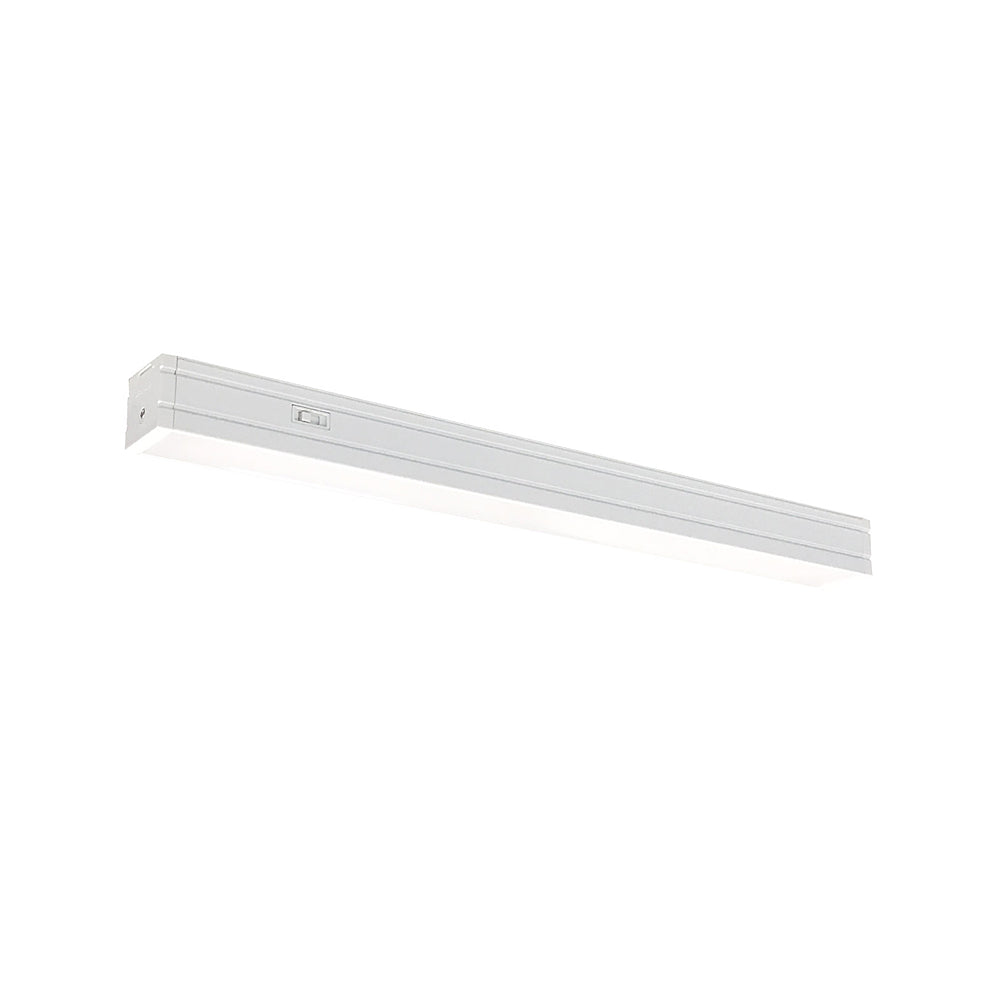

Nora Lighting 32" Bravo FROST Tunable White LED Linear

Nora Lighting 32" Bravo FROST Tunable White LED Linear

Low-profile LED Bravo FROST Tunable White fixtures provide excellent and even illumination on all surfaces. At only 10 watts per foot, Bravo FROST TW produces an incredible 850 lumens per foot at a crisp sharp 90+ CRI. Each Bravo Frost TW contains it own driver allowing a 120V feed and longer single runs than low voltage systems. Each luminaire includes 90° adjustable brackets and integral CCT switch to change the color tempearture (3000K / 3500K / 4000K).

Features

• Architectural extruded aluminum construction
• Symmetrical internal reflectors produce broad even light
• Frosted lens eliminates LED diode image
• 120V linear system ﾷ 850 lumens / 10 Watts per foot
• Field Selectable CCT (3000K, 3500K or 4000K @ 90+ CRI)
• Available in 4 different lengths: 12", 16", 24" or 32"
• Linkable up to 270 Watts fixtures (about 27')
• Less than 1" in depth
• Self contained dimmable electronic driver in each unit
• 0° to 90° adjustable mounting brackets included
• 5-year limited warranty

Finish
/W = White

Included with every Bravo Frost
(2) Adjustable mounting clips (0° - 90°) and (1) End-to-End Connector.

Housing
Extruded aluminum with frosted lens.

Mounting
Two adjustable mounting brackets (0° - 90°) are included with each luminaire.

Input Voltage
120V

Lumens / Wattage
850lm / 10W per foot

Color Temperature
Field Selectable CCT (3000K / 3500K / 4000K)

CRI
90+ CRI

Max Run Length
270W max.

Dimming
Triac or ELV (Dimmable down to 15% with Triac dimmer. ELV has best dimming performance.)

Labels and Listings

• cULus Listed for Dry Location
• ENERGY STAR® Certified
• Certified to the high efficacy requirements of California Title 24 JA8-2019

Dimension
32" L x 1 1/8" W x 15/16" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
