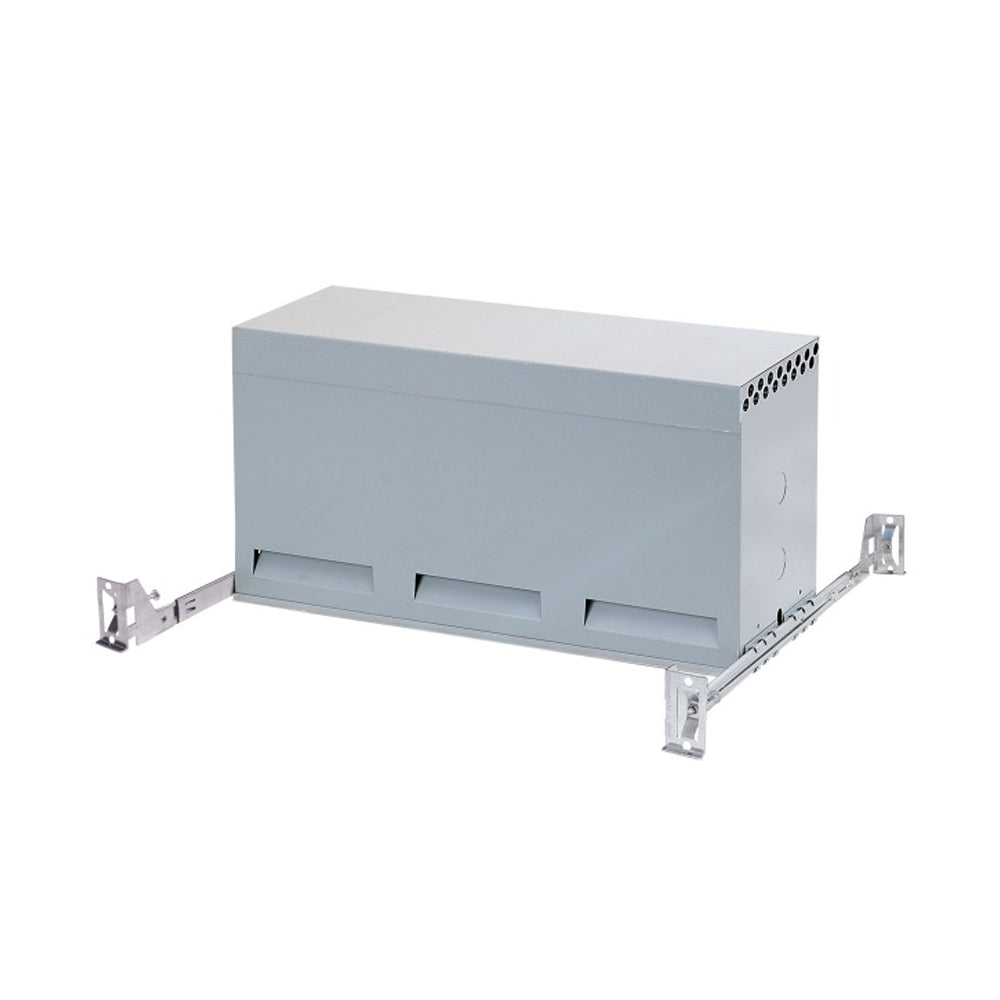

Nora Lighting 3" IC Air Tight Line Voltage MR16 GU10 Housing

Nora Lighting 3" IC Air Tight Line Voltage MR16 GU10 Housing

Line Voltage MR16 GU10 housing provides the crisp reflectance of MR16 light sources in insulated ceiling environments. GU10 lamps are shielded and feature solid, heavy duty turn-and-lock contacts. Noraﾒs GU10 fixture is quick to install, operates on standard incandescent dimming controls, and accepts a wide variety of high quality, adjustable finished trims. IC Recessed housings are high quality, light weight units ideal for use in insulated ceilings. Air-tight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation (except spay foam insulation) and combustive materials.

Features

• IC Air-Tight energy saving by reducing the flow of air through the ceiling
• Rated for direct contact with insulation
• cULus listed for damp location and through branch circuit wiring
• Quick connect provided
• 24-1/2" Bar hangers with captive nails and alignment foot

Housing
0.040 steel frame with integral bar hanger brackets. Brackets can accommodate longer 27" accessory flat bar hangers.Shipping screw installed to provide extra security for transformer during shipment - remove before installation.

Minimum Clearance
IC rated for direct contact with thermal insulation. Not to be used in direct contact with spray foaminsulation.

Air Flow Restriction
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feetper minute) in accordance with ASTM-283 Air-Tight requirements.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slotand alignment feet. Bar hangers are parallel to junction box, but can be repositioned 90ﾺ perpendicular to junction box if desired."L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.

Junction Box
Prewired 15 cubic inch 0.060" thick galvanized steel, with six 1/2" knockouts, four Romex® pryouts, and snap oncover. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads.Through branch circuit wiring, (4-in, 4-out).

Thermal Protector
Standard UL thermal protector rated for 90°C is affixed to side wall surface of housing.

Electrical

• Input Voltage: 120V
• Socket: GU10
• Lamp: MR16 (not included)
• Wattage: 50W max.

Dimension
16-1/4" L x 8-1/8" H x 6-3/8" W
3" Ceiling Cut-Out

Labels and Listings

• cULus Classified for Two Hour Fire Rating
• cULus Listed for Wet Locations when used with compatible trims
• Meets or exceeds ASTM-283 Air-Tight requirements
• ANSI/UL 263
• ANSI/UL 1598

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
