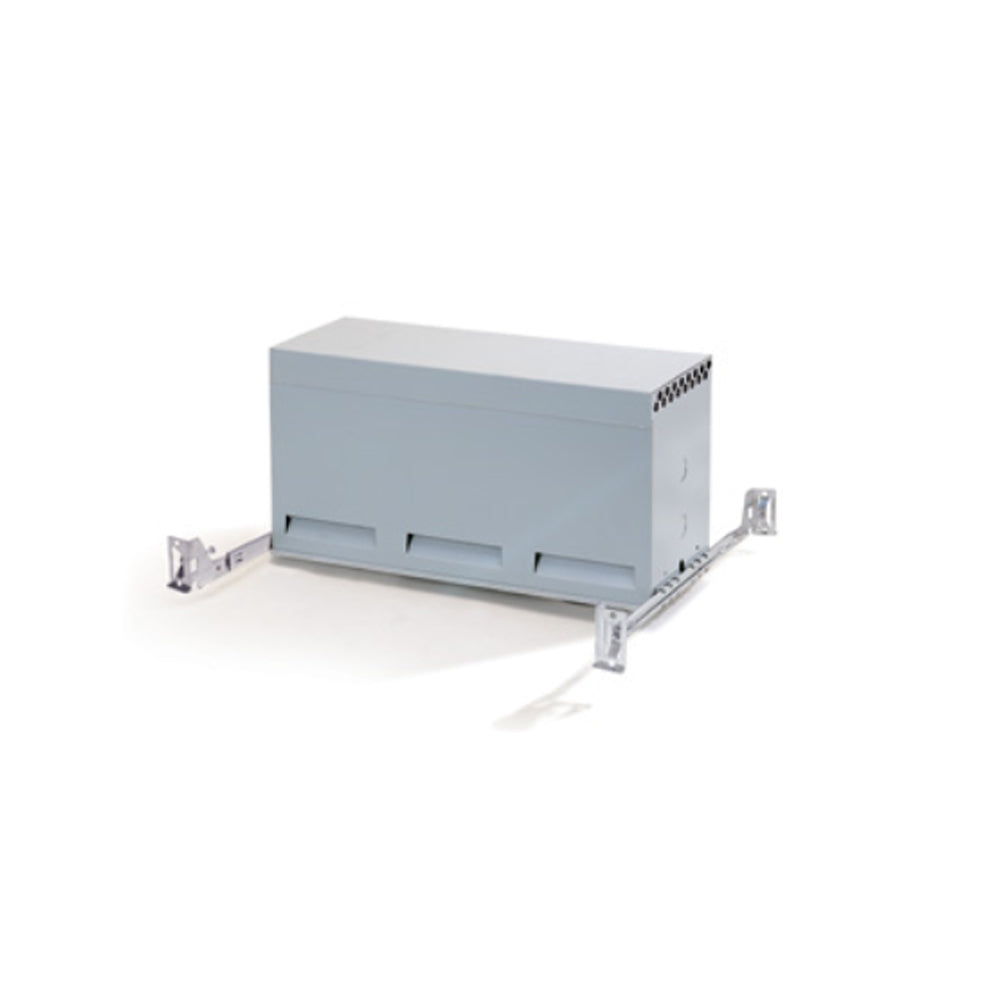

Nora Lighting 3" IC Air Tight Double Wall Low Voltage Housing

Nora Lighting 3" IC Air-Tight Double Wall Low Voltage Housing

3? low voltage IC double wall housing provides soft, brilliant JC or crisp, defined MR16 quartz halogen illumination to any insulated ceiling application. Airtight option offers energy savings by reducing the flow of air through the ceiling. A wide variety of attractive trims provide beautiful decorative enhancements to any ceiling.

Plastic Frame
0.040 steel frame with integral bar hangerbrackets. Brackets can accommodate longer 27" accessoryflat bar hangers. Shipping screw installed to provide extrasecurity for transformer during shipment - remove beforeinstallation.

Housing
0.035 white baked enamel one-piece drawn steel.Adjustable for ceiling thickness up to 1-1/4".

Minimum Clearance
"IC" Housings are direct contact rated;no minimum clearance is required.

Air Flow Restriction
Housing has factory installed gasketsto restrict airflow from room into ceiling plenum to <2CFM(cubic feet per minute) in accordance with ASTM-283Air-Tight requirements.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangerswith captive nails are included on frame. Hanger bars haveT-Bar slot and alignment feet. Bar hangers are parallel tojunction box, but can be repositioned 90° perpendicular tojunction box if desired. "L" Shaped bar hanger foot to alignto bottom of construction joist. A T-Bar notch allows easyinstallation in a suspended ceiling.

Junction Box
Prewired 25 cubic inch 0.060" thick galvanizedsteel, with seven ﾹ/2" knockouts, four Romex® pryouts, andsnap on cover. All leads are #18AWG wire, the ground wire isconnected to the bottom, and quick connectors are suppliedon all leads. Maximum of 8 no. 12 AWG through branch circuitconductors suitable for at least 90°C permitted in junctionbox.

Transformer
Electronic: Thermally protected, single tap input voltageavailable in 12V 60Hz with short circuit protection. Approvedfor use with LED lamps.
Magnetic: Thermally protected, single tap input voltageavailable in 12V 60Hz. Class H.

Dimension
16-ﾹ/4" L x 6-ﾳ/8" W x 8-ﾹ/8" H
3-ﾹ/8" Ceiling Cut-Out

Electrical

• Input Voltage: 120V
• Output Voltage: 12V
• Socket: Bi-Pin GU5.3 socket with heat shield
• Wattage: 50W max. (Can be labeled for lower wattages - Consult Factory)
• Lamp: MR16 (not included)
• Transformer: Electronic or Magnetic (must specify)

Compatible Trims

• NL-3310 Round Adjustable Baffle
• NL-3312 Round Adjustable Reflector
• NL-3318 Round Eyeball with Baffle
• NL-3325 Round Frosted Dome Lens (Wet Listed)
• NL-3326 Round Flat Lens (Wet Listed)
• NL-3345 Round Adjustable Slot Aperture
• NL-3348 Round Wall Wash with Baffle
• NL-3365 Round Adjustable Gimbal
• NL-3410 Square with Round Baffle
• NL-3412 Square with Round Reflector

Optional Accessories

• NRA-28: 27" Flat Bar Hangers
• NRA-36: Replacement socket with heat shield

Labels and Listings

• cULus Listed for Damp Location w/ Feed Through(WETWET Wet Location when used with designated trims)
• Meets or exceeds ASTM-283 Air-Tight Requirements

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
