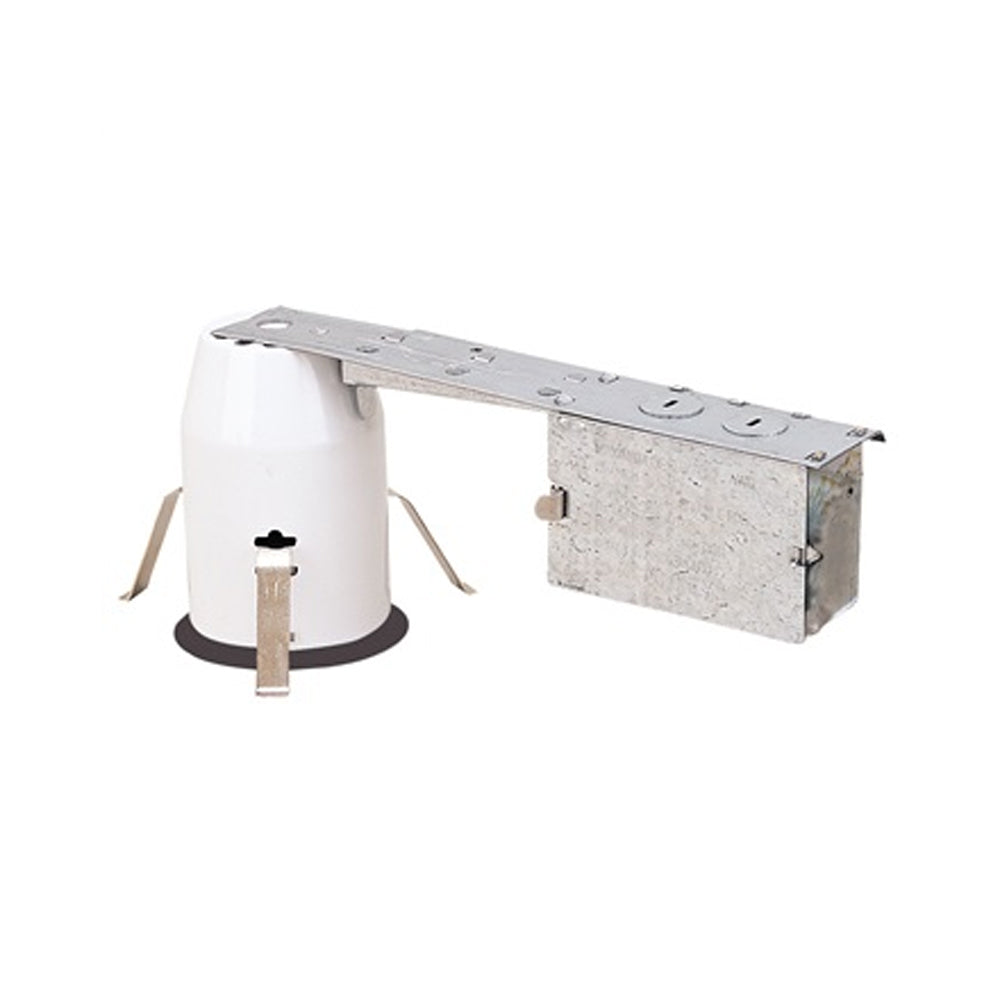

Nora Lighting 3" Air Tight Line Voltage MR16 GU10 Remodel Housing

Nora Lighting 3" Air Tight Line Voltage MR16 GU10 Remodel Housing

Line Voltage MR16 GU10 housing provides the crisp reflectance of MR16 light sources while operating on straight line voltage without transformers. GU10 lamps are shielded and feature solid, heavy duty turn-and-lock contacts. Noraﾒs GU10 fixture is quick to install, operates on standard incandescent dimming controls, and accepts a wide variety of high quality, adjustable finishing trims.

Features

• Air-Tight energy saving by reducing the flow of air through the ceiling
• Internal thermal protection
• cULus listed for damp location and through branch circuit wiring
• Quick connect provided
• 24-1/2" Bar hangers with captive nails and alignment foot

Housing
0.050 white baked enamel one-piece drawn aluminum housing adjusts to a ceiling thickness from 3/8" to 5/8". Housingterminates at 1/4" ceiling flange for even positioning of housing angle within the ceiling. Structural arm consisting of 0.050structural steel connects housing with junction box.

Minimum Clearance
Non-IC housings require a minimum clearance of 3" from thermal insulation and 1/2" from adjacentbuilding components.

Air Flow Restriction
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feetper minute) in accordance with ASTM-283 Air-Tight requirements.

Mounting
Four high tension springs secure the housing to an existing sheet rock ceiling. Accommodates ceiling thickness to1-3/8".

Junction Box
Prewired 15 cubic inch 0.060" thick galvanized steel, with six 1/2" knockouts and four Romex® pryouts. Electricalgrounding automatic when feeding with grounded steel EMT pipe or flex. All leads are #18AWG wire, the ground wire is connectedto the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring (4-in, 4-out).

Thermal Protector
Standard UL thermal protector rated for 90°C is affixed to inner top surface of housing.

Electrical

• Input Voltage: 120V
• Socket: GU10
• Lamp: MR16 (not included)
• Wattage: 50W max.

Dimension
11" L x 4-5/8" H x 3-2/5" W
3" Ceiling Cut-Out

Labels and Listings

• cULus Listed for Damp Location w/ Feed Through (Wet Location when used with designated trims)
• Meets or exceeds ASTM-283 Air-Tight Requirements
• Washington State Approved
