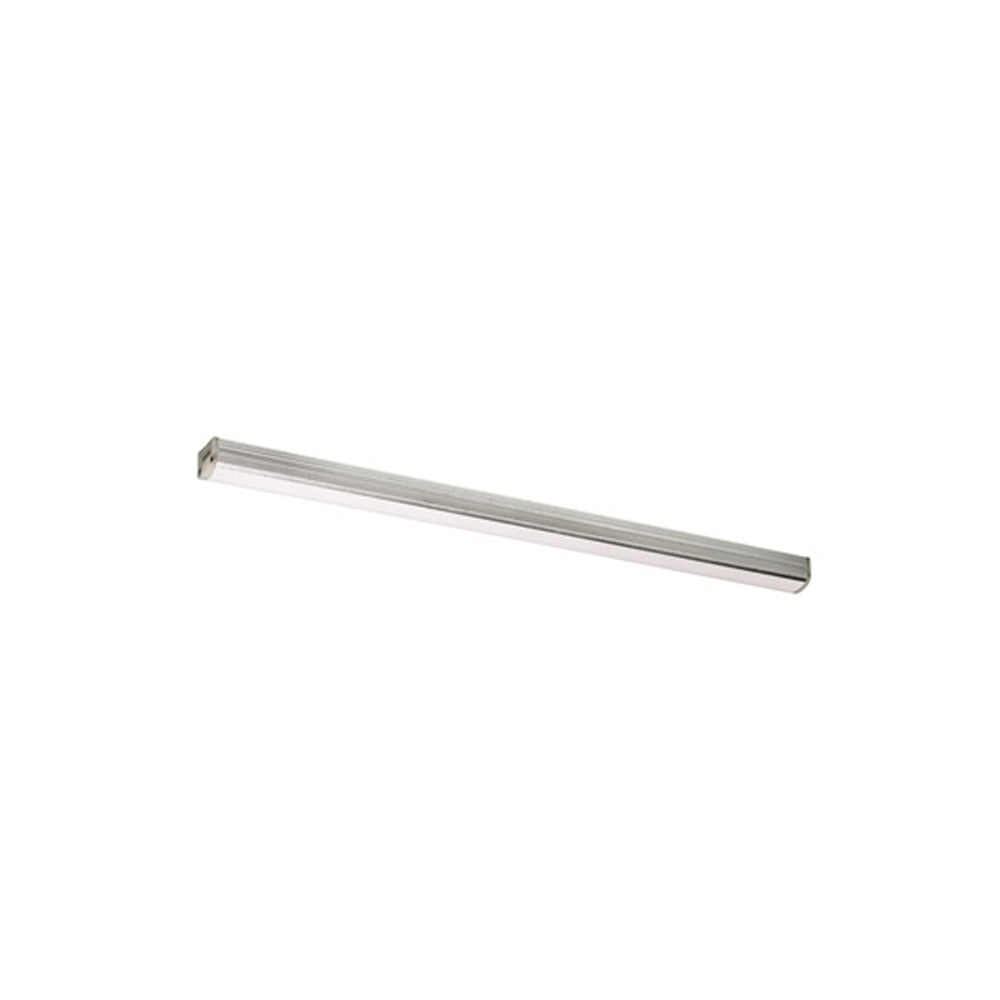

Nora Lighting 12" SILK SBC LED Lightbar

Nora Lighting 12" SILK SBC LED Lightbar

The 24V Silk SBC LED Lightbar produces an incredible 350+ lumens per foot while consuming only 5W at 90+ CRI. The linear luminaire eliminates the diode image to provide uniform reflectance of light without the hot spots generated by direct view mounted LEDs. The Solid Bus Connectors (SBC) provide a rigid connection between bars, while the flush mount adjustable mounting brackets allow complete zero to 90 degree adjustment. Silk features an ultra low-profile and is available in five lengths with a variety of contractor-friendly installation accessories. Silk SBC can be used in under cabinet, in cabinet, cove, display, and general commercial, retail and residential lighting applications.

Features

• Uniform reflectance with NO diode image
• 350 lumens per foot
• 2700K, 3000K or 4000K @ 90+ CRI
• Five different lengths; 6", 12", 24", 36" and 48"
• Easy installation with flush mount 0°-90° adjustable mounting brackets (included)
• Solid Bus Connector (SBC) included
• Dimmable with dimmable power supply
• Aluminum and Black finish
• Can be connected up to 16' per run

INCLUDED WITH EVERY LIGHTBAR
(1) SBC End-to-End Connector [NAL-800], (2) Flat Mounting Clips [NAL-201], (2) 0ﾺ-90ﾺ Adjustable Mounting Clips [NAL-809] Note: 36" and 48" lightbars include three mounting clips each

Construction
Solid aluminum extrusion with flush mounted end caps

Input Voltage
24V

Lumens / Wattage
12" = 350lm / 4.8W

Color Temperature
2700K (While Supplies Last), 3000K or 4000K

CRI
90+ CRI

Operating Temperature
-25°C to 60°C

Dimming
Dimmable with Dimmable LED Driver

Maximum Run Length
16'

Life Expectancy
30,000 hours @ L70

Labels / Listing

• cULus Listed for Damp Location
• 3-Year Limited Warranty

Dimension

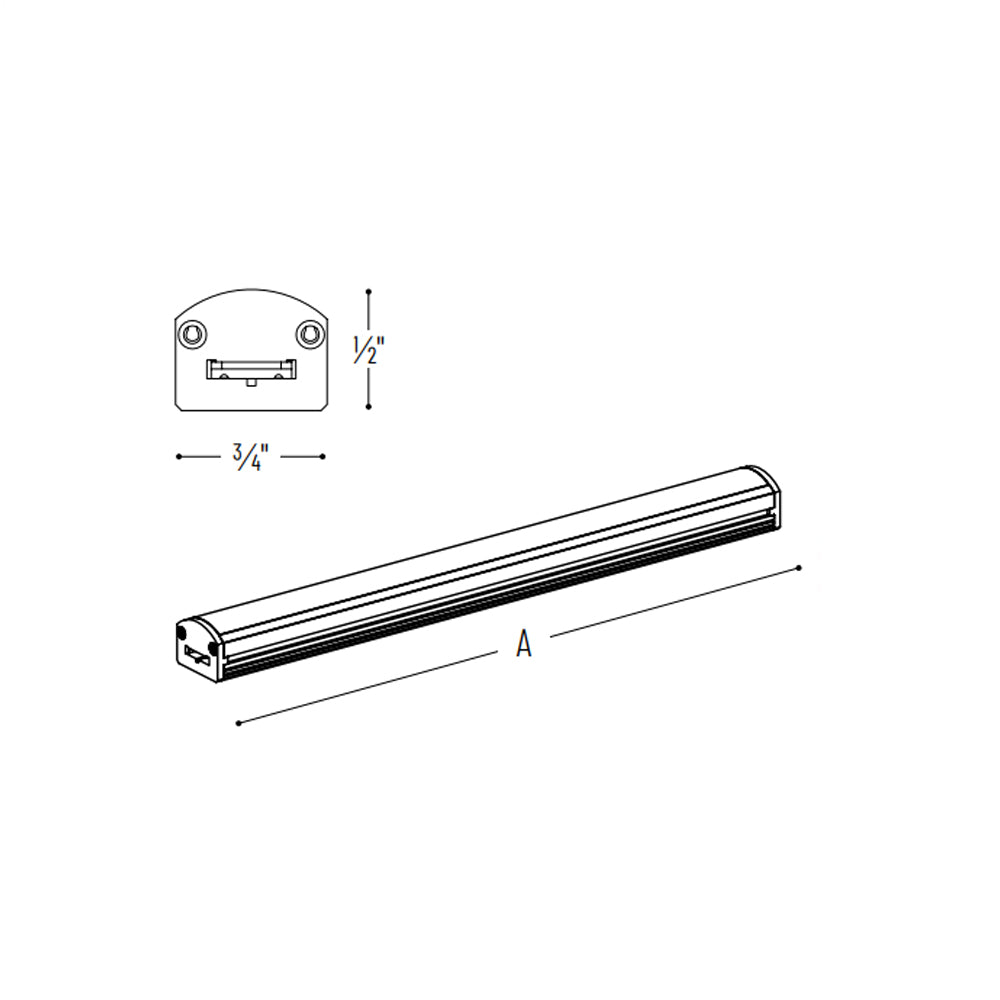

11-14/16" L x 3/4" W x 1/2" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
