Nora Lighting 1" Round Indicator Stainless Steel Trim for M1 Minature Recessed
M1 miniature recessed series features quality and convenience with easy installation for indoor or outdoor applications. The IC rated M1 modules are excellent for niche lighting. Luminaires include four plastic downlight trims, four optics and 6" quick connect. Series is available in four color temperatures (2700K, 3000K, 3500K or 4000K) and requires a Class 2 12V DC driver.
Features
- No housing required
- Easy installation for remodel or new construction applications
- Field changeable optics (spot, narrow flood, flood & wide)
- Threaded LED module allows for field changeable trims
- Quick disconnect allows for extended lengths
- 100lm LED packages
- 2700K, 3000K, 3500K or 4000K @ 90+ CRI
- Triac or ELV dimming
- 5-year limited warranty
- ENERGY STAR certified
Electrical
- Input Voltage: 12V DC
- Lumens / Wattage: 100lm / 2W
- Color Temperature: 2700K, 3000K, 3500K or 4000K
- CRI: 90+CRI
- Beam Spread: 15° Spot, 45° Flood installed, Frosted 60° Wide Flood and Clear 60° Wide Flood (each luminaire includes all four optics)
- Operating Temp: 0-40°C (Undercabinet installation) 0-25°C (Cabinet and IC installation)
- Max. Run Length: Total combined runs cannot exceed 80'
- Dimming: Dimmable down to 10% with Triac or ELV dimmer
Specification
Included with each luminaire: LED module includes four plastic trims (round and square) in black and white finishes. Also included are four optics for desired beam spread and output.
Construction
Threaded LED module allows for field changeable optics and trims.
Clearance
IC rated luminaires are rated for direct contact with insulation (not spray foam insulation). When LED module NM1 is installed in a cabinet type installation, minimum distance between luminaires is 6".
Driver
Class 2 power supply required, ordered separately. NM1-DVR drivers include a pre-wired junction box with quick connect to LED fixtures for ease of installation. NAPKED drivers require splitter cable or wire harness system (ordered separately).
Mounting
No housing is required, two tensions steel spring clips secure luminaire to surface. 1/4" minimum ceiling thickness.
Field Changeable Optics
Each luminaire includes four field changeable optics. 15° spot (frosted), 45° narrow flood (frosted - installed), 60° flood (frosted) and 60° flood (clear).
Finish

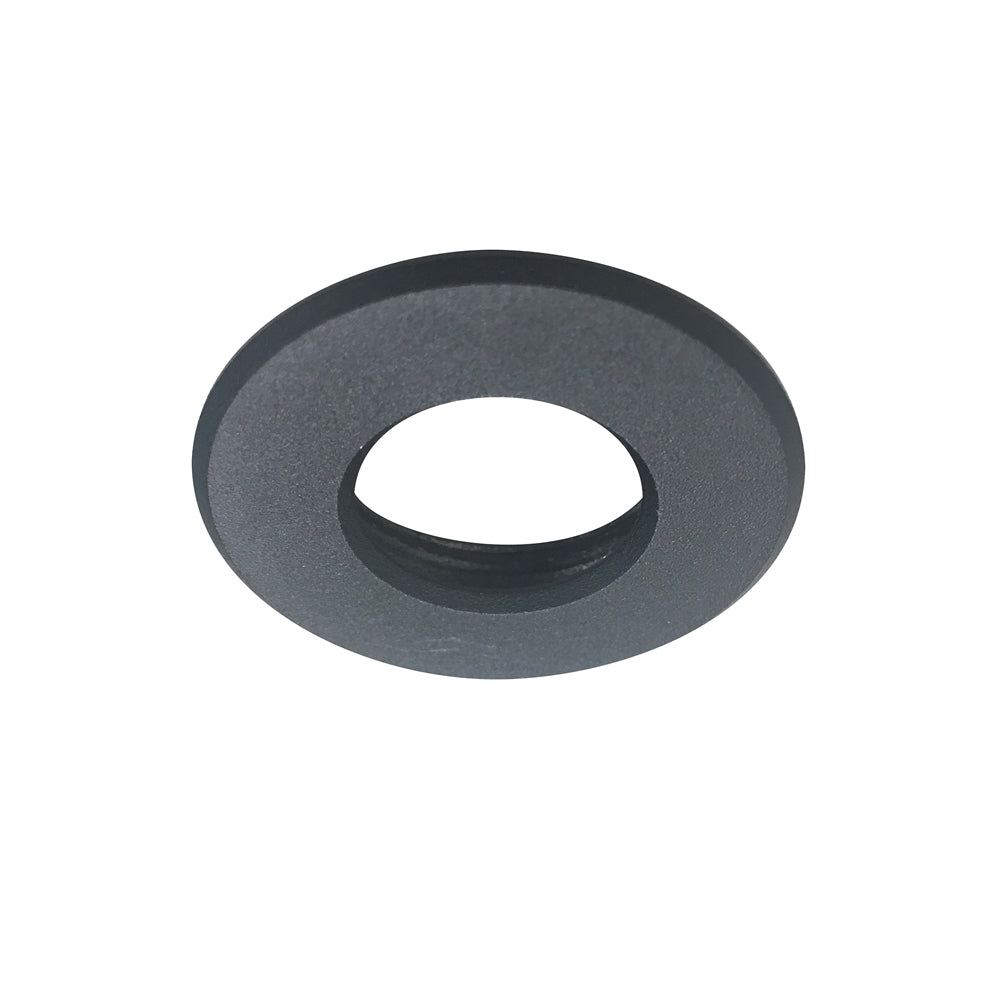

Black

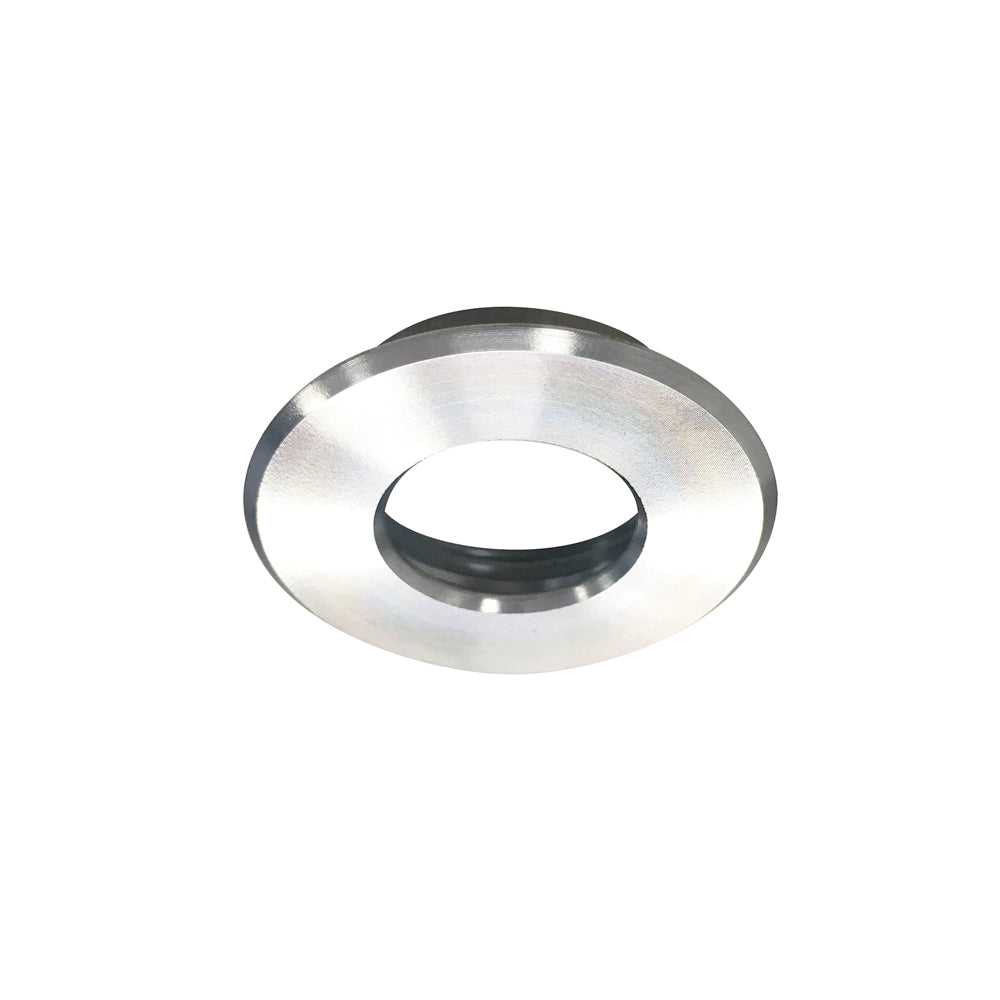

Brushed Nickel

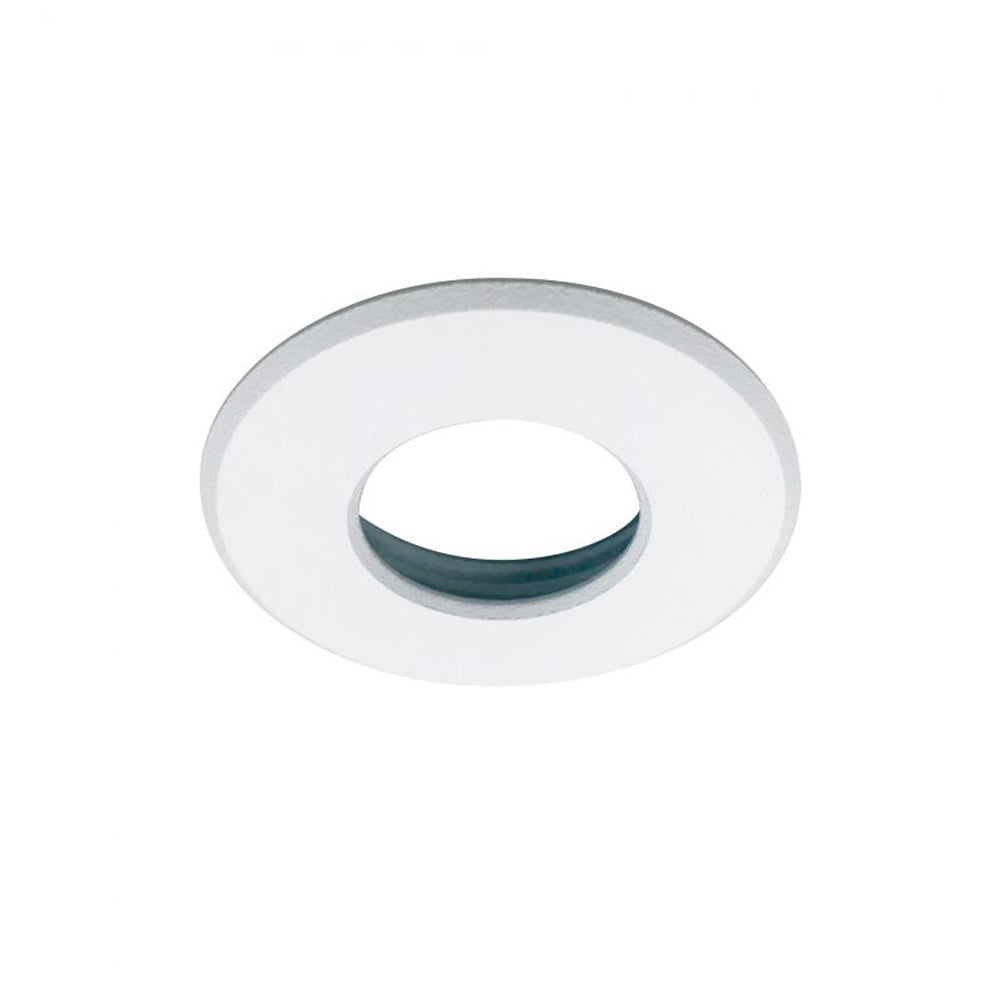

White
